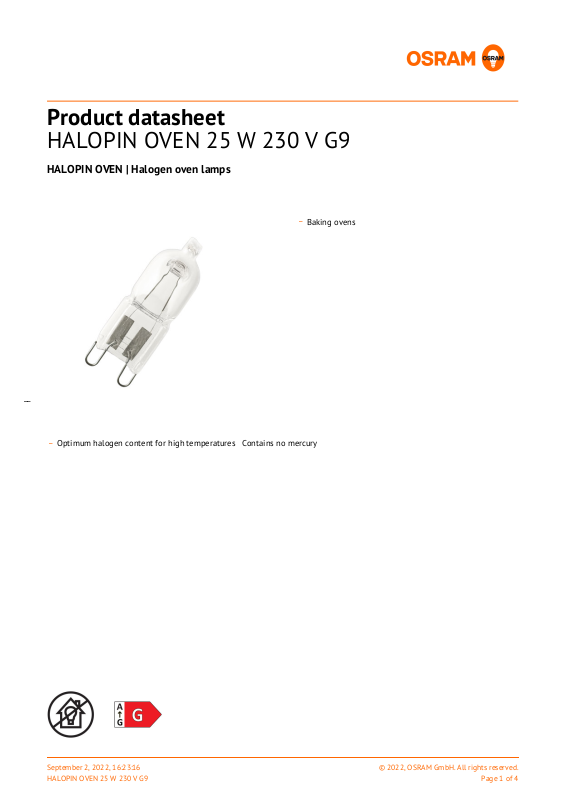

Product datasheet
HALOPIN OVEN 25 W 230 V G9
HALOPIN OVEN | Halogen oven lamps
__
_
Baking ovens
_
Optimum halogen content for high temperatures Contains no mercury
September 2, 2022, 16:23:16 © 2022, OSRAM GmbH. All rights reserved.
HALOPIN OVEN 25 W 230 V G9 Page 1 of 4
Page 2
Product datasheet
Technical data
Electrical data
Nominal wattage 25.00 W
Nominal voltage 230 V
Rated wattage 25.00 W
Photometrical data
Nominal luminous flux 260 lm
Rated color temperature 2700 K
Light color (designation) Warm White
Rated luminous flux 260 lm
Color rendering index Ra 100
Lumen main.fact.at end of nom.life time 0.80
Color temperature 2700 K
Luminous flux 260 lm
Light technical data
Starting time 0.0 s
__
Dimensions & weight
Diameter 14.0 mm
Overall length 43.0 mm
Light center length (LCL) 22.0 mm
Length 43.0 mm
Outer bulb T13,3
Product weight 2.80 g
Maximum diameter 14.0 mm
September 2, 2022, 16:23:16 © 2022, OSRAM GmbH. All rights reserved.
HALOPIN OVEN 25 W 230 V G9 Page 2 of 4
Page 3
Product datasheet
Lifespan
Rated lamp life time 2000 h
Number of switching cycles 50000
Additional product data
Base (standard designation) G9
Mercury content 0.0 mg
Mercury-free Yes
Capabilities
Burning position Any
Dimmable Yes
Non-standard conditions Oven
Certificates & standards
Energy efficiency class G
Energy consumption 25 kWh/1000h
Country specific categorizations
__
ILCOS HSGST/C/UB-25-230-G9-22
Order reference 66725 OVEN 25W
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration 18-04-2022
Primary Article Identifier 4008321515735 | 4008321703552 | 4058075016224
| 4058075016248
Declaration No. in SCIP database In work
Ecodesign regulation information:
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive
2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this
purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal
companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and
materials are recycled.
Logistical Data
September 2, 2022, 16:23:16 © 2022, OSRAM GmbH. All rights reserved.
HALOPIN OVEN 25 W 230 V G9 Page 3 of 4
Page 4
Product datasheet
Product code Product description Packaging unit
(Pieces/Unit)
4008321703552 HALOPIN OVEN 25
W 230 V G9
Shipping carton box
20 Pieces Folding
carton box
Dimensions (length
x width x height)
144 mm x 55 mm x
118 mm
Volume Gross weight
0.93 dm³ 131.00 g
The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or
more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit.
Disclaimer
Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release.
__
September 2, 2022, 16:23:16 © 2022, OSRAM GmbH. All rights reserved.
HALOPIN OVEN 25 W 230 V G9 Page 4 of 4
