Ｓｈａａｎｘｉ Ｈｏｎｇｘｉｎｇ Ｅｌｅｃｔｒｏｎｉｃ Ｃｏｍｐｏｎｅｎｔｓ Ｃｏ．，Ｌｔｄ

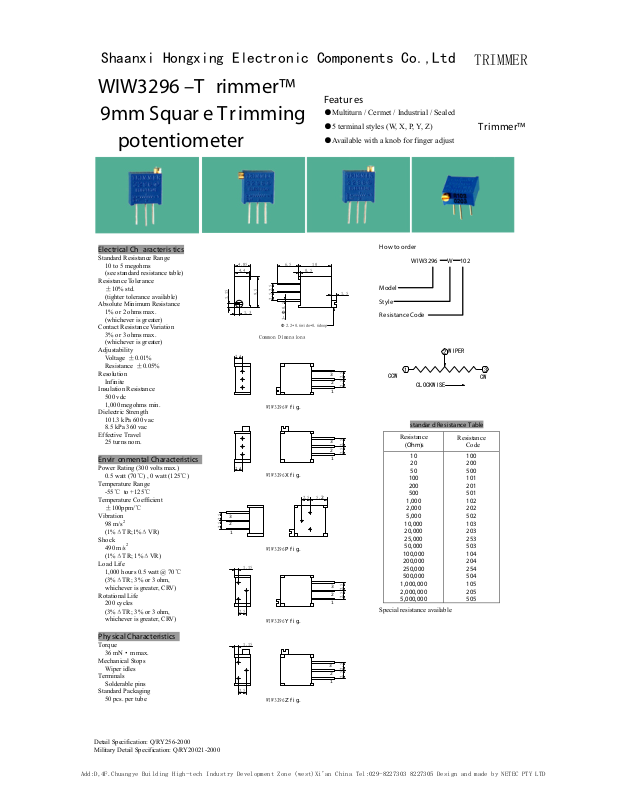

WIW3296 –T rimmer™
9mm Squar e Tr imming
potentiometer
Electrical Ch aracteris tics
Standard Resistance Range
10 to 5 megohms
(see standard resistance table)
Resistance Tolerance
±10% std.
(tighter tolerance available)
Absolute Minimum Resistance
1% or 2 ohms max.
(whichever is greater)
Contact Resistance Variation
3% or 3 ohms max.
(whichever is greater)
Adjustability
Voltage ±0.01%
Resistance ±0.05%
Resolution
Infinite
Insulation Resistance
500 vdc
1,000 megohms min.
Dielectric Strength
101.3 kPa 600 vac
8.5 kPa 360 vac
Effective Travel
25 turns nom.
Envir onmental Characteristics
Power Rating (300 volts max.)
0.5 watt (70℃) , 0 watt (125℃)
Temperature Range
-55℃ to +125℃
Temperature Coefficient
±100ppm/℃
Vibration
2
98 m/s
(1%ΔTR;1%ΔVR)
Shock
2
490 m/s
(1%ΔTR; 1%ΔVR)
Load Life
1,000 hours 0.5 watt @ 70℃
(3%ΔTR; 3% or 3 ohm,
whichever is greater, CRV)
Rotational Life
200 cycles
(3%ΔTR; 3% or 3 ohm,
whichever is greater, CRV)
Physical Characteristics
Torque
36 mN·m max.
Mechanical Stops
Wiper idles
Term in als
Solderable pins
Standard Packaging
50 pcs. per tube
Detail Specification: Q/RY256-2000
Military Detail Specification: Q/RY20021-2000
Ａｄｄ：Ｄ，４Ｆ．Ｃｈｕａｎｇｙｅ Ｂｕｉｌｄｉｎｇ Ｈｉｇｈ－ｔｅｃｈ Ｉｎｄｕｓｔｒｙ Ｄｅｖｅｌｏｐｍｅｎｔ Ｚｏｎｅ （ｗｅｓｔ）Ｘｉ＇ａｎ Ｃｈｉｎａ Ｔｅｌ：０２９－８２２７３０３ ８２２７３０５ Ｄｅｓｉｇｎ ａｎｄ ｍａｄｅ ｂｙ ＮＥＴＥＣ ＰＴＹ ＬＴＤ
４．８５
４．４
９．５
１．１５
１．３

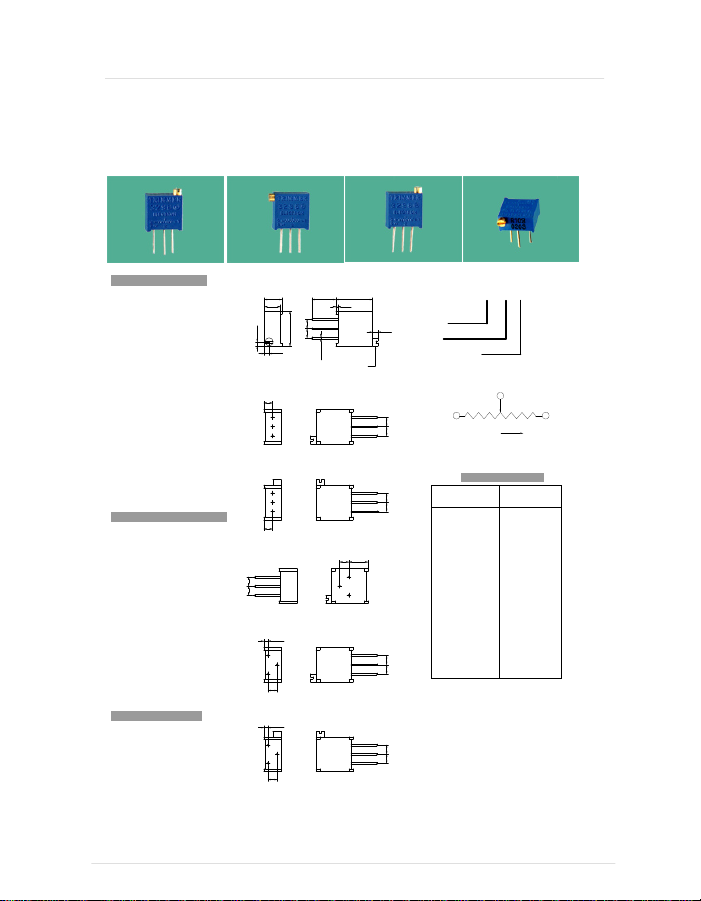

Ｃｏｍｍｏｎ Ｄｉｍｅｎｓｉｏｎｓ
２．４
ＷＩＷ３２９６Ｗ ｆｉｇ．
２．４
ＷＩＷ３２９６Ｘ ｆｉｇ．
３
２．５２．５
２
１
ＷＩＷ３２９６Ｐ ｆｉｇ．
１．１５
２．５
ＷＩＷ３２９６Ｙ ｆｉｇ．
１．１５
２．５
ＷＩＷ３２９６Ｚ ｆｉｇ．
Featur es
●Multiturn / Cermet / Industrial / Sealed
●5 terminal styles (W, X, P, Y, Z)
●Available with a knob for finger adjust
６．５
１０
０．５
２．５ ２．５
３－Φ０．５
Φ２．２＊０．６ｗｉｄｅ＊０．６ｄｅｅｐ
３
２
１
３
２
１
２．５
５．２
３
２
１
３
２
１
１．５
２．５ ２．５ ２．５ ２．５
２．５ ２．５ ２．５ ２．５
How to or der
WIW3296 —W —102
Model
Sty le
Resistance Code
１
ＣＣＷ
ＣＬＯＣＫＷＩＳＥ
standard Re sistance Table
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
25,000
50,000
100,000
200,000
250,000
500,000
1,000,000
2,000,000
5,000,000
Special resistance available
ＷＩＰＥＲ
２
ＴＲＩＭＭＥＲ
Tr immer™
ＣＷ
Resistance
Code
100
200
500
101
201
501
102
202
502
103
203
253
503
104
204
254
504
105
205
505
３
