Page 1
10
100
50
500
200
201
470
471
680
681
2,000
202
2,500
252
5,000
502
10,000
103
22,000
223
33,000
333
50,000
503
150,000
154
220,000
224
330,000
334
500,000
504
2,000,000
205

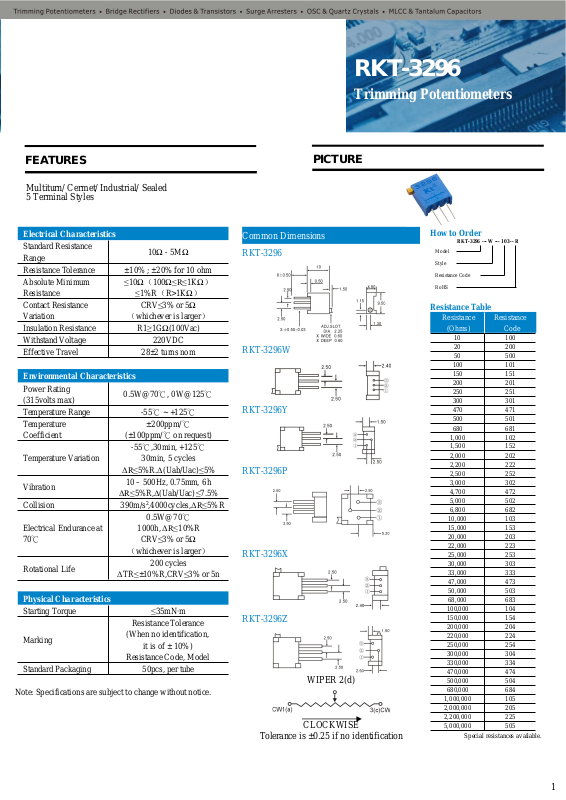

RKT-3296
Multiturn/
Cermet/
Industrial/
Sealed
5
Terminal
Styles
Trimming Potentiometers
FEATURES
Electrical Characteristics
Standard Resistance
Range
Resistance Tolerance ±10% ; ±20% for 10 ohm
AbsoluteMinimum
Resistance
Contact Resistance
Variation
Insulation Resistance R1≥1GΩ(100Vac)
WithstandVoltage 220VDC
Effective Travel 28±2 turns nom
Environmental Characteristics
Power Rating
(315volts max)
Temperature Range -55℃ ~ +125℃
Temperature
Coefficient
Temperature Variation
Vibration
ΔR≤5%R,Δ(Uab/Uac)≤7.5%
Collision 390m/s2,4000cycles,ΔR≤5%R
Electrical Endurance at
70℃
Rotational Life
ΔTR≤±10%R,CRV≤3% or 5n
10Ω -5MΩ
≤10Ω（100Ω≤R≤1KΩ）
≤1%R（R>1KΩ）
CRV≤3% or5Ω
（whichever is larger）
0.5W@70℃, 0W@125℃
±200ppm/℃
(±100ppm/℃ on request)
-55℃,30min, +125℃
30min, 5 cycles
ΔR≤5%R.Δ(Uab/Uac)≤5%
10 – 500Hz, 0.75mm, 6h
0.5W@70℃
1000h,ΔR≤10%R
CRV≤3%or 5Ω
（whichever is larger）
200 cycles
Common Dimensions
RKT-3296
RKT-3296W
RKT-3296Y
RKT-3296P
RKT-3296X
How to Order
RKT-3296 --- W --- 103 -- R
Model
Style
Resistance Code
RoHS
Resistance Table
Resistance
(Ohms)
20 200
100 101
150 151
250 251
300 301
500 501
1,000 102
1,500 152
2,200 222
3,000 302
4,700 472
6,800 682
15,000 153
20,000 203
25,000 253
30,000 303
47,000 473
Resistance
Code
Physical Characteristics
Starting Torque ≤35mN·m
Resistance Tolerance
Marking
(Whenno identification,
it is of ± 10%)
Resistance Code, Model
Standard Packaging 50pcs,per tube
Note:Specificationsare subject to change withoutnotice.
Website: www.kingtronics.com Email: info@kingtronics.c om Tel: (852) 8106 7033 Fax: (852) 8106 7099
RKT-3296Z
WIPER 2(d)
CLOCKWISE
Tolerance is ±0.25 if no identification
68,000 683
100,000 104
200,000 204
250,000 254
300,000 304
470,000 474
680,000 684
1,000,000 105
2,200,000 225
5,000,000 505
Special resistances available.
