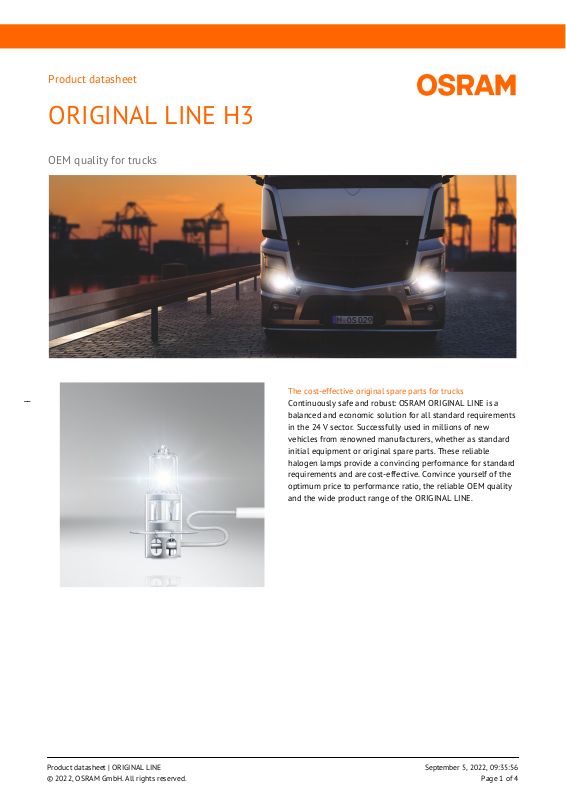

Product datasheet
ORIGINAL LINE H3
OEM quality for trucks
__
The cost-effective original spare parts for trucks
Continuously safe and robust: OSRAM ORIGINAL LINE is a
balanced and economic solution for all standard requirements
in the 24 V sector. Successfully used in millions of new
vehicles from renowned manufacturers, whether as standard
initial equipment or original spare parts. These reliable
halogen lamps provide a convincing performance for standard
requirements and are cost-effective. Convince yourself of the
optimum price to performance ratio, the reliable OEM quality
and the wide product range of the ORIGINAL LINE.
Product datasheet | ORIGINAL LINE September 5, 2022, 09:35:56
© 2022, OSRAM GmbH. All rights reserved. Page 1 of 4
Page 2
Product datasheet
Technical data
Product information
Order reference 64156
Application (Category and Product specific) Halogen headlight lamp
Electrical data
Power input 84 W
Nominal voltage 24.0 V
Nominal wattage 70.00 W
Test voltage 28.0 V
1)
Maximum
Photometrical data
Luminous flux 1750 lm
Luminous flux tolerance ±15 %
Color temperature 3200 K
Dimensions & weight
__
1)
Length 44.0 mm
Diameter 11.5 mm
Product weight 6.90 g
Lifespan
Lifespan B3 400 h
Lifespan Tc 650 h
Additional product data
Base (standard designation) PK22s
Product datasheet | ORIGINAL LINE September 5, 2022, 09:35:56
© 2022, OSRAM GmbH. All rights reserved. Page 2 of 4
Page 3
Product datasheet
Capabilities
Technology HAL
Certificates & standards
ECE category H3
Country specific categorizations
Order reference 64156
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration 01-04-2022
Primary Article Identifier 4050300565811 | 4050300985886 | 4050300881461
| 4008321014412 | 4008321014511 |
4008321021304 | 4008321021328 | 4008321371638
| 4052899412125 | 4052899424494 |
4058075021938 | 4052899432208 | 4052899563261
| 4052899576377 | 4062172027335 |
4062172121415 | 4062172232333 | 4062172285896
Candidate List Substance 1 No declarable substances contained
Declaration No. in SCIP database In work
__
Logistical Data
Product code Product description Packaging unit
(Pieces/Unit)
4050300565811 ORIGINAL LINE H3 Blister
1
4050300565828 ORIGINAL LINE H3 Shipping carton box10225 mm x 145 mm x
Dimensions (length
x width x height)
135 mm x 95 mm x
24 mm
108 mm
Volume Gross weight
0.31 dm³ 29.00 g
3.52 dm³ 241.50 g
The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or
more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit.
Download Data
File
360 Degree Image
ORIGINAL TRUCK H3 64156
Application advice
Product datasheet | ORIGINAL LINE September 5, 2022, 09:35:56
© 2022, OSRAM GmbH. All rights reserved. Page 3 of 4
Page 4
Product datasheet
For more detailed application information and graphics please see product datasheet.
Disclaimer
Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release.
