Cable Protection Systems
OD
H
FH
OD
H
FH
OD
FH
H
OD
FH
H
OD
FH
OD
FH
H
OD
FH
H
OD
FH
H
3.8

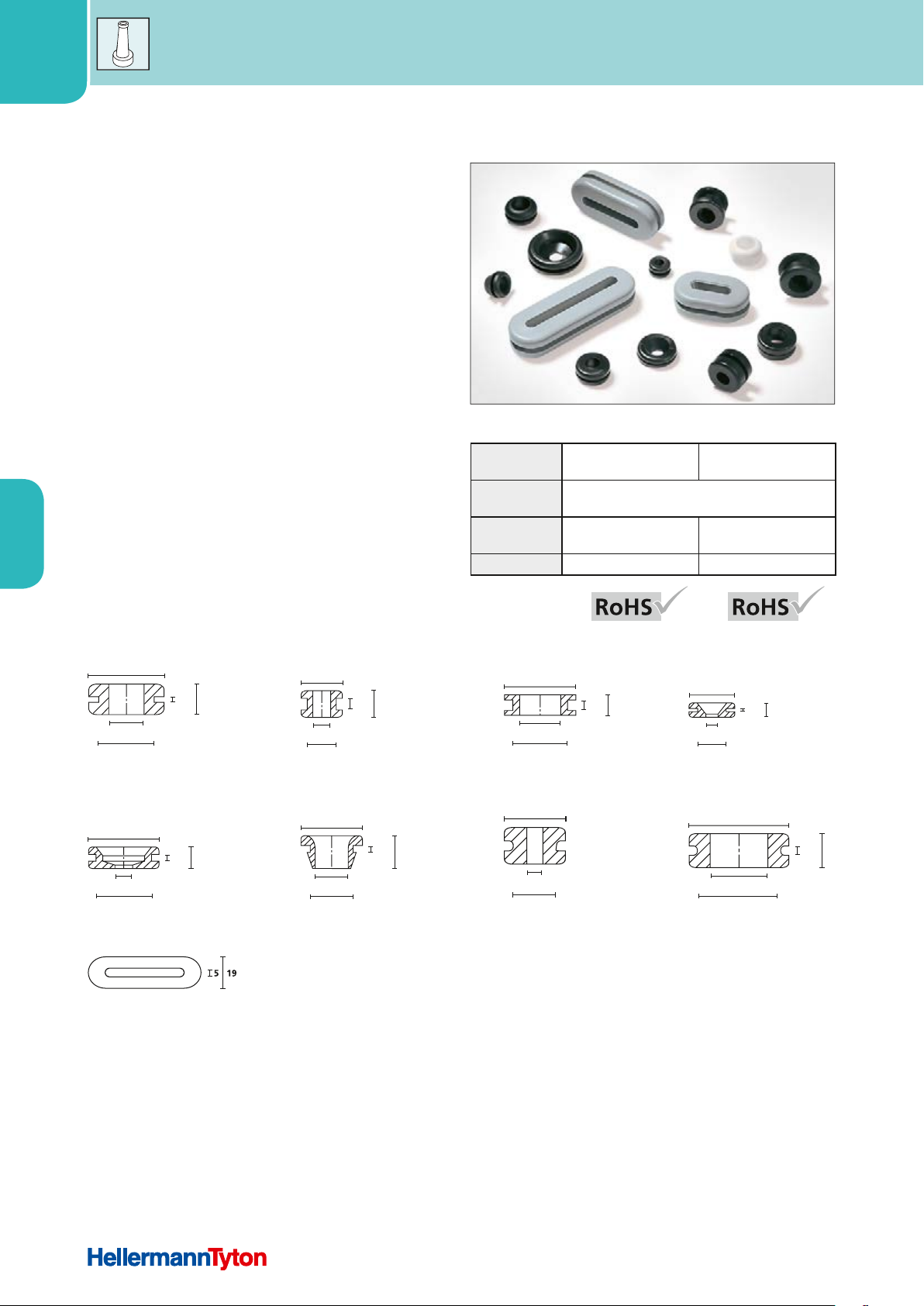

Grommets
Egde protection grommets
Edge protection grommets are used wherever cable and wires are
routed through outlets and apertures. HellermannTyton grommets offer
excellent mechanical protection.
Features and Benefits
• Protects cables from sharp edges
• Provides additional strain relief
• Flexible and easy to apply
• High resistance to chemicals and environmental influences
Edge protection grommets.
MATERIAL
Operating
Temperature
Shore
Hardness A
Flammability UL94 HB UL94 V0
Polyvinylchloride (PVC)
-30 °C to +60 °C
70±5 56±5
Polyvinylchloride,
flame retardant (PVC-FR)
D
HV1101
D
HV1402
HV1606 to HV1608
H2
H2
H2
D
HV1201 to HV1218
D
HV1502 to OP1503
H2
D
HV1301 to HV1305
D
HV1606 to HV1608
H2
H2
D
HV1401
H2
D
HV1606 to HV1608
348
Date of issue: April 2016
Further information at www.HellermannTyton.co.uk/protection
Page 2
Cable Protection Systems
Grommets
Egde protection grommets
Bundle
TYPE Drawing
HV1101
HV1212
HV1201 9.5 6.4 4.0 5.6 1.6 PVC-FR Black (BK) 633-02010
HV1201B 9.5 6.4 4.0 6.5 2.5 PVC-FR Black (BK) 633-02020
HV1215 10.0 8.0 6.0 5.0 1.0 PVC-FR Black (BK) 633-02150
HV1209 11.0 9.0 4.0 5.5 1.5 PVC-FR Black (BK) 633-02090
HV1208 14.0 9.5 8.0 8.0 1.5 PVC-FR Black (BK) 633-02080
HV1207 14.0 10.0 6.0 6.4 1.5 PVC-FR Black (BK) 633-02070
HV1218 14.0 10.0 6.0 9.0 4.0 PVC-FR Black (BK) 633-02180
HV1216 14.5 8.0 5.0 6.5 1.5 PVC-FR Black (BK) 633-02160
HV1210 15.0 9.0 6.0 10.5 2.0 PVC-FR Black (BK) 633-02100
HV1203 17.5 12.0 10.0 6.8 2.0 PVC-FR Black (BK) 633-02030
HV1204 17.5 12.0 10.0 8.8 4.0 PVC-FR Black (BK) 633-02040
HV1206 17.5 12.0 10.0 10.8 6.0 PVC-FR Black (BK) 633-02060
HV1205 17.5 13.5 10.0 8.7 4.0 PVC-FR Black (BK) 633-02050
HV1303
HV1301 15.9 11.0 8.0 7.0 1.0 PVC-FR Black (BK) 633-03010
HV1302 15.9 11.0 8.0 9.0 3.0 PVC-FR Black (BK) 633-03020
HV1304 15.9 11.0 8.0 10.8 6.0 PVC-FR Black (BK) 633-03040
HV1305
Ø max.
25.5 19.0 12.0 10.0 1.6 PVC-FR Black (BK) 633-01010
9.0 6.0 4.0 7.0 1.0 PVC-FR Black (BK) 633-02120
15.9 11.0 8.0 6.4 1.6 PVC-FR Black (BK) 633-03030
24.0 18.0 14.0 7.0 3.0 PVC-FR Black (BK) 633-03050
24.0 18.0 14.0 7.0 3.0 PVC-FR White (WH) 633-03059
Hole Ø
(FH)
Ø
D
Height
(H)
Height
(H2) Material Colour Article-No.
3.8
HV1401
HV1402
HV1502
HV1606
HV1607
HV1608
All dimensions in mm. Subject to technical changes.
15.9 9.5 5.0 4.8 0.8 PVC-FR Black (BK) 633-04010
23.0 18.5 6.0 7.0 2.0 PVC-FR Black (BK) 633-04020
11.5 8.0 6.5 8.0 1.5 PVC Black (BK) 633-05020
31.0 25.0 17.0 11.0 3.0 PVC-FR Grey (GY) 633-06068
43.0 37.0 29.0 11.0 3.0 PVC-FR Grey (GY) 633-06078
58.0 52.0 44.0 11.0 3.0 PVC-FR Grey (GY) 633-06088
Date of issue: April 2016
Further information at www.HellermannTyton.co.uk/protection
