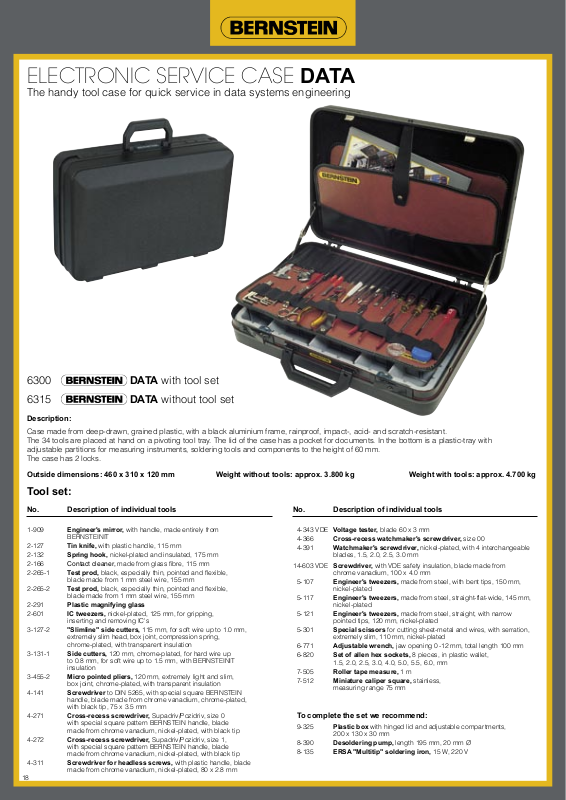

Datasheet 6315 Specification

Page 1
18
6300Z DATA with tool set
6315 Z DATA without tool set
Description:
Case made from deep-drawn, grained plastic, with a black aluminium frame, rainproof, impact-, acid- and scratch-resistant. The 34 tools are placed at hand on a pivoting tool tray. The lid of the case has a pocket for documents. In the bottom is a plastic-tray with adjustable partitions for measuring instruments, soldering tools and components to the height of 60 mm. The case has 2 locks.
Outside dimensions: 460 x 310 x 120 mm Weight without tools: approx. 3.800 kg Weight with tools: approx. 4.700 kg
Tool set:
No. Description of individual tools
1-909 Engineer's mirror, with handle, made entirely from BERNSTEINIT
2-127 Tin knife, with plastic handle, 115 mm 2-132 Spring hook, nickel-plated and insulated, 175 mm 2-166 Contact cleaner, made from glass fibre, 115 mm 2-265-1 Test prod, black, especially thin, pointed and flexible,
blade made from 1 mm steel wire, 155 mm 2-265-2 Test prod, black, especially thin, pointed and flexible,
blade made from 1 mm steel wire, 155 mm 2-291 Plastic magnifying glass 2-601 IC tweezers, nickel-plated, 125 mm, for gripping,
inserting and removing IC's 3-127-2 "Slimline" side cutters, 115 mm, for soft wire up to 1.0 mm,
extremely slim head, box joint, compression spring, chrome-plated, with transparent insulation
3-131-1 Side cutters, 120 mm, chrome-plated, for hard wire up to 0.8 mm, for soft wire up to 1.5 mm, with BERNSTEINIT insulation
3-455-2 Micro pointed pliers, 120 mm, extremely light and slim, box joint, chrome-plated, with transparent insulation
4-141 Screwdriver to DIN 5265, with special square BERNSTEIN handle, blade made from chrome vanadium, chrome-plated, with black tip, 75 x 3.5 mm
4-271 Cross-recess screwdriver, Supadriv/Pozidriv, size 0 with special square pattern BERNSTEIN handle, blade made from chrome vanadium, nickel-plated, with black tip
4-272 Cross-recess screwdriver, Supadriv/Pozidriv, size 1, with special square pattern BERNSTEIN handle, blade made from chrome vanadium, nickel-plated, with black tip
4-311 Screwdriver for headless screws, with plastic handle, blade made from chrome vanadium, nickel-plated, 80 x 2.8 mm
No. Description of individual tools
4-343 VDE Voltage tester, blade 60 x 3 mm 4-366 Cross-recess watchmaker's screwdriver, size 00 4-391 Watchmaker's screwdriver, nickel-plated, with 4 interchangeable
blades, 1.5, 2.0, 2.5, 3.0 mm
14-603 VDE Screwdriver, with VDE safety insulation, blade made from chrome vanadium, 100 x 4.0 mm
5-107 Engineer's tweezers, made from steel, with bent tips, 150 mm, nickel-plated
5-117 Engineer's tweezers, made from steel, straight-flat-wide, 145 mm, nickel-plated
5-121 Engineer's tweezers, made from steel, straight, with narrow pointed tips, 120 mm, nickel-plated
5-301 Special scissors for cutting sheet-metal and wires, with serration, extremely slim, 110 mm, nickel-plated
6-771 Adjustable wrench, jaw opening 0-12 mm, total length 100 mm 6-820 Set of allen hex sockets, 8 pieces, in plastic wallet,
1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 5.5, 6.0, mm 7-505 Roller tape measure, 1 m 7-512 Miniature caliper square, stainless,
measuring range 75 mm
To complete the set we recommend:
9-325 Plastic box with hinged lid and adjustable compartments, 200 x 130 x 30 mm
8-390 Desoldering pump, length 195 mm, 20 mm Ø 8-135 ERSA "Multitip" soldering iron, 15 W, 220 V
ELECTRONIC SERVICE CASE DATA
The handy tool case for quick service in data systems engineering
