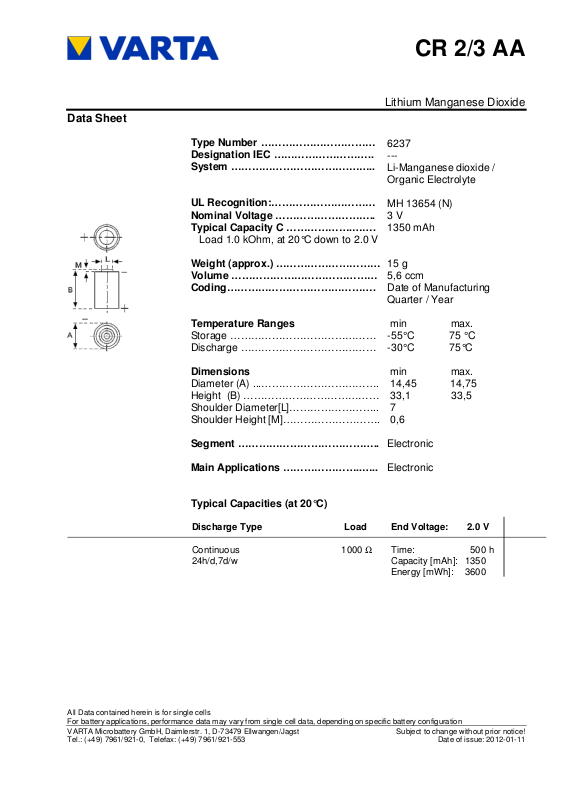

Page 1
CR 2/3 AA
Lithium Manganese Dioxide
Data Sheet
Discharge Type Load End Voltage: 2.0 V
Continuous
24h/d,7d/w Capacity [mAh]: 1350
Energy [mWh]: 3600
All Data contained herein is for single cells
For battery applications, performance data may vary from single cell data, depending on specific battery configuration
VARTA Microbattery GmbH, Daimlerstr. 1, D-73479 Ellwangen/Jagst Subject to change without prior notice!
Tel.: (+49) 7961/921-0, Telefax: (+49) 7961/921-553 Date of issue: 2012-01-11
Type Number ……………………………
Designation IEC ………………………..
System …………………………….……..
UL Recognition:…………………………
Nominal Voltage ………………………..
Typical Capacity C ……………….…….
Load 1.0 kOhm, at 20°C down to 2.0 V
Weight (approx.) …………………………
Volume ……………………………………
Coding…………………………………….
Temperature Ranges
Storage ……………………………………
Discharge …………………………………
Dimensions
Diameter (A) ...…………………………….
Height (B) …………………………………
Shoulder Diameter[L]……………………..
Shoulder Height [M]……………………….
Segment …………………………………..
Main Applications …………………..…..
Typical Capacities (at 20°C)
1000 Ω Time: 500 h
6237
--Li-Manganese dioxide /
Organic Electrolyte
MH 13654 (N)
3 V
1350 mAh
15 g
5,6 ccm
Date of Manufacturing
Quarter / Year
min max.
-55°C 75 °C
-30°C 75°C
min max.
14,45 14,75
33,1 33,5
7
0,6
Electronic
Electronic
