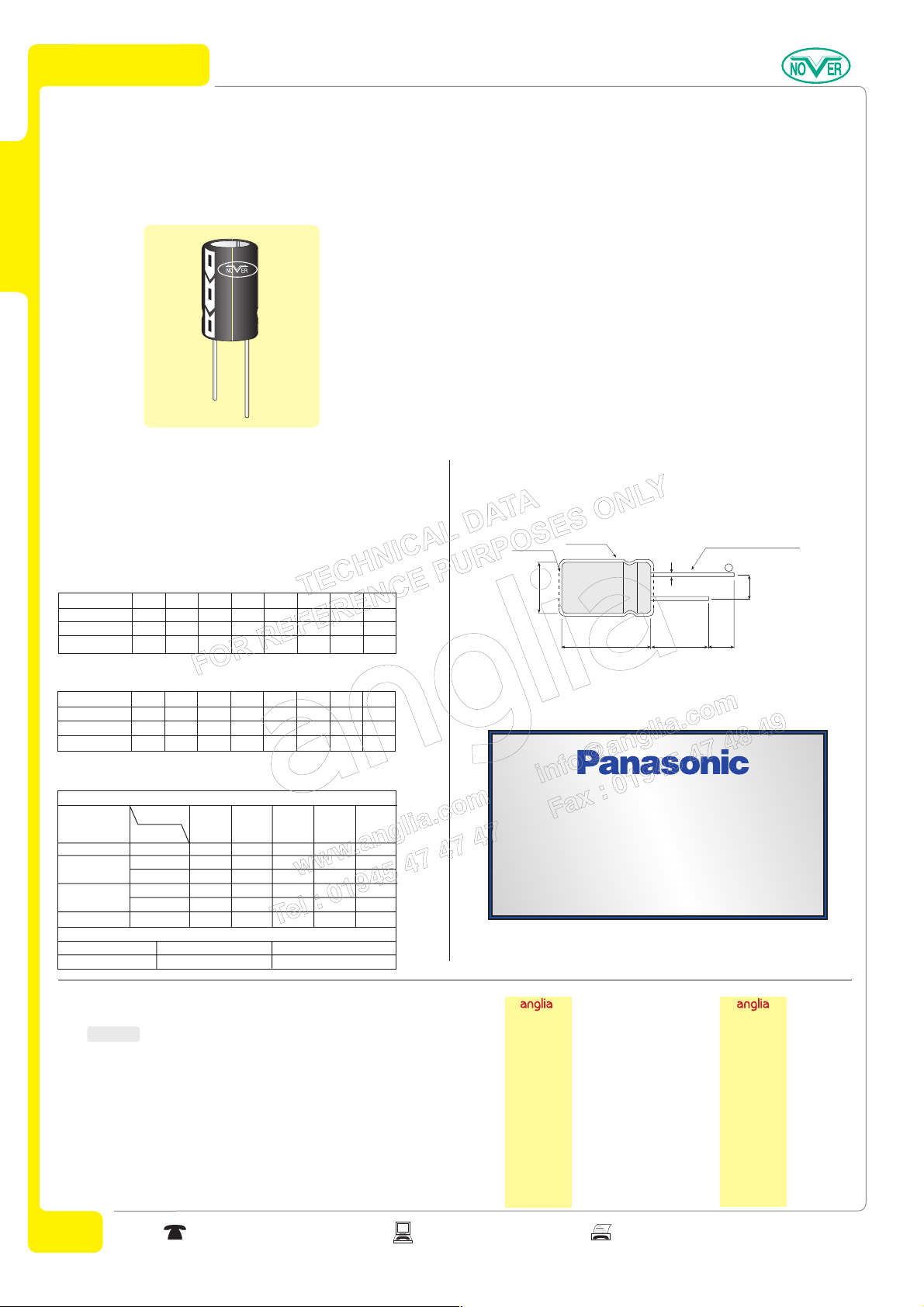

ELECTROLYTIC, Radial
01945 47 47 47
01945 47 48 49
www.anglia.com
CAPACITORS
60
◆ Standard range
◆ Longer life
◆ Endurance 2000 hours at 85°C
◆ Solvent resistant
◆ Very competitively priced
◆ Capacitance tolerance 20%
◆ Leakage current ≤0.01CV
◆ Body colour Black
◆ Supplied loose or taped & boxed
Dimensions (mm)
15 min.
L
Dia
Vinyl sleeve
Tinned copper-clad steel wire
ød
Pitch
5 min.
+
Dia x L are can sizes only. To allow for sleeve add 0.5 to Dia and 1.0 to L (2.0 L≥20)
Vent (Dia ≥ 6.3)
ød = 0.5 (Dia ≤6.3)
0.6 (Dia 8–12.5)
0.8 (Dia ≥16)

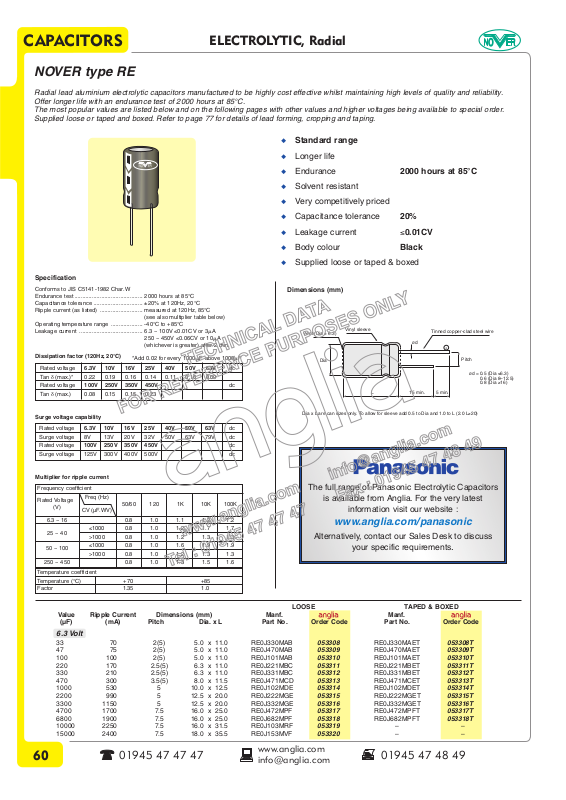

NOVER type RE
Radial lead aluminium electrolytic capacitors manufactured to be highly cost effective whilst maintaining high levels of quality and reliability.
Offer longer life with an endurance test of 2000 hours at 85°C.
The most popular values are listed below and on the following pages with other values and higher voltages being available to special order.
Supplied loose or taped and boxed. Refer to page 77 for details of lead forming, cropping and taping.
LOOSE TAPED & BOXED
Value Ripple Current Dimensions (mm) Manf. Manf.
(µF) (mA) Pitch Dia. x L Part No. Order Code Part No. Order Code
6.3 Volt
33 70 2(5) 5.0 x 11.0 RE0J330MAB 053308 RE0J330MAET 053308T
47 75 2(5) 5.0 x 11.0 RE0J470MAB 053309 RE0J470MAET 053309T
100 100 2(5) 5.0 x 11.0 RE0J101MAB 053310 RE0J101MAET 053310T
220 170 2.5(5) 6.3 x 11.0 RE0J221MBC 053311 RE0J221MBET 053311T
330 210 2.5(5) 6.3 x 11.0 RE0J331MBC 053312 RE0J331MBET 053312T
470 300 3.5(5) 8.0 x 11.5 RE0J471MCD 053313 RE0J471MCET 053313T
1000 530 5 10.0 x 12.5 RE0J102MDE 053314 RE0J102MDET 053314T
2200 990 5 12.5 x 20.0 RE0J222MGE 053315 RE0J222MGET 053315T
3300 1150 5 12.5 x 20.0 RE0J332MGE 053316 RE0J332MGET 053316T
4700 1700 7.5 16.0 x 25.0 RE0J472MPF 053317 RE0J472MPFT 053317T
6800 1900 7.5 16.0 x 25.0 RE0J682MPF 053318 RE0J682MPFT 053318T
10000 2250 7.5 16.0 x 31.5 RE0J103MRF 053319 ––
15000 2400 7.5 18.0 x 35.5 RE0J153MVF 053320 ––
Rated voltage 6.3V 10V 16V 25V 40V 50V 63V dc
Tan 웃 (max.)* 0.22 0.19 0.16 0.14 0.11 0.10 0.09
Rated voltage 100V 250V 350V 450V dc
Tan 웃 (max.) 0.08 0.15 0.15 0.23
Rated voltage 6.3V 10V 16V 25V 40V 50V 63V dc
Surge voltage 8V 13V 20V 32V 50V 63V 79V dc
Rated voltage 100V 250V 350V 450V dc
Surge voltage 125V 300V 400V 500V dc
*Add 0.02 for every 1000애F above 1000애F
Conforms to JIS C5141-1982 Char.W
Endurance test ........................................... 2000 hours at 85°C
Capacitance tolerance ............................... ±20% at 120Hz, 20°C
Ripple current (as listed) ........................... measured at 120Hz, 85°C
(see also multiplier table below)
Operating temperature range .................... -40°C to +85°C
Leakage current ........................................ 6.3 ~ 100V ≤0.01CV or 3애A
250 ~ 450V ≤0.06CV or 10애A
(whichever is greater) after 2 min.
Specification
Dissipation factor (120Hz, 20°C)
Multiplier for ripple current
Frequency coefficient
Rated Voltage
Freq (Hz)
50/60 120 1K 10K 100K
(V)
CV (µF.WV)
6.3 ~ 16 0.8 1.0 1.1 1.2 1.2
25 ~ 40
≤1000 0.8 1.0 1.2 1.7 1.7
>1000 0.8 1.0 1.2 1.3 1.3
≤1000 0.8 1.0 1.6 1.9 1.9
50 ~ 100
>1000 0.8 1.0 1.2 1.3 1.3
250 ~ 450 0.8 1.0 1.3 1.5 1.6
Temperature coefficient
Temperature (°C) +70 +85
Factor 1.35 1.0
Surge voltage capability
The full range of Panasonic Electrolytic Capacitors
is available from Anglia. For the very latest
information visit our website :
www.anglia.com/panasonic
Alternatively, contact our Sales Desk to discuss
your specific requirements
.
Page 2
ELECTROLYTIC, Radial
01945 47 47 47
01945 47 48 49
www.anglia.com
CAPACITORS
61
LOOSE TAPED & BOXED
Value Ripple Current Dimensions (mm) Manf. Manf.
(µF) (mA) Pitch Dia. x L Part No. Order Code Part No. Order Code
10 Volt
22 55 2(5) 5.0 x 11.0 RE1A220MAB 053007 RE1A220MAET 053007T
33 70 2(5) 5.0 x 11.0 RE1A330MAB 053008 RE1A330MAET 053008T
47 75 2(5) 5.0 x 11.0 RE1A470MAB 053009 RE1A470MAET 053009T
100 110 2(5) 5.0 x 11.0 RE1A101MAB 053010 RE1A101MAET 053010T
220 190 2.5(5) 6.3 x 11.0 RE1A221MBC 053011 RE1A221MBET 053011T
330 270 3.5(5) 8.0 x 11.5 RE1A331MCD 053012 RE1A331MCET 053012T
470 330 3.5(5) 8.0 x 11.5 RE1A471MCD 053013 RE1A471MCET 053013T
1000 620 5 10.0 x 16.0 RE1A102MEE 053014 RE1A102MEET 053014T
2200 1050 5 12.5 x 20.0 RE1A222MGE 053015 RE1A222MGET 053015T
3300 1350 5 12.5 x 25.0 RE1A332MHE 053215 RE1A332MHET 053215T
4700 1800 7.5 16.0 x 25.0 RE1A472MPF 053216 RE1A472MPFT 053216T
6800 2200 7.5 16.0 x 31.5 RE1A682MRF 053217 ––
10000 2750 7.5 18.0 x 35.5 RE1A103MVF 053218 ––
16 Volt
10 40 2(5) 5.0 x 11.0 RE1C100MAB 053016 RE1C100MAET 053016T
22 55 2(5) 5.0 x 11.0 RE1C220MAB 053017 RE1C220MAET 053017T
33 70 2(5) 5.0 x 11.0 RE1C330MAB 053018 RE1C330MAET 053018T
47 80 2(5) 5.0 x 11.0 RE1C470MAB 053019 RE1C470MAET 053019T
100 140 2.5(5) 6.3 x 11.0 RE1C101MBC 053020 RE1C101MBET 053020T
220 220 2.5(5) 6.3 x 11.0 RE1C221MBC 053421 RE1C221MBET 053421T
220 240 3.5(5) 8.0 x 11.5 RE1C221MCD 053021 RE1C221MCET 053021T
330 300 3.5(5) 8.0 x 11.5 RE1C331MCD 053022 RE1C331MCET 053022T
470 400 3.5(5) 8.0 x 11.5 RE1C471MCD 053423 RE1C471MCET 053423T
470 420 5 10.0 x 12.5 RE1C471MDE 053023 RE1C471MDET 053023T
1000 720 5 10.0 x 16.0 RE1C102MEE 053424 RE1C102MEET 053424T
1000 740 5 10.0 x 20.0 RE1C102MFE 053024 RE1C102MFET 053024T
2200 1200 5 12.5 x 25.0 RE1C222MHE 053025 RE1C222MHET 053025T
3300 1650 7.5 16.0 x 25.0 RE1C332MPF 053225 RE1C332MPFT 053225T
4700 2100 7.5 16.0 x 31.5 RE1C472MRF 053226 ––
6800 2600 7.5 18.0 x 35.5 RE1C682MVF 053227 ––
25 Volt
4.7 25 2(5) 5.0 x 11.0 RE1E4R7MAB 053234 RE1E4R7MAET 053234T
10 45 2(5) 5.0 x 11.0 RE1E100MAB 053026 RE1E100MAET 053026T
22 60 2(5) 5.0 x 11.0 RE1E220MAB 053027 RE1E220MAET 053027T
33 70 2(5) 5.0 x 11.0 RE1E330MAB 053028 RE1E330MAET 053028T
47 90 2(5) 5.0 x 11.0 RE1E470MAB 053029 RE1E470MAET 053029T
100 150 2.5(5) 6.3 x 11.0 RE1E101MBC 053030 RE1E101MBET 053030T
220 260 3.5(5) 8.0 x 11.5 RE1E221MCD 053031 RE1E221MCET 053031T
330 380 5 10.0 x 12.5 RE1E331MDE 053032 RE1E331MDET 053032T
470 500 5 10.0 x 16.0 RE1E471MEE 053033 RE1E471MEET 053033T
1000 910 5 12.5 x 20.0 RE1E102MGE 053034 RE1E102MGET 053034T
2200 1400 5 12.5 x 25.0 RE1E222MHE 053435 RE1E222MHET 053435T
2200 1500 7.5 16.0 x 25.0 RE1E222MPF 053035 RE1E222MPFT 053035T
3300 1900 7.5 16.0 x 31.5 RE1E332MRF 053235 ––
4700 2450 7.5 18.0 x 35.5 RE1E472MVF 053036 ––
40 Volt
4.7 30 2(5) 5.0 x 11.0 RE1G4R7MAB 053236 RE1G4R7MAET 053236T
10 45 2(5) 5.0 x 11.0 RE1G100MAB 053037 RE1G100MAET 053037T
22 60 2(5) 5.0 x 11.0 RE1G220MAB 053038 RE1G220MAET 053038T
33 90 2(5) 5.0 x 11.0 RE1G330MAB 053039 RE1G330MAET 053039T
47 100 2.5(5) 6.3 x 11.0 RE1G470MBC 053040 RE1G470MBET 053040T
100 200 3.5(5) 8.0 x 11.5 RE1G101MCD 053041 RE1G101MCET 053041T
220 360 5 10.0 x 12.5 RE1G221MDE 053042 RE1G221MDET 053042T
330 500 5 10.0 x 16.0 RE1G331MEE 053043 RE1G331MEET 053043T
470 620 5 10.0 x 20.0 RE1G471MFE 053044 RE1G471MFET 053044T
1000 1040 5 12.5 x 25.0 RE1G102MHE 053045 RE1G102MHET 053045T
2200 1900 7.5 16.0 x 31.5 RE1G222MRF 053046 ––
3300 2250 7.5 18.0 x 35.5 RE1G332MVF 053047 ––
4700 2500 7.5 18.0 x 35.5 RE1G472MVF 053247 ––
50 Volt
0.1 5 2(5) 5.0 x 11.0 RE1HR10MAB 053112 RE1HR10MAET 053112T
0.22 7 2(5) 5.0 x 11.0 RE1HR22MAB 053113 RE1HR22MAET 053113T
0.33 9 2(5) 5.0 x 11.0 RE1HR33MAB 053114 RE1HR33MAET 053114T
0.47 10 2(5) 5.0 x 11.0 RE1HR47MAB 053115 RE1HR47MAET 053115T
1.0 15 2(5) 5.0 x 11.0 RE1H010MAB 053048 RE1H010MAET 053048T
2.2 20 2(5) 5.0 x 11.0 RE1H2R2MAB 053049 RE1H2R2MAET 053049T
3.3 25 2(5) 5.0 x 11.0 RE1H3R3MAB 053116 RE1H3R3MAET 053116T
4.7 30 2(5) 5.0 x 11.0 RE1H4R7MAB 053050 RE1H4R7MAET 053050T
10 45 2(5) 5.0 x 11.0 RE1H100MAB 053051 RE1H100MAET 053051T
22 70 2(5) 5.0 x 11.0 RE1H220MAB 053052 RE1H220MAET 053052T
33 100 2.5(5) 6.3 x 11.0 RE1H330MBC 053053 RE1H330MBET 053053T
47 120 2.5(5) 6.3 x 11.0 RE1H470MBC 053054 RE1H470MBET 053054T
100 210 3.5(5) 8.0 x 11.5 RE1H101MCD 053055 RE1H101MCET 053055T
220 400 5 10.0 x 16.0 RE1H221MEE 053056 RE1H221MEET 053056T
330 540 5 10.0 x 20.0 RE1H331MFE 053057 RE1H331MFET 053057T
470 740 5 12.5 x 20.0 RE1H471MGE 053058 RE1H471MGET 053058T
1000 1280 5 12.5 x 25.0 RE1H102MHE 053459 RE1H102MHET 053459T
1000 1350 7.5 16.0 x 25.0 RE1H102MPF 053059 RE1H102MPFT 053059T
2200 2100 7.5 18.0 x 35.5 RE1H222MVF 053221 ––
(5) Leads pre-formed to 5mm pitch on taped part
RE continued overleaf > > > >
NOVER type RE (continued)
Page 3
ELECTROLYTIC, Radial
01945 47 47 47
01945 47 48 49
www.anglia.com
CAPACITORS
62
NOVER type RE
(continued)
LOOSE TAPED & BOXED
Value Ripple Current Dimensions (mm) Manf. Manf.
(µF) (mA) Pitch Dia. x L Part No. Order Code Part No. Order Code
63 Volt
0.1 5 2(5) 5.0 x 11.0 RE1JR10MAB
053117
RE1JR10MAET
053117T
0.22 8 2(5) 5.0 x 11.0 RE1JR22MAB
053118
RE1JR22MAET
053118T
0.33 9 2(5) 5.0 x 11.0 RE1JR33MAB
053119
RE1JR33MAET
053119T
0.47 10 2(5) 5.0 x 11.0 RE1JR47MAB
053060
RE1JR47MAET
053060T
1.0 15 2(5) 5.0 x 11.0 RE1J010MAB
053061
RE1J010MAET
053061T
2.2 20 2(5) 5.0 x 11.0 RE1J2R2MAB
053062
RE1J2R2MAET
053062T
3.3 30 2(5) 5.0 x 11.0 RE1J3R3MAB
053063
RE1J3R3MAET
053063T
4.7 35 2(5) 5.0 x 11.0 RE1J4R7MAB
053064
RE1J4R7MAET
053064T
10 50 2(5) 5.0 x 11.0 RE1J100MAB
053065
RE1J100MAET
053065T
22 85 2.5(5) 6.3 x 11.0 RE1J220MBC
053066
RE1J220MBET
053066T
33 100 2.5(5) 6.3 x 11.0 RE1J330MBC
053067
RE1J330MBET
053067T
47 150 3.5(5) 8.0 x 11.5 RE1J470MCD
053068
RE1J470MCET
053068T
100 260 5 10.0 x 12.5 RE1J101MDE
053069
RE1J101MDET
053069T
220 460 5 10.0 x 20.0 RE1J221MFE
053070
RE1J221MFET
053070T
330 650 5 12.5 x 20.0 RE1J331MGE
053071
RE1J331MGET
053071T
470 850 5 12.5 x 25.0 RE1J471MHE
053120
RE1J471MHET
053120T
1000 1550 7.5 16.0 x 31.5 RE1J102MRF
053220
––
100 Volt
0.1 5 2(5) 5.0 x 11.0 RE2AR10MAB
053128
RE2AR10MAET
053128T
0.22 8 2(5) 5.0 x 11.0 RE2AR22MAB
053129
RE2AR22MAET
053129T
0.33 10 2(5) 5.0 x 11.0 RE2AR33MAB
053130
RE2AR33MAET
053130T
0.47 10 2(5) 5.0 x 11.0 RE2AR47MAB
053072
RE2AR47MAET
053072T
1.0 15 2(5) 5.0 x 11.0 RE2A010MAB
053073
RE2A010MAET
053073T
2.2 25 2(5) 5.0 x 11.0 RE2A2R2MAB
053074
RE2A2R2MAET
053074T
3.3 30 2(5) 5.0 x 11.0 RE2A3R3MAB
053075
RE2A3R3MAET
053075T
4.7 35 2(5) 5.0 x 11.0 RE2A4R7MAB
053076
RE2A4R7MAET
053076T
10 60 2.5(5) 6.3 x 11.0 RE2A100MBC
053077
RE2A100MBET
053077T
22 110 3.5(5) 8.0 x 11.5 RE2A220MCD
053078
RE2A220MCET
053078T
33 160 5 10.0 x 12.5 RE2A330MDE
053079
RE2A330MDET
053079T
47 210 5 10.0 x 16.0 RE2A470MEE
053080
RE2A470MEET
053080T
100 380 5 12.5 x 20.0 RE2A101MGE
053081
RE2A101MGET
053081T
220 720 7.5 16.0 x 25.0 RE2A221MPF
053083
RE2A221MPFT
053083T
330 880 7.5 16.0 x 25.0 RE2A331MPF
053084
RE2A331MPFT
053084T
470 1150 7.5 16.0 x 31.5 RE2A471MRF
053085
––
250 Volt
0.47 10 2.5(5) 6.3 x 11.0 RE2ER47MBC
053106
RE2ER47MBET
053106T
1.0 15 2.5(5) 6.3 x 11.0 RE2E010MBC
053107
RE2E010MBET
053107T
2.2 25 3.5(5) 8.0 x 11.5 RE2E2R2MCD
053108
RE2E2R2MCET
053108T
3.3 35 5 10.0 x 12.5 RE2E3R3MDE
053109
RE2E3R3MDET
053109T
4.7 40 5 10.0 x 12.5 RE2E4R7MDE
053110
RE2E4R7MDET
053110T
10 75 5 10.0 x 20.0 RE2E100MFE
053111
RE2E100MFET
053111T
22 140 5 12.5 x 25.0 RE2E220MHE
053135
RE2E220MHET
053135T
33 170 5 12.5 x 20.0 RE2E330MGE
053136
RE2E330MGET
053136T
47 240 7.5 16.0 x 25.0 RE2E470MPF
053182
RE2E470MPFT
053182T
100 440 7.5 18.0 x 35.5 RE2E101MVF
053183
––
350 Volt
0.47 10 2.5(5) 6.3 x 11.0 RE2VR47MBC
053131
RE2VR47MBET
053131T
1.0 15 3.5(5) 8.0 x 11.5 RE2V010MCD
053132
RE2V010MCET
053132T
2.2 30 5 10.0 x 12.5 RE2V2R2MDE
053133
RE2V2R2MDET
053133T
3.3 35 5 10.0 x 12.5 RE2V3R3MDE
053134
RE2V3R3MDET
053134T
4.7 45 5 10.0 x 16.0 RE2V4R7MEE
053140
RE2V4R7MEET
053140T
10 75 5 10.0 x 20.0 RE2V100MFE
053141
RE2V100MFET
053141T
22 140 5 12.5 x 25.0 RE2V220MHE
053142
RE2V220MHET
053142T
33 200 7.5 16.0 x 25.0 RE2V330MPF
053143
RE2V330MPFT
053143T
47 260 7.5 16.0 x 31.5 RE2V470MRF
053144
––
450 Volt
1.0 15 5 10.0 x 12.5 RE2W010MDE
053121
RE2W010MDET
053121T
2.2 25 5 10.0 x 16.0 RE2W2R2MEE
053122
RE2W2R2MEET
053122T
3.3 35 5 10.0 x 20.0 RE2W3R3MFE
053123
RE2W3R3MFET
053123T
4.7 45 5 12.5 x 20.0 RE2W4R7MGE
053124
RE2W4R7MGET
053124T
10 75 5 12.5 x 25.0 RE2W100MHE
053125
RE2W100MHET
053125T
22 140 7.5 16.0 x 31.5 RE2W220MRF
053126
––
33 200 7.5 18.0 x 35.5 RE2W330MVF
053127
––
47 296 7.5 16.0 x 31.5 RE2W470MRF
053155
––
(5) Leads pre-formed to 5mm pitch on taped part
G
LEAD FORMING
G
G
CROPPING
G
G
TAPING
G
Refer to page 77
PG/0713
Loading...
