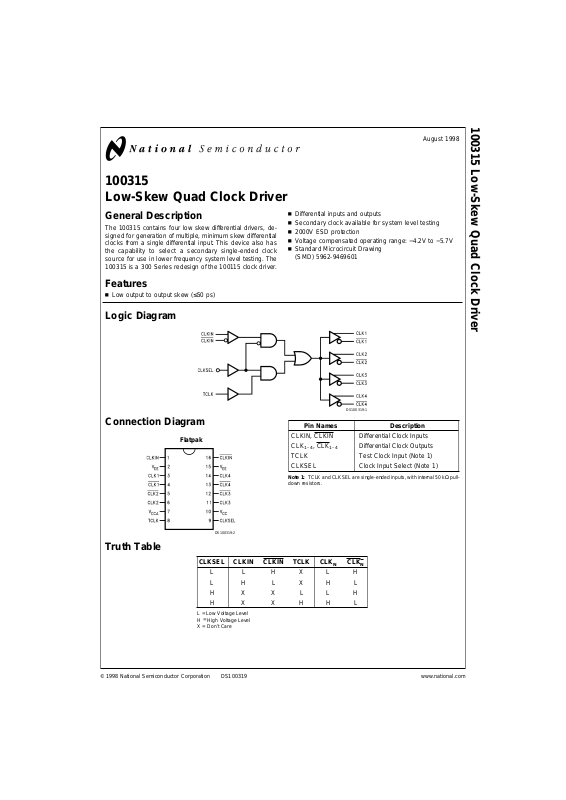

100315
Low-Skew Quad Clock Driver

General Description

The 100315 contains four low skew differential drivers, de­signed for generation of multiple, minimum skew differential
clocks from a single differential input. This device also has
the capability to select a secondary single-ended clock
source for use in lower frequency system level testing. The
100315 is a 300 Series redesign of the 100115 clock driver.

Features

n Low output to output skew (≤50 ps)

n Differential inputs and outputs
n Secondary clock available for system level testing
n 2000V ESD protection
n Voltage compensated operating range: −4.2V to −5.7V
n Standard Microcircuit Drawing

(SMD) 5962-9469601

Logic Diagram

Connection Diagram

Pin Names Description

CLKIN, CLKIN

Differential Clock Inputs

CLK

1–4

, CLK

1–4

Differential Clock Outputs
TCLK Test Clock Input (Note 1)
CLKSEL Clock Input Select (Note 1)

Note 1: TCLK andCLKSELare single-endedinputs, withinternal 50kΩ pull-
down resistors.

Truth Table

CLKSEL CLKIN CLKIN TCLK CLKNCLK

N

LLHXLH
LHLXHL
HXXLLH
HXXHHL

L

=

Low Voltage Level
H=High Voltage Level
X=Don’t Care

DS100319-1

Flatpak

DS100319-2

August 1998

100315 Low-Skew Quad Clock Driver

© 1998 National Semiconductor Corporation DS100319 www.national.com

Absolute Maximum Ratings (Note 2)

If Military/Aerospace specified devices are required,
please contact theNational Semiconductor Sales Office/
Distributors for availability and specifications.

Above which the useful life may be impaired
Storage Temperature −65˚C to +150˚C
Maximum Junction Temperature (T

J

)

Ceramic +175˚C

Case Temperature under Bias (T

C

) –55˚C to +125˚C

V

EE

Pin Potential to Ground Pin −7.0V to +0.5V

Input Voltage (DC) V

CC

to +0.5V

Output Current (DC Output HIGH) −50 mA

Operating Range (Note 2) −5.7V to −4.2V
ESD (Note 3) ≥2000V

Recommended Operating
Conditions

Case Temperature (TC)

Military −55˚C to +125˚C

Supply Voltage (V

EE

) −5.7V to −4.2V

Note 2: Absolute maximum ratings are those values beyond which the de­vice may be damaged or have its useful life impaired. Functional operation
under these conditions is not implied.

Note 3: ESD testing conforms to MIL-STD-883, Method 3015.

Military Version
DC Electrical Characteristics

V

EE

=

−4.2V to −5.7V, V

CC

=

V

CCA

=

GND (Note 6)

Symbol Parameter Min Typ Max Units T

C

Conditions Notes

V

OH

Output HIGH −1025 −870 mV 0˚C to

V

IN

=

V

IH(Max)

or V

IL(Min)

Loading with
50Ω to −2.0V

(Notes
4, 5, 6)

Voltage +125˚C

−1085 −870 mV −55˚C

V

OL

Output LOW −1830 −1620 mV 0˚C to
Voltage +125˚C

−1830 −1555 mV −55˚C

V

OHC

Output HIGH −1035 mV 0˚C to

V

IN

=

V

IH(Min)

or V

IL(Max)

Loading with
50Ω to −2.0V

Voltage +125˚C

−1085 mV −55˚C (Notes
4, 5, 6)

V

OLC

Output LOW −1610 mV 0˚C to
Voltage +125˚C

−1555 mV −55˚C

DC Electrical Characteristics

V

EE

=

−4.2V to −5.7V, V

CC

=

V

CCA

=

GND (Note 6)

Symbol Parameter Min Typ Max Units T

C

Conditions Notes

V

DIFF

Input Voltage 150 mV −55˚C to Required for Full

(Notes 4, 5,

6)

Differential +125˚C Output Swing

V

CM

Common Mode VCC− 2.0 VCC− 0.5 V −55˚C to

(Notes 4, 5,

6)

Voltage +125˚C

V

IH

Single-Ended −1165 −870 mV −55˚C to Guaranteed HIGH Signal

(Notes 4, 5,

6, 7)

Input High Voltage +125˚C for All Inputs

V

IL

Single-Ended −1830 −1475 mV −55˚C to Guaranteed LOW Signal

(Notes 4, 5,

6, 7)

Input Low Voltage +125˚C for All Inputs

I

IH

Input HIGH Current 150 µA −55˚C to V

IN

=

V

IH(Max)

(Notes 4, 5,

6)

CLKIN, CLKIN

+125˚C
TCLK 450 µA
CLKSEL 380 µA

I

CBO

Input Leakage −10 µA −55˚C to V

IN

=

V

EE

(Notes 4, 5,

6)

Current +125˚C

I

EE

Power Supply −80 −25 mA −55˚C to

(Notes 4, 5,

6)

Current, Normal +125˚C

Note 4: F100K 300 Series cold temperature testing is performed by temperature soaking(to guaranteejunction temperatureequals −55˚C),then testing immediately
without allowing for the junction temperature to stabilize due to heat dissipation after power-up. This provides “cold start” specs which can be considered a worst case
condition at cold temperatures.

www.national.com 2

DC Electrical Characteristics (Continued)

Note 5: Screen tested 100%on each device at −55˚C, +25˚C, and +125˚C, Subgroups 1, 2, 3, 7, and 8.
Note 6: Sample tested (Method 5005, Table I) on each manufactured lot at −55˚C, +25˚C, and +125˚C, Subgroups A1, 2, 3, 7, and 8.
Note 7: Guaranteed by applying specified input condition and testing V

OH/VOL

.

AC Electrical Characteristics

V

EE

=

−4.2V to −5.7V, V

CC

=

V

CCA

=

GND

Symbol Parameter T

C

=

−55˚C T

C

=

+25˚C T

C

=

+125˚C Units Conditions Notes

Min Max Min Max Min Max

t

PLH

Propagation Delay CLKIN, 0.58 0.88 0.63 0.88 0.72 1.02 ns

Figures 1, 2

(Notes 8, 9,

10)

t

PHL

CLKIN to CLK

(1–4)

, CLK

(1–4)

t

PLH

Propagation Delay, TCLK 0.30 1.60 0.30 1.50 0.40 1.70 ns

t

PHL

to CLK

(1–4)

, CLK

(1–4)

t

SG–G

Skew Gate to Gate (Note 12) 120 100 120 ps (Note 10)

t

TLH

Transition Time 0.30 0.90 0.25 0.85 0.20 0.85 ns

t

THL

20%to 80%,80%to 20

%

Note 8: F100K 300 Series coldtemperature testing is performed by temperature soaking(to guarantee junction temperature equals −55˚C, then testing immediately
after power-up. This provides “cold start” specs which can be considered a worst case condition at cold temperatures.

Note 9: Screen tested 100%on each device at +25˚C temperature only, Subgroup A9.
Note 10: Sample tested (Method 5005,TableI) oneach manufactured lot at +25˚C, Subgroup A9, and at +125˚C and −55˚C temperatures,Subgroups A10 and A11.
Note 11: Not tested at +25˚C, +125˚C and −55˚C temperature (design characterization data).
Note 12: Maximum output skew for any one device.

DS100319-3

Note 13: Shown for testing CLKIN to CLK1 in the differential mode.
Note 14: L1, L2, L3 and L4=equal length 50Ω impedance lines.
Note 15: All unused inputs and outputs are loaded with 50Ω in parallel with ≤3 pF to GND.
Note 16: Scope should have 50Ω input terminator internally.

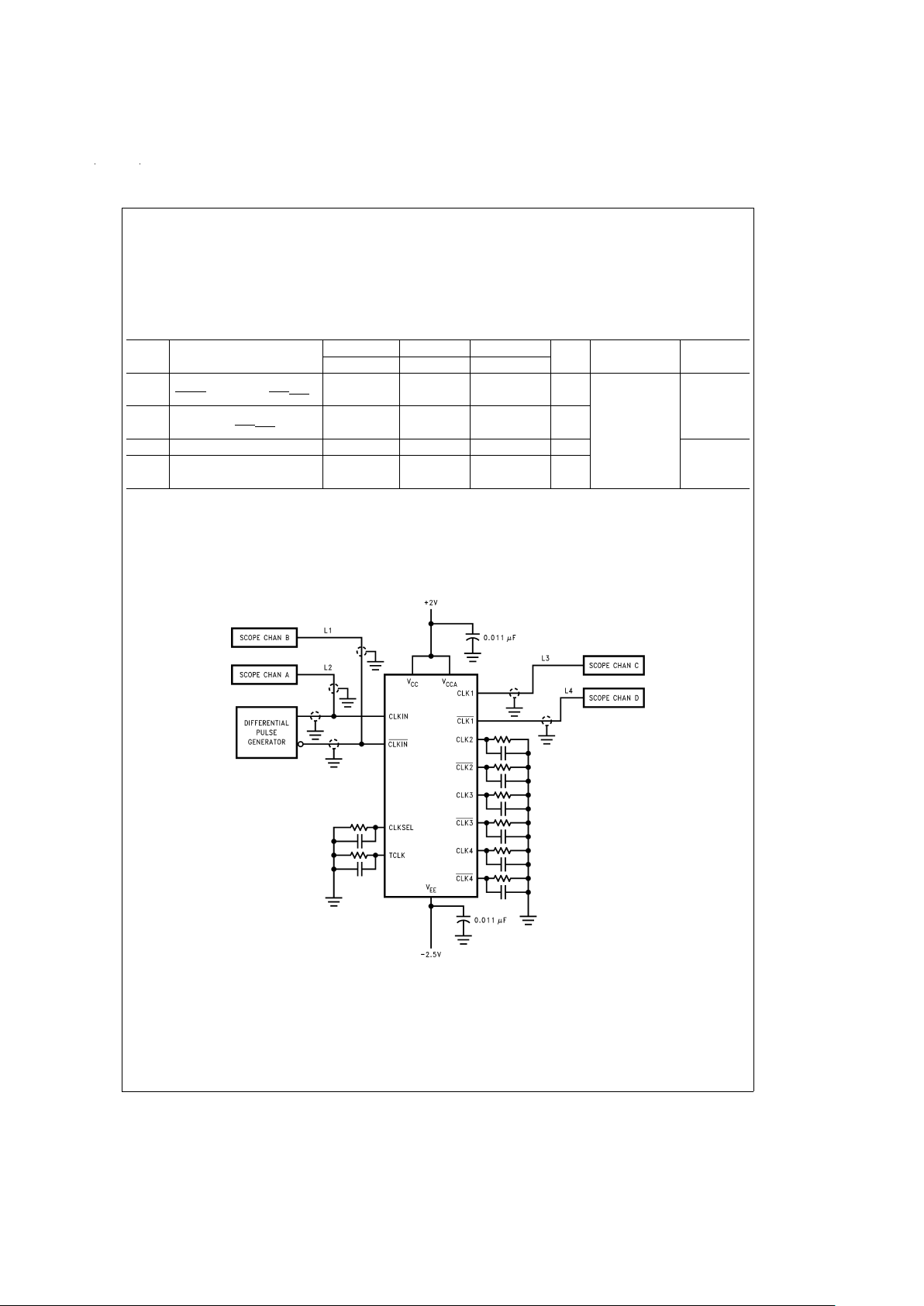

FIGURE 1. AC Test Circuit

www.national.com3

AC Electrical Characteristics (Continued)

DS100319-4

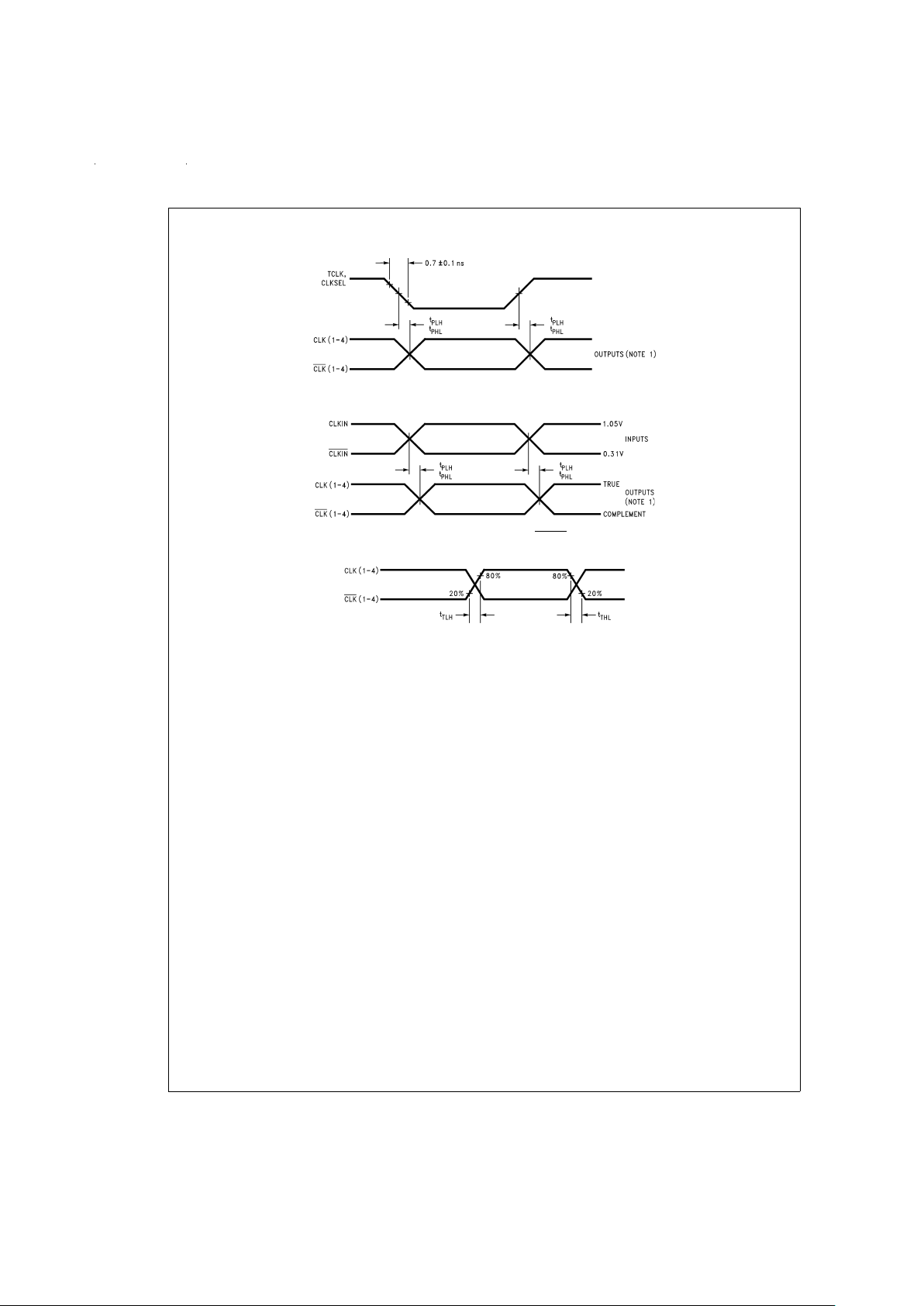

FIGURE 2. Propagation Delay, TCLK, CLKSEL to Outputs

DS100319-5

FIGURE 3. Propagation Delay, CLKIN/CLKIN to Outputs

DS100319-6

Note 17: The output to output skew,which is defined as thedifference in the propagation delays between each of the four outputs on any one 100115 shall not ex­ceed 75 ps.

FIGURE 4. Transition Times

www.national.com 4

5

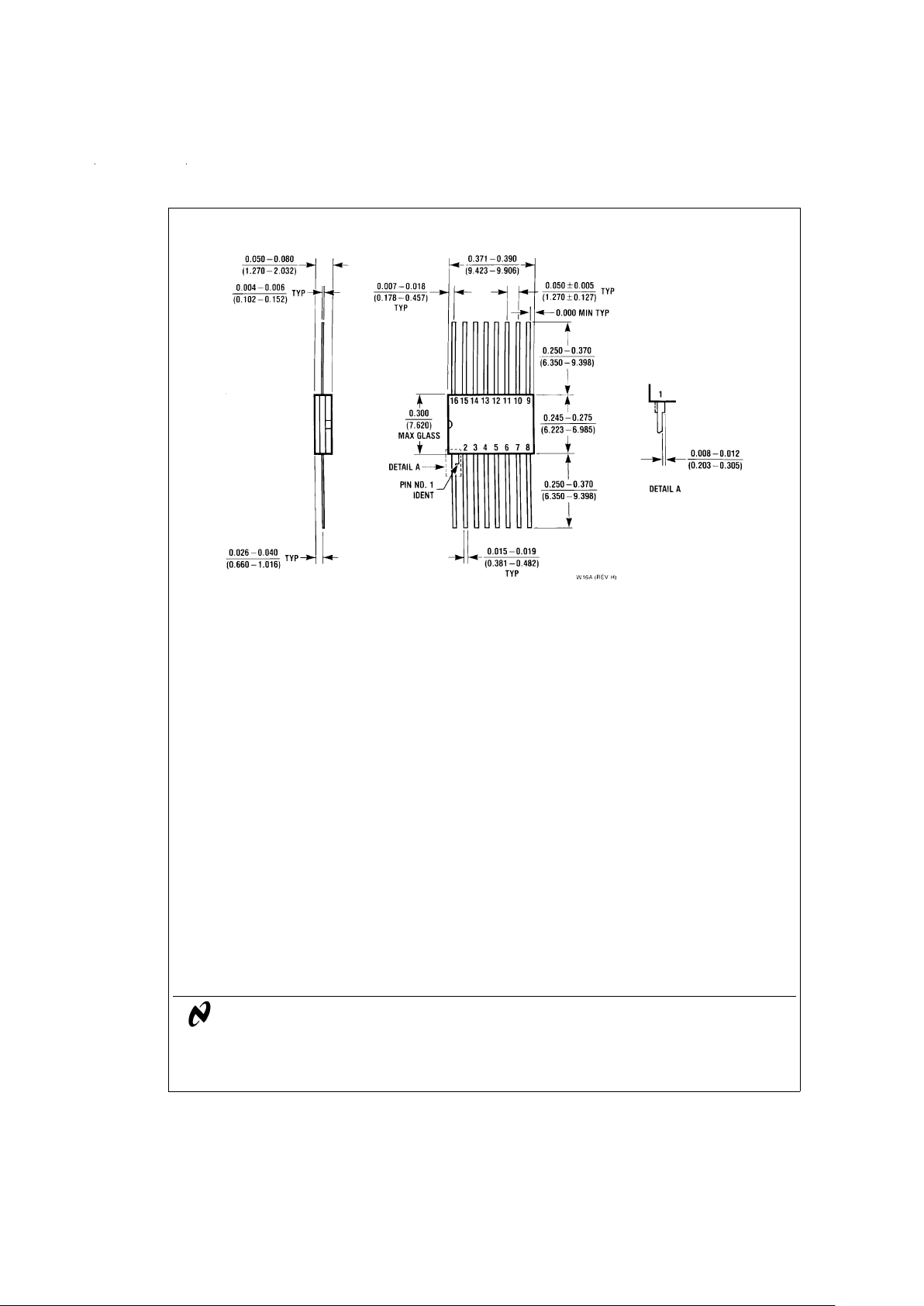

Physical Dimensions inches (millimeters) unless otherwise noted

LIFE SUPPORT POLICY

NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DE­VICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMI­CONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or sys­tems which, (a) are intended for surgical implant into
the body, or(b) support or sustain life, and whose fail­ure to perform when properly used in accordance
with instructions for use provided in the labeling, can
be reasonably expectedtoresult in a significant injury
to the user.

2. A critical component in any component of a life support
device or system whose failure to perform can be rea­sonably expected to cause the failure of the life support
device or system,orto affect its safety or effectiveness.

National Semiconductor
Corporation

Americas
Tel: [phone]
Fax: [phone]
Email: [email protected]

www.national.com

National Semiconductor
Europe

Fax: [phone]

Email: [email protected]
Deutsch Tel: [phone]
English Tel: [phone]
Français Tel: [phone]
Italiano Tel: [phone]

National Semiconductor
Asia Pacific Customer
Response Group

Tel: [phone]
Fax: [phone]
Email: [email protected]

National Semiconductor
Japan Ltd.

Tel: [phone]
Fax: [phone]

16 Lead Ceramic Flatpak (F)

NS Package Number W16A

100315 Low-Skew Quad Clock Driver
