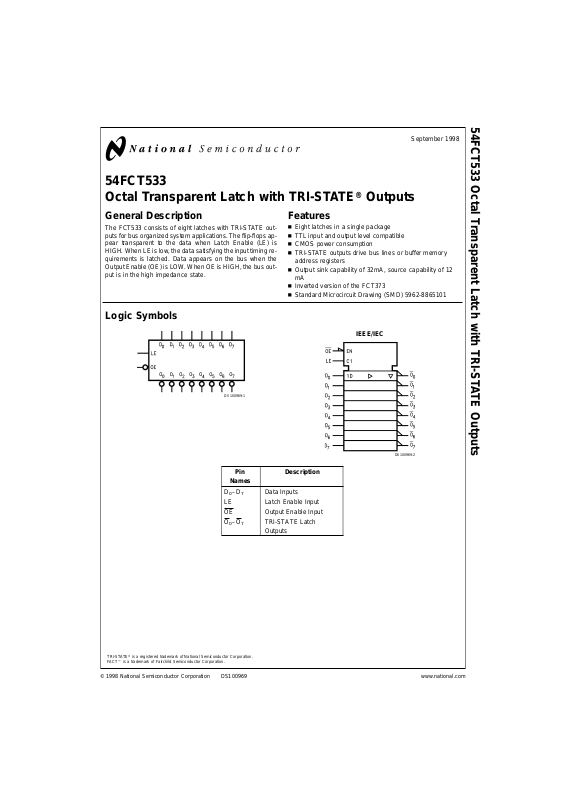

54FCT533
Octal Transparent Latch with TRI-STATE
®
Outputs
General Description
The FCT533 consists of eight latches with TRI-STATE outputs for bus organized system applications. The flip-flops appear transparent to the data when Latch Enable (LE) is
HIGH. When LE is low,thedatasatisfying the input timing requirements is latched. Data appears on the bus when the
Output Enable (OE) is LOW. When OE is HIGH, the bus output is in the high impedance state.
Features
n Eight latches in a single package
n TTL input and output level compatible
n CMOS power consumption
n TRI-STATE outputs drive bus lines or buffer memory
address registers
n Output sink capability of 32mA, source capability of 12
mA
n Inverted version of the FCT373
n Standard Microcircuit Drawing (SMD) 5962-8865101
Logic Symbols
Pin
Names
Description
D
0–D7
Data Inputs
LE Latch Enable Input
OE
Output Enable Input
O
0–O7
TRI-STATE Latch
Outputs
TRI-STATE®is a registered trademark of National Semiconductor Corporation.
FACT
™
is a trademark of Fairchild Semiconductor Corporation.
DS100969-1
IEEE/IEC
DS100969-2
September 1998
54FCT533 Octal Transparent Latch with TRI-STATE Outputs
© 1998 National Semiconductor Corporation DS100969 www.national.com
Page 2
Connection Diagrams
Functional Description
The FCT533 contains eight D-type latches with TRI-STATE
standard outputs. When the Latch Enable (LE) input is
HIGH, data on the D
n
inputs enters the latches. In this condition the latches are transparent, i.e., a latch output will
change state each time its D input changes. When LE is
LOW, the latches store the information that was present on
the D inputs a setup time preceding the HIGH-to-LOW transition of LE. The TRI-STATE standard outputs are controlled
by the Output Enable (OE) input. When OE is LOW,the standard outputs are in the 2-state mode. When OE is HIGH, the
standard outputs are in the high impedance mode but this
does not interfere with entering new data into the latches.
Truth Table
Inputs Outputs
LE OE
D
n
O
n
XHX Z
HLL H
HLH L
LLX O
0
H
=
HIGH Voltage Level
L=LOW Voltage Level
Z=High Impedance
X=Immaterial
O
0
=
Previous O
0
before HIGH to Low transition of Latch Enable
Logic Diagram
Pin Assignment
for DIP and Flatpak
DS100969-3
Pin Assignment
for LCC
DS100969-4
DS100969-5
Please note that this diagram is provided only for the understanding of logic operations and should not be used to estimate propagation delays.
www.national.com 2
Page 3
Absolute Maximum Ratings (Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (V
CC
) −0.5V to +7.0V
DC Input Diode Current (I
IK
)
V
I
=
−0.5V −20 mA
V
I
=
V
CC
+ 0.5V +20 mA
DC Input Voltage (V
I
) −0.5V to VCC+ 0.5V
DC Output Diode Current (I
OK
)
V
O
=
−0.5V −20 mA
V
O
=
V
CC
+ 0.5V +20 mA
DC Output Voltage (V
O
) −0.5V to VCC+ 0.5V
DC Output Source
or Sink Current (I
O
)
±
50 mA
DC V
CC
or Ground Current
per Output Pin (I
CC
or I
GND
)
±
50 mA
Storage Temperature (T
STG
) −65˚C to +150˚C
DC Latchup Source
or Sink Current
±
300 mA
Junction Temperature (T
J
)
CDIP 175˚C
Recommended Operating
Conditions
Supply Voltage (VCC)
’FCT 4.5V to 5.5V
Input Voltage (V
I
) 0VtoV
CC
Output Voltage (VO) 0VtoV
CC
Operating Temperature (TA)
54FCT −55˚C to +125˚C
Note 1: Absolute maximum ratings are those values beyond which damage
to the device may occur. The databook specifications should be met, without
exception, to ensure that the system design is reliable over its power supply,
temperature, and output/input loading variables. National does not recommend operation of FACT
®
circuits outside databook specifications.
DC Characteristics for ’FCT Family Devices
Symbol Parameter FCT541 Units V
CC
Conditions
Min Typ Max
V
IH
Input HIGH Voltage 2.0 V Recognized HIGH Signal
V
IL
Input LOW Voltage 0.8 V Recognized LOW Signal
V
CD
Input Clamp Diode Voltage −1.2 V Min I
IN
=
−18 mA
V
OH
Output HIGH Voltage 54FCT 4.3 V Min I
OH
=
−300 µA
54FCT 2.4 V Min I
OH
=
−12 mA
V
OL
Output LOW Voltage 54FCT 0.2 V Min I
OL
=
300 µA
54FCT 0.5 V Min I
OL
=
32 mA
I
IH
Input HIGH Current 5 µA Max V
IN
=
V
CC
I
IL
Input LOW Current −5 µA Max V
IN
=
0.0V
I
OZH
Output Leakage Current 10 µA Max V
OUT
=
5.5V; OE
n
=
2.0V
I
OZL
Output Leakage Current −10 µA Max V
OUT
=
0.0V; OE
n
=
2.0V
I
OS
Output Short-Circuit Current -60 mA Max V
OUT
=
0.0V
I
CCQ
Quiescent Power
Supply Current
1.5 mA Max V
IN
<
0.2V or VIN5.3V, VCC=
5.5V
∆I
CC
Quiescent Power
Supply Current
2.0 mA Max V
I
=
V
CC
− 2.1V
I
CCD
Dynamic I
CC
0.4 mA/
MHz
Max VCC= 5.5V, Outputs Open,
One Bit Toggling, 50%Duty
Cycle, OE
n
=
GND
I
CC
Total Power Supply
Current
6.0 mA Max VCC= 5.5V, Outputs Open, fI
= 10MHz, OE
n
=
GND, One
Bit Toggling, 50%Duty Cycle
Note 2: All outputs loaded; thresholds on input associated with output under test.
Note 3: Maximum test duration 2.0 ms, one output loaded at a time.
www.national.com3
Page 4
AC Electrical Characteristics
54FCT
V
CC
T
A
=
−55˚C Fig.
Symbol Parameter (V) to +125˚C Units No.
(Note 4) C
L
=
50 pF
Min Max
t
PHL,tPLH
Propagation Delay 5.0 1.5 12.0 ns
D
n
to O
n
t
PHL,tPLH
Propagation Delay 5.0 2.0 14.0 ns
LE to O
n
t
PZL,tPZH
Output Enable Time 5.0 1.5 12.5 ns
t
PHZ,tPLZ
Output Disable Time 5.0 1.5 8.5 ns
Note 4: Voltage Range 5.0 is 5.0V±0.5V.
AC Operating Requirements
54FCT
V
CC
T
A
=
−55˚C Fig.
Symbol Parameter (V) to +125˚C Units No.
(Note 5) C
L
=
50 pF
Guaranteed Minimum
t
S
Setup Time, HIGH or LOW 5.0 2.0 ns
D
n
to LE
t
H
Hold Time, HIGH or LOW 5.0 3.0 ns
D
n
to LE
t
W
LE Pulse Width, HIGH 5.0 6.0 ns
Note 5: Voltage Range 5.0 is 5.0V±0.5V.
Capacitance
Symbol Parameter Typ Units Conditions
C
IN
Input Capacitance 10 pF V
CC
=
OPEN
C
PD
Power Dissipation 40 pF V
CC
=
5.0V
Capacitance
www.national.com 4
Page 5
Physical Dimensions inches (millimeters) unless otherwise noted

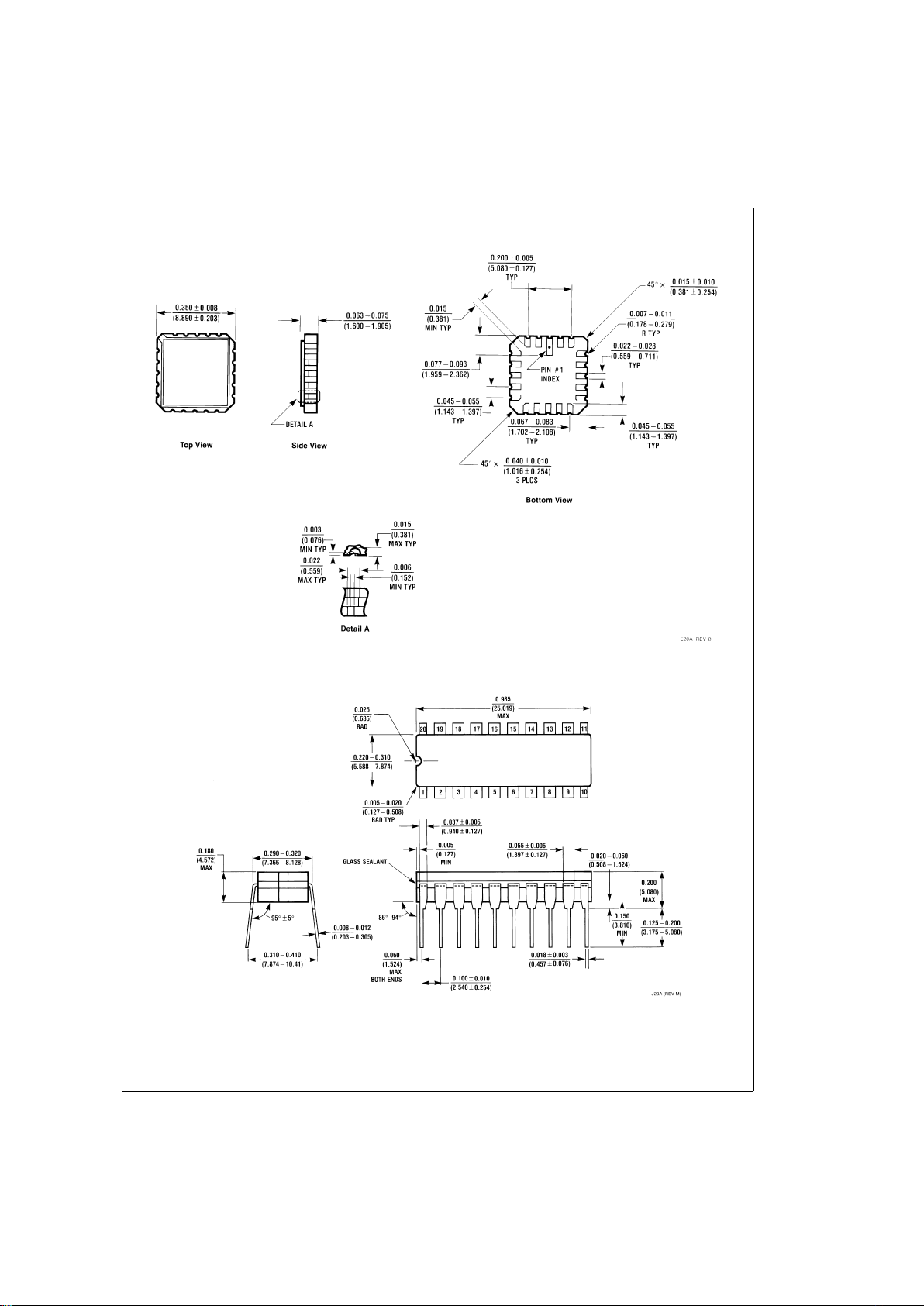

20-Terminal Ceramic Leadless Chip Carrier (L)
NS Package Number E20A
20-Lead Ceramic Dual-In-Line Package (D)
NS Package Number J20A
www.national.com5
Page 6
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance
with instructions for use provided in the labeling, can
be reasonably expected to result in a significant injury
to the user.
2. A critical component in any component of a life support
device or system whose failure to perform can be reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
National Semiconductor
Corporation
Americas
Tel: 1-800-272-9959
Fax: 1-800-737-7018
Email: [email protected]
www.national.com
National Semiconductor
Europe
Fax: +49 (0) 1 80-530 85 86
Email: [email protected]
Deutsch Tel: +49 (0) 1 80-530 85 85
English Tel: +49 (0) 1 80-532 78 32
Français Tel: +49 (0) 1 80-532 93 58
Italiano Tel: +49 (0) 1 80-534 16 80
National Semiconductor
Asia Pacific Customer
Response Group
Tel: 65-2544466
Fax: 65-2504466
Email: [email protected]
National Semiconductor
Japan Ltd.
Tel: 81-3-5620-6175
Fax: 81-3-5620-6179

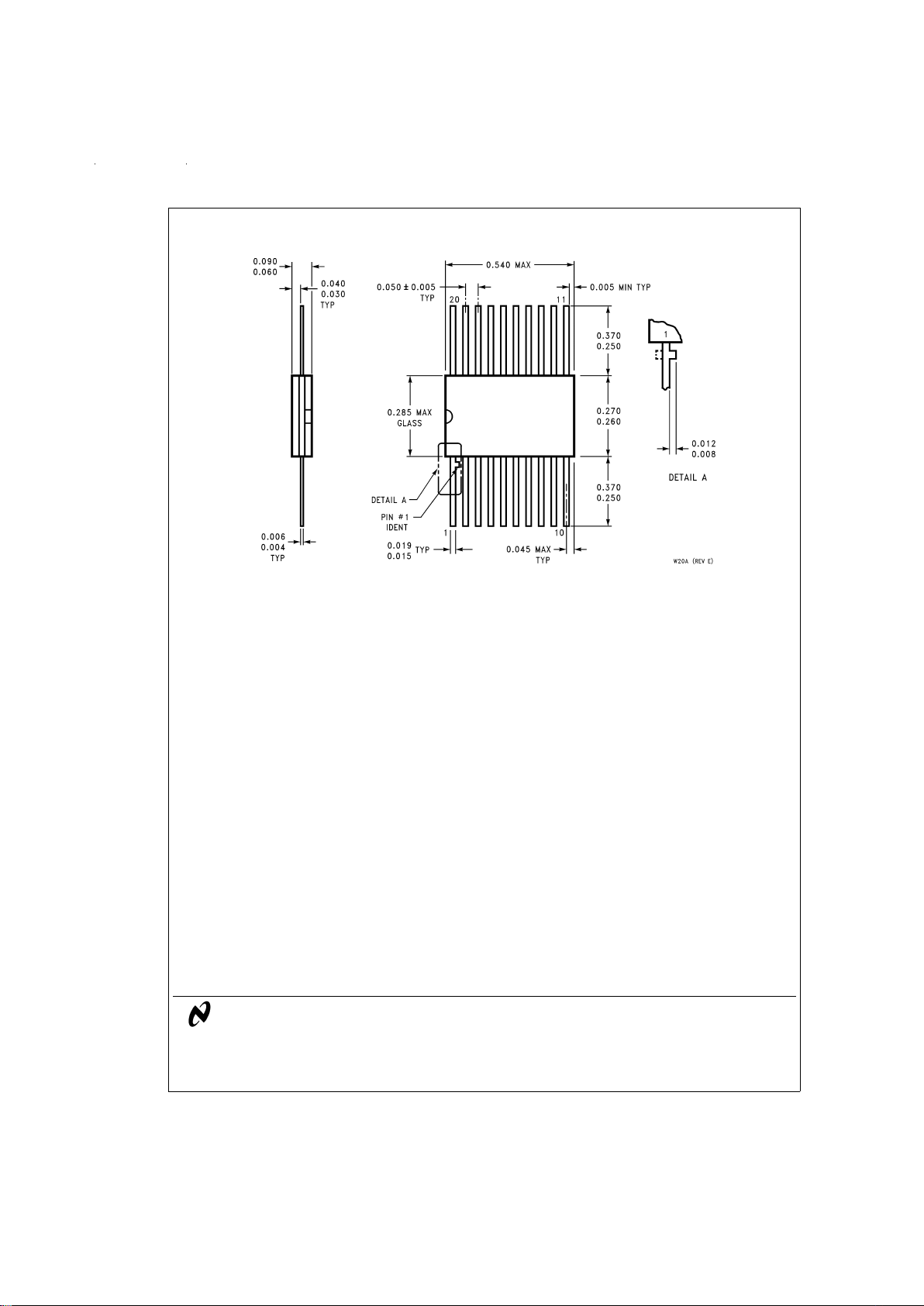

20-Lead Ceramic Flatpak (F)
NS Package Number W20A
54FCT533 Octal Transparent Latch with TRI-STATE Outputs
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
