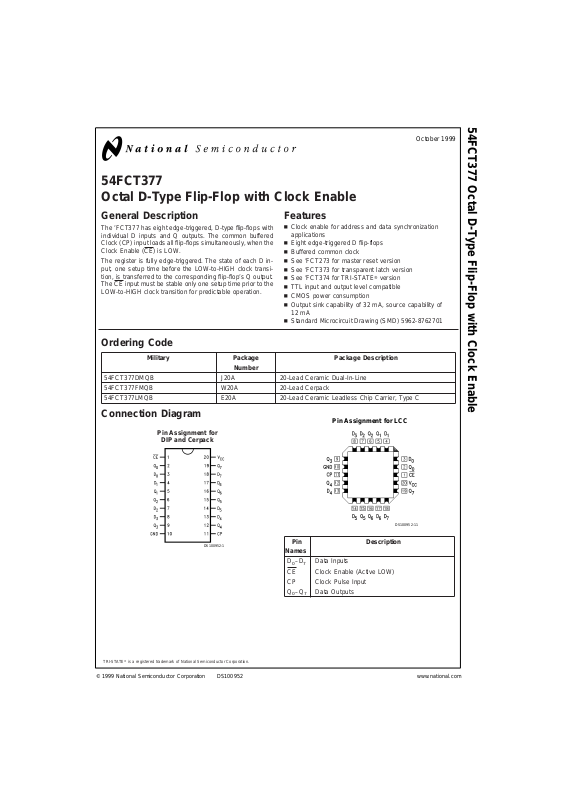

Datasheet 5962-8762701SA, 5962-8762701RA, 5962-87627012A Datasheet (NSC)

54FCT377
Octal D-Type Flip-Flop with Clock Enable

General Description

The ’FCT377 has eight edge-triggered, D-type flip-flops with
individual D inputs and Q outputs. The common buffered
Clock (CP) input loadsallflip-flops simultaneously, when the
Clock Enable (CE) is LOW.

The register is fully edge-triggered. The state of each D in­put, one setup time before the LOW-to-HIGH clock transi­tion, is transferred to the corresponding flip-flop’s Q output.
The CE input must be stable only one setup time prior to the
LOW-to-HIGH clock transition for predictable operation.

Features

n Clock enable for address and data synchronization

applications

n Eight edge-triggered D flip-flops
n Buffered common clock
n See ’FCT273 for master reset version
n See ’FCT373 for transparent latch version
n See ’FCT374 for TRI-STATE

®

version

n TTL input and output level compatible
n CMOS power consumption
n Output sink capability of 32 mA, source capability of

12 mA

n Standard Microcircuit Drawing (SMD) 5962-8762701

Ordering Code

Military Package Package Description

Number

54FCT377DMQB J20A 20-Lead Ceramic Dual-In-Line
54FCT377FMQB W20A 20-Lead Cerpack
54FCT377LMQB E20A 20-Lead Ceramic Leadless Chip Carrier, Type C

Connection Diagram

Pin

Names

Description

D

0–D7

Data Inputs

CE

Clock Enable (Active LOW)
CP Clock Pulse Input
Q

0–Q7

Data Outputs

TRI-STATE®is a registered trademark of National Semiconductor Corporation.

Pin Assignment for

DIP and Cerpack

DS100952-1

Pin Assignment for LCC

DS100952-11

October 1999

54FCT377 Octal D-Type Flip-Flop with Clock Enable

© 1999 National Semiconductor Corporation DS100952 www.national.com

Truth Table

Mode Select-Function Table

Operating Mode Inputs Output

CP CE

D

n

Q

n

Load “1” I h H
Load “0” I I L
Hold h X No Change
(Do Nothing) X H X No Change

H=HIGH Voltage Level
h=HIGH Voltage Level one setup time prior to the LOW-to-HIGH Clock Transition
L=LOW Voltage Level
I=LOW Voltage Level one setup time prior to the LOW-to-HIGH Clock Transition
X=Immaterial
=

LOW-to-HIGH Clock Transition

Logic Diagram

DS100952-3

Please note that this diagram is provided only for the understanding of logic operations and should not be used to estimate propagation delays.

54FCT377

www.national.com 2

Absolute Maximum Ratings (Note 1)

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.

Storage Temperature −65˚C to +150˚C
Ambient Temperature under Bias −55˚C to +125˚C
Junction Temperature under Bias

Ceramic −55˚C to +175˚C

V

CC

Pin Potential to

Ground Pin −0.5V to +7.0V
Input Voltage (Note 2) −0.5V to +7.0V
Input Current (Note 2) −30 mA to +5.0 mA
Voltage Applied to Any Output

in the Disabled or

Power-Off State −0.5V to +4.75V

in the HIGH State −0.5V to V

CC

Current Applied to Output

in LOW State (Max) Twice the rated I

OL

(mA)
DC Latchup Source Current −500 mA
(Across Comm Operating Range)

Recommended Operating
Conditions

Free Air Ambient Temperature

Military −55˚C to +125˚C

Supply Voltage

Military +4.5V to +5.5V

Minimum Input Edge Rate (∆V/∆t)

Data Input 50 mV/ns
Enable Input 20 mV/ns

DC Electrical Characteristics

Symbol Parameter FCT377 Units V

CC

Conditions

Min Typ Max

V

IH

Input HIGH Voltage 2.0 V Recognized HIGH Signal

V

IL

Input LOW Voltage 0.8 V Recognized LOW Signal

V

CD

Input Clamp Diode Voltage −1.2 V Min I

IN

=

−18 mA

V

OH

Output HIGH Voltage 54FCT 4.3 V Min I

OH

=

−300 uA

54FCT 2.4 I

OH

=

−12 mA

V

OL

Output LOW Voltage 54FCT 0.2 V Min I

OL

=

300 uA

54FCT 0.5 I

OL

= 32mA

I

IH

Input HIGH Current 5 µA Max V

IN

=

V

CC

I

IL

Input LOW Current −5 µA Max V

IN

=

0.5V

I

OS

Output Short-Circuit Current −60 mA Max V

OUT

=

0.0V

I

CCQ

Quiescent Power
Supply Current

1.5 mA Max V

I

=

0.2V or V

I

= 5.3V, VCC= 5.5V

∆I

CC

Maximum ICC/Input V

I

=

V

CC

− 2.1V

2.0 mA Max Data Input V

I

=

V

CC

− 2.1V

All Others at V

CC

or GND

I

CCD

Dynamic I

CC

0.4 mA/ Max Outputs Open
MHz One bit Toggling, 50%Duty Cycle

I

CC

Total Power Supply
Current

6.0 mA Max VCC= 5.5V, Outputs Open, fCP=

10MHz, 50%Duty Cycle, One bit
Toggling at f

I

= 5 MHz, 50%Duty
Cycle

Note 1: Absolute maximum ratings are values beyond which the device may be damaged or have its useful life impaired. Functional operation under these conditions
is not implied.

Note 2: Either voltage limit or current limit is sufficient to protect inputs.

54FCT377

www.national.com3

AC Electrical Characteristics

Symbol Parameter 54FCT Units Fig.

No.

T

A

=

−55˚C to +125˚C

V

CC

=

4.5V to 5.5V

C

L

=

50 pF

Min Max

t

PLH

Propagation Delay 2.0 15.0 ns

Figure 4

t

PHL

CP to O

n

2.0 8.3

AC Operating Requirements

54FCT

T

A

=

−55˚C to +125˚C Fig.

Symbol Parameter V

CC

=

4.5V to 5.5V Units No.

C

L

=

50 pF

Min Max

t

s

(H) Setup Time, HIGH 4.0 ns

Figure 6

ts(L) or LOW Dnto CP 4.0
t

h

(H) Hold Time, HIGH 2.5 ns

Figure 6

th(L) or LOW Dnto CP 2.5
t

s

(H) Setup Time, HIGH 4.5 ns

Figure 6

ts(L) or LOW CE to CP 4.5
t

h

(H) Hold Time, HIGH 2.0 ns

Figure 6

th(L) or LOW CE to CP 2.0
t

w

(H) Pulse Width, CP, 7.0 ns

Figure 5

tw(L) HIGH or LOW 7.0

Capacitance

Symbol Parameter Max Units Conditions

C

IN

Input Capacitance 10 pF V

CC

=

0V, T

A

=

25˚C

C

OUT

(Note 3) Output Capacitance 12 pF V

CC

=

5.0V

Note 3: C

OUT

is measured at frequency f=1 MHz, per MIL-STD-883B, Method 3012.

54FCT377

www.national.com 4

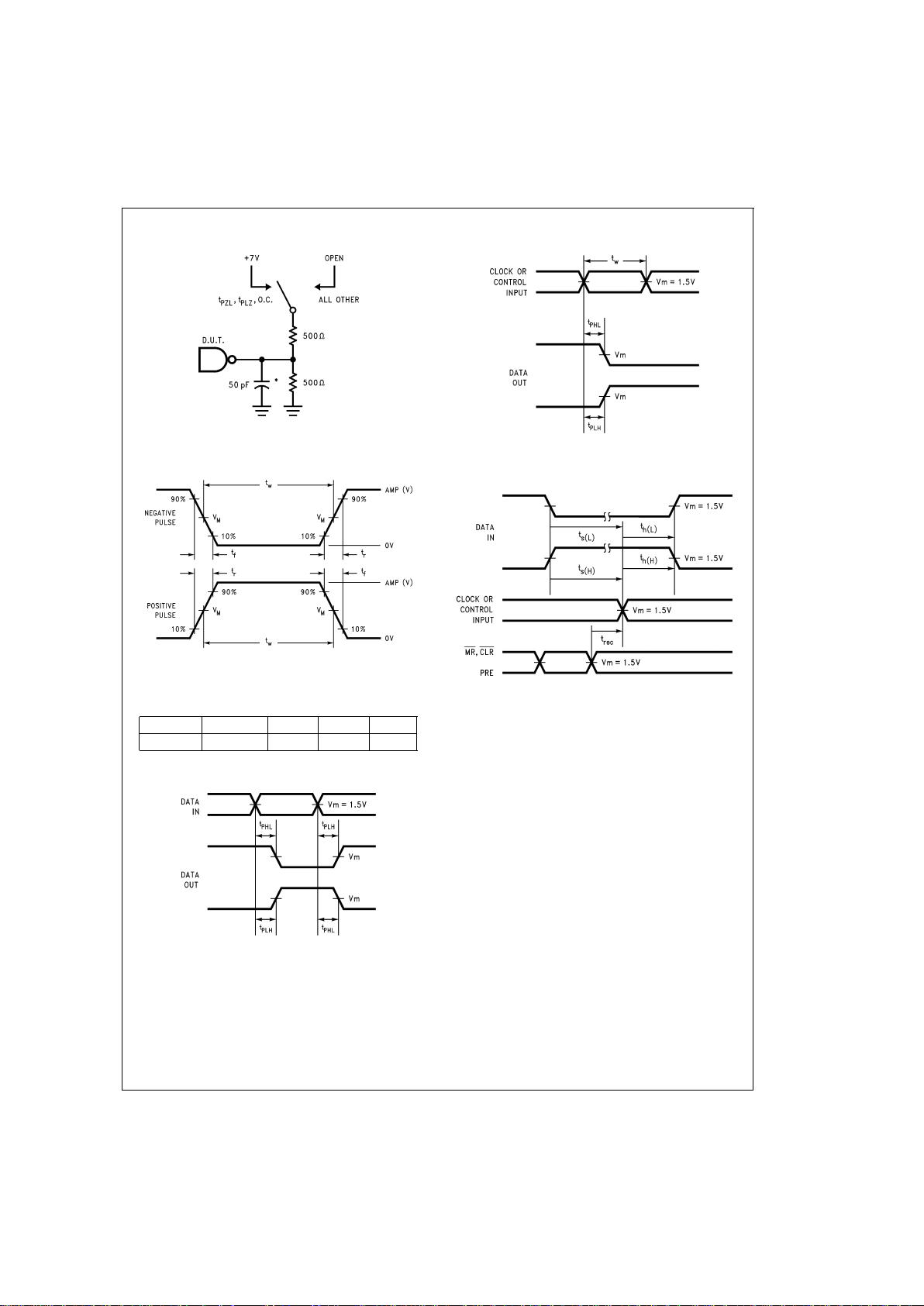

AC Loading

Input Pulse Requirements

DS100952-4

*Includes jig and probe capacitance

FIGURE 1. Standard AC Test Load

DS100952-6

FIGURE 2. V

M

=

1.5V

Amplitude Rep. Rate t

w

t

r

t

f

3.0V 1 MHz 500 ns 2.5 ns 2.5 ns

FIGURE 3. Test Input Signal Requirements

DS100952-8

FIGURE 4. Propagation Delay Waveforms for

Inverting and Non-Inverting Functions

DS100952-5

FIGURE 5. Propagation Delay,

Pulse Width Waveforms

DS100952-9

FIGURE 6. Setup Time, Hold Time

and Recovery Time Waveforms

54FCT377

www.national.com5

Physical Dimensions inches (millimeters) unless otherwise noted

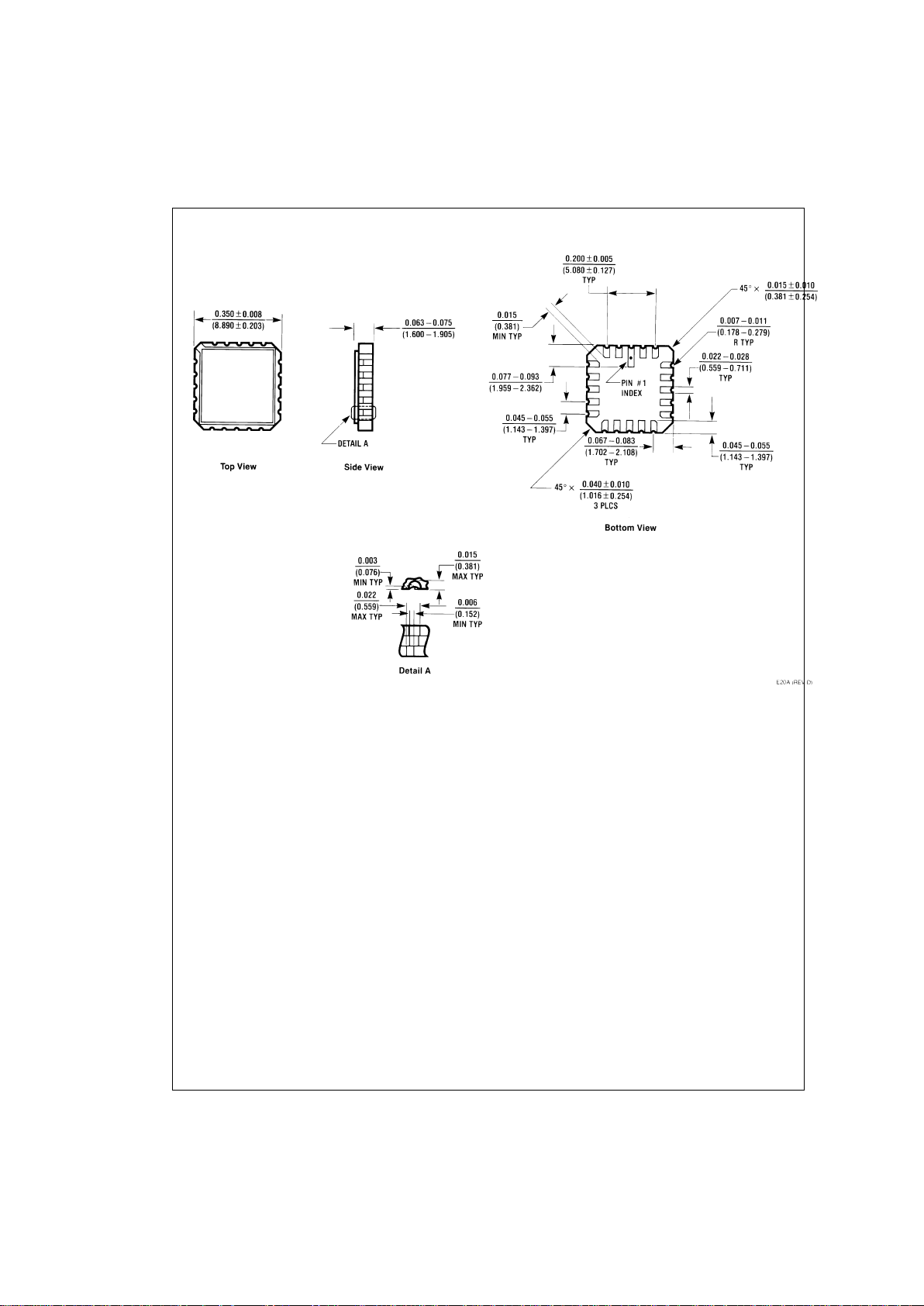

20-Lead Ceramic Chip Carrier

NS Package Number E20A

54FCT377

www.national.com 6

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

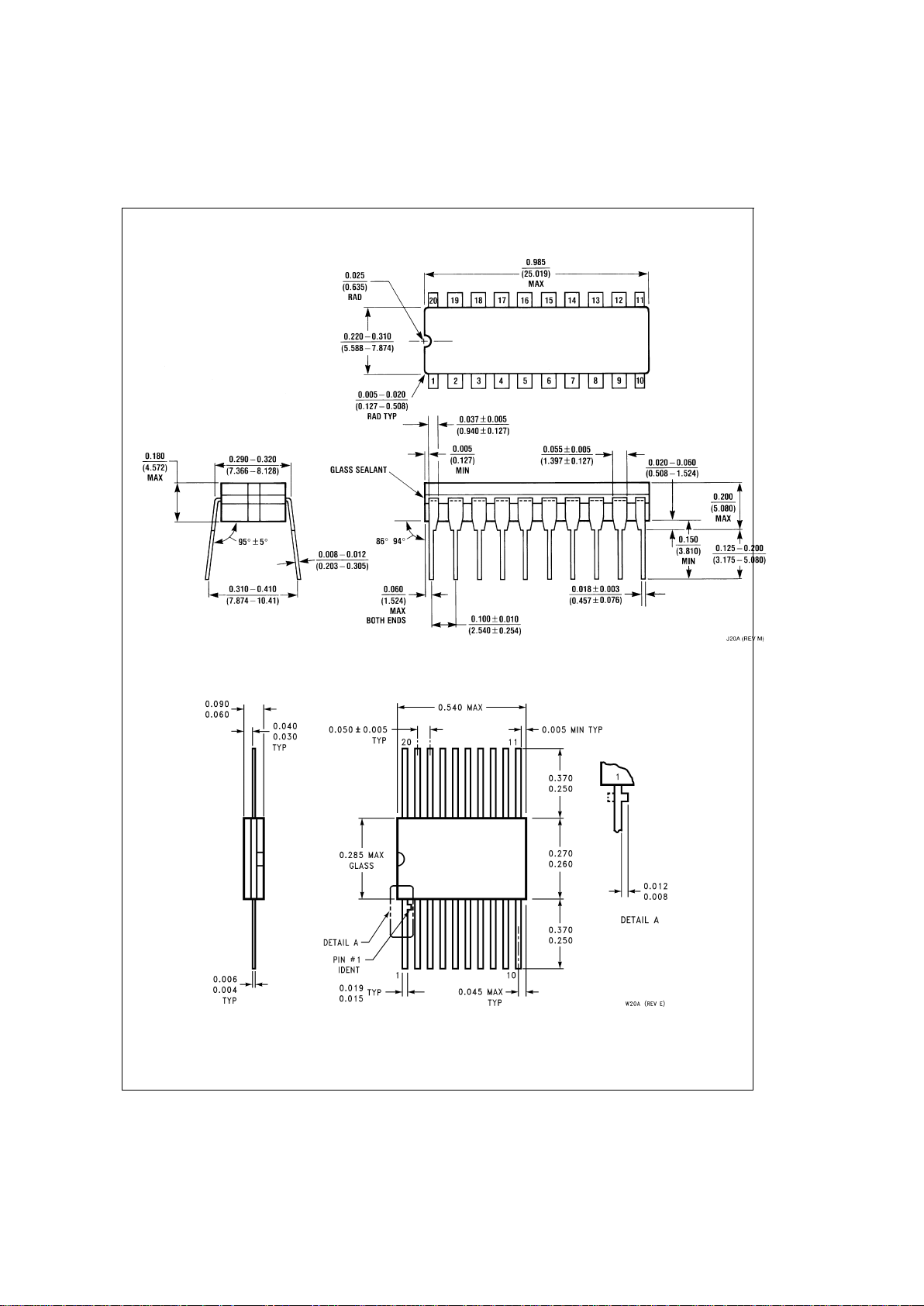

20-Lead Ceramic Dual-In-Line Package

NS Package Number J20A

20-Lead Ceramic Flatpack

NS Package Number W20A

54FCT377

www.national.com7
