Page 1
Reed Sensors
Red
Red
Red
White
Red
Red
35)
6.35 (.250)
(.250)
(.625)
Reed Sensors
Flange Mounting Sensor > 59135
Flange Mounting Sensor > 59135

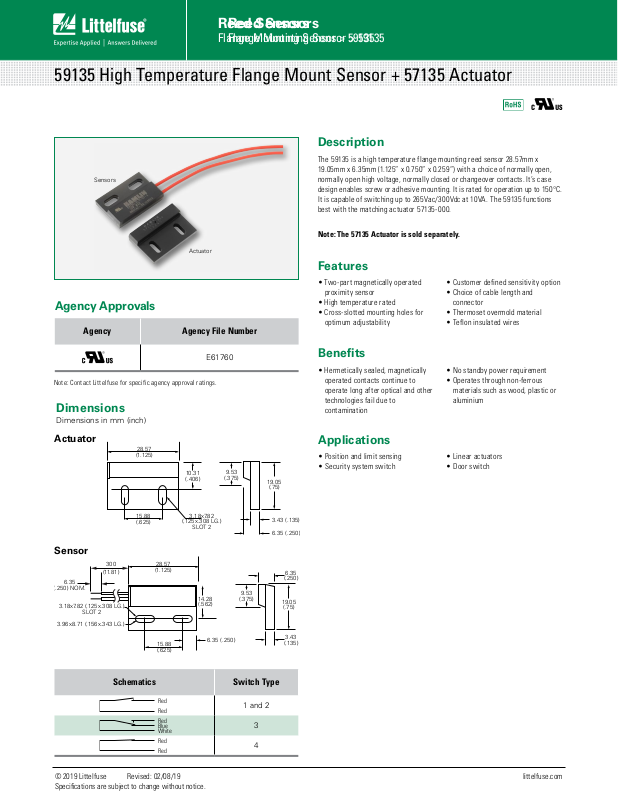

59135 High Temperature Flange Mount Sensor + 57135 Actuator
Description
The 59135 is a high temperature flange mounting reed sensor 28.57mm x
Sensors
Actuator
Agency Approvals
Agency Agency File Number
19.05mm x 6.35mm (1.125” x 0.750” x 0.259”) with a choice of normally open,
normally open high voltage, normally closed or changeover contacts. It’s case
design enables screw or adhesive mounting. It is rated for operation up to 150°C.
It is capable of switching up to 265Vac/300Vdc at 10VA. The 59135 functions
best with the matching actuator 57135-000.
Note: The 57135 Actuator is sold separately.
Features
• Two-part magnetically operated
proximity sensor
• High temperature rated
• Cross-slotted mounting holes for
optimum adjustability
• Customer defined sensitivity option
• Choice of cable length and
connector
• Thermoset overmold material
• Teflon insulated wires
E61760
Note: Contact Littelfuse for specific agency approval ratings.
Dimensions
Dimensions in mm (inch)
Actuator
Sensor
300
(11.81)
6.35
3.18x7.82 (.125x.308 LG.)
SLOT 2
3.96x8.71 (.156x.343 LG.)
28.57
(1.125)
15.88
(.625)
28.57
(1.125)
15.88
10.31
(.406)
3.18x7.82
(.125x.308 LG.)
SLOT 2
14.28
(.562)
6.35 (.250)
9.53
(.375)
9.53
(.375)
19.05
(.75)
3.43 (.1
6.35
19.05
(.75)
3.43
(.135)
Benefits
• Hermetically sealed, magnetically
operated contacts continue to
operate long after optical and other
technologies fail due to
contamination
Applications
• Position and limit sensing
• Security system switch
• No standby power requirement
• Operates through non-ferrous
materials such as wood, plastic or
aluminium
• Linear actuators
• Door switch
Schematics Switch Type
3
Blue
Specifications are subject to change without notice.
1 and 2
4
littelfuse.com© 2019 Littelfuse Revised: 02/08/19
Page 2
Reed Sensors
D
Reed Sensors
Flange Mounting Sensor > 59135
Flange Mounting Sensor > 59135
59135 High Temperature Flange Mount Sensor + 57135 Actuator
Electrical Ratings
Contact Type
Normally
Open
Normally Open
High Voltage
Change
Over
Normally
Closed
Switch Type 1 2 3 4
Contact Rating
Voltage
Current
Resistance
1
4
Switching
Breakdown
4
Switching
Carry
5
Contact, Initial
Insulation
VA/Watt - max. 10 10 5 5
2
3
2
Vdc - max.
Vac - max.
Vdc - min.
Adc - max.
Aac - max.
Adc - max.
Ω - max.
Ω - min.
200
140
250
0.5
0.35
1.2
0.2
10
300
265
400
0.4
0.30
1.4
10
0.2
10
10
175
120
200
0.25
0.18
1.5
0.2
10
175
120
200
0.25
0.18
1.5
9
0.2
10
9
Capacitance Contact pF - typ. 0.3 0.2 0.3 0.3
Temperature Operating °C -40 to +150 -20 to +150 -40 to +150 -40 to +150
Product Characteristics
Operate Time
Release Time
Shock
Vibration
Notes:
1. Contact rating - Product of the switching voltage and current should never exceed the wattage rating. Contact Littelfuse for additional load/life information.
2. When switching inductive and/or capacitive loads, the effects of transient voltages and/or currents should be considered. Refer to Application Notes AN108A and AN107 for details.
3. Breakdown Voltage - per MIL-STD-202, Method 301.
4. Electrical Load Life Expectancy - Contact Littelfuse with voltage, current values along with type of load.
5. This resistance value is for 11.81mm wire length. Resistance changes when wire lengthens.
6. Operate (including bounce)/Release Time - per EIA/NARM RS-421-A, diode suppressed coil (Coil II).
7. Shock and Vibration - per EIA/NARM RS-421-A and MIL-STD-202.
8. For custom modifications to the wire length or size, or adding a special connector, please contact Littelfuse.
6
6
7
7
11ms ½ sine G - max. 100 100 50 50
50-2000 Hz G - max. 30 30 30 30
ms - max. 1.0 1.0 3.0 3.0
ms - max. 1.0 1.0 3.0 3.0
Sensitivity Options (Using 57135 Actuator)
Select Option S T U V
Switch Type
Pull-In
AT Range
Activate Distance-D
mm (inch)
Average
Pull-In
AT Range
1 Normally Open 12-18 18.5 (.729) 17-23 17.1 (.673) 22-28 15.8 (.622) 27-33 15.1 (.595)
2 High Voltage -- -- 17-23 17.1 (.673) 22-28 15.8 (.622) 27-33 15.1 (.595)
3 Change Over 15-20 16.7 (.657) 20-25 14.7 (.579) 25-30 13.4 (.528) -- -4 Normally Closed 15-20 16.7 (.657) 20-25 14.7 (.579) 25-30 13.4 (.528) -- --
Note:
1. Pull-In AT Range: These AT values are the bare reed switch AT before modification.
2. The activation distance is average value on the final sensor assembly
Specifications are subject to change without notice.
Activate Distance-D
mm (inch)
Average
Pull-In
AT Range
Actuator
Activate Distance-D
mm (inch)
Average
Sensor
Pull-In
AT Range
Activate Distance-D
mm (inch)
Average
littelfuse.com© 2019 Littelfuse Revised: 02/08/19
Page 3
Reed Sensors
Flange Mounting Sensor > 59135
Flange Mounting Sensor > 59135
Reed Sensors
59135 High Temperature Flange Mount Sensor + 57135 Actuator
Cable Length Specification
Cable Type: 20 AWG 19/32 FEP UL1130/UL1332
Select Option
02 300 (11.81)
Cable Length
mm (inch)
Termination Specification
Termination Options
Select
Option
A Tinned leads (6.4±0.76)mm
F Untinned leads (6.4±0.76)mm
E JST type XHP 2.5mm pitch
(Two-wire versions illustrated)
Description
Part Numbering System
Sensor:
Series
Switch Type
1, 2, 3, or 4
Sensitivity
S, T, U, or V
Cable Length
Termination
A, E, or F
Actuator:
59135 - X - X - XX - X
02
57135 - 000
Series
Standard Actuator
000
Note: The 57135 Actuator is sold separately.
Packaging
Packaging Option Packaging Specification Quantity Quantity & Packaging Code Taping Width
Bulk Bulk 500 N/A N/A
Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and
test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete
Disclaimer Notice at www.littelfuse.com/disclaimier-electronics.
Specifications are subject to change without notice.
littelfuse.com© 2019 Littelfuse Revised: 02/08/19
