Datasheet 5833P Datasheet (AGERE)

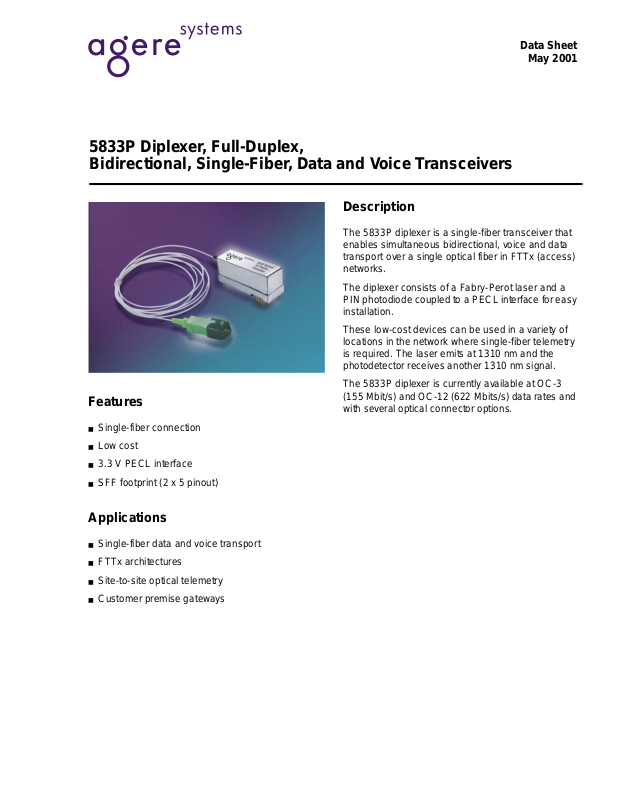

5833P Diplexer, Full-Duplex,
Bidirectional, Single-Fiber, Data and Voice Transceivers

Description

The 5833P diplexer is a single-fiber transceiver that
enables simultaneous bidirectional, voice and data
transport over a single optical fiber in FTTx (access)
networks.

The diplexer consists of a Fabry-Perot laser and a
PIN photodiode coupled to a PECL interface for easy
installation.

These low-cost devices can be used in a variety of
locations in the network where single-fiber telemetry
is required. The laser emits at 1310 nm and the
photodetector receives another 1310 nm signal.

Data Sheet

May 2001

Features

■

Single-fiber connection

■

Low cost

■

3.3 V PECL interface

■

SFF footprint (2 x 5 pinout)

Applications

■

Single-fiber data and voice transport

■

FTTx architectu res

■

Site-to-site optical telemetry

■

Customer premise gateways

The 5833P diplexer is currently available at OC-3
(155 Mbit/s) and OC-12 (622 Mbits/s) data rates and
with several optical connector options.

5833P Diplexer, Full-Duplex, Data Sheet
Bidirectional, Single-Fiber, Data and Voice Transceivers May 2001

Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are abso­lute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess
of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings for extended
periods can adversely affect device reliability.

Parameter Symbol Min Typ Max Unit

Operating Temperature Range T
Storage Temperature Range Tstg –40 25 85 °C
Supply Voltage:

V

(Tx/Rx)

CC

Optical Return Loss (APC Pigtail

Connector)

OP

V

CC

RL — — –45 dB

–40 25 85 °C

—3.33.6V

Characteristics

Table 1. Transmitter Specifications

Parameter Condition Min Typ Max Units

Wavelength CW 1260 1310 1360 nm
Dynamic Extinction Ratio — 8.2 — — dB
Output Power — –15 –12.5 –10 dBm
Input Data Voltage:

Low

High
Transmit Disable TTL Low — — 0.8 V
Enable Delay Time Open Loop — 250 — ns
Bit Rate:

5833P-0155

5833P-0622
Supply Current:

–40 °C

25 °C

85 °C

—

Vcc – 2.1
Vcc – 1.2

—

—
—

Exclude Input

Bias Network —

—
—

—
—

155
622

100
105
130

Vcc – 1.4
Vcc – 0.5

—
—

—
—
—

V
V

Mbits/s
Mbits/s

mA
mA
mA

2

Agere System s Inc.

Data Sheet 5833P Diplexer, Full-Duplex,
May 2001 Bidirectional, Single-Fiber, Data and Voice Transceivers

Characteristics

(continued)

Table 2. Receiver Characteristics (Integrated TIA with AGC)

Parameter Condition Min Typ Max Units

Wavelength CW 1260 1310 1360 nm
Output Data Voltage:

Low
High

Signal-Detect Output Voltage:

Low
High

Signal-Detect Switching Threshold:

Decreasing Light

Increasing Light
Level-Detect Hysteresis (Optional) — 1.75 2.25 2.75 dB
Sensitivity: Full Duplex:

9833P-0155
9833P-0622

Supply Current No ECL loads — 40 60 mA

—

—

—

BER = 10

–10

Vcc – 1.8
Vcc – 1.0

—

Vcc – 1.2

—
—

—
—

—
—

—
—

–39

–36.75

—
—

Vcc – 1.6
Vcc – 0.9

Vcc – 1.5

—

—
—

–30
–26

dBm
dBm

dBm
dBm

V
V

V
V

Agere Systems Inc.

3

5833P Diplexer, Full-Duplex, Data Sheet
Bidirectional, Single-Fiber, Data and Voice Transceivers May 2001

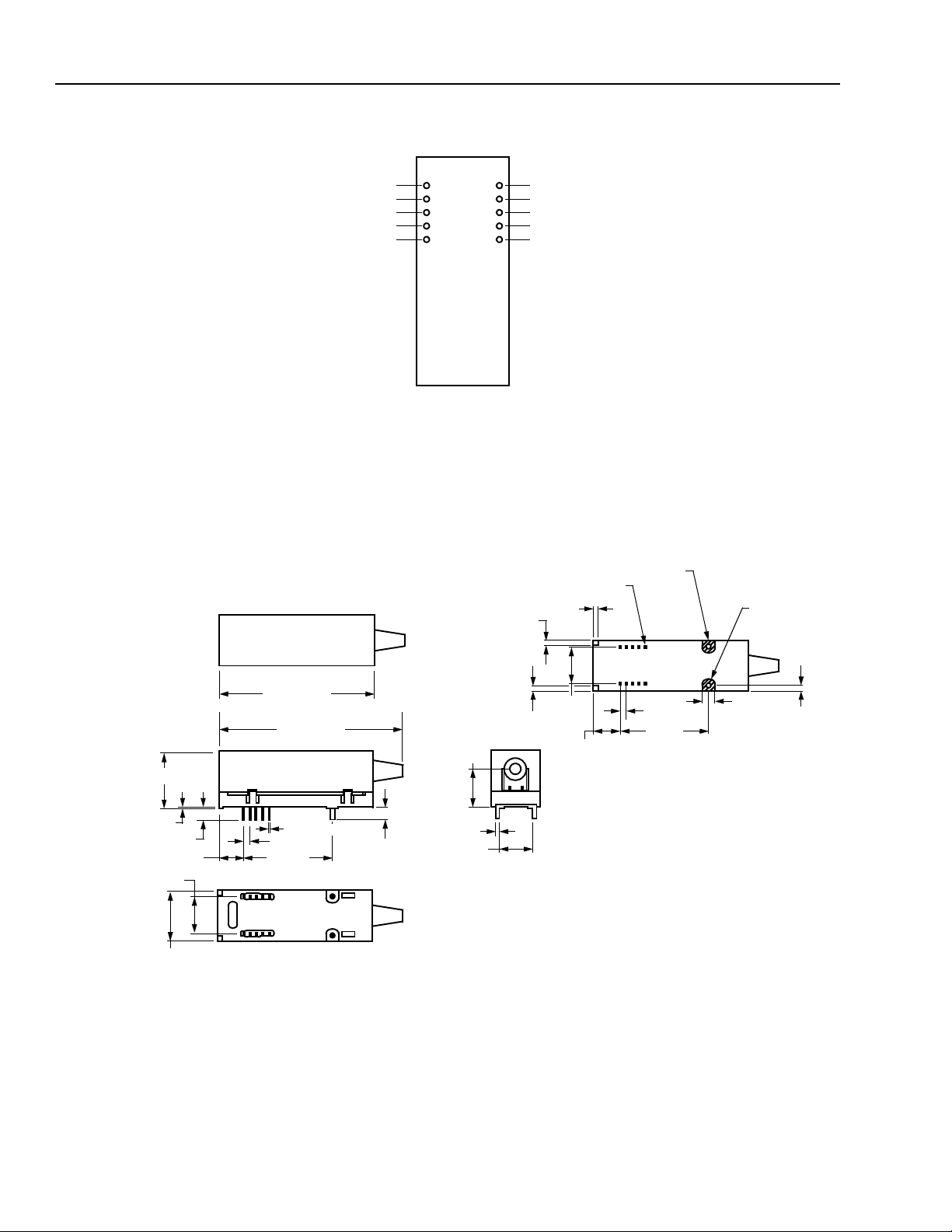

Pin Information

TX RX

VCCT
VEET

TX DISABLE

TD+
TD–

(TOP VIEW)

RD+
RD–
SD
VCCR
VEER

Figure 1. 5833-Type Transceiver Pinout

Outline Diagram

Dimensions are in inches and (millimeters)

1.70 (43.18)

2.04 (51.82)

0.63 (16.0)

0.14 (0.36)

0.125 (3.17)

0.27 (6.86)

0.40 (10.16)

0.02 (0.51)

0.07 (1.78)

0.98

(24.89)

1.25

(3.17)

0.410

(10.41)

0.04 (1.02)

0.400 (10.16)

0.04 (1.02)

0.04

(10.41)

1-1259 (F)

10x ∅ 0.030 (0.76)

0.04 (1.02)

0.40

(10.16)

0.27

(6.86)

2x ∅ 0.055 (1.40)

0.07 (1.78)

0.98

(24.89)

2x R. 0.70 (1.78)

(1.78)

0.14 (3.56)

0.07

0.54

(10.16)

Note: Single-fiber transceivers provided by Agere Systems Inc. are pigtailed with

* SMF-28

is a trademark of Corning, Inc.

4

SMF-28 *

and connector options.

1-1260 (F)

Agere System s Inc.

Data Sheet 5833P Diplexer, Full-Duplex,
May 2001 Bidirectional, Single-Fiber, Data and Voice Transceivers

Laser Safety Information

Class I Laser Product

All versions of the 5833P-type transceivers are classified as Class I laser products per FDA/CDRH, 21 CFR 1040
Laser Safety requirements. The transceivers are classified with the FDA under accession number to be deter­mined. All versions are Class I laser products per

CAUTION: Use of controls, adjustments, and procedures other than those specified herein may result in

hazardous laser radiation exposure.

This product complies with 21 CFR 1040.10 and 1040.11.

SMF-28

900 µm fiber pigtail with connector options.
Wavelength = 1.3 µm
Maximum power = 0.1 mW
Product is not shipped with power supply.
Because of size constraints, laser safety labeling is not affixed to the module but is attached to the outside of the
shipping carton.

*

IEC

60825-1:1993.

NOTICE

Unterminated optical connectors can emit laser radiation.

Do not view with optical instruments.

*

IEC

is a registered trademark of The International Electrotechnical Commission.

Agere Systems Inc.

5

5833P Diplexer, Full-Duplex, Data Sheet
Bidirectional, Single-Fiber, Data and Voice Transceivers May 2001

Ordering Information

For ordering information, please contact an account manager at OPTO West, Agere Systems INC., 1-800-362­3891 (for sales staff, please press option 2).

For additional information, contact your Agere Systems Account Ma na ger or the following:
INTERNET: http://www.agere.com
E-MAIL: [email protected]
N. AMERICA: Agere Systems Inc., 555 Union Boulevard, Room 30L-15P-BA, Allentown, PA 18109-3286

ASIA PACIFIC: Agere Systems Singapore Pte. Ltd., 77 Science Park Drive, #03-18 Cintech III, Singapore 118256
CHINA: Agere Systems (Shanghai) Co., Ltd., 33/F Jin Mao Tower, 88 Century Boulevard Pudong, Shanghai 200121 PRC
JAPAN: Agere Systems Japan Ltd., 7-18, Higashi-Gotanda 2-chome, Shinagawa-ku, Tokyo 141, Japan
EUROPE: Data Requests: DATALINE: Tel. [phone], FAX [phone]

Agere Systems Inc. reserves the right to make changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application..
