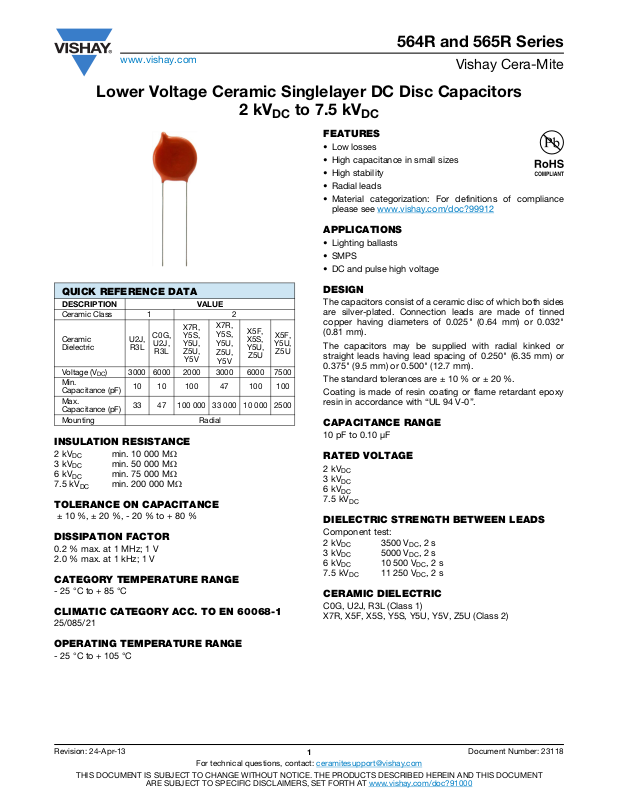

564R and 565R Series
www.vishay.com
Vishay Cera-Mite
Lower Voltage Ceramic Singlelayer DC Disc Capacitors
2 kV
DC
QUICK REFERENCE DATA
DESCRIPTION VALUE
Ceramic Class 1 2
X7R, Y5S, Y5U, Z5U,
Y5V
X5F, X5S,
Y5U,
Z5U
U2J,
R3L
10
X7R, Y5S, Y5U, Z5U,
Y5V
100 47 100
Ceramic Dielectric
Voltage (V Min.
Capacitance (pF) Max.
Capacitance (pF) Mounting Radial
) 3000 6000 2000 3000 6000 7500
DC
C0G,
U2J,
R3L
10
33 47 100 000 33 000 10 000 2500
INSULATION RESISTANCE
2 kV 3 kV 6 kV
7.5 kV
DC
DC
DC
DC
min. 10 000 M min. 50 000 M min. 75 000 M min. 200 000 M
TOLERANCE ON CAPACITANCE
± 10 %, ± 20 %, - 20 % to + 80 %
DISSIPATION FACTOR
0.2 % max. at 1 MHz; 1 V
2.0 % max. at 1 kHz; 1 V
CATEGORY TEMPERATURE RANGE
- 25 °C to + 85 °C
CLIMATIC CATEGORY ACC. TO EN 60068-1
25/085/21
to 7.5 kV
X5F,
Y5U,
Z5U
100
DC
FEATURES
• Low losses
• High capacitance in small sizes
• High stability
• Radial leads
• Material categorization: For definitions of compliance please see www.vishay.com/doc?99912
APPLICATIONS
• Lighting ballasts
•SMPS
• DC and pulse high voltage
DESIGN
The capacitors consist of a ceramic disc of which both sides are silver-plated. Connection leads are made of tinned copper having diameters of 0.025" (0.64 mm) or 0.032" (0.81 mm).
The capacitors may be supplied with radial kinked or straight leads having lead spacing of 0.250" (6.35 mm) or
0.375" (9.5 mm) or 0.500" (12.7 mm).
The standard tolerances are ± 10 % or ± 20 %. Coating is made of resin coating or flame retardant epoxy
resin in accordance with “UL 94 V-0”.
CAPACITANCE RANGE
10 pF to 0.10 μF
RATED VOLTAGE
2 kVDC 3 kV
DC
6 kV
DC
7.5 kV
DC
DIELECTRIC STRENGTH BETWEEN LEADS
Component test: 2 kV 3 kV 6 kV
7.5 kV
DC
DC
DC
DC
3500 VDC, 2 s 5000 VDC, 2 s 10 500 VDC, 2 s 11 250 VDC, 2 s
CERAMIC DIELECTRIC
C0G, U2J, R3L (Class 1) X7R, X5F, X5S, Y5S, Y5U, Y5V, Z5U (Class 2)
OPERATING TEMPERATURE RANGE
- 25 °C to + 105 °C
Revision: 24-Apr-13
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
1
Document Number: 23118
Page 2
www.vishay.com
DIMENSIONS in inches (millimeters)
564R and 565R Series
Vishay Cera-Mite
1.250 min. (32)
D
max.
ORDERING INFORMATION, CERAMIC 2 kV
D
C
(pF)
X7R
100 220 330 564R20TST33 470 0.170 (4.3) 564R20TST47 560 0.185 (4.7) 564R20TST56
680 0.170 (4.3) 564R20TST68 1000 0.400 (10.2) 0.175 (4.4) 564R20TSD10 1500 0.430 (10.9) 0.160 (4.1) 564R20TSD15 1800 2200 564R20TSD22 2700 3300 0.160 (4.1) 564R20TSD33 3900 4700 0.375 (9.5) 564R20TSD47
Y5S
1000 1500 0.400 (10.2) 1800 0.430 (10.9) 564R20TSSD18 2200 0.460 (11.7) 564R20TSSD22 2700 3300 564R20TSSD33 3900 0.620 (15.7) 564R20TSSD39 4700 5600 6800 0.720 (18.3) 564R20TSSD68
Y5U
1000 1500 0.330 (8.4) 0.170 (4.3) 564R20GAD15
Z5U
1800 2200 0.400 (10.2) 2700 3300 564R20GAD33 3900 4700 6800 0.560 (14.2)
0.010 μF 0.680 (17.3) 564R20GAS10
Y5V
0.01 μF
0.05 μF 0.950 (24.1) 0.174 (4.4) 20 564R20GAS50
0.10 μF 0.950 (24.1) 0.240 (6.1) 22 0.025 (0.64) 565R20GAP10
Revision: 24-Apr-13
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
TOL.
(%)
± 10
± 20
± 20
± 20
± 20
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
max.
DIAMETER INCH (mm)
0.330 (8.4)
0.460 (11.7) 0.170 (4.3)
0.530 (13.5)
0.680 (17.3) 0.170 (4.3)
0.330 (8.4) 0.175 (4.4)
0.530 (13.5)
0.680 (17.3)
0.330 (8.4) 0.170 (4.3)
0.360 (9.1) 0.170 (4.3)
0.430 (10.9)
0.490 (12.4)
0.620 (15.7) 0.170 (4.3)
Tinned copper leads
0.187 (4.8)
DC
T
max.
THICKNESS
INCH (mm)
0.190 (4.8)
0.180 (4.6)
0.170 (4.3) 564R20TSD27
0.170 (4.3)
0.175 (4.4)
0.170 (4.3)
0.175 (4.4)
0.170 (4.3)
LEAD SPACE
INCH (mm)
0.250 (6.4)
0.250 (6.4)
0.375 (9.5)
0.250 (6.4) 20 0.032 (0.81)
0.250 (6.4)
0.375 (9.5)
0.375 (9.5)
2
Ø
LS
LS
T
max.
WIRE SIZE
AWG INCH (mm)
20 0.032 (0.81)
20 0.032 (0.81)
20 0.032 (0.81)
20
0.032 (0.81)
Document Number: 23118
ORDERING
CODE
564R20TST10 564R20TST22
564R20TSD18
564R20TSD39
564R20TSSD10 564R20TSSD15
564R20TSSD27
564R20TSSD47 564R20TSSD56
564R20GAD10
564R20GAD18 564R20GAD22 564R20GAD27
564R20GAD39 564R20GAD47 564R20GAD68
564R20GASS10
Page 3
www.vishay.com
564R and 565R Series
Vishay Cera-Mite
ORDERING INFORMATION, CERAMIC 3 kV
D
C
(pF)
U2J (N750)
10 12 0.210 (5.3) 564R30GAQ12 15 0.180 (4.6) 564R30GAQ15
R3L (N2200)
22 27 0.190 (4.8) 564R30GAQ27 33 0.170 (4.3) 564R30GAQ33
X7R
47 56 0.190 (4.8) 564R30GAQ56
68 0.200 (5.1) 564R30GAQ68 100 0.180 (4.6) 564R30GAT10 150 0.190 (4.8) 564R30GAT15 220 0.175 (4.4) 564R30GAT22 270 0.180 (4.6) 564R30GAT27 330 390 564R30GAT39 470 564R30GAT47 680
1000 0.400 (10.2) 0.175 (4.4) 564R30TSD10 1500 0.490 (12.5) 1800 2200 0.180 (4.6) 564R30TSD22 2700 3300 0.170 (4.3) 3900 4700 0.175 (4.4) 564R30TSD47 6800 0.900 (22.9) 0.185 (4.7) 564R30TSD68
Y5S
1000 1500 0.460 (11.7) 564R30TSSD15 1800 0.490 (12.4) 564R30TSSD18 2200 0.530 (13.5) 564R30TSSD22 2700 0.560 (14.2) 3300 0.620 (15.7) 3900 4700 564R30TSSD47 5600 0.790 (20.0) 0.190 (4.8) 564R30TSSD56 6800 0.900 (22.9) 0.205 (5.2) 564R30TSSD68
Y5U
680 ± 20 0.330 (8.4) 0.175 (4.4) 0.250 (6.4) 20 0.032 (0.81) 564R30GAT68
Z5U
1000 1500 0.360 (9.1) 1800 0.400 (10.2) 564R30GAD18 2200 0.430 (10.9) 564R30GAD22 2700 0.460 (11.7) 0.200 (5.1) 564R30GAD27 3300 0.490 (12.4) 3900 0.530 (13.5) 4700 0.620 (15.7) 0.195 (5.0) 564R30GAD47 6800 8200 564R30GAD82
0.010 μF 0.720 (18.3) 564R30GAS10
0.020 μF 0.720 (18.3) 0.265 (6.7) 22 0.025 (0.64) 565R30GASS20
0.033 μF 0.900 (22.9) 0.240 (6.1) 22 0.025 (0.64) 565R30GASS33
Y5V
0.010 μF ± 20 0.720 (18.3) 0.185 (4.7) 0.375 (9.5) 20 0.032 (0.81) 564R30GASS10
TOL.
(%)
± 20 0.330 (8.4)
± 20 0.330 (8.4)
± 20
± 10
± 20
± 20
max.
DIAMETER INCH (mm)
0.330 (8.4)
0.530 (13.5)
0.620 (15.7)
0.720 (18.3)
0.400 (10.2)
0.680 (17.3)
0.330 (8.4) 0.195 (5.0)
0.680 (17.3)
DC
T
max.
THICKNESS
INCH (mm)
0.210 (5.3)
0.200 (5.1)
0.230 (5.8)
0.175 (4.4)
0.180 (4.6) 564R30TST68
0.185 (4.7)
0.185 (4.7) 564R30TSD27
0.185 (4.7) 564R30TSD39
0.190 (4.8)
0.185 (4.7)
0.190 (4.8)
0.185 (4.7)
0.185 (4.7)
LS
LEAD SPACE
INCH (mm)
0.250 (6.4) 20 0.032 (0.81)
0.250 (6.4) 20 0.032 (0.81)
0.250 (6.4)
0.375 (9.5)
0.250 (6.4)
0.375 (9.5)
0.250 (6.4)
0.375 (9.5)
WIRE SIZE
AWG INCH (mm)
20 0.032 (0.81)
20 0.032 (0.81)
20 0.032 (0.81)
ORDERING
CODE
564R30GAQ10
564R30GAQ22
564R30GAQ47
564R30GAT33
564R30TSD15 564R30TSD18
564R30TSD33
564R30TSSD10
564R30TSSD27 564R30TSSD33 564R30TSSD39
564R30GAD10 564R30GAD15
564R30GAD33 564R30GAD39
564R30GAD68
Revision: 24-Apr-13
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
3
Document Number: 23118
Page 4
www.vishay.com
564R and 565R Series
Vishay Cera-Mite
ORDERING INFORMATION, CERAMIC 6 kV
D
C
(pF)
C0G (NP0)
10 ± 20 0.400 (10.2) 0.220 (5.6) 0.375 (9.5) 20 0.032 (0.81) 564R60GAQ10
U2J (N750)
22 ± 20 0.460 (11.7) 0.240 (6.1) 0.375 (9.5) 20 0.032 (0.81) 564R60GAQ22
R3L (N2200)
33
47 0.460 (11.7) 0.205 (5.2) 564R60GAQ47
X5F
100
220 0.265 (6.7) 564R60GAT22
X5S
330 ± 20 0.400 (10.2) 0.260 (6.6) 0.375 (9.5) 20 0.032 (0.81) 564R60GAT33
Y5U
470
560 0.240 (6.1) 564R60GAT56
Z5U
1000
1500 0.460 (11.7) 0.280 (7.1) 564R60GAD15
2200 0.530 (13.5) 0.240 (6.1) 564R60GAD22
3300 0.620 (15.7)
4700 0.790 (20.0) 564R60GAD47
0.010 μF 0.950 (24.1) 0.250 (6.4) 564R60GAS10
TOL.
(%)
± 20
± 20 0.400 (10.2)
± 20 0.400 (10.2)
± 20
max.
DIAMETER INCH (mm)
0.400 (10.2) 0.230 (5.8)
0.400 (10.2) 0.270 (6.9)
DC
T
max.
THICKNESS
INCH (mm)
0.240 (6.1)
0.265 (6.7)
0.260 (6.6)
LS
LEAD SPACE
INCH (mm)
0.375 (9.5) 20 0.032 (0.81)
0.375 (9.5) 20 0.032 (0.81)
0.375 (9.5) 20 0.032 (0.81)
0.375 (9.5) 20 0.032 (0.81)
WIRE SIZE
AWG INCH (mm)
ORDERING
CODE
564R60GAQ33
564R60GAT10
564R60GAT47
564R60GAD10
564R60GAD33
ORDERING INFORMATION, CERAMIC 7.5 kV
D
C
(pF)
X5F
100
470 0.620 (15.7) 0.270 (6.9) 564R75GAT47
Y5U
1000 + 80/- 20 0.620 (15.7) 0.320 (8.1) 0.500 (12.7) 20 0.032 (0.81) 564R75GAD10
Z5U
2500 + 80/- 20 0.620 (15.7) 0.280 (7.1) 0.500 (12.7) 20 0.032 (0.81) 564R75GAD25
TOL.
(%)
± 20
max.
DIAMETER INCH (mm)
0.530 (13.5) 0.310 (7.9)
DC
T
max.
THICKNESS
INCH (mm)
LS
LEAD SPACE
INCH (mm)
0.500 (12.7) 20 0.032 (0.81)
WIRE SIZE
AWG INCH (mm)
ORDERING
CODE
564R75GAT10
TAPE AND REEL OPTIONS
Part number codes and specifications for tape and reel packaging are found in the general information document - find web-link below.
RELATED DOCUMENTS
General Information www.vishay.com/doc?23140
Revision: 24-Apr-13
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
