Page 1
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date : 05/26/2007
Revison : 1.01, 05/26/2008
LED Middle POWER
5630 Product Data Sheet
SZPXX Series
Created Date: 03 / 12 / 2014
Revision: 2.0, 05 / 9 / 2014
1
Page 2
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
1. Description
The LiteON 5630 Product series is a wide beam angle standard-dimension package, combining the lifetime and reliability
advantages of Light Emitting Diodes with the brightness of conventional lighting. It gives you total design freedom and
unmatched brightness, creating a new opportunities for solid state lighting to displace conventional lighting technologies.
1.1 Features

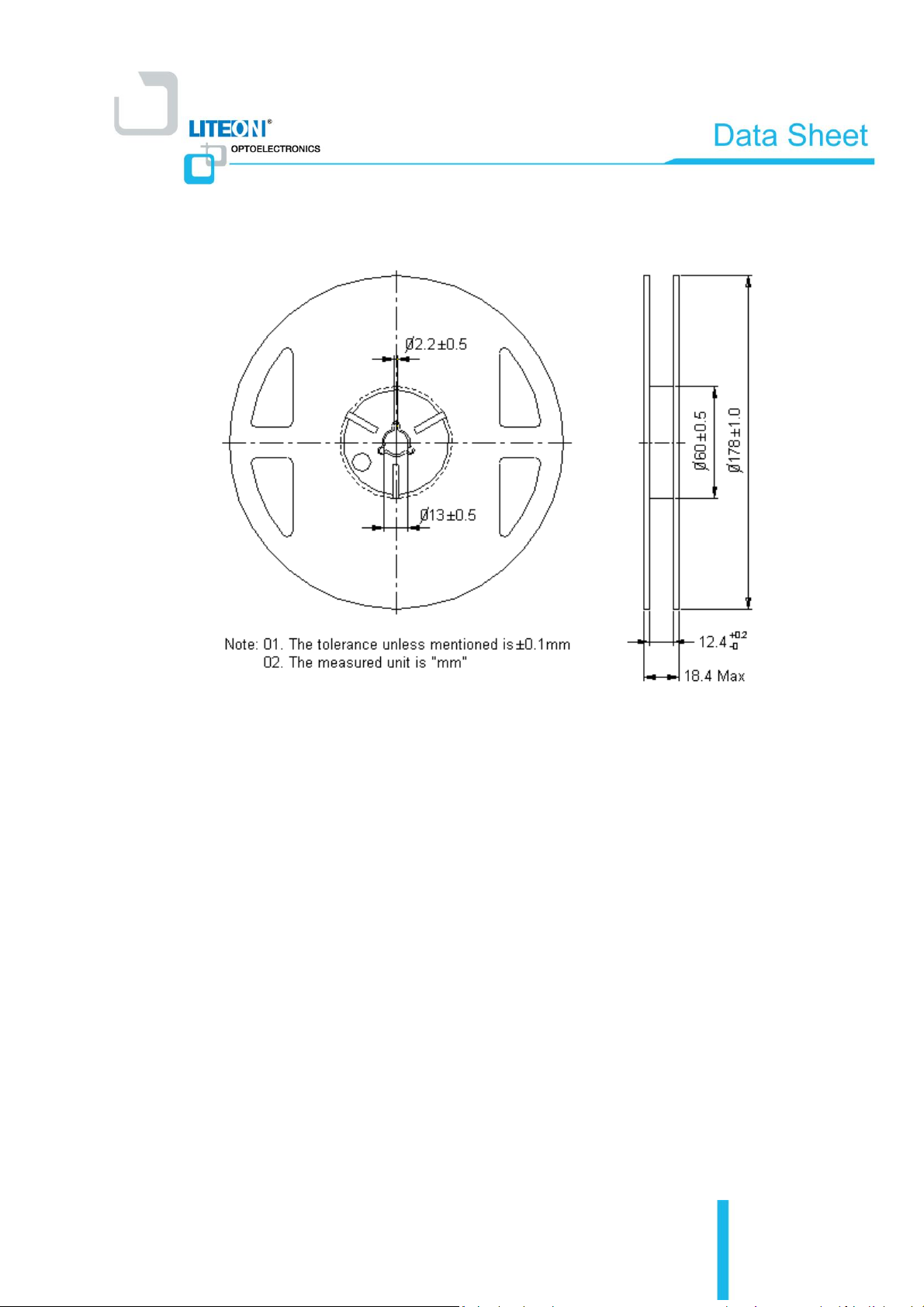

Package in 8mm tape on 7" diameter reels.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
EIA STD package.
I.C. compatible.
Meet green product and Pb-free(According to RoHS)
CCT
Part Number
6500K
LTW-5630SZP65
5700K
LTW-5630SZP57
5000K
LTW-5630SZP50
4000K
LTW-5630SZP40
3500K
LTW-5630SZP35
3000K
LTW-5630SZP30
2700K
LTW-5630SZP27
1.2 Available Part Numbers
02
Page 3
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014

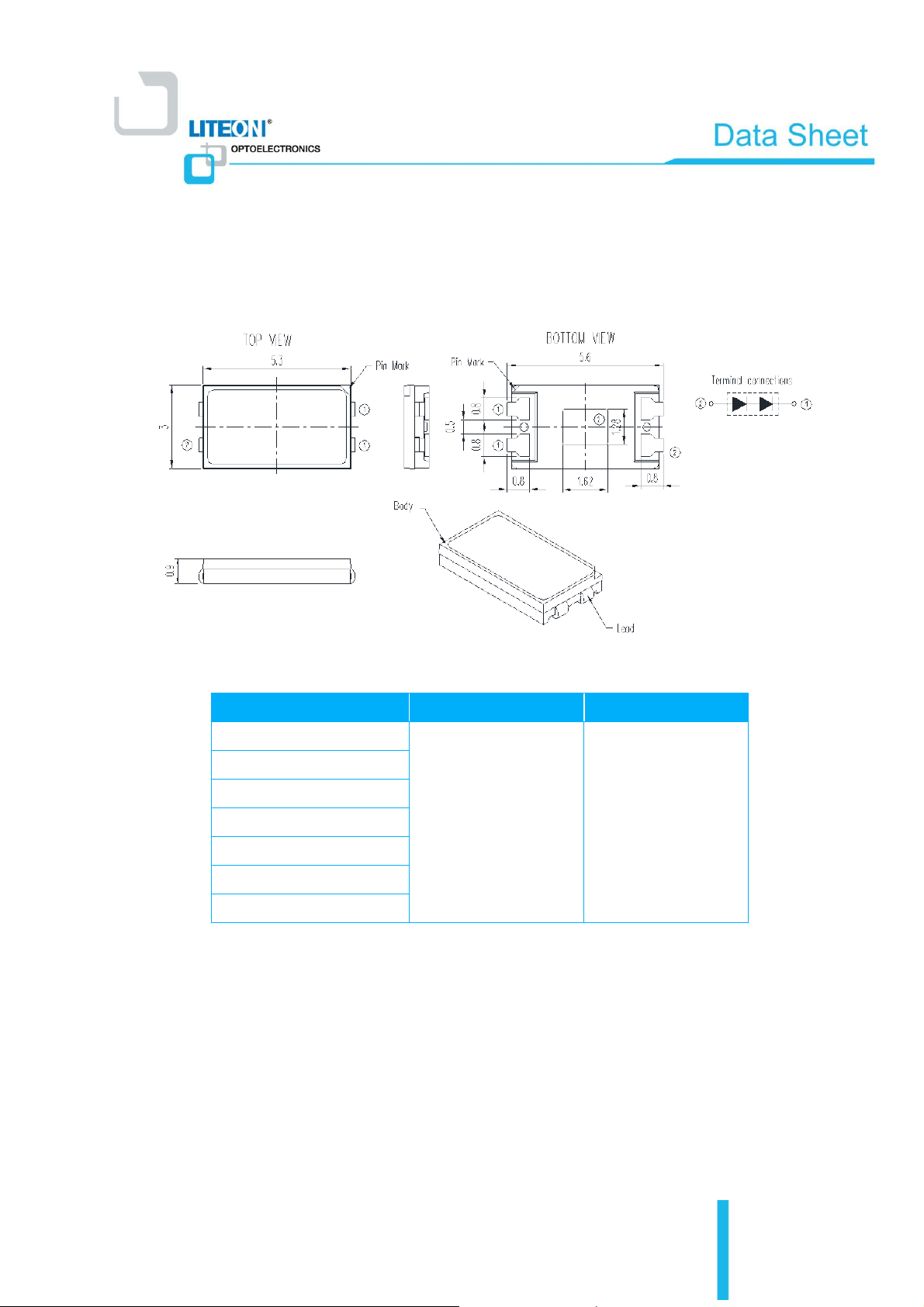

2. Outline Dimensions
Part No.
Lens Color
Source Color
LTW-5630SZP65
Orange
InGaN Blue
LTW-5630SZP57
LTW-5630SZP50
LTW-5630SZP40
LTW-5630SZP35
LTW-5630SZP30
LTW-5630SZP27
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.2 mm (.008") unless otherwise noted.
03
Page 4
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
3. Absolute Maximum Ratings at Ta=25°C
Parameter
Symbol
Rating
Unit
PowerDissipation
Po
750
mW
Continuous Forward Current
IF
120
mA
Pulse Forward Current
IFP
130
mA
Operating Temperature Range
T
opr
-40 ~ +85
°C
Storage Temperature Range
T
stg
-40 ~ +100
°C
Junction Temperature
T
j
≦120
°C
Notes :
1. 1/10 duty cycle, Pulse width ≤100μs.
2. Forbid to operating at reverse voltage condition for long.
3. It is recommended to follow de-rating curve to use maximum rating to ensure LED can operated normally.
04
Page 5
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
Parameter
Symbol
Values
Unit
Test Condition
Correlated Color Temp.
CCT
Typ.
2700
3000
3500
4000
5000
5700
6500 K
Chromaticity Coordinates
x
Typ.
0.458
0.434
0.408
0.382
0.345
0.329
0.312
-
IF = 32.5mA
y
Typ.
0.410
0.403
0.392
0.380
0.355
0.342
0.328
Luminous Flux 1
Φ
v
Min
25.2
26.1
27.0
27.0
27.0
27.0
27.0
lm
Typ.
28.9
30.4
31.0
31.6
32.0
31.9
31.0
Max.
33.0
33.8
34.7
34.7
34.7
34.7
34.7
Optical Efficiency
η
opt
Typ.
162
171
174
178
180
179
174
lm/W
Color Rendering Index
CRI
Min.
80
-
Viewing Angle
2θ
1/2
Typ.
120
deg
Forward Voltage
VF
Min
5.2
V
Typ.
5.5
Max.
6.0
Thermal Resistance
Rjt
Typ.
15
°C/W
ESD-Withstand Voltage
ESD
Min
2K
HBM
V

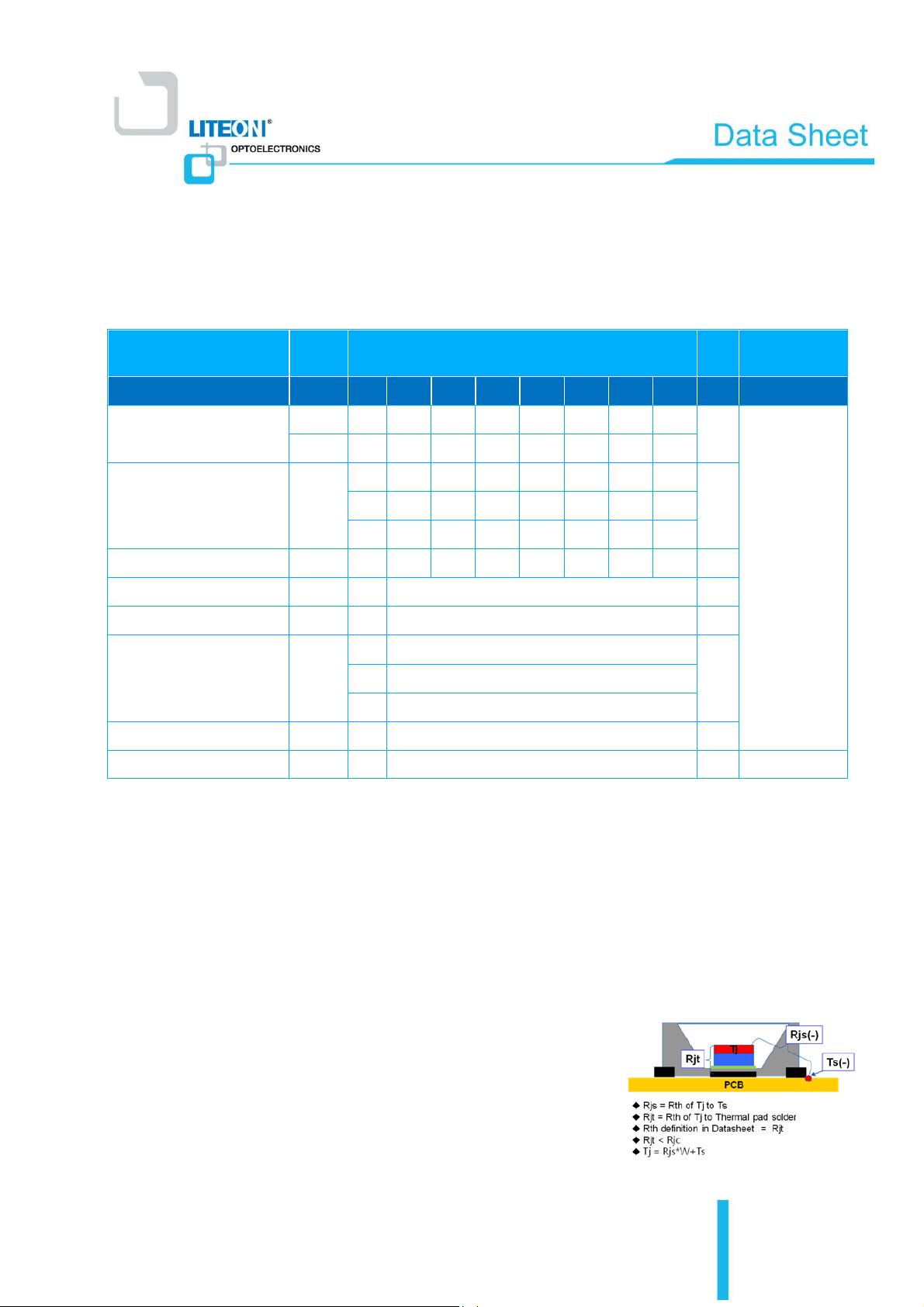

4. Electro-Optical Characteristics
4.1 Typical Performance
Notes
1. Luminous flux is the total luminous flux output as measured with an integrating sphere.
2. Iv (flux v) classification code is marked on each packing bag.
3. The chromaticity coordinates (x, y) is derived from the 1931 CIE chromaticity diagram.
4. Caution in ESD:
Static Electricity and surge damages the LED. It is recommended using a wrist band or anti-electrostatic
glove when handling the LED. All devices, equipment and machinery must be properly grounded.
5. CAS140B is the test standard for the chromaticity coordinates (x, y) &
6. The chromaticity coordinates (x, y) guarantee should be added +/- 0.01 tolerances
7. CRI measurement allowance is ±5, R9 of all CCT is >0.
8. The thermal resistance is defined
as the figure, Rjt is the Rth from Tj to thermal pad solder:
Reference for thermal resistance:
Using 2.5x 2.5x 0.17 cm aluminum MCPCB,
Rjt=15°C/W, Rjs=19 °C/W
05
.
v
Page 6
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
0%
50%
100%
150%
200%
250%
300%
350%
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Relative Luminous Flux (%)
Current (mA)
Current
(mA)
VF
(V)
Lumen (lm)
2700K
3000K
3500K
4000K
5000K
5700K
6500K
10.0
5.24
9.1
9.6
9.8
10.0
10.1
10.1
9.8
20.0
5.35
18.0
19.0
19.4
19.8
20.0
19.9
19.4
30.0
5.44
26.8
28.2
28.8
29.3
29.7
29.6
28.8
32.5
5.47
28.9
30.4
31.0
31.6
32.0
31.9
31.0
40.0
5.54
35.1
36.9
37.7
38.4
38.9
38.7
37.7
60.0
5.70
51.0
53.7
54.8
55.9
56.6
56.4
54.8
65.0
5.74
55.0
57.8
59.0
60.2
60.9
60.7
59.0
90.0
5.92
73.3
77.1
78.7
80.3
81.2
80.9
78.7
100.0
5.97
81.1
85.3
87.1
88.8
89.9
89.5
87.1
120.0
6.06
94.0
99.0
101.0
103.0
104.3
103.9
101.0

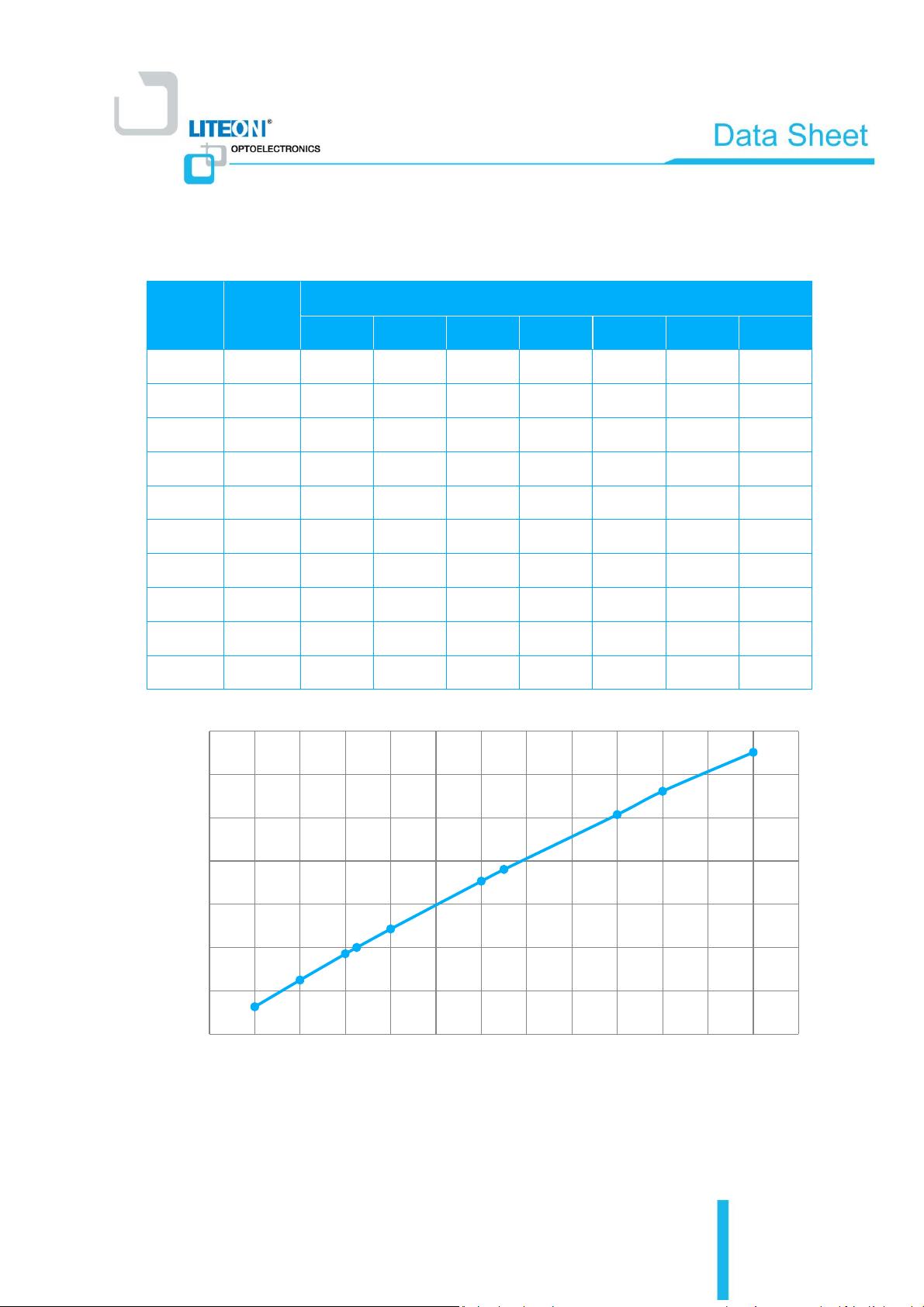

4.2 Forward Current vs. Lumen and Voltage
06
Page 7
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
3000K
25degC
25degC
85degC
85degC
5000K
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Relative Intensity (%)
90°6030°0°50
100
60°
30°
0°

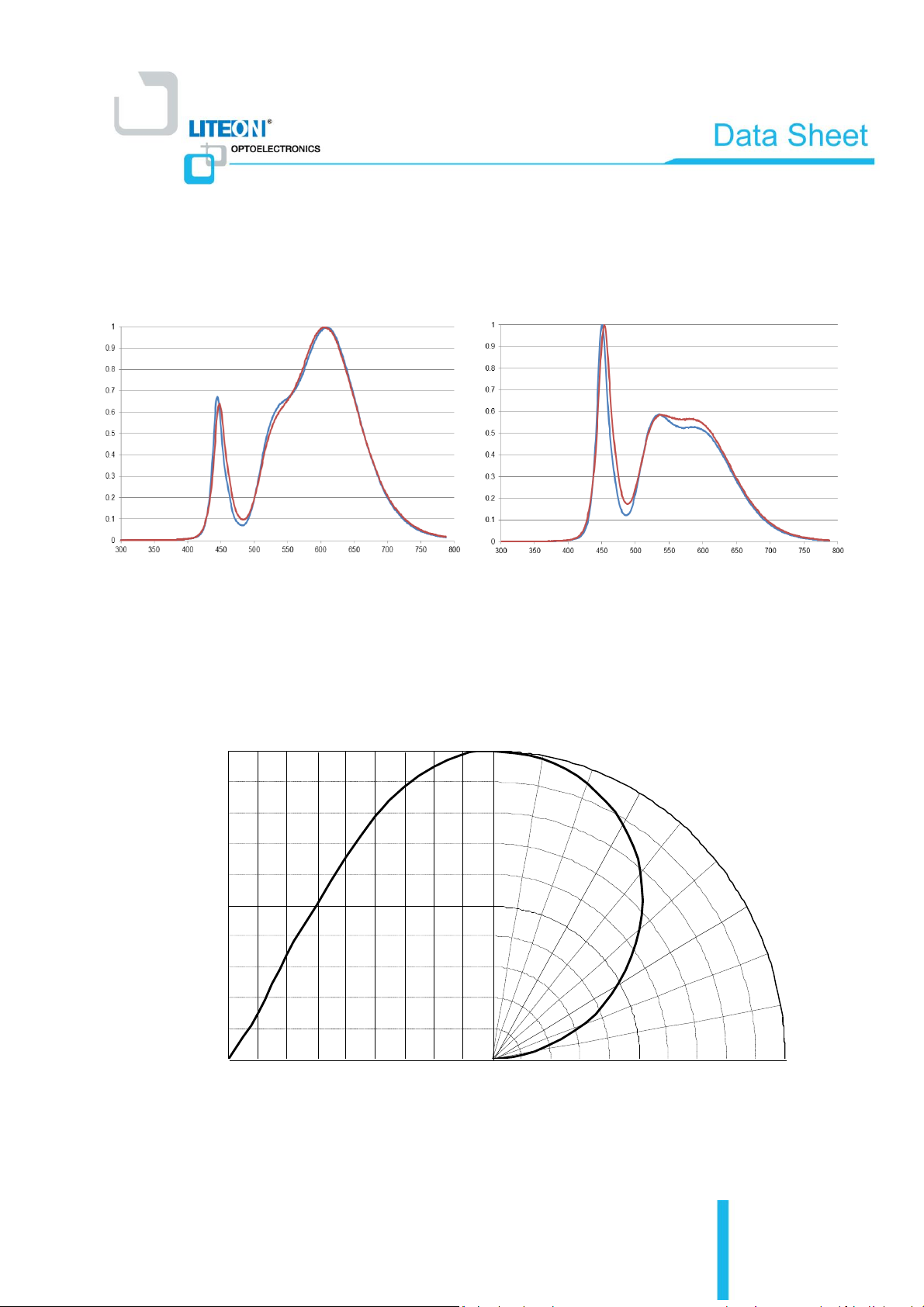

4.3 Relative Spectral Power Distribution at Typical Current
4.4 Radiation Characteristics
07
Page 8
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014

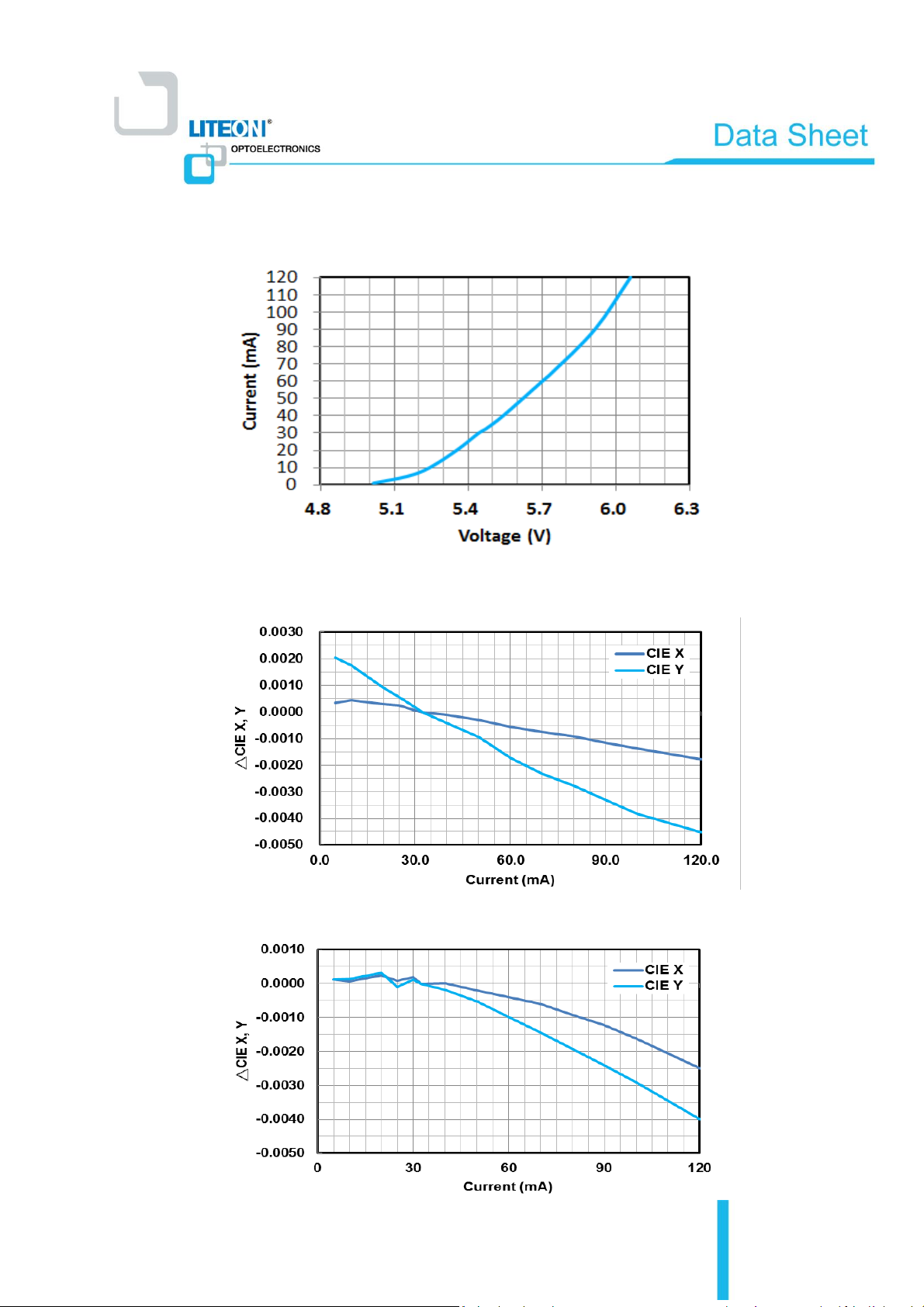

4.5 Forward Current vs. Forward Voltage
4.2 Color Shift vs. Forward Current
Cool White
Warm White
08
Page 9
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014

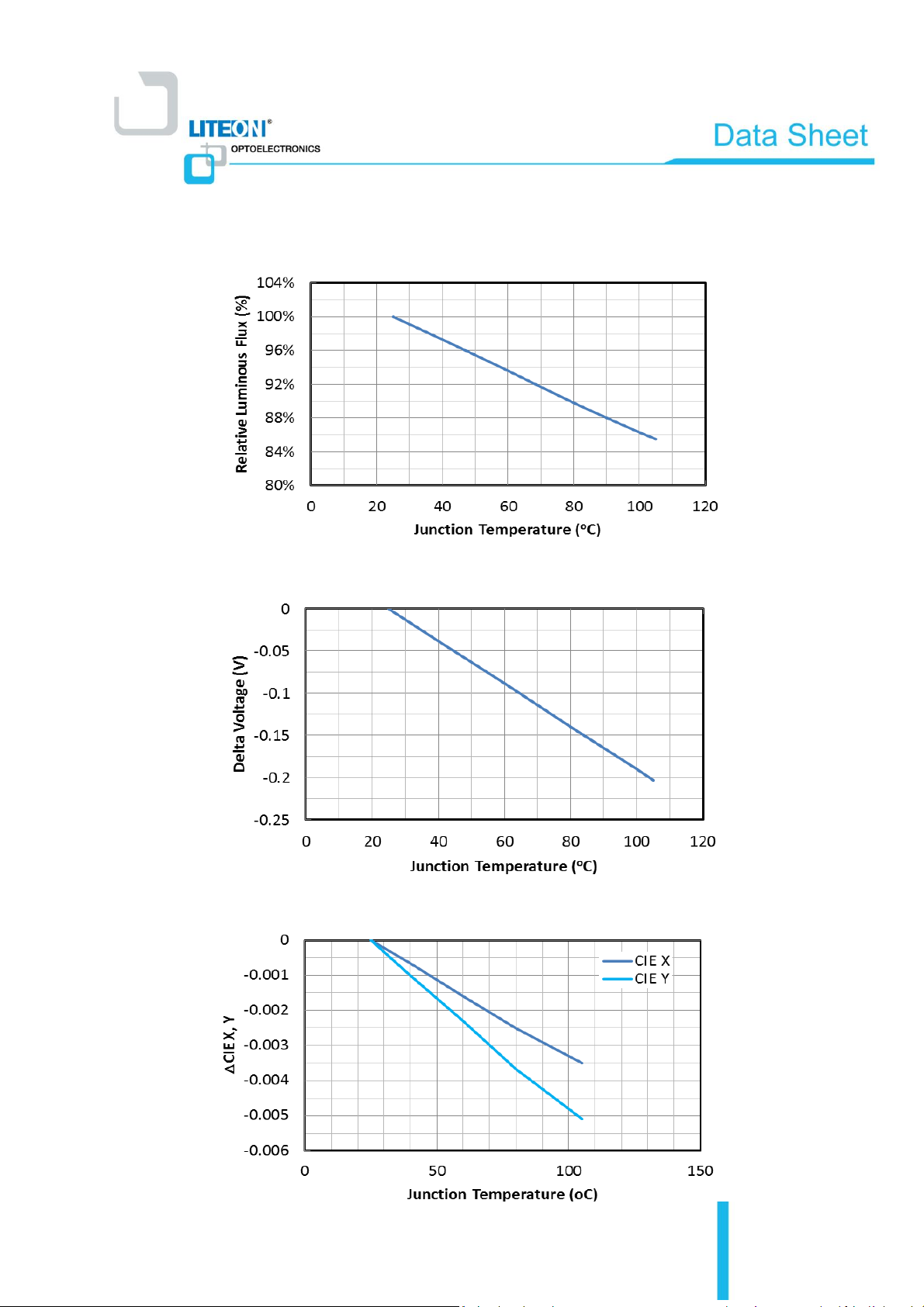

4.2 Relative Intensity vs. Junction Temperature
4.3 Voltage vs. Junction Temperature
4.4 Color Shift vs. Junction Temperature
09
Page 10
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
6500K
5700K

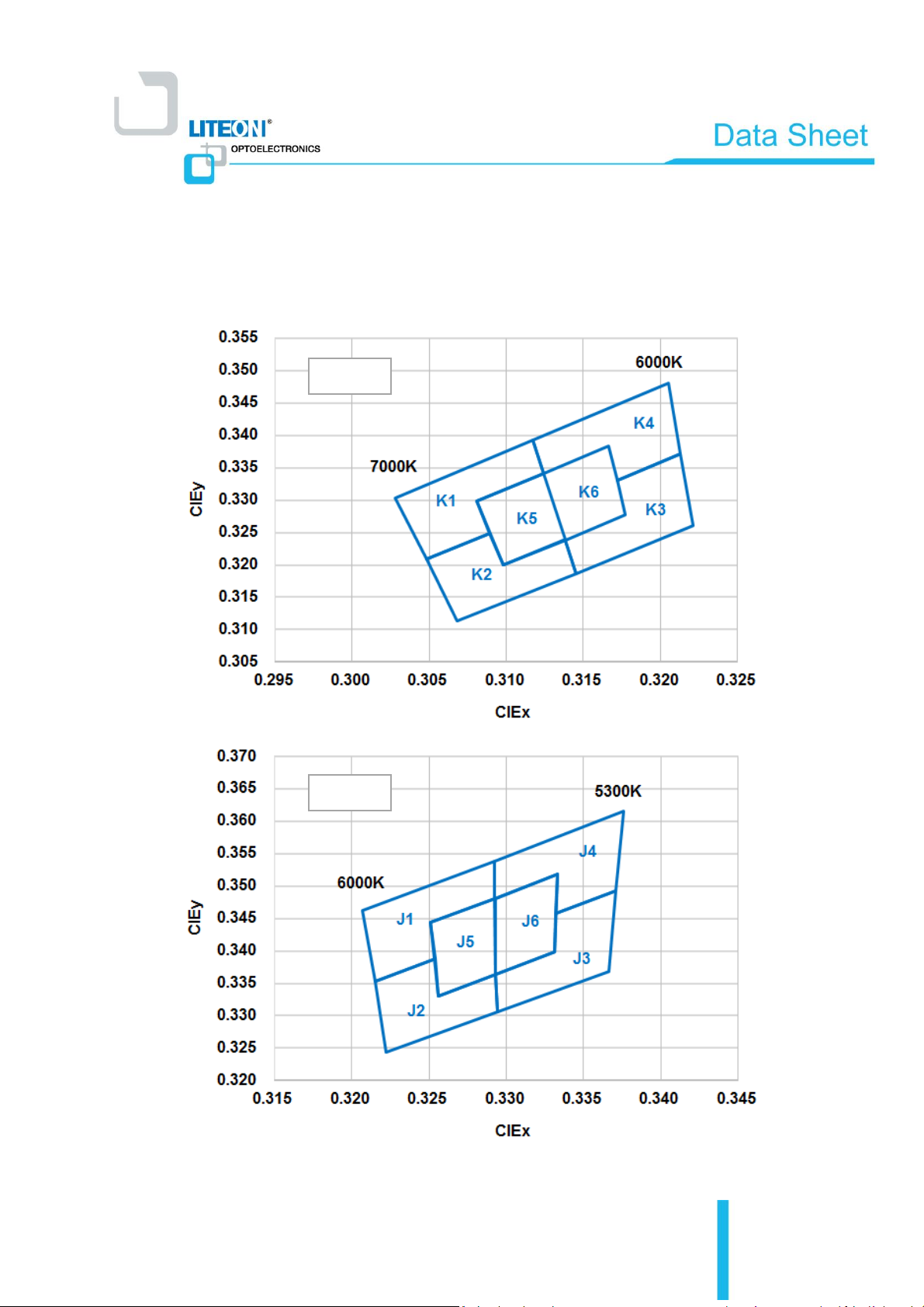

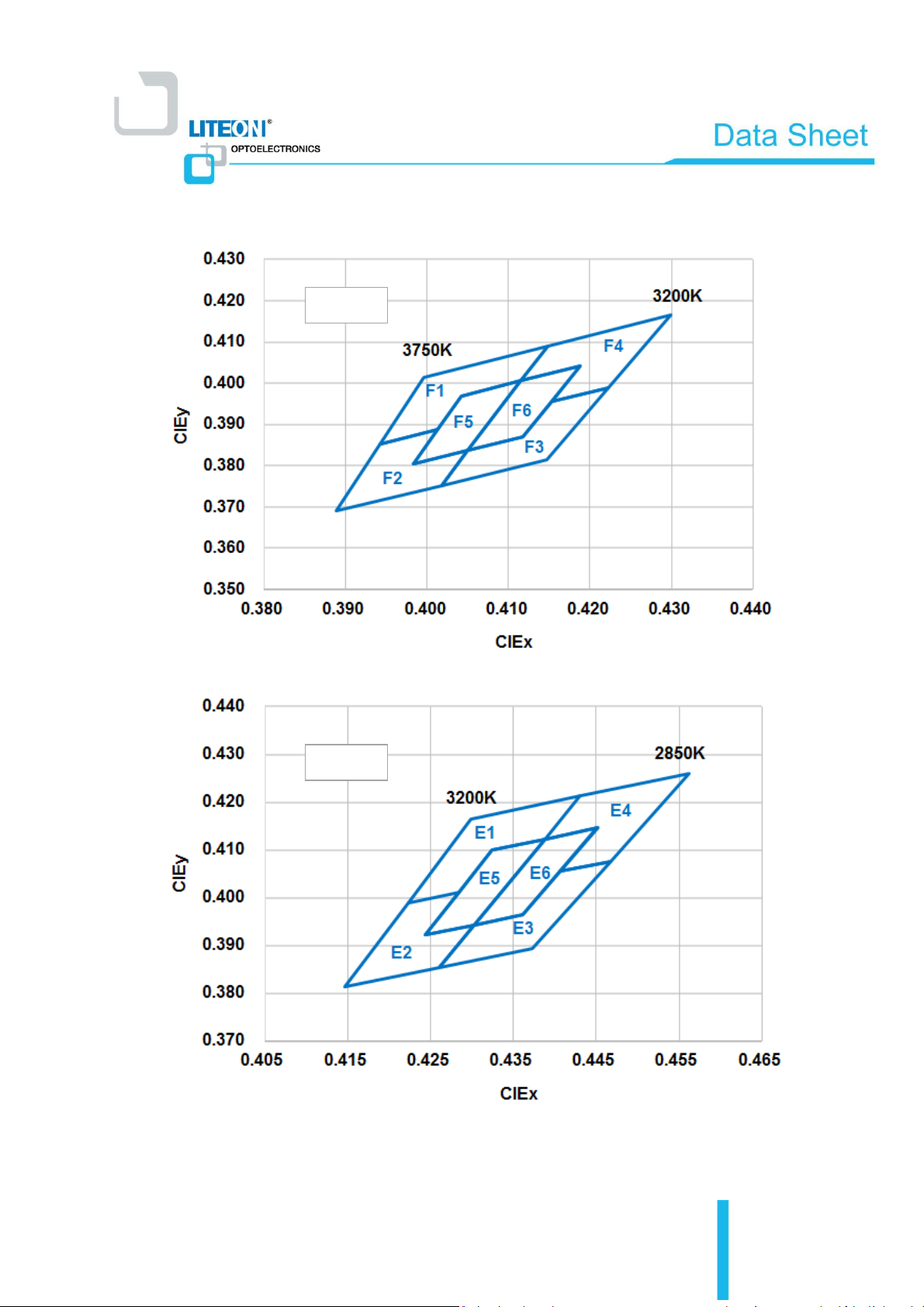

5. Binning Definition
5.1 Color Bin
010
Page 11
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
5000K
4000K
011
Page 12
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
3500K
3000K
012
Page 13
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014

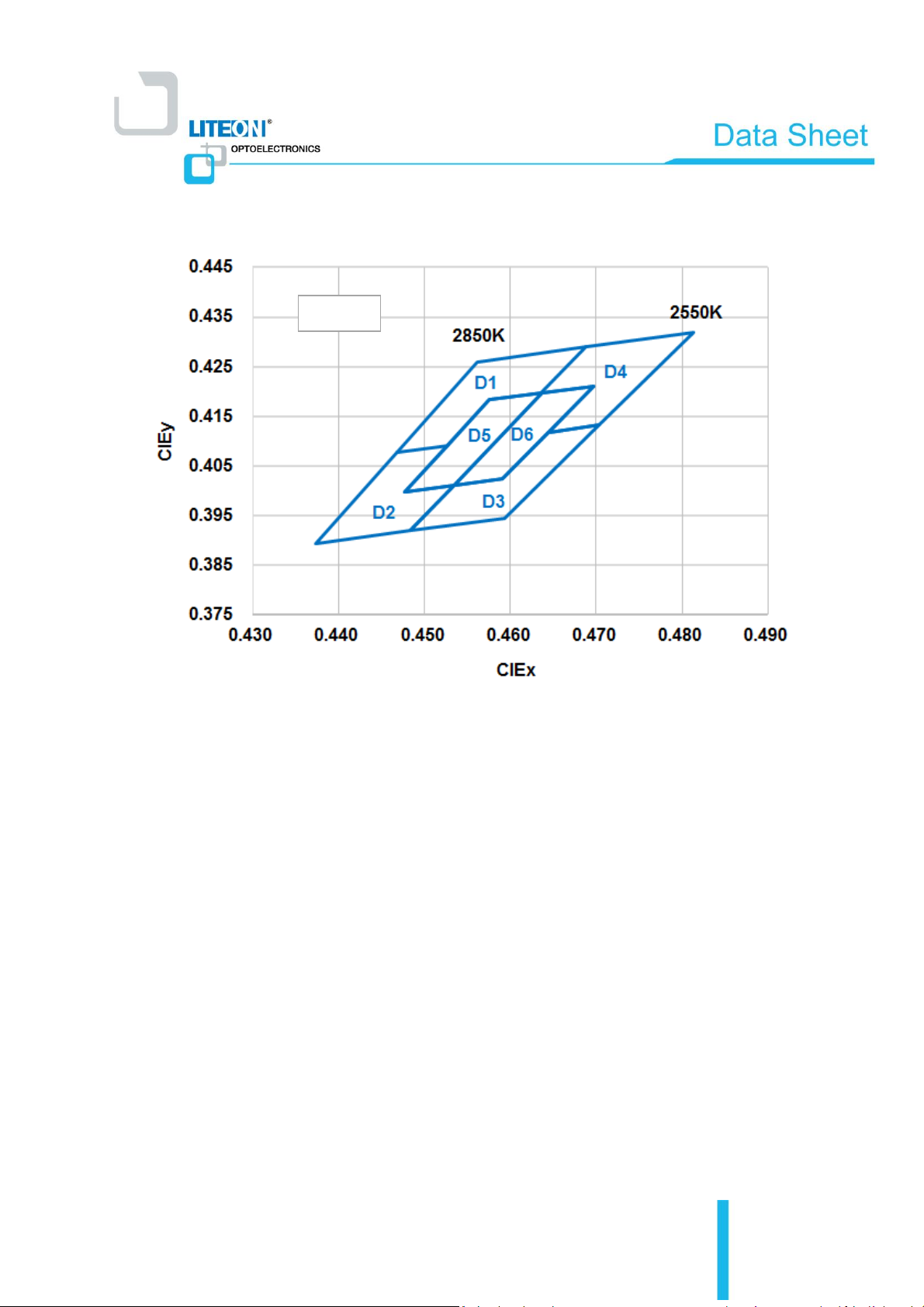

2700K
013
Page 14
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
6500K (IF = 32.5 mA)
Rank - x
y
Rank - x y Rank - x
y
K1
1
0.3048
0.3209
K3
1
0.3145
0.3187
K5
1
0.3098
0.320
2
0.3028
0.3304
2
0.3138
0.3238
2
0.3081
0.3299
3
0.3117
0.3393
3
0.3177
0.3277
3
0.3124
0.3342
4
0.3124
0.3341
4
0.3172
0.3330
4
0.3138
0.3239
5
0.3081
0.3299
5
0.3213
0.3371
6 0.3089
0.3249
6
0.3221
0.3261
K2
1
0.3068
0.3113
K4
1
0.3117
0.3393
K6
1
0.3138
0.3239
2
0.3048
0.3209
2
0.3205
0.3481
2
0.3124
0.3342
3
0.3089
0.3249
3
0.3213
0.3371
3
0.3167
0.3384
4
0.3098
0.32
4
0.3172
0.333
4
0.3178
0.3277
5
0.3138
0.3238
5
0.3166
0.3384
6
0.3145
0.3187
6
0.3124
0.3341
5700K (IF = 32.5 mA)
Rank - x
y
Rank - x y Rank - x
y
J1
1
0.3215
0.3353
J3
1
0.3294
0.3306
J5
1
0.3256
0.3331
2
0.3207
0.3462
2
0.3293
0.3364
2
0.3251
0.3444
3
0.3292
0.3539
3
0.3331
0.3398
3
0.3292
0.3481
4
0.3292
0.3481
4
0.3332
0.3458
4
0.3293
0.3364
5
0.3251
0.3444
5
0.3371
0.3493
6 0.3254
0.3388
6
0.3366
0.3369
J2
1
0.3222
0.3243
J4
1
0.3292
0.3539
J6
1
0.3293
0.3364
2
0.3215
0.3353
2
0.3376
0.3616
2
0.3293
0.3481
3
0.3254
0.3388
3
0.3371
0.3493
3
0.3333
0.3518
4
0.3256
0.3331
4
0.3332
0.3458
4
0.3331
0.3398
5
0.3293
0.3364
5
0.3333
0.3518
6
0.3294
0.3306
6
0.3292
0.3481
Tolerance on each Hue bin (x,y) is +/- 0.01.
Tolerance on each Hue bin (x,y) is +/- 0.01.
5.2 Color Rank
014
Page 15
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014

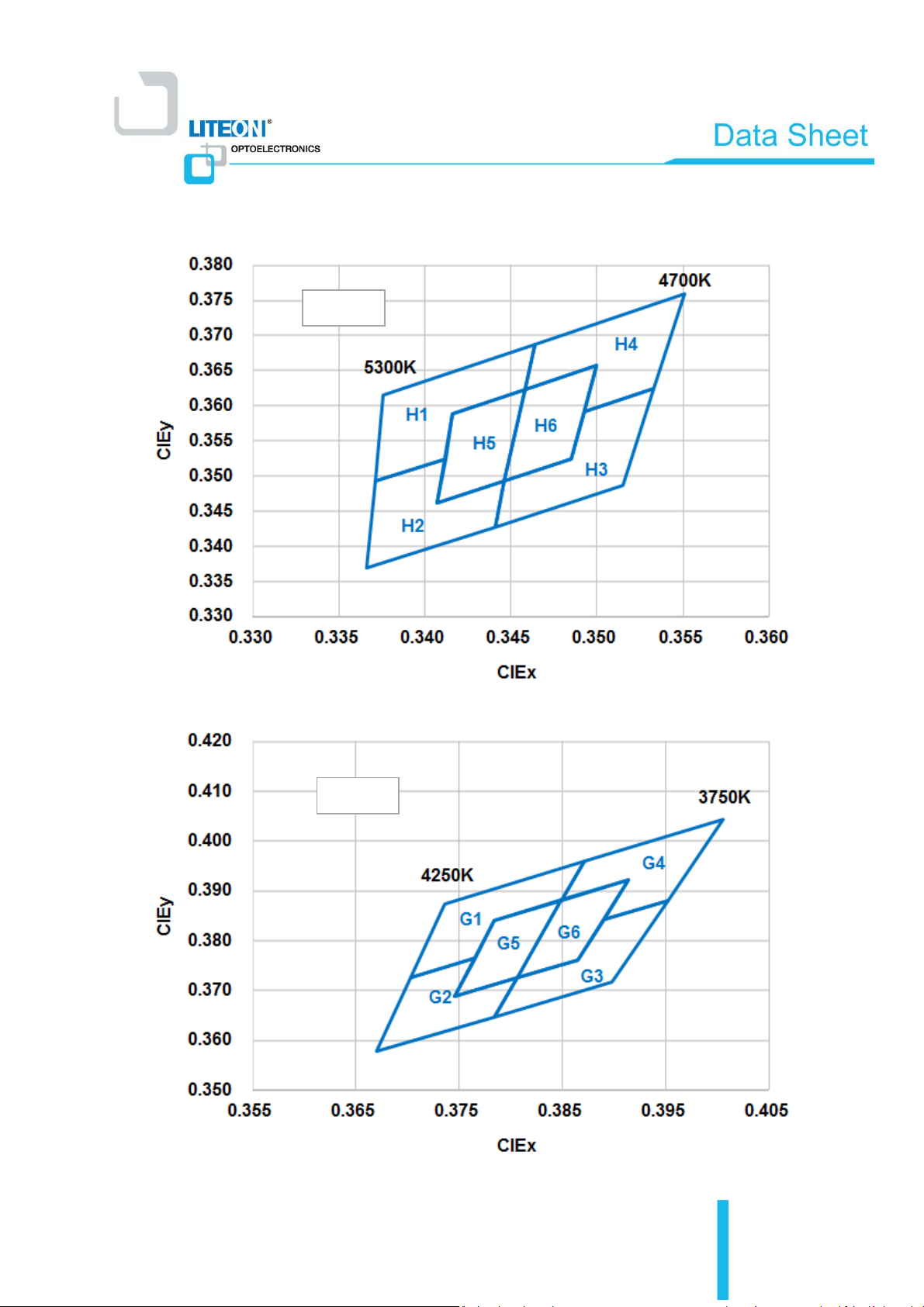

5000K (IF = 32.5 mA)
Rank - x
y
Rank - x y Rank - x
y
H1
1
0.3371
0.3493
H3
1
0.3441
0.3428
H5
1
0.3407
0.3462
2
0.3376
0.3616
2
0.3446
0.3493
2
0.3416
0.3589
3
0.3464
0.3688
3
0.3485
0.3524
3
0.3458
0.3623
4
0.3458
0.3623
4
0.3493
0.3591
4
0.3446
0.3493
5
0.3416
0.3589
5
0.3533
0.3624
6
0.3412
0.3525
6
0.3515
0.3487
H2
1
0.3366
0.3369
H4
1
0.3464
0.3688
H6
1
0.3446
0.3493
2
0.3371
0.3493
2
0.3551
0.3760
2
0.3458
0.3623
3
0.3412
0.3525
3
0.3533
0.3624
3
0.3500
0.3657
4
0.3407
0.3462
4
0.3493
0.3591
4
0.3485
0.3524
5
0.3446
0.3493
5
0.3500
0.3657
6 0.3441
0.3428
6
0.3458
0.3623
4000K (IF = 32.5 mA)
Rank - x
y
Rank - x y Rank - x
y
G1
1
0.3703
0.3726
G3
1
0.3784
0.3647
G5
1
0.3746
0.3689
2
0.3736
0.3874
2
0.3806
0.3725
2
0.3784
0.3841
3
0.3871
0.3959
3
0.3865
0.3762
3
0.3849
0.3882
4
0.3849
0.3881
4
0.3890
0.3842
4
0.3806
0.3726
5
0.3784
0.3841
5
0.3952
0.3880
6
0.3766
0.3765
6
0.3898
0.3716
G2
1
0.3670
0.3578
G4
1
0.3871
0.3959
G6
1
0.3806
0.3726
2
0.3703
0.3726
2
0.4006
0.4044
2
0.3849
0.3882
3
0.3766
0.3765
3
0.3952
0.3880
3
0.3914
0.3922
4
0.3746
0.3689
4
0.3890
0.3842
4
0.3865
0.3762
5
0.3806
0.3725
5
0.3914
0.3922
6 0.3784
0.3647
6
0.3849
0.3881
Tolerance on each Hue bin (x,y) is +/- 0.01.
Tolerance on each Hue bin (x,y) is +/- 0.01.
015
Page 16
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
3500K (IF = 32.5 mA)
Rank - x
y
Rank - x y Rank - x
y
F1
1
0.3943
0.3853
F3
1
0.4018
0.3752
F5
1
0.3983
0.3804
2
0.3996
0.4015
2
0.4050
0.3837
2
0.4042
0.3970
3
0.4148
0.4090
3
0.4118
0.3869
3
0.4115
0.4006
4
0.4115
0.4006
4
0.4153
0.3955
4
0.4050
0.3837
5
0.4042
0.3970
5
0.4223
0.3990
6
0.4013
0.3887
6
0.4147
0.3814
F2
1
0.3889
0.3690
F4
1
0.4148
0.4090
F6
1
0.4050
0.3837
2
0.3943
0.3853
2
0.4299
0.4165
2
0.4115
0.4006
3
0.4013
0.3887
3
0.4223
0.3990
3
0.4188
0.4041
4
0.3983
0.3804
4
0.4153
0.3955
4
0.4118
0.3869
5
0.4050
0.3837
5
0.4188
0.4041
6 0.4018
0.3752
6
0.4115
0.4006
3000K (IF = 32.5 mA)
Rank - x
y
Rank - x y Rank - x
y
E1
1
0.4223
0.3990
E3
1
0.4260
0.3854
E5
1
0.4244
0.3923
2
0.4299
0.4165
2
0.4303
0.3943
2
0.4324
0.4100
3
0.4431
0.4213
3
0.4361
0.3964
3
0.4388
0.4123
4
0.4388
0.4123
4
0.4406
0.4055
4
0.4303
0.3944
5
0.4324
0.4100
5
0.4468
0.4077
6
0.4284
0.4011
6
0.4373
0.3893
E2
1
0.4147
0.3814
E4
1
0.4431
0.4213
E6
1
0.4303
0.3944
2
0.4223
0.3990
2
0.4562
0.4260
2
0.4388
0.4123
3
0.4284
0.4011
3
0.4468
0.4077
3
0.4452
0.4146
4
0.4244
0.3923
4
0.4406
0.4055
4
0.4361
0.3964
5
0.4303
0.3943
5
0.4451
0.4146
6 0.4260
0.3854
6
0.4388
0.4123
Tolerance on each Hue bin (x,y) is +/- 0.01.
Tolerance on each Hue bin (x,y) is +/- 0.01.
9
016
Page 17
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
2700K (IF = 32.5 mA)
Rank - x
y
Rank - x y Rank - x
y
D1
1
0.4468
0.4077
D3
1
0.4483
0.3919
D5
1
0.4477
0.3998
2
0.4562
0.4260
2
0.4534
0.4011
2
0.4576
0.4183
3
0.4688
0.4290
3
0.4591
0.4025
3
0.4637
0.4197
4
0.4636
0.4197
4
0.4644
0.4118
4
0.4534
0.4012
5
0.4576
0.4183
5
0.4703
0.4132
6
0.4527
0.4090
6
0.4593
0.3944
D2
1
0.4373
0.3893
D4
1
0.4688
0.4290
D6
1
0.4534
0.4012
2
0.4468
0.4077
2
0.4813
0.4319
2
0.4637
0.4197
3
0.4527
0.4090
3
0.4703
0.4132
3
0.4697
0.4211
4
0.4477
0.3998
4
0.4644
0.4118
4
0.4591
0.4025
5
0.4534
0.4011
5
0.4697
0.4211
6 0.4483
0.3919
6
0.4636
0.4197
Tolerance on each Hue bin (x,y) is +/- 0.01.
017
Page 18
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
2700K
v
Luminous Flux Spec. Table
4000K
v
Luminous Flux Spec. Table
v
Bin
Lumen (lm) at IF = 32.5 mA
v
Bin
Lumen (lm) at IF = 32.5 mA
Min
Max
Min
Max
FH
25.2
26.8
HK
27.0
29.7
HL
26.8
30.5
KN
29.7
32.2
LO
30.5
33.0
NQ
32.2
34.7
3000K
v
Luminous Flux Spec. Table
3000K
5000K
v
Luminous Flux Spec. Table
v
Bin
Lumen (lm) at IF = 32.5 mA
v
Bin
v
Bin
Lumen (lm) at IF = 32.5 mA
Min
Min
Max
GJ
26.1
28.8
HK
27.0
29.7
JM
28.8
31.3
KN
29.7
32.2
MP
31.3
33.8
NQ
32.2
34.7
3500K
v
Luminous Flux Spec. Table
5700K
v
Luminous Flux Spec. Table
v
Bin
Lumen (lm) at IF = 32.5 mA
v
Bin
Lumen (lm) at IF = 32.5 mA
Min
Max
Min
Max
HK
27.0
29.7
HK
27.0
29.7
KN
29.7
32.2
KN
29.7
32.2
NQ
32.2
34.7
NQ
32.2
34.7
6500K
v
Luminous Flux Spec. Table
v
Bin
Lumen (lm) at IF = 32.5 mA
Min
Max
HK
27.0
29.7
KN
29.7
32.2
NQ
32.2
34.7
Tolerance on each Luminous Flux bin is +/- 10%.
5.3 Flux Bin
018
Page 19
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
VF Spec. Table
VF Bin
Forward Voltage (volts) at IF = 32.5 mA
Min
Max
V1
5.2
5.4
V2
5.4
5.6
V3
5.6
5.8
V4
5.8
6.0
Forward Voltage Rank
Luminous Flux Rank
Color Rank
V1
KN
G5
5.4 Voltage Bin
Tolerance on each Forward Voltage bin is +/- 0.1V
6. Bin Code List
※ Notes: Full Rank on Label
Example: V1 / KN / G5
019
Page 20
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
Profile Feature
Lead Free Assembly
Average Ramp-Up Rate (T
Smax
to TP)
3°C / second max
Preheat Temperature Min (T
Smin
)
150°C
Preheat Temperature Max (T
Smax
)
200°C
Preheat Time (t
Smin
to t
Smax
)
60 – 180 seconds
Time Maintained Above Temperature (TL)
217°C
Time Maintained Above Time (tL)
60 – 150 seconds
Peak / Classification Temperature (TP)
260°C
Time Within 5°C of Actual Peak Temperature (tP)
5 seconds
Ramp – Down Rate
6°C / second max
Time 25°C to Peak Temperature
8 minutes max
7. Reflow Soldering Characteristics
Notes:
1. The LEDs can be soldered using the reflow soldering or hand soldering method. The recommended hand
soldering condition is 350 °C max. and 2 secs max. for one time only, and the recommended reflow soldering
condition is 260 °C max. and 5 secs max. for three times max.
2. All temperatures refer to topside of the package, measured on the package body surface.
020
Page 21
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
3. The soldering condition referring to J-STD-020B. The storage ambient for the LEDs should not exceed 30 °C
temperature or 70% relative humidity. It is recommended that LEDs out of their original packaging are
soldered within one week. For extended storage out of their original packaging, it is recommended that the
LEDs were stored in a sealed container with appropriate desiccant, or desiccators with nitrogen ambient. If
the LEDs were unpacked more than 168hrs, baking the LEDs at 60 ℃ for 24hrs before soldering process.
4. The soldering profile could be further referred to different soldering grease material characteristic. The
grease vendor will provide this information.
5. A rapid-rate process is not recommended for the LEDs cooling down from the peak temperature.
6. Although the recommended reflow conditions are specified above, the reflow or hand soldering
condition at the lowest possible temperature is desirable for the LEDs.
7. LiteOn cannot make a guarantee on the LEDs which have been already assembled using the dip
soldering method.
021
Page 22
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
No
Test item
Test Condition
Duration
Number of
Damaged
1
Steady State Operating Life of
High Temperature (HTOL)
Ts=55℃, IF=60 mA
1000 hrs
0/20
2
Steady State Operating Life of
High Temperature (HTOL)
Ts=85℃, IF=60 mA
1000 hrs
0/20
3
Steady State Operating Life of
Low Temperature (LTOL)
Ta=-40℃, IF=60 mA
1000 hrs
0/20
4
Pulse Wet Operating Life of
High Temperature (PWHTOL)
60℃/90%RH, IF=60 mA
30mins ON/30min OFF
500 hrs
0/20
5
High Temperature Storage (HTS)
100℃
1000 hrs
0/20
6
Low Temperature Storage (LTS)
-40℃
1000 hrs
0/20
7
Thermal Cycle (TC)
-40℃~100℃
30min dwell 5min transfer
200 cycles
0/20
8
Thermal Shock (TS)
-40℃~100℃
20min dwell 20sec transfer
200 cycles
0/20
9
Solder Resistance (SR)
265℃, 3X MSL
5sec
0/20
10
Solder Ability (SA)
245℃5sec, 95% coverage
5sec
0/11
11
Mechanical Shock (MS)
1500G 0.5msec pulse shock
each 6
axis
0/6
12
Random Vibration (RV)
6G RMS, 10-2000Hz, 10min
per axis
0/6
13
Variable Vibration Frequency
(VVF)
10-2000-10Hz, log or linear sweep rate, 20G
for 1 min, 1.5mm each apply 3x per axis
over 6hrs
0/6
14
Salt Spread (SS)
35℃, 30g/m2/day
48hrs
0/11
Item
Symbol
Test Condition
Criteria for Judgment
Min.
Max.
Forward Voltage
VF
IF=Typical Current
U.S.L. x 1.1
Luminous Flux
lm
IF=Typical Current
L.S.L. x 0.7
CCX&CCY
x,y
IF=Typical Current
Shift<0.02
8. Reliability Test
Criteria for Judging the Damage
022
Page 23
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
9. User Guide
Cleaning
Do not use unspecified chemical liquid to clean LED they could harm the package. If cleaning is necessary,
immerse the LED in ethyl alcohol or isopropyl alcohol at normal temperature for less than one minute.

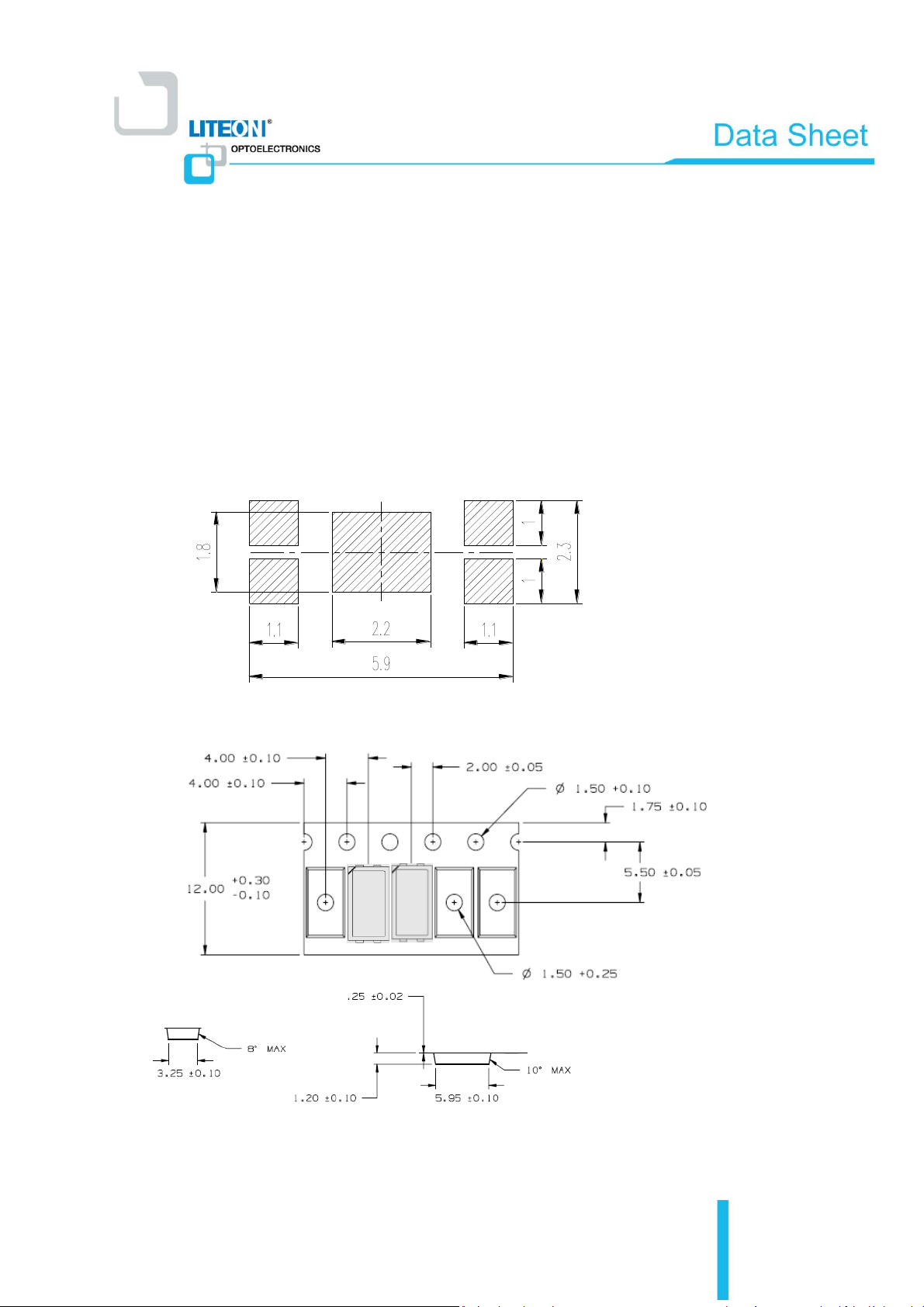

Recommend Printed Circuit Board Attachment Pad
Infrared / vapor phase
Reflow Soldering
Package Dimensions of Tape
Note: All dimensions are in millimeters (inches).
Package Dimensions of Reel
023
Page 24
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
Notes:
1. Empty component pockets sealed with top cover tape.
2. 7 inch reel-3000 pieces per reel.
3. Minimum packing quantity is 500 pieces for remainders.
4. The maximum number of consecutive missing lamps is two.
5. In accordance with EIA-481-1-B specifications.
024
Page 25
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014

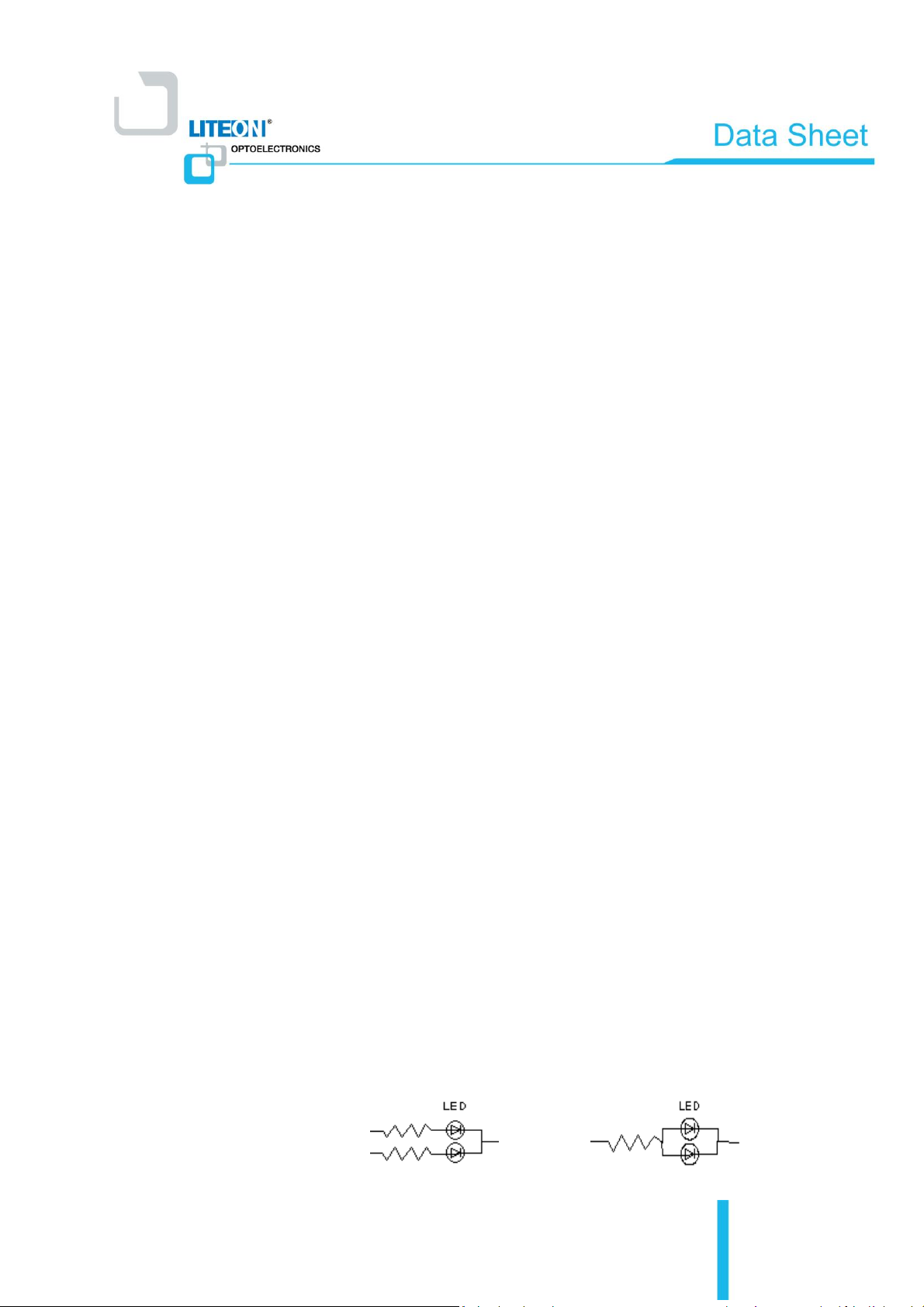

Circuit model A
Circuit model B
10. Cautions
10.1 Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office
equipment, communication equipment and household applications).Consult Liteon’s Sales in advance for
information on applications in which exceptional reliability is required, particularly when the failure or
malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic
control equipment, medical and life support systems and safety devices).
10.2 Storage
This product is qualified as Moisture sensitive Level 3 per JEDEC J-STD-020 Precaution when handing
this moisture sensitive product is important to ensure the reliability of the product.
The package is sealed:
The LEDs should be stored at 30°C or less and 90%RH or less. And the LEDs are limited to use
within one year, while the LEDs is packed in moisture-proof package with the desiccants inside.
The package is opened:
The LEDs should be stored at 30°C or less and 60%RH or less. Moreover, the LEDs are limited to
solder process within 168hrs. If the Humidity Indicator shows the pink color in 10% even higher or
exceed the storage limiting time since opened, that we recommended to baking LEDs at 60°C at
least 24hrs. To seal the remainder LEDs return to package, it’s recommended to be with workable
desiccants in original package.
10.3 Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary.
10.4 Drive Mode
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs
connected in parallel in an application, it is recommended that a current limiting resistor be
incorporated in the drive circuit, in series with each LED as shown in Circuit A below
025
Page 26
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
(A) Recommended circuit.
(B) The brightness of each LED might appear different due to the differences in the I-V characteristics
of those LEDs.
10.5 ESD (Electrostatic Discharge)
Static Electricity or power surge will damage the LED. Suggestions to prevent ESD damage:
Use of a conductive wrist band or anti-electrostatic glove when handling these LEDs.
All devices, equipment, and machinery must be properly grounded.
Work tables, storage racks, etc. should be properly grounded.
Use ion blower to neutralize the static charge which might have built up on surface of the
LED’s plastic lens as a result of friction between LEDs during storage and handling.
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current, low
forward voltage, or “no lightup” at low currents.To verify for ESD damage, check for “light up” and V
the suspect LEDs at low currents.The VF of “good” LEDs should be >2.0V@0.1mA for InGaN product
and >1.4V@0.1mA for AlInGaP product.
10.6 Suggested Checking List:
Training and Certification
1. Everyone working in a static-safe area is ESD-certified?
2. Training records kept and re-certification dates monitored?
Static-Safe Workstation & Work Areas
1. Static-safe workstation or work-areas have ESD signs?
F
of
2. All surfaces and objects at all static-safe workstation and within 1 ft measure less
than 100V?
3. All ionizer activated, positioned towards the units?
4. Each work surface mats grounding is good?
Personnel Grounding
1. Every person (including visitors) handling ESD sensitive (ESDS) items wear wrist strap,
heel strap or conductive shoes with conductive flooring?
2. If conductive footwear used, conductive flooring also present where operator stand
or walk?
026
Page 27
LED Middle POWER
5630SZPXX Series
BNC-OD-C131/A4
Created Date: 03/12/2014
Revision: 2.0, 05 /9/2014
3. Garments, hairs or anything closer than 1 ft to ESD items measure less than 100V*?
4. Every wrist strap or heel strap/conductive shoes checked daily and result recorded for
all DLs?
5. All wrist strap or heel strap checkers calibration up to date?
Note: *50V for Blue LED.
Device Handling
1. Every ESDS items identified by EIA-471 labels on item or packaging?
Others
10.7 Others:
Do not put any pressure on the light emitting surface either by finger or any hand tool and do
This product is not designed for the use under any of the following conditions, please confirm
2. All ESDS items completely inside properly closed static-shielding containers when
not at static-safe workstation?
3. No static charge generators (e.g. plastics) inside shielding containers with ESDS items?
4. All flexible conductive and dissipative package materials inspected before reuse
or recycle?
1. Audit result reported to entity ESD control coordinator?
2. Corrective action from previous audits completed?
3. Are audit records complete and on file?
not stack the products. Stress or pressure may cause damage to the wires of the LED array.
the performance and reliability are well enough if you use it under any of the following
conditions
Do not use sulfur-containing materials in commercial products including the materials such as
seals and adhesives that may contain sulfur.
Do not put this product in a place with a lot of moisture (over 85% relative humidity), dew
condensation, briny air, and corrosive gas (Cl, H2S, NH3, SO2, NOX, etc.), exposure to a
corrosive environment may affect silver plating.
The appearance and specifications of the product may be modified for improvement without
prior notice.
027
Loading...
