TL/F/6420
54LS279/DM54LS279/DM74LS279 Quad S-R Latches
May 1989
54LS279/DM54LS279/DM74LS279
Quad S
-R Latches
General Description
The ’LS279 consists of four individual and independent SetReset Latches with active low inputs. Two of the four latches have an additonal S
input ANDed with the primary S
input. A low on any S input while the R input is high will be
stored in the latch and appear on the corresponding Q output as a high. A low on the R
input while the S input is high
will clear the Q output to a low. Simultaneous transistion of
the R
and S inputs from low to high will cause the Q output
to be indeterminate. Both inputs are voltage level triggered
and are not affected by transition time of the input data.
Features
Y
Alternate military/aerospace device (54LS279) is available. Contact a National Semiconductor Sales Office/
Distributor for specifications.
Connection Diagram
Dual-In-Line Package
TL/F/6420– 1
Order Number 54LS279DMQB, 54LS279FMQB, 54LS279LMQB,
DM54LS279J, DM74LS279M or DM74LS279N
See NS Package Number E20A, J16A, M16A, N16E or W16A
Function Table
Inputs Output
S(1) R Q
LL H*
LH H
HL L
HH Q
0
H
e
High Level
L
e
Low Level
Q
0
e
The Level of Q before the indicated input conditions were established.
*This output level is pseudo stable; that is, it may not persist when the S
and R
inputs return to their inactive (high) level.
Note 1: For latches with double S
inputs:
H
e
both S inputs high
L
e
one or both S inputs low
C
1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.
Page 2
Absolute Maximum Ratings (Note)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage 7V
Input Voltage 7V
Operating Free Air Temperature Range
DM54LS and 54LS
b
55§Ctoa125§C
DM74LS 0
§
Ctoa70§C
Storage Temperature Range
b
65§Ctoa150§C
Note:
The ‘‘Absolute Maximum Ratings’’ are those values
beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The
parametric values defined in the ‘‘Electrical Characteristics’’
table are not guaranteed at the absolute maximum ratings.
The ‘‘Recommended Operating Conditions’’ table will define
the conditions for actual device operation.
Recommended Operating Conditions
Symbol Parameter
DM54LS279 DM74LS279
Units
Min Nom Max Min Nom Max
V
CC
Supply Voltage 4.5 5 5.5 4.75 5 5.25 V
V
IH
High Level Input Voltage 2 2 V
V
IL
Low Level Input Voltage 0.7 0.8 V
I
OH
High Level Output Current
b
0.4
b
0.4 mA
I
OL
Low Level Output Current 4 8 mA
T
A
Free Air Operating Temperature
b
55 125 0 70
§
C
Electrical Characteristics over recommended operating free air temperature range (unless otherwise noted)
Symbol Parameter Conditions Min
Typ
Max Units
(Note 1)
V
I
Input Clamp Voltage V
CC
e
Min, I
I
eb
18 mA
b
1.5 V
V
OH
High Level Output V
CC
e
Min, I
OH
e
Max DM54 2.5 3.5
V
Voltage
V
IL
e
Max, V
IH
e
Min DM74 2.7 3.5
V
OL
Low Level Output V
CC
e
Min, I
OL
e
Max DM54 0.25 0.4
Voltage V
IL
e
Max, V
IH
e
Min
DM74 0.35 0.5 V
I
OL
e
4 mA, V
CC
e
Min DM74 0.25 0.4
I
I
Input Current@Max V
CC
e
Max, V
I
e
7V
0.1 mA
Input Voltage
I
IH
High Level Input V
CC
e
Max, V
I
e
2.7V
20 mA
Current
I
IL
Low Level Input V
CC
e
Max, V
I
e
0.4V
b
0.4 mA
Current
I
OS
Short Circuit V
CC
e
Max DM54
b
20
b
100
mA
Output Current (Note 2)
DM74
b
20
b
100
I
CC
Supply Current V
CC
e
Max (Note 3) 3.8 7 mA
Note 1: All typicals are at V
CC
e
5V, T
A
e
25§C.
Note 2: Not more than one output should be shorted at a time, and the duration should not exceed one second.
Note 3: I
CC
is measured with all R inputs grounded, all S inputs at 4.5V and all outputs open.
2
Page 3
Switching Characteristics at V
CC
e
5V and T
A
e
25§C (See Section 1 for Test Waveforms and Output Load)
From (Input)
R
L
e
2kX
Symbol Parameter
To (Output)
C
L
e
15 pF C
L
e
50 pF Units
Min Max Min Max
t
PLH
Propagation Delay Time S to
22 25 ns
Low to High Level Output Q
t
PHL
Propagation Delay Time S to
15 23 ns
High to Low Level Output Q
t
PHL
Propagation Delay Time R to
27 33 ns
High to Low Level Output Q
3
Page 4

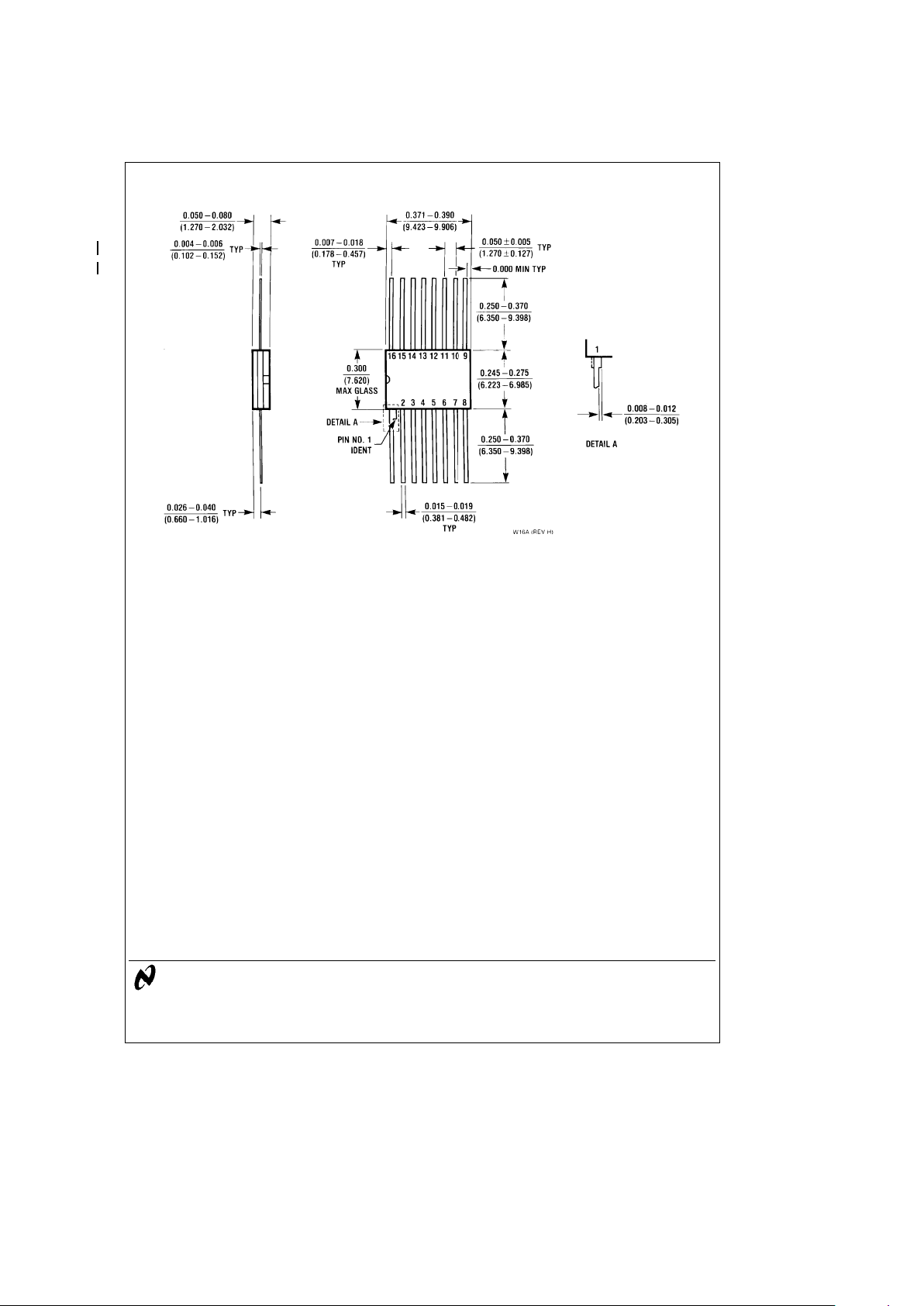

Physical Dimensions inches (millimeters)
Ceramic Leadless Chip Carrier Package (E)
Order Number 54LS279LMQB
NS Package Number E20A
16-Lead Ceramic Dual-In-Line Package (J)
Order Number 54LS279DMQB or DM54LS279J
NS Package Number J16A
4
Page 5
Physical Dimensions inches (millimeters) (Continued)
16-Lead Small Outline Molded Package (M)
Order Number DM74LS279M
NS Package Number M16A
16-Lead Molded Dual-In-Line Package (N)
Order Number DM74LS279N
NS Package Number N16E
5
Page 6
54LS279/DM54LS279/DM74LS279 Quad S-R Latches
Physical Dimensions inches (millimeters) (Continued)
16-Lead Ceramic Flat Package (W)
Order Number 54LS279FMQB or DM54LS279W
NS Package Number W16A
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or 2. A critical component is any component of a life
systems which, (a) are intended for surgical implant support device or system whose failure to perform can
into the body, or (b) support or sustain life, and whose be reasonably expected to cause the failure of the life
failure to perform, when properly used in accordance support device or system, or to affect its safety or
with instructions for use provided in the labeling, can effectiveness.
be reasonably expected to result in a significant injury
to the user.
National Semiconductor National Semiconductor National Semiconductor National Semiconductor
Corporation Europe Hong Kong Ltd. Japan Ltd.
1111 West Bardin Road Fax: (
a
49) 0-180-530 85 86 13th Floor, Straight Block, Tel: 81-043-299-2309
Arlington, TX 76017 Email: cnjwge@tevm2.nsc.com Ocean Centre, 5 Canton Rd. Fax: 81-043-299-2408
Tel: 1(800) 272-9959 Deutsch Tel: (
a
49) 0-180-530 85 85 Tsimshatsui, Kowloon
Fax: 1(800) 737-7018 English Tel: (
a
49) 0-180-532 78 32 Hong Kong
Fran3ais Tel: (
a
49) 0-180-532 93 58 Tel: (852) 2737-1600
Italiano Tel: (
a
49) 0-180-534 16 80 Fax: (852) 2736-9960
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
