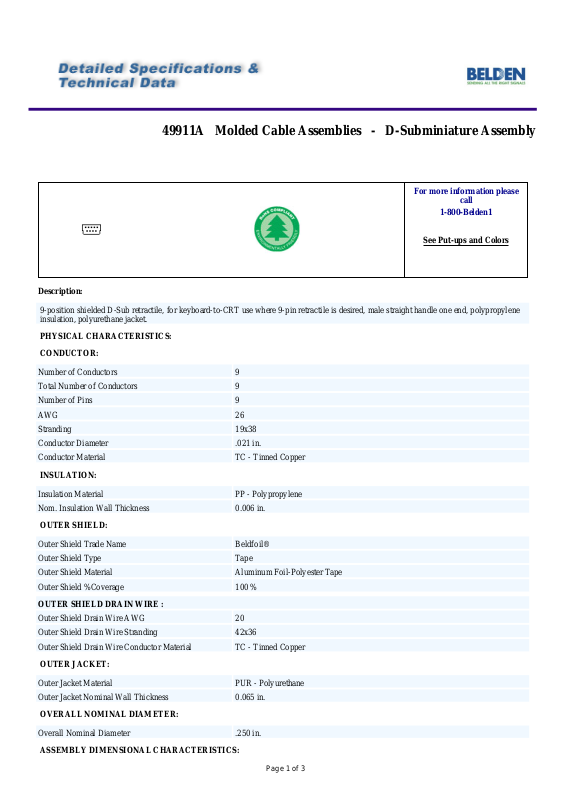

49911A Molded Cable Assemblies - D-Subminiature Assembly
3
For more information please
call
1-800-Belden1
See Put-ups and Colors
Description:
9-position shielded D-Sub retractile, for keyboard-to-CRT use where 9-pin retractile is desired, male straight handle one end, polypropylene
insulation, polyurethane jacket.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Conductors 9
Total Number of Conductors 9
Number of Pins 9
AWG 26
Stranding 19x38
Conductor Diameter .021 in.
Conductor Material TC - Tinned Copper
INSULATION:
Insulation Material PP - Polypropylene
Nom. Insulation Wall Thickness 0.006 in.
OUTER SHIELD:
Outer Shield Trade Name Beldfoil®
Outer Shield Type Tape
Outer Shield Material Aluminum Foil-Polyester Tape
Outer Shield %Coverage 100 %
OUTER SHIELD DRAIN WIRE :
Outer Shield Drain Wire AWG 20
Outer Shield Drain Wire Stranding 42x36
Outer Shield Drain Wire Conductor Material TC - Tinned Copper
OUTER JACKET:
Outer Jacket Material PUR - Polyurethane
Outer Jacket Nominal Wall Thickness 0.065 in.
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter .250 in.
ASSEMBLY DIMENSIONAL CHARACTERISTICS:
Page 1 of
Page 2
49911A Molded Cable Assemblies - D-Subminiature Assembly
3
Assembly Dimensional for Retractile Coil Body
Length (relaxed)
Assembly Dimensional For Retractile Coil Body
Length (extended)
1st End Tail Length 6 +/-2 in.
2nd End Tail Length 18 +/- 1.5 in.
CONNECTOR CHARACTERISTICS:
FIRST END :
Connector Characteristics - First End Connector Type D-Sub
Connector Characteristics - First End # of Connector
Contacts/positions
Connector Characteristics - First End Connector
Gender
Connector Characteristics - First End Connector
Shielding Type
Connector Characteristics - First End Overmold Type 9 Position D-Sub
Connector Characteristics - First End Overmold
Compound Material
Connector Characteristics - First End Overmold Color Black
Connector Characteristics - First End Retention
Hardware
SECOND END :
Connector Characteristics - Second End Connector
Type
18 +/- 1 in.
90 in.
9
Male
Metal Backshell
PVC
Thumbscrew
No Connector
NOT TERMINATED :
Connector Characteristics (not Terminated) Jacket
Removal Dimension
Connector Characteristic (not terminated) Drain Wire
Solder Dip
WIRING DIAGRAM:
Wiring Diagram Color Code Chart :
Number Color
1 Brown
2 Red
3 Orange
4 Yellow
5 Green
6 Blue
7 Purple
8 Gray
9 White
MECHANICAL CHARACTERISTICS:
UL Temperature Rating 60°C (UL AWM Style 20197)
1 +/-.125 in.
.25 +/- .125 in.
Page 2 of
Page 3
49911A Molded Cable Assemblies - D-Subminiature Assembly
3
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:
AWM Specification UL Style 20197 (30 V 60°C) (cable only)
APPLICABLE STANDARDS:
EU RoHS Compliant (Y/N) Yes
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
PLENUM/NON-PLENUM:
Plenum (Y/N) N
ELECTRICAL CHARACTERISTICS:
Max. Operating Voltage - UL 30 V RMS (UL AWM Style 20197)
NOTES:
Notes
Notes (cont'd) The end opposite the conductor is stripped. Jack screw retention on male connector.
Polyurethane jacket provides superior retractile properties at a reasonable cost.
Molded handles are 100% shielded to assist in FCC compliance and guard against
EMI/RFI. All connectors tin-plated with detents for positive ground connection.
PUT-UPS AND COLORS:
Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
49911A 010S2 RETR ASSY 9POS
RI37966
Revision Number: 1 Revision Date: 05-13-2005
© Copyright 2006 Belden, Inc
All Rights Reserved.
Although Belden ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication, information and
specifications described herein are subject to error or omission and to change without notice, and the listing of such information and
specifications does not ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,
statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or
exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described
herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be in compliance with the following environmental regulations: California Proposition 65 Consent Judgment
For Wire & Cable Mfgs.(San Francisco Superior Court Nos. 312962 And 320342); EU RoHS (Directive 2002/95/EC, 27-Jan-
2003);Material manufactured prior to the compliance date may still be in stock at Belden facilities and in our Distributor's inventory. EU
ELV (Directive 2000/53/EC, 18-Sept-2000); EU WEEE (Directive 2002/96/EC, 27-Jan-2003); And EU BFR (Directive 2003/11/EC, 6-Feb-
2003). The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the
Product Disclosure, is correct to the best of Belden's knowledge, information and belief at the date of its publication. The information
provided in the Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product
itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory
information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations
based on their individual usage of the product.
S2 2 BLACK
