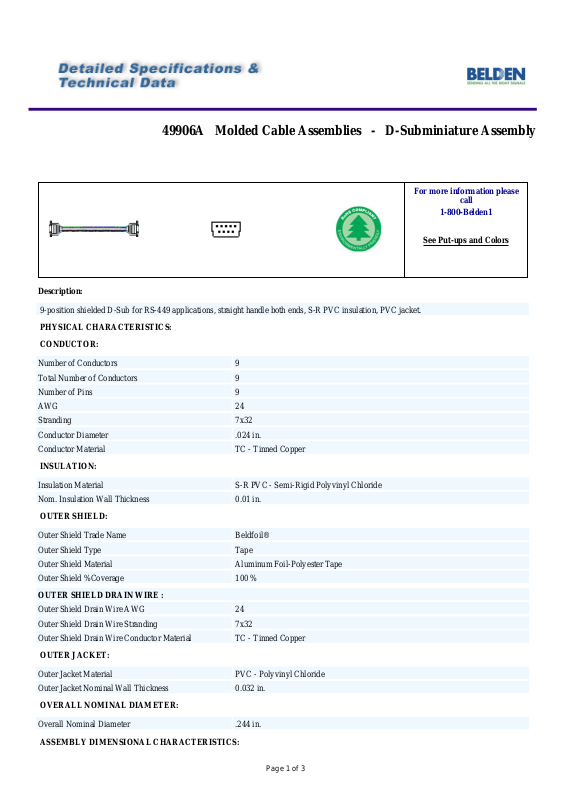

49906A Molded Cable Assemblies - D-Subminiature Assembly
3
Description:
9-position shielded D-Sub for RS-449 applications, straight handle both ends, S-R PVC insulation, PVC jacket.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Conductors 9
Total Number of Conductors 9
Number of Pins 9
AWG 24
Stranding 7x32
Conductor Diameter .024 in.
Conductor Material TC - Tinned Copper
INSULATION:
For more information please
call
1-800-Belden1
See Put-ups and Colors
Insulation Material S-R PVC - Semi-Rigid Polyvinyl Chloride
Nom. Insulation Wall Thickness 0.01 in.
OUTER SHIELD:
Outer Shield Trade Name Beldfoil®
Outer Shield Type Tape
Outer Shield Material Aluminum Foil-Polyester Tape
Outer Shield %Coverage 100 %
OUTER SHIELD DRAIN WIRE :
Outer Shield Drain Wire AWG 24
Outer Shield Drain Wire Stranding 7x32
Outer Shield Drain Wire Conductor Material TC - Tinned Copper
OUTER JACKET:
Outer Jacket Material PVC - Polyvinyl Chloride
Outer Jacket Nominal Wall Thickness 0.032 in.
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter .244 in.
ASSEMBLY DIMENSIONAL CHARACTERISTICS:
Page 1 of
Page 2
49906A Molded Cable Assemblies - D-Subminiature Assembly
3
Assembly Dimensional Length 10 ft.
CONNECTOR CHARACTERISTICS:
FIRST END :
Connector Characteristics - First End Connector Type D-Sub
Connector Characteristics - First End # of Connector
Contacts/positions
Connector Characteristics - First End Connector
Gender
Connector Characteristics - First End Connector
Shielding Type
Connector Characteristics - First End Overmold Type 9 Position D-Sub
Connector Characteristics - First End Overmold
Compound Material
Connector Characteristics - First End Overmold Color Chrome
Connector Characteristics - First End Retention
Hardware
SECOND END :
Connector Characteristics - Second End Connector
Type
Connector Characteristics - Second End # of
Connector Contacts/positions
Connector Characteristics - Second End Connector
Gender
Connector Characteristics - Second End Connector
Shielding Type
Connector Characteristics - Second End Overmold
Type
Connector Characteristics - Second End Overmold
Compound Material
Connector Characteristics - Second End Overmold
Color
Connector Characteristics - Second End Retention
Hardware
9
Male
Metal Backshell
PVC
Thumbscrew
D-Sub
9
Female
Metal Backshells
9 Position D-Sub
PVC
Chrome
Thumbscrew
Wiring
MECHANICAL CHARACTERISTICS:
UL Temperature Rating 80°C (UL AWM Style 2464)
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:
NEC/(UL) Specification CM (cable only)
AWM Specification UL Style 2464 (300 V 80°C) (cable only)
APPLICABLE STANDARDS:
EU RoHS Compliant (Y/N) Yes
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
PLENUM/NON-PLENUM:
Point to Point. Pin #1 on end 1 to Pin #1 on end 2, Pin #2 to Pin #2, etc. Cable
shield connected to connector shell.
Page 2 of
Page 3
49906A Molded Cable Assemblies - D-Subminiature Assembly
3
Plenum (Y/N) N
ELECTRICAL CHARACTERISTICS:
Max. Operating Voltage - UL 300 V RMS (UL AWM Style 2464)
NOTES:
Notes
Notes (cont'd) Jack screw retention on both connectors.
Molded handles are 100% shielded to assist in FCC compliance and guard against
EMI/RFI. All connectors tin-plated and male connectors have detents for positive
ground connection. Wiring is point-to-point with the shield to connector shell.
PUT-UPS AND COLORS:
Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
49906A 060S2 9 POS SHD D-SUB
9539
Revision Number: 1 Revision Date: 05-13-2005
© Copyright 2006 Belden, Inc
All Rights Reserved.
Although Belden ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication, information and
specifications described herein are subject to error or omission and to change without notice, and the listing of such information and
specifications does not ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,
statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or
exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described
herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be in compliance with the following environmental regulations: California Proposition 65 Consent Judgment
For Wire & Cable Mfgs.(San Francisco Superior Court Nos. 312962 And 320342); EU RoHS (Directive 2002/95/EC, 27-Jan-
2003);Material manufactured prior to the compliance date may still be in stock at Belden facilities and in our Distributor's inventory. EU
ELV (Directive 2000/53/EC, 18-Sept-2000); EU WEEE (Directive 2002/96/EC, 27-Jan-2003); And EU BFR (Directive 2003/11/EC, 6-Feb-
2003). The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the
Product Disclosure, is correct to the best of Belden's knowledge, information and belief at the date of its publication. The information
provided in the Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product
itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory
information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations
based on their individual usage of the product.
S2 2 CHROME
