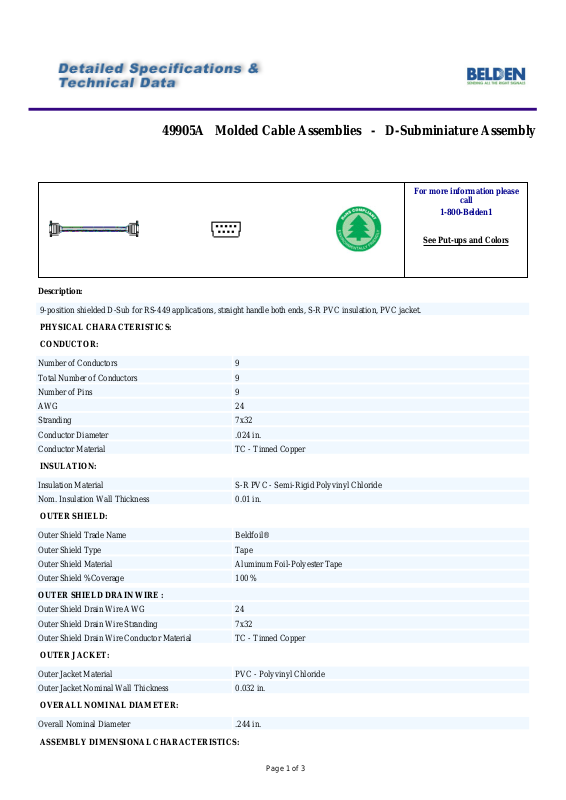

49905A Molded Cable Assemblies - D-Subminiature Assembly
3
Description:
9-position shielded D-Sub for RS-449 applications, straight handle both ends, S-R PVC insulation, PVC jacket.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Conductors 9
Total Number of Conductors 9
Number of Pins 9
AWG 24
Stranding 7x32
Conductor Diameter .024 in.
Conductor Material TC - Tinned Copper
INSULATION:
For more information please
call
1-800-Belden1
See Put-ups and Colors
Insulation Material S-R PVC - Semi-Rigid Polyvinyl Chloride
Nom. Insulation Wall Thickness 0.01 in.
OUTER SHIELD:
Outer Shield Trade Name Beldfoil®
Outer Shield Type Tape
Outer Shield Material Aluminum Foil-Polyester Tape
Outer Shield %Coverage 100 %
OUTER SHIELD DRAIN WIRE :
Outer Shield Drain Wire AWG 24
Outer Shield Drain Wire Stranding 7x32
Outer Shield Drain Wire Conductor Material TC - Tinned Copper
OUTER JACKET:
Outer Jacket Material PVC - Polyvinyl Chloride
Outer Jacket Nominal Wall Thickness 0.032 in.
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter .244 in.
ASSEMBLY DIMENSIONAL CHARACTERISTICS:
Page 1 of
Page 2
49905A Molded Cable Assemblies - D-Subminiature Assembly
3
Assembly Dimensional Length 5 ft.
CONNECTOR CHARACTERISTICS:
FIRST END :
Connector Characteristics - First End Connector Type D-Sub
Connector Characteristics - First End # of Connector
Contacts/positions
Connector Characteristics - First End Connector
Gender
Connector Characteristics - First End Connector
Shielding Type
Connector Characteristics - First End Overmold Type 9 Position D-Sub
Connector Characteristics - First End Overmold
Compound Material
Connector Characteristics - First End Overmold Color Chrome
Connector Characteristics - First End Retention
Hardware
SECOND END :
Connector Characteristics - Second End Connector
Type
Connector Characteristics - Second End # of
Connector Contacts/positions
Connector Characteristics - Second End Connector
Gender
Connector Characteristics - Second End Connector
Shielding Type
Connector Characteristics - Second End Overmold
Type
Connector Characteristics - Second End Overmold
Compound Material
Connector Characteristics - Second End Overmold
Color
Connector Characteristics - Second End Retention
Hardware
9
Male
Metal Backshell
PVC
Thumbscrew
D-Sub
9
Female
Metal Backshells
9 Position D-Sub
PVC
Chrome
Thumbscrew
Wiring
MECHANICAL CHARACTERISTICS:
UL Temperature Rating 80°C (UL AWM Style 2464)
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:
NEC/(UL) Specification CM (cable only)
AWM Specification UL Style 2464 (300 V 80°C) (cable only)
APPLICABLE STANDARDS:
EU RoHS Compliant (Y/N) Yes
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
PLENUM/NON-PLENUM:
Point to Point. Pin #1 on end 1 to Pin #1 on end 2, Pin #2 to Pin #2, etc. Cable
shield connected to connector shell.
Page 2 of
Page 3
49905A Molded Cable Assemblies - D-Subminiature Assembly
3
Plenum (Y/N) N
ELECTRICAL CHARACTERISTICS:
Max. Operating Voltage - UL 300 V RMS (UL AWM Style 2464)
NOTES:
Notes
Notes (cont'd) Jack screw retention on both connectors.
Molded handles are 100% shielded to assist in FCC compliance and guard against
EMI/RFI. All connectors tin-plated and male connectors have detents for positive
ground connection. Wiring is point-to-point with the shield to connector shell.
PUT-UPS AND COLORS:
Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
49905A 060S2 9 POS SHD D-SUB
9539
Revision Number: 1 Revision Date: 05-13-2005
© Copyright 2006 Belden, Inc
All Rights Reserved.
