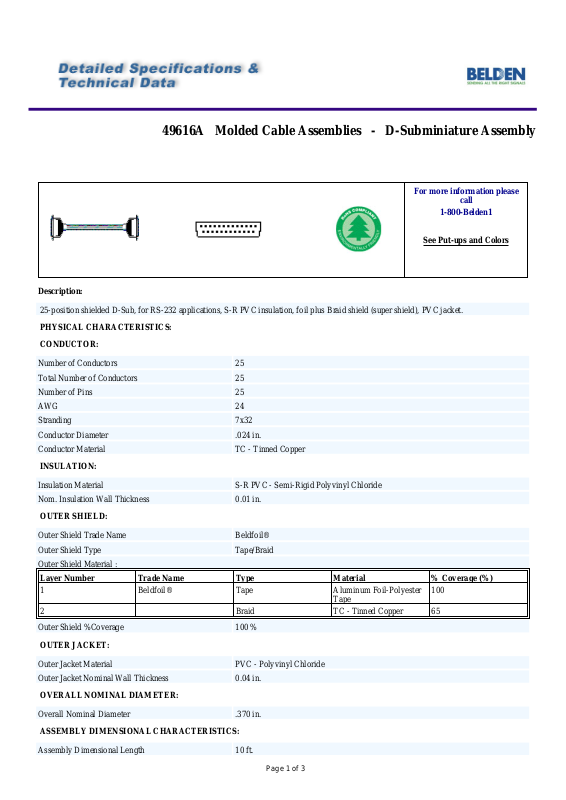

49616A Molded Cable Assemblies - D-Subminiature Assembly
3
For more information please
1-800-Belden1
See Put-ups and Colors
Description:
25-position shielded D-Sub, for RS-232 applications, S-R PVC insulation, foil plus Braid shield (super shield), PVC jacket.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Conductors 25
Total Number of Conductors 25
Number of Pins 25
AWG 24
Stranding 7x32
Conductor Diameter .024 in.
Conductor Material TC - Tinned Copper
INSULATION:
call
Insulation Material S-R PVC - Semi-Rigid Polyvinyl Chloride
Nom. Insulation Wall Thickness 0.01 in.
OUTER SHIELD:
Outer Shield Trade Name Beldfoil®
Outer Shield Type Tape/Braid
Outer Shield Material :
Layer Number Trade Name Type Material % Coverage (%)
1 Beldfoil® Tape Aluminum Foil-Polyester
Tape
2 Braid TC - Tinned Copper 65
Outer Shield %Coverage 100 %
OUTER JACKET:
Outer Jacket Material PVC - Polyvinyl Chloride
Outer Jacket Nominal Wall Thickness 0.04 in.
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter .370 in.
ASSEMBLY DIMENSIONAL CHARACTERISTICS:
Assembly Dimensional Length 10 ft.
100
Page 1 of
Page 2
49616A Molded Cable Assemblies - D-Subminiature Assembly
3
CONNECTOR CHARACTERISTICS:
FIRST END :
Connector Characteristics - First End Connector Type D-Sub
Connector Characteristics - First End # of Connector
Contacts/positions
Connector Characteristics - First End Connector
Gender
Connector Characteristics - First End Connector
Shielding Type
Connector Characteristics - First End Overmold Type 25 Position D-Sub
Connector Characteristics - First End Overmold
Compound Material
Connector Characteristics - First End Overmold Color Chrome
Connector Characteristics - First End Retention
Hardware
SECOND END :
Connector Characteristics - Second End Connector
Type
Connector Characteristics - Second End # of
Connector Contacts/positions
Connector Characteristics - Second End Connector
Gender
Connector Characteristics - Second End Connector
Shielding Type
Connector Characteristics - Second End Overmold
Type
Connector Characteristics - Second End Overmold
Compound Material
Connector Characteristics - Second End Overmold
Color
Connector Characteristics - Second End Retention
Hardware
25
Male
Metal Backshells
PVC
Thumbscrew
D-Sub
25
Female
Metal Backshells
25 Position D-Sub
PVC
Chrome
Thumbscrew
Wiring
MECHANICAL CHARACTERISTICS:
UL Temperature Rating 80°C (UL AWM Style 2464)
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:
NEC/(UL) Specification CM (cable only)
AWM Specification UL Style 2464 (300 V 80°C) (cable only)
APPLICABLE STANDARDS:
EU RoHS Compliant (Y/N) Yes
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
PLENUM/NON-PLENUM:
Point to Point. Pin #1 on End 1 to Pin #1 on End 2, Pin #2 to Pin #2, etc. Cable
Shield Connected to Connector Shell.
Page 2 of
Page 3
49616A Molded Cable Assemblies - D-Subminiature Assembly
3
Plenum (Y/N) N
ELECTRICAL CHARACTERISTICS:
Max. Operating Voltage - UL 300 V RMS (UL AWM Style 2464)
NOTES:
Notes
Notes (cont'd) Jack screw retention on both connectors.
Molded handles are 100% shielded to guard against EMI/RFI. All connectors tinplated and male connectors have detents for a positive shield to ground connection.
Wiring is point-to-point with the shield to connector shell.
PUT-UPS AND COLORS:
Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
49616A 060S2 25 POS SHD D-SUB
9617
Revision Number: 1 Revision Date: 05-13-2005
© Copyright 2006 Belden, Inc
All Rights Reserved.
Although Belden ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication, information and
specifications described herein are subject to error or omission and to change without notice, and the listing of such information and
specifications does not ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,
statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or
exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described
herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be in compliance with the following environmental regulations: California Proposition 65 Consent Judgment
For Wire & Cable Mfgs.(San Francisco Superior Court Nos. 312962 And 320342); EU RoHS (Directive 2002/95/EC, 27-Jan-
2003);Material manufactured prior to the compliance date may still be in stock at Belden facilities and in our Distributor's inventory. EU
ELV (Directive 2000/53/EC, 18-Sept-2000); EU WEEE (Directive 2002/96/EC, 27-Jan-2003); And EU BFR (Directive 2003/11/EC, 6-Feb-
2003). The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the
Product Disclosure, is correct to the best of Belden's knowledge, information and belief at the date of its publication. The information
provided in the Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product
itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory
information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations
based on their individual usage of the product.
S2 2 CHROME
