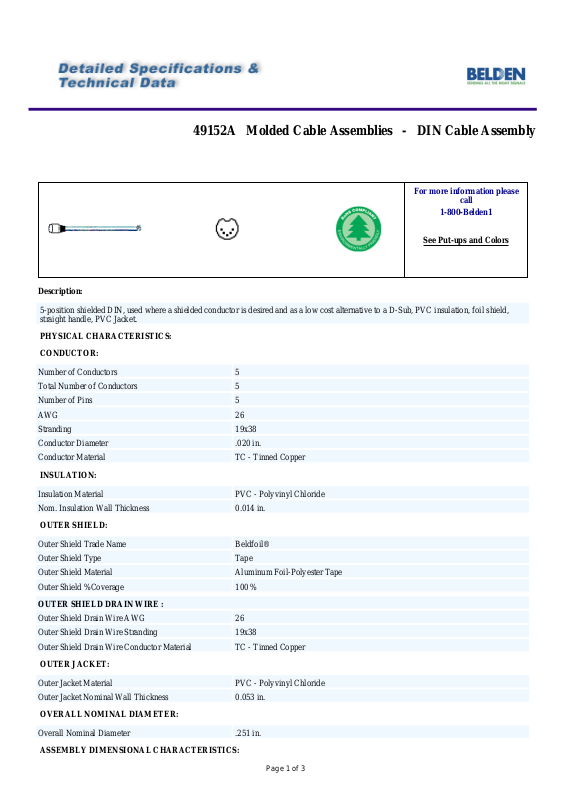

Page 1
49152A Molded Cable Assemblies - DIN Cable Assembly
3
For more information please
call
1-800-Belden1
See Put-ups and Colors
Description:
5-position shielded DIN, used where a shielded conductor is desired and as a low cost alternative to a D-Sub, PVC insulation, foil shield,
straight handle, PVC Jacket.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Conductors 5
Total Number of Conductors 5
Number of Pins 5
AWG 26
Stranding 19x38
Conductor Diameter .020 in.
Conductor Material TC - Tinned Copper
INSULATION:
Insulation Material PVC - Polyvinyl Chloride
Nom. Insulation Wall Thickness 0.014 in.
OUTER SHIELD:
Outer Shield Trade Name Beldfoil®
Outer Shield Type Tape
Outer Shield Material Aluminum Foil-Polyester Tape
Outer Shield %Coverage 100 %
OUTER SHIELD DRAIN WIRE :
Outer Shield Drain Wire AWG 26
Outer Shield Drain Wire Stranding 19x38
Outer Shield Drain Wire Conductor Material TC - Tinned Copper
OUTER JACKET:
Outer Jacket Material PVC - Polyvinyl Chloride
Outer Jacket Nominal Wall Thickness 0.053 in.
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter .251 in.
ASSEMBLY DIMENSIONAL CHARACTERISTICS:
Page 1 of
Page 2
49152A Molded Cable Assemblies - DIN Cable Assembly
3
Assembly Dimensional Length 10 ft.
CONNECTOR CHARACTERISTICS:
FIRST END :
Connector Characteristics - First End Connector Type DIN
Connector Characteristics - First End # of Connector
Contacts/positions
Connector Characteristics - First End Connector
Gender
Connector Characteristics - First End Connector
Shielding Type
Connector Characteristics - First End Overmold Type 5 Position DIN with Flex Tail
Connector Characteristics - First End Overmold
Compound Material
Connector Characteristics - First End Overmold Color Black
SECOND END :
Connector Characteristics - Second End Connector
Type
5
Male
Metal Backshell
PVC
No Connector
NOT TERMINATED :
Connector Characteristics (not Terminated) Jacket
Removal Dimension
Connector Characteristic (not terminated) Drain Wire
Solder Dip
Wiring Shield to Connector Shell
WIRING DIAGRAM:
Wiring Diagram Color Code Chart :
Number Color
1 Brown
2 Red
3 Orange
4 Yellow
5 Green
MECHANICAL CHARACTERISTICS:
UL Temperature Rating 80°C (UL AWM Style 2464)
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:
NEC/(UL) Specification CM (cable only)
AWM Specification UL Style 2464 (300 V 80°C) (cable only)
1 +/- .125 in.
.25 +/- .125 in.
APPLICABLE STANDARDS:
EU RoHS Compliant (Y/N) Yes
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
FLAME TEST:
Page 2 of
Page 3
49152A Molded Cable Assemblies - DIN Cable Assembly
3
UL Flame Test VW-1 (Cable only)
PLENUM/NON-PLENUM:
Plenum (Y/N) N
ELECTRICAL CHARACTERISTICS:
Max. Operating Voltage - UL 300 V RMS (UL AWM Style 2464)
NOTES:
Notes Foil shielded for moderate-noise environments. Outer jacket stripped one inch.
PUT-UPS AND COLORS:
Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
49152A 010B1 5 POS DIN
STRAIGHT RI37895
49152A 010S2 5 POS DIN
STRAIGHT RI37895
Q = STANDARD PACKAGES CANNOT BE BROKEN.
B1 0.5 BLACK
S2 4 BLACK
Q
Revision Number: 1 Revision Date: 05-13-2005
