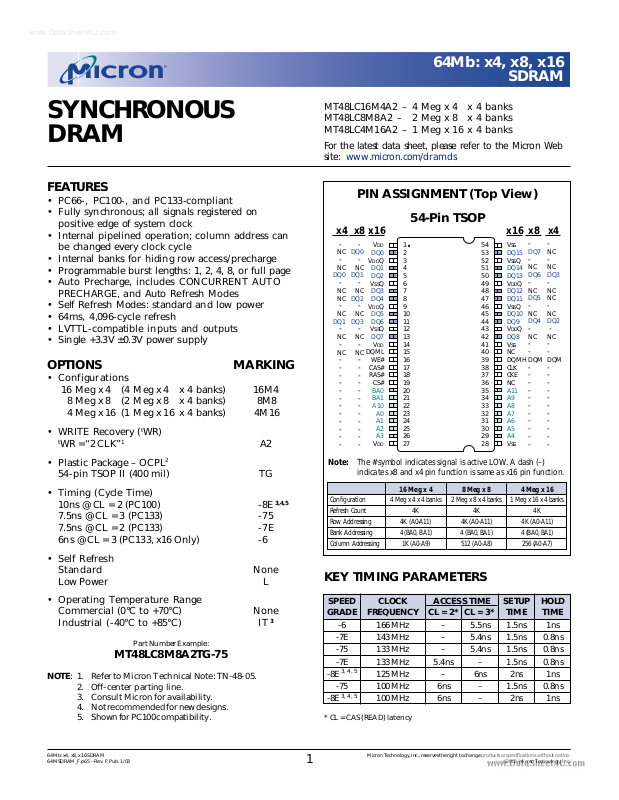

Page 1

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

SYNCHRONOUS DRAM

FEATURES

• PC66-, PC100-, and PC133-compliant

• Fully synchronous; all signals registered on positive edge of system clock

• Internal pipelined operation; column address can be changed every clock cycle

• Internal banks for hiding row access/precharge

• Programmable burst lengths: 1, 2, 4, 8, or full page

• Auto Precharge, includes CONCURRENT AUTO PRECHARGE, and Auto Refresh Modes

• Self Refresh Modes: standard and low power

• 64ms, 4,096-cycle refresh

• LVTTL-compatible inputs and outputs

• Single +3.3V ±0.3V power supply

OPTIONS MARKING

• Configurations

16 Meg x 4 (4 Meg x 4 x 4 banks) 16M4

8 Meg x 8 (2 Meg x 8 x 4 banks) 8M8 4 Meg x 16 (1 Meg x 16 x 4 banks) 4M16

• WRITE Recovery (tWR)

WR = “2 CLK”

• Plastic Package – OCPL 54-pin TSOP II (400 mil) TG

• Timing (Cycle Time) 10ns @ CL = 2 (PC100) -8E

7.5ns @ CL = 3 (PC133) -75

7.5ns @ CL = 2 (PC133) -7E 6ns @ CL = 3 (PC133, x16 Only) -6

• Self Refresh Standard None Low Power L

3, 4,5

MT48LC16M4A2 – 4 Meg x 4 x 4 banks MT48LC8M8A2 – 2 Meg x 8 x 4 banks MT48LC4M16A2 – 1 Meg x 16 x 4 banks

For the latest data sheet, please refer to the Micron Web site: www.micron.com/dramds

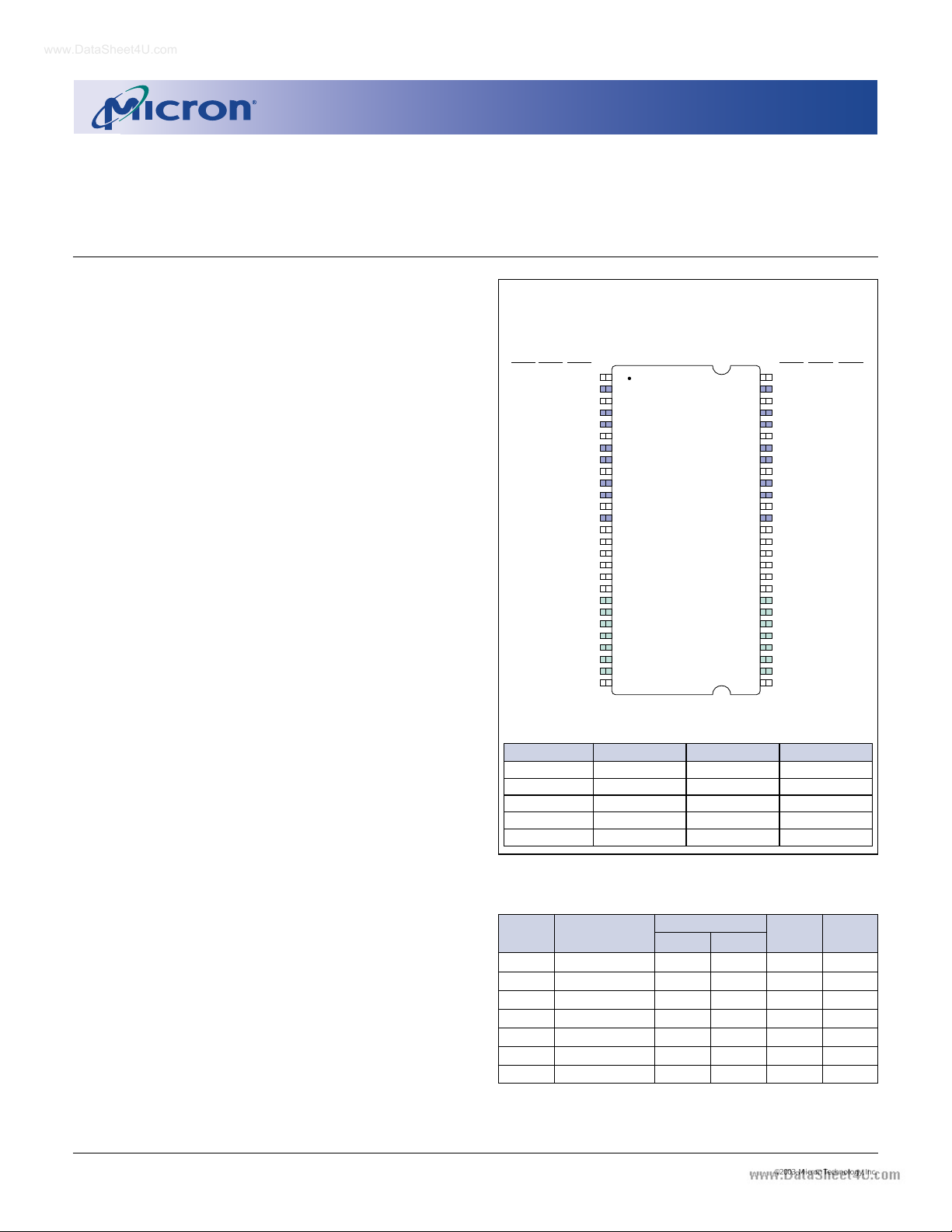

PIN ASSIGNMENT (Top View)

54-Pin TSOP

x8x16 x16x8 x4x4

NC NC

DQ0

NC NC

DQ1

NC NC

DQ0

DQ1

DQ2

DQ3

NC NC

DQML

DQ0

DQ1 DQ2

VssQ

DQ3 DQ4

DQ5 DQ6

VssQ

DQ7

WE# CAS# RAS#

CS#

BA0 BA1 A10

A0 A1 A2 A3

1 2 3

4 5 6 7 8 9

10 11 12 13 14

15 16 17 18 19 20 21 22 23 24 25 26 27

Vss

DQ15

VssQ

DQ14

DQ13

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28

DQ12 DQ11

VssQ

DQ10 DQ9

DQ8

Vss NC DQMH CLK CKE NC

A11 A9 A8 A7 A6 A5 A4

Vss

Note: The # symbol indicates signal is active LOW. A dash (–)

indicates x8 and x4 pin function is same as x16 pin function.

16 Meg x 4 8 Meg x 8 4 Meg x 16

Configuration 4 Meg x 4 x 4 banks 2 Meg x 8 x 4 banks 1 Meg x 16 x 4 banks Refresh Count 4K 4K 4K Row Addressing 4K (A0-A11) 4K (A0-A11) 4K (A0-A11) Bank Addressing 4 (BA0, BA1) 4 (BA0, BA1) 4 (BA0, BA1) Column Addressing 1K (A0-A9) 512 (A0-A8) 256 (A0-A7)

DQ7

DQ6

DQ5

DQ4

DQM

DQ3

NC NC

DQ2

DQM

KEY TIMING PARAMETERS

• Operating Temperature Range Commercial (0°C to +70°C) None Industrial (-40°C to +85°C) IT

NOTE: 1. Refer to Micron Technical Note: TN-48-05.

2. Off-center parting line.

3. Consult Micron for availability.

4. Not recommended for new designs.

5. Shown for PC100 compatibility.

Part Number Example:

MT48LC8M8A2TG-75

SPEED CLOCK ACCESS TIME SETUP HOLD

GRADE FREQUENCY CL = 2* CL = 3* TIME TIME

-6 166 MHz – 5.5ns 1.5ns 1ns

-7E 143 MHz – 5.4ns 1.5ns 0.8ns

-75 133 MHz – 5.4ns 1.5ns 0.8ns

-7E 133 MHz 5.4ns – 1.5ns 0.8ns

3, 4, 5

-8E

125 MHz – 6ns 2ns 1ns

-75 100 MHz 6ns – 1.5ns 0.8ns

3, 4, 5

-8E

* CL = CAS (READ) latency

100 MHz 6ns – 2ns 1ns

Page 2

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

64Mb SDRAM PART NUMBERS

PART NUMBER ARCHITECTURE

MT48LC16M4A2TG 16 Meg x 4 MT48LC8M8A2TG 8 Meg x 8 MT48LC4M16A2TG 4 Meg x 16

GENERAL DESCRIPTION

The Micron® 64Mb SDRAM is a high-speed CMOS, dynamic random-access memory containing 67,108,864 bits. It is internally configured as a quadbank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Each of the x4’s 16,777,216-bit banks is organized as 4,096 rows by 1,024 columns by 4 bits. Each of the x8’s 16,777,216-bit banks is organized as 4,096 rows by 512 columns by 8 bits. Each of the x16’s 16,777,216bit banks is organized as 4,096 rows by 256 columns by 16 bits.

Read and write accesses to the SDRAM are burst oriented; accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of an ACTIVE command, which is then followed by a READ or WRITE command. The address bits registered coincident with the ACTIVE command are used to select the bank and row to be accessed (BA0, BA1 select the bank; A0-A11 select the row). The ad-

dress bits registered coincident with the READ or WRITE command are used to select the starting column location for the burst access.

The SDRAM provides for programmable READ or WRITE burst lengths of 1, 2, 4, or 8 locations, or the full page, with a burst terminate option. An auto precharge function may be enabled to provide a selftimed row precharge that is initiated at the end of the burst sequence.

The 64Mb SDRAM uses an internal pipelined architecture to achieve high-speed operation. This architecture is compatible with the 2n rule of prefetch architectures, but it also allows the column address to be changed on every clock cycle to achieve a highspeed, fully random access. Precharging one bank while accessing one of the other three banks will hide the precharge cycles and provide seamless, highspeed, random-access operation.

The 64Mb SDRAM is designed to operate in 3.3V memory systems. An auto refresh mode is provided, along with a power-saving, power-down mode. All inputs and outputs are LVTTL-compatible.

SDRAMs offer substantial advances in DRAM operating performance, including the ability to synchronously burst data at a high data rate with automatic column-address generation, the ability to interleave between internal banks in order to hide precharge time and the capability to randomly change column addresses on each clock cycle during a burst access.

Page 3

TABLE OF CONTENTS

www.DataSheet4U.com

64Mb: x4, x8, x16

SDRAM

Functional Block Diagram –16 Meg x 4 ................ 4

Functional Block Diagram – 8 Meg x 8 ................ 5

Functional Block Diagram – 4 Meg x 16 .............. 6

Pin Descriptions ........................................................ 7

Functional Description ........................................... 8

Initialization......................................................... 8

Mode Register ................................................. 8

Burst Length .............................................. 8

Burst Type.................................................. 9

CAS Latency .............................................. 10

Operating Mode ........................................ 10

Write Burst Mode...................................... 10

Commands ........................................................... 11

Truth Table 1 (Commands and DQM Operation) ....... 11

Command Inhibit .......................................... 12

No Operation (NOP) ...................................... 12

Load Mode Register ........................................ 12

Active............................................................... 12

Read ................................................................. 12

Write................................................................ 12

Precharge......................................................... 12

Auto Precharge ............................................... 12

Burst Terminate .............................................. 12

Auto Refresh ................................................... 13

Self Refresh...................................................... 13

Operation ............................................................. 14

Bank/Row Activation ..................................... 14

Reads................................................................ 15

Writes .............................................................. 21

Precharge......................................................... 23

Power-Down ................................................... 23

Clock Suspend ................................................ 24

Burst Read/Single Write ................................. 24

Concurrent Auto Precharge .......................... 25

Truth Table 2 (CKE)................................................... 27

Truth Table 3 (Current State, Same Bank)................... 28

Truth Table 4 (Current State, Different Bank) ............. 30

Absolute Maximum Ratings .................................... 32

DC Electrical Characteristics

and Operating Conditions ..................................... 32

DD Specifications and Conditions.......................... 32

Capacitance ............................................................... 33

Electrical Characteristics and Recommended

Operating Conditions (Timing Table) ........... 34

Timing Waveforms

Initialize and Load Mode Register ..................... 36

Power-Down Mode ............................................ 37

Clock Suspend Mode .......................................... 38

Auto Refresh Mode ............................................. 39

Self Refresh Mode ................................................ 40

Reads

Read – Without Auto Precharge .................. 41

Read – With Auto Precharge ........................ 42

Single Read – Without Auto Precharge ....... 43

Single Read – With Auto Precharge ............. 4 4

Alternating Bank Read Accesses.................... 45

Read – Full-Page Burst ................................... 46

Read – DQM Operation ................................ 47

Writes

Write – Without Auto Precharge ................. 48

Write – With Auto Precharge ....................... 49

Single Write – Without Auto Precharge ...... 50

Single Write – With Auto Precharge ............ 51

Alternating Bank Write Accesses................... 52

Write – Full-Page Burst .................................. 53

Write – DQM Operation ............................... 54

Page 4

WE#

www.DataSheet4U.com

CAS#

RAS#

CKE CLK

CS#

CONTROL

LOGIC

DECODE

COMMAND

MODE REGISTER

REFRESH

COUNTER

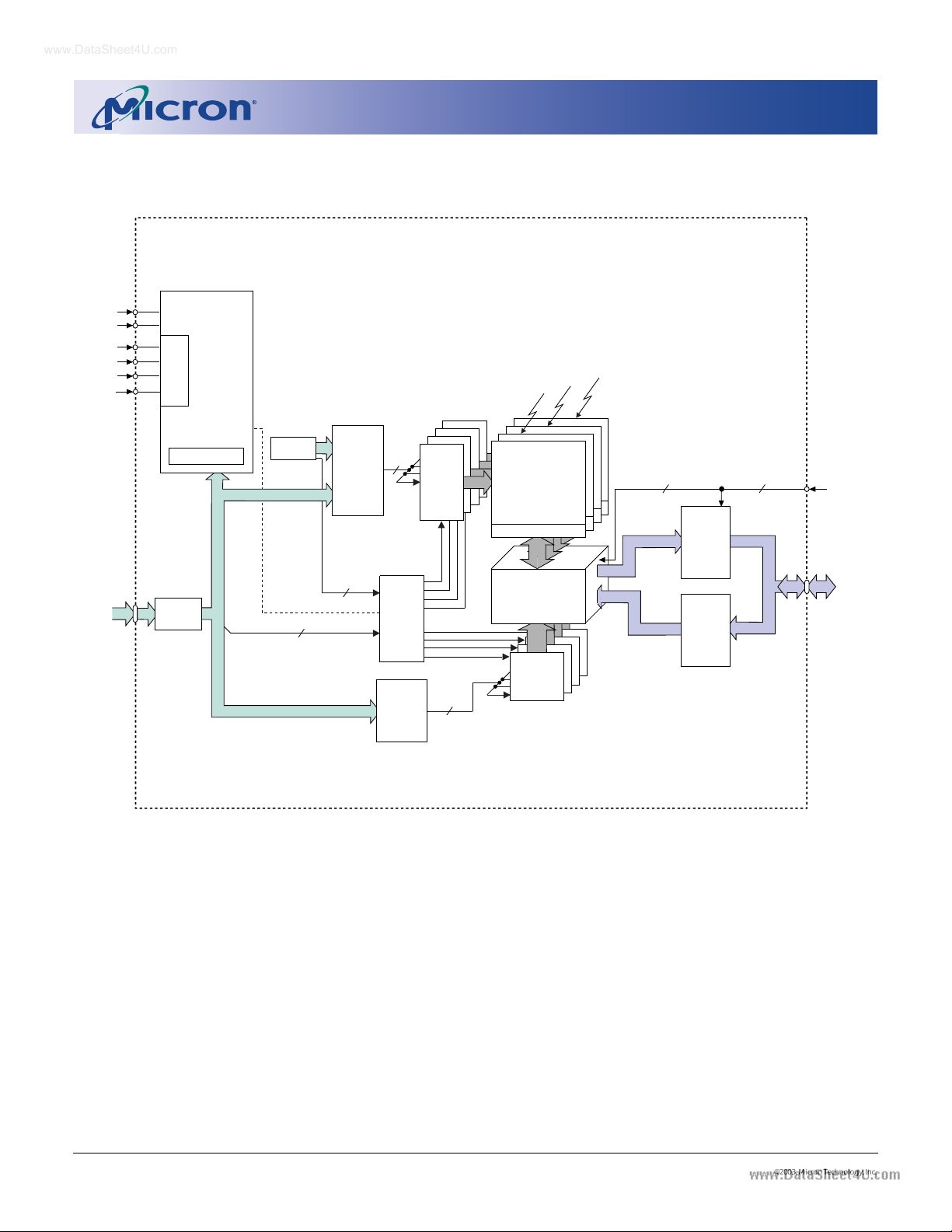

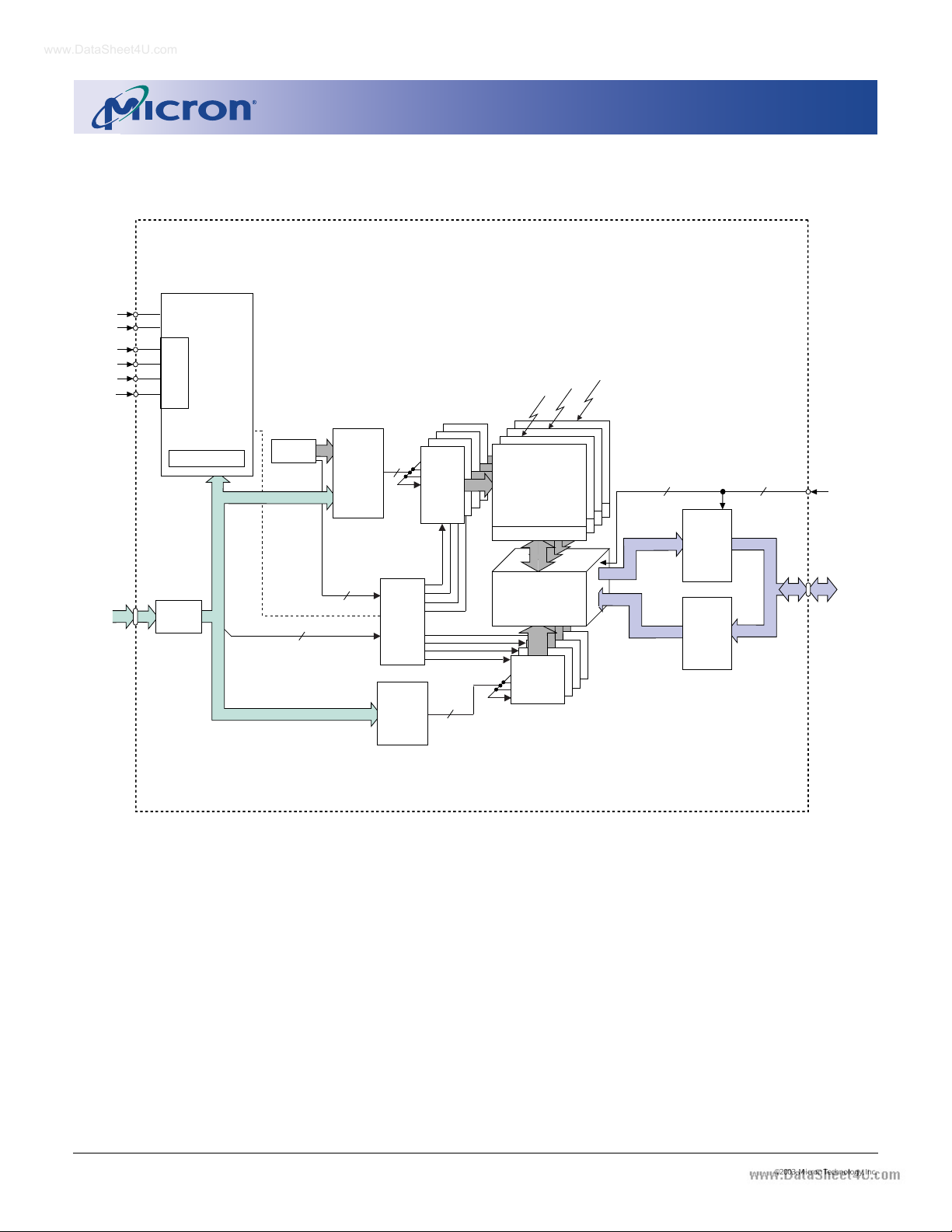

FUNCTIONAL BLOCK DIAGRAM

16 Meg x 4 SDRAM

BANK2

BANK1

ROW-

ADDRESS

MUX

BANK0

ROW-

ADDRESS

LATCH

DECODER

4096

BANK0

MEMORY

ARRAY

(4,096 x 1,024 x 4)

SENSE AMPLIFIERS

4096

BANK3

64Mb: x4, x8, x16

SDRAM

1 1

DATA

OUTPUT

DQM

A0-A11,

BA0, BA1

ADDRESS

BANK

CONTROL

LOGIC

COLUMN-

ADDRESS

COUNTER/

LATCH

I/O GATING DQM MASK LOGIC READ DATA LATCH

WRITE DRIVERS

1024

(x4)

COLUMN

DECODER

DATA INPUT

DQ0-DQ3

Page 5

WE#

www.DataSheet4U.com

CAS#

RAS#

CKE CLK

CS#

CONTROL

LOGIC

DECODE

COMMAND

MODE REGISTER

REFRESH

COUNTER

FUNCTIONAL BLOCK DIAGRAM

8 Meg x 8 SDRAM

BANK2

BANK1

ROW-

ADDRESS

MUX

BANK0

ROW-

ADDRESS

LATCH

DECODER

4096

BANK0

MEMORY

ARRAY

(4,096 x 512 x 8)

SENSE AMPLIFIERS

4096

BANK3

64Mb: x4, x8, x16

SDRAM

1 1

DATA

OUTPUT

DQM

A0-A11,

BA0, BA1

ADDRESS

BANK

CONTROL

LOGIC

COLUMNADDRESS

COUNTER/

LATCH

I/O GATING

DQM MASK LOGIC

READ DATA LATCH

WRITE DRIVERS

512

(x8)

COLUMN DECODER

DATA INPUT

DQ0-DQ7

Page 6

WE#

www.DataSheet4U.com

CAS#

RAS#

CKE CLK

CS#

CONTROL

LOGIC

DECODE

COMMAND

MODE REGISTER

REFRESH

COUNTER

FUNCTIONAL BLOCK DIAGRAM

4 Meg x 16 SDRAM

BANK3

BANK2

BANK1

ROW-

ADDRESS

MUX

BANK0

ROW-

ADDRESS

LATCH

DECODER

4096

BANK0

MEMORY

ARRAY

(4,096 x 256 x 16)

SENSE AMPLIFIERS

4096

64Mb: x4, x8, x16

SDRAM

2 2

DATA

OUTPUT

DQML, DQMH

A0-A11,

BA0, BA1

ADDRESS

BANK

CONTROL

LOGIC

COLUMNADDRESS

COUNTER/

LATCH

I/O GATING

DQM MASK LOGIC

READ DATA LATCH

WRITE DRIVERS

256

(x16)

COLUMN

DECODER

DATA INPUT

DQ0-DQ15

Page 7

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

PIN DESCRIPTIONS

PIN NUMBERS SYMBOL TYPE DESCRIPTION

38 CLK Input Clock: CLK is driven by the system clock. All SDRAM input signals are

sampled on the positive edge of CLK. CLK also increments the internal burst counter and controls the output registers.

37 CKE Input Clock Enable: CKE activates (HIGH) and deactivates (LOW) the CLK

signal. Deactivating the clock provides PRECHARGE POWER-DOWN and SELF REFRESH operation (all banks idle), ACTIVE POWER-DOWN (row active in any bank) or CLOCK SUSPEND operation (burst/access in progress). CKE is synchronous except after the device enters powerdown and self refresh modes, where CKE becomes asynchronous until after exiting the same mode. The input buffers, including CLK, are disabled during power-down and self refresh modes, providing low standby power. CKE may be tied HIGH.

19 CS# Input Chip Select: CS# enables (registered LOW) and disables (registered

HIGH) the command decoder. All commands are masked when CS# is registered HIGH. CS# provides for external bank selection on systems with multiple banks. CS# is considered part of the command code.

16, 1 7, 1 8 WE#, CAS#, Input Command Inputs: WE#, CAS#, and RAS# (along with CS#) define the

RAS# command being entered.

39 x4, x8: DQM Input Input/Output Mask: DQM is an input mask signal for write accesses and

an output enable signal for read accesses. Input data is masked when

15, 39 x16: DQML, DQM is sampled HIGH during a WRITE cycle. The output buffers are

DQMH placed in a High-Z state (two-clock latency) when DQM is sampled

HIGH during a READ cycle. On the x4 and x8, DQML (Pin 15) is a NC and DQMH is DQM. On the x16, DQML corresponds to DQ0-DQ7 and DQMH corresponds to DQ8-DQ15. DQML and DQMH are considered same state when referenced as DQM.

20, 21 BA0, BA1 Input Bank Address Inputs: BA0 and BA1 define to which bank the ACTIVE,

READ, WRITE or PRECHARGE command is being applied.

23-26, 29-34, 22, 35 A0-A11 Input Address Inputs: A0-A11 are sampled during the ACTIVE command

(row-address A0-A11) and READ/WRITE command (column-address A0A9 [x4]; A0-A8 [x8]; A0-A7 [x16]; with A10 defining auto precharge) to select one location out of the memory array in the respective bank. A10 is sampled during a PRECHARGE command to determine if all banks are to be precharged (A10[HIGH]) or bank selected by BA0, BA1 (A1[LOW]). The address inputs also provide the op-code during a LOAD MODE REGISTER command.

2, 4, 5, 7, 8, 10, 11, 13, 42, DQ0-DQ15 x1 6: I/O Data Input/Output: Data bus for x16 (4, 7, 10, 13, 42, 45, 48, and 51 are

44, 45, 47, 48, 50, 51, 53 NCs for x8; and 2, 4, 7, 8, 10, 13, 42, 45, 47, 48, 51, and 53 are NCs for x4).

2, 5, 8, 11, 44, 47, 50, 53 DQ0-DQ7 x8: I/O Data Input/Output: Data bus for x8 (2, 8, 47, 53 are NCs for x4).

5, 11, 44, 50 DQ0-DQ3 x4: I/O Data Input/Output: Data bus for x4.

40 NC – No Connect: These pins should be left unconnected. 36 NC – Address input (A12) for the 256Mb and 512Mb devices

3, 9, 43, 49 VDDQ Supply DQ Power: Isolated DQ power on the die for improved noise immunity.

6, 12, 46, 52 VSSQ Supply DQ Ground: Isolated DQ ground on the die for improved noise

immunity.

1, 14, 27 V

28, 41, 54 V

Supply Power Supply: +3.3V ±0.3V. Supply Ground.

Page 8

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

FUNCTIONAL DESCRIPTION

In general, the 64Mb SDRAMs (4 Meg x 4 x 4 banks, 2 Meg x 8 x 4 banks and 1 Meg x 16 x 4 banks) are quadbank DRAMs which operate at 3.3V and include a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Each of the x4’s 16,777,216-bit banks is organized as 4,096 rows by 1,024 columns by 4 bits. Each of the x8’s 16,777,216-bit banks is organized as 4,096 rows by 512 columns by 8 bits. Each of the x16’s 16,777,216-bit banks is organized as 4,096 rows by 256 columns by 16 bits.

Read and write accesses to the SDRAM are burst oriented; accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of an ACTIVE command which is then followed by a READ or WRITE command. The address bits registered coincident with the ACTIVE command are used to select the bank and row to be accessed (BA0 and BA1 select the bank, A0-A11 select the row). The address bits (x4: A0-A9; x8: A0-A8; x16: A0-A7) registered coincident with the READ or WRITE command are used to select the starting column location for the burst access.

Prior to normal operation, the SDRAM must be initialized. The following sections provide detailed information covering device initialization, register definition, command descriptions and device operation.

Initialization

SDRAMs must be powered up and initialized in a predefined manner. Operational procedures other than those specified may result in undefined operation. Once power is applied to VDD and VDDQ (simultaneously) and the clock is stable (stable clock is defined as a signal cycling within timing constraints specified for the clock pin), the SDRAM requires a 100µs delay prior to issuing any command other than a COMMAND INHIBIT or a NOP. Starting at some point during this 100µs period and continuing at least through the end of this period, COMMAND INHIBIT or NOP commands should be applied.

Once the 100µs delay has been satisfied with at least one COMMAND INHIBIT or NOP command having been applied, a PRECHARGE command should be applied. All banks must be precharged, thereby placing the device in the all banks idle state.

Once in the idle state, two AUTO REFRESH cycles must be performed. After the AUTO REFRESH cycles are complete, the SDRAM is ready for mode register programming. Because the mode register will power up in an unknown state, it should be loaded prior to applying any operational command.

MODE REGISTER

The mode register is used to define the specific mode of operation of the SDRAM. This definition includes the selection of a burst length, a burst type, a CAS latency, an operating mode and a write burst mode, as shown in Figure 1. The mode register is programmed via the LOAD MODE REGISTER command and will retain the stored information until it is programmed again or the device loses power.

Mode register bits M0-M2 specify the burst length, M3 specifies the type of burst (sequential or interleaved), M4-M6 specify the CAS latency, M7 and M8 specify the operating mode, M9 specifies the WRITE burst mode, and M10 and M11 are reserved for future use.

The mode register must be loaded when all banks are idle, and the controller must wait the specified time before initiating the subsequent operation. Violating either of these requirements will result in unspecified operation.

Burst Length

Read and write accesses to the SDRAM are burst oriented, with the burst length being programmable, as shown in Figure 1. The burst length determines the maximum number of column locations that can be accessed for a given READ or WRITE command. Burst lengths of 1, 2, 4, or 8 locations are available for both the sequential and the interleaved burst types, and a fullpage burst is available for the sequential type. The full-page burst is used in conjunction with the BURST TERMINATE command to generate arbitrary burst lengths.

Reserved states should not be used, as unknown operation or incompatibility with future versions may result.

When a READ or WRITE command is issued, a block of columns equal to the burst length is effectively selected. All accesses for that burst take place within this block, meaning that the burst will wrap within the block if a boundary is reached. The block is uniquely selected by A1-A9 (x4), A1-A8 (x8) or A1-A7 (x16) when the burst length is set to two; by A2-A9 (x4), A2-A8 (x8) or A2-A7 (x16) when the burst length is set to four; and by A3-A9 (x4), A3-A8 (x8) or A3-A7 (x16) when the burst length is set to eight. The remaining (least significant) address bit(s) is (are) used to select the starting location within the block. Full-page bursts wrap within the page if the boundary is reached.

Page 9

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

Burst Type

Accesses within a given burst may be programmed to be either sequential or interleaved; this is referred to as the burst type and is selected via bit M3.

The ordering of accesses within a burst is determined by the burst length, the burst type and the starting column address, as shown in Table 1.

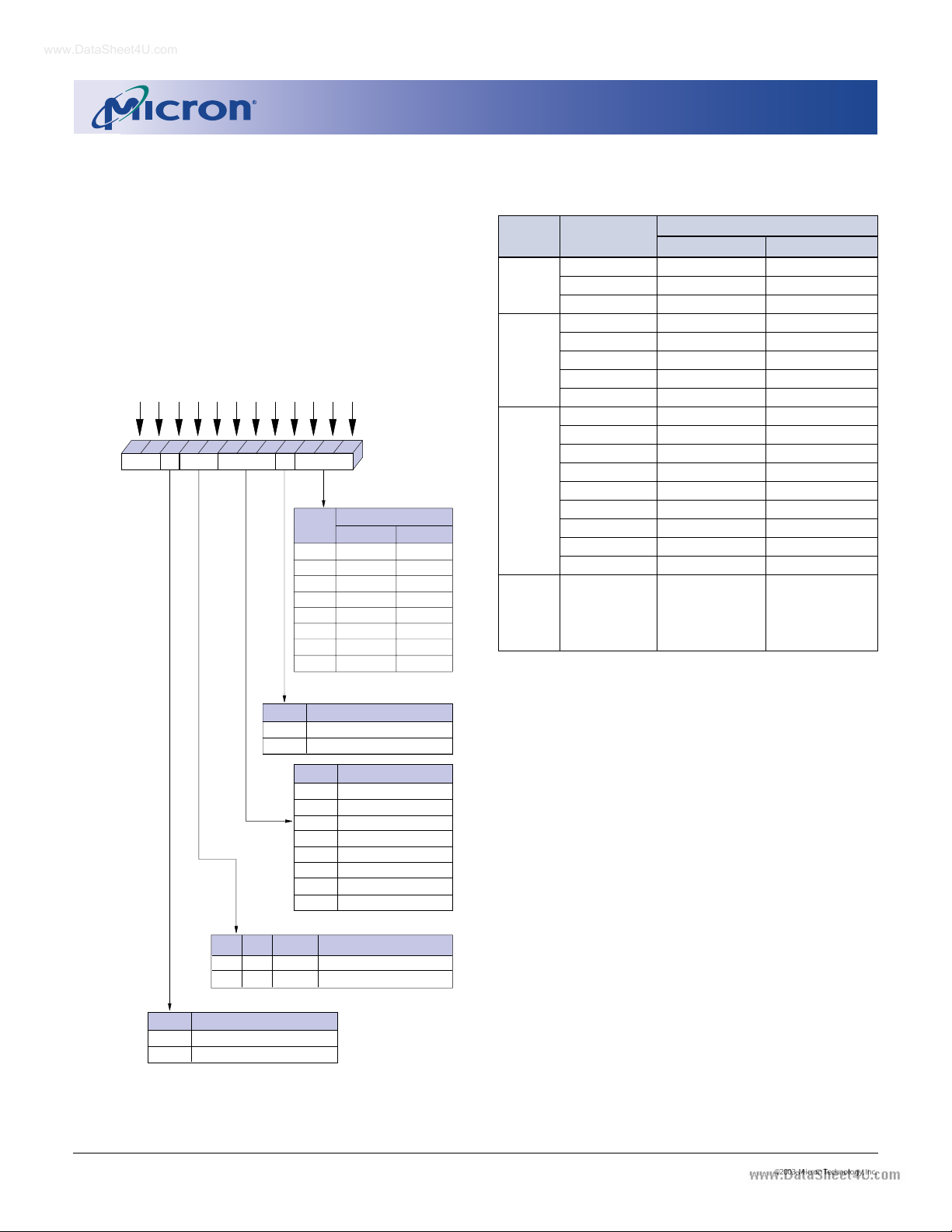

Figure 1

Mode Register Definition

A11

Reserved* WB

*Should program

M11, M10 = “0, 0”

to ensure compatibility

with future devices.

A10

Op Mode

A6 A5 A4

654

0-0-Defined

A3A8A2A1A0

382

Burst LengthCAS Latency BT

0 1

M6-M0

Address Bus

Mode Register (Mx)

Burst Length

M3 = 0

Reserved

Full Page

Burst Type

Sequential

Interleaved

0 1 0 1 0 1 0 1

Operating Mode

Standard Operation All other states reserved

CAS Latency

Reserved Reserved

Reserved Reserved Reserved Reserved

M3 = 1

1 2 4

8 Reserved Reserved Reserved Reserved

2 3

Table 1

Burst Definition

Burst Starting Column Order of Accesses Within a Burst

Length Address Type = Sequential Type = Interleaved

A2 A1 A0

0 0 0 0-1-2-3-4-5-6-7 0-1-2-3-4-5-6-7 0 0 1 1-2-3-4-5-6-7-0 1-0-3-2-5-4-7-6 0 1 0 2-3-4-5-6-7-0-1 2-3-0-1-6-7-4-5

0 1 1 3-4-5-6-7-0-1-2 3-2-1-0-7-6-5-4 1 0 0 4-5-6-7-0-1-2-3 4-5-6-7-0-1-2-3 1 0 1 5-6-7-0-1-2-3-4 5-4-7-6-1-0-3-2 1 1 0 6-7-0-1-2-3-4-5 6-7-4-5-2-3-0-1 1 1 1 7-0-1-2-3-4-5-6 7-6-5-4-3-2-1-0

Full n = A0-A9/8/7

Page

(y) (location 0-y)

NOTE: 1. For full-page accesses: y = 1,024 (x4); y = 512 (x8);

y = 256 (x16).

2. For a burst length of two, A1-A9 (x4), A1-A8 (x8), or A1-A7 (x16) select the block-of-two burst; A0 selects the starting column within the block.

3. For a burst length of four, A2-A9 (x4), A2-A8 (x8), or A2-A7 (x16) select the block-of-four burst; A0A1 select the starting column within the block.

4. For a burst length of eight, A3-A9 (x4), A3-A8 (x8), or A3-A7 (x16) select the block-of-eight burst; A0A2 select the starting column within the block.

5. For a full-page burst, the full row is selected and A0-A9 (x4), A0-A8 (x8), or A0-A7 (x16) select the starting column.

6. Whenever a boundary of the block is reached within a given sequence above, the following access wraps within the block.

7. For a burst length of one, A0-A9 (x4), A0-A8 (x8), or A0-A7 (x16) select the unique column to be accessed, and mode register bit M3 is ignored.

0 0-1 0-1 1 1-0 1-0

A1 A0

0 0 0-1-2-3 0-1-2-3 0 1 1-2-3-0 1-0-3-2 1 0 2-3-0-1 2-3-0-1 1 1 3-0-1-2 3-2-1-0

Cn, Cn + 1, Cn + 2

Cn + 3, Cn + 4...

…Cn - 1,

Not Supported

Cn…

0 1

Write Burst Mode

Programmed Burst Length

Single Location Access

Page 10

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CAS Latency

The CAS latency is the delay, in clock cycles, between the registration of a READ command and the availability of the first piece of output data. The latency can be set to two or three clocks.

If a READ command is registered at clock edge n, and the latency is m clocks, the data will be available by clock edge n + m. The DQs will start driving as a result of the clock edge one cycle earlier (n + m - 1), and provided that the relevant access times are met, the data will be valid by clock edge n + m. For example, assuming that the clock cycle time is such that all relevant access times are met, if a READ command is registered at T0 and the latency is programmed to two clocks, the DQs will start driving after T1 and the data will be valid by T2, as shown in Figure 2. Table 2 indicates the operating frequencies at which each CAS latency setting can be used.

Reserved states should not be used as unknown operation or incompatibility with future versions may result.

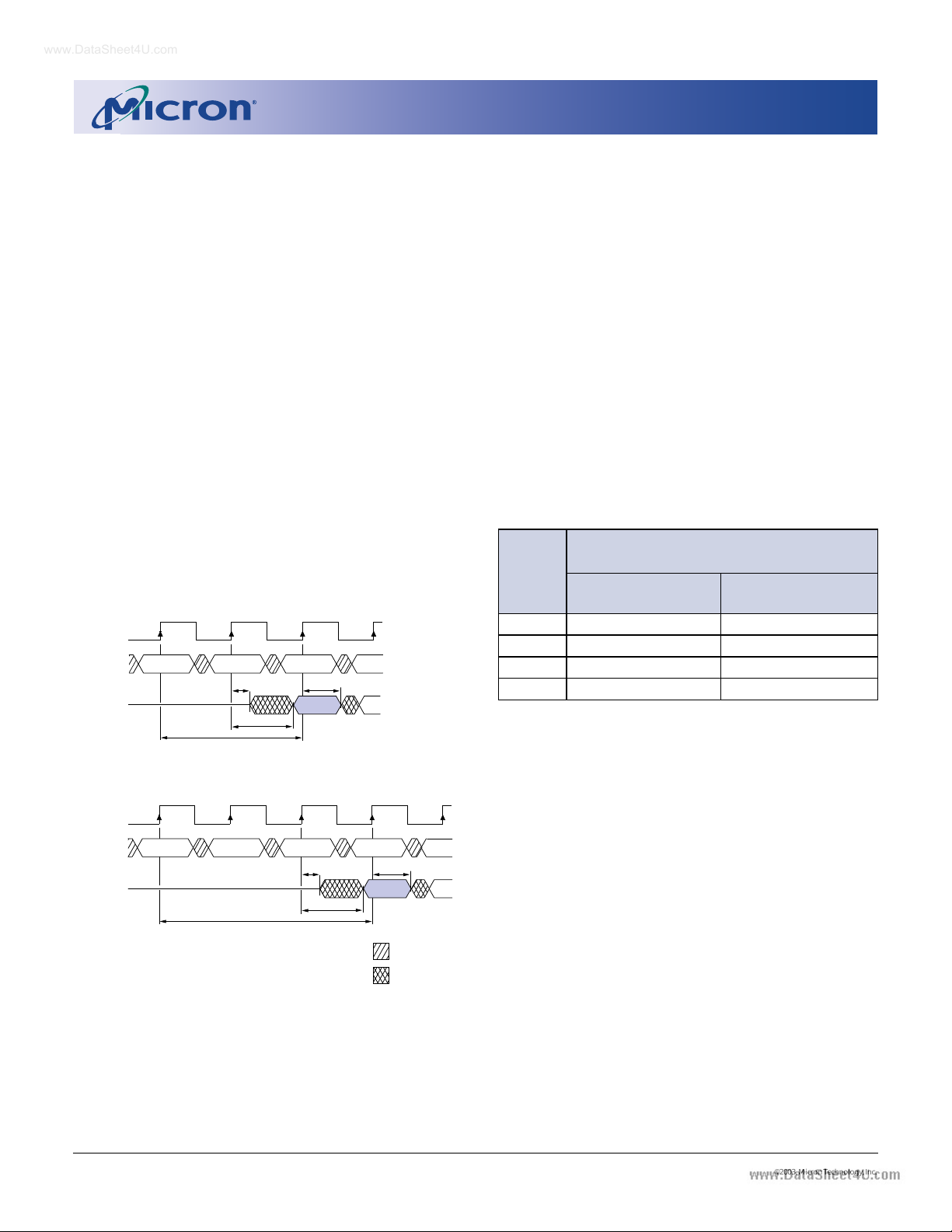

Figure 2

CAS Latency

T2T1 T3T0

CLK

COMMAND

NOPREAD

NOP

OUT

Operating Mode

The normal operating mode is selected by setting M7 and M8 to zero; the other combinations of values for M7 and M8 are reserved for future use and/or test modes. The programmed burst length applies to both READ and WRITE bursts.

Test modes and reserved states should not be used because unknown operation or incompatibility with future versions may result.

Write Burst Mode

When M9 = 0, the burst length programmed via M0-M2 applies to both READ and WRITE bursts; when M9 = 1, the programmed burst length applies to READ bursts, but write accesses are single-location (nonburst) accesses.

Table 2

CAS Latency

ALLOWABLE OPERATING

FREQUENCY (MHz)

CAS CAS

SPEED LATENCY = 2 LATENCY = 3

-6 – £ 166

-7E £ 133 £ 143

-75 £ 100 £ 133

-8E £ 100 £ 125

CAS Latency = 2

T2T1 T3T0

CLK

COMMAND

NOPREAD

CAS Latency = 3

NOP

OUT

DON’T CARE

UNDEFINED

Page 11

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

Commands

Truth Table 1 provides a quick reference of available commands. This is followed by a written description of each command. Three additional Truth

TRUTH TABLE 1 – COMMANDS AND DQM OPERATION

(Note: 1)

NAME (FUNCTION) CS# RAS# CAS# WE# DQM ADDR DQs NOTES

COMMAND INHIBIT (NOP) H XXXX X X NO OPERATION (NOP) L H H H X X X ACTIVE (Select bank and activate row) L L H H X Bank/Row X 3 READ (Select bank and column, and start READ burst) L H L H L/H8Bank/Col X 4 WRITE (Select bank and column, and start WRITE burst) L H L L L/H8Bank/Col Valid 4 BURST TERMINATE L H H L X X Active PRECHARGE (Deactivate row in bank or banks) L L H L X Code X 5 AUTO REFRESH or SELF REFRESH L L L H X X X 6, 7

(Enter self refresh mode) LOAD MODE REGISTER L L L L X Op-Code X 2 Write Enable/Output Enable ––––L – Active 8 Write Inhibit/Output High-Z ––––H – High-Z 8

Tables appear following the Operation section; these tables provide current state/next state information.

NOTE: 1. CKE is HIGH for all commands shown except SELF REFRESH.

2. A0-A11 define the op-code written to the mode register.

3. A0-A11 provide row address, and BA0, BA1 determine which bank is made active.

4. A0-A9 (x4), A0-A8 (x8), or A0-A7 (x16) provide column address; A10 (HIGH) enables the auto precharge feature (nonpersistent), while A10 (LOW) disables the auto precharge feature; BA0, BA1 determine which bank is being read from or written to.

5. A10 (LOW): BA0, BA1 determine the bank being precharged. A10 HIGH: All banks precharged and BA0, BA1 are “Don’t Care.”

6. This command is AUTO REFRESH if CKE is (HIGH), SELF REFRESH if CKE is LOW.

7. Internal refresh counter controls row addressing; all inputs and I/Os are “Don’t Care” except for CKE.

8. Activates or deactivates the DQs during WRITEs (zero-clock delay) and READs (two-clock delay).

Page 12

COMMAND INHIBIT

www.DataSheet4U.com

The COMMAND INHIBIT function prevents new commands from being executed by the SDRAM, regardless of whether the CLK signal is enabled. The SDRAM is effectively deselected. Operations already in progress are not affected.

NO OPERATION (NOP)

The NO OPERATION (NOP) command is used to perform a NOP to an SDRAM which is selected (CS# is LOW). This prevents unwanted commands from being registered during idle or wait states. Operations already in progress are not affected.

LOAD MODE REGISTER

The mode register is loaded via inputs A0-A11. See mode register heading in the Register Definition section. The LOAD MODE REGISTER command can only be issued when all banks are idle, and a subsequent executable command cannot be issued until tMRD is met.

ACTIVE

The ACTIVE command is used to open (or activate) a row in a particular bank for a subsequent access. The value on the BA0, BA1 inputs selects the bank, and the address provided on inputs A0-A11 selects the row. This row remains active (or open) for accesses until a PRECHARGE command is issued to that bank. A PRECHARGE command must be issued before opening a different row in the same bank.

READ

The READ command is used to initiate a burst read access to an active row. The value on the BA0, BA1 inputs selects the bank, and the address provided on inputs A0-A9 (x4), A0-A8 (x8), or A0-A7 (x16) selects the starting column location. The value on input A10 determines whether or not auto precharge is used. If auto precharge is selected, the row being accessed will be precharged at the end of the READ burst; if auto precharge is not selected, the row will remain open for subsequent accesses. Read data appears on the DQs subject to the logic level on the DQM inputs two clocks earlier. If a given DQM signal was registered HIGH, the corresponding DQs will be High-Z two clocks later; if the DQM signal was registered LOW, the DQs will provide valid data.

64Mb: x4, x8, x16

SDRAM

precharge is selected, the row being accessed will be precharged at the end of the WRITE burst; if auto precharge is not selected, the row will remain open for subsequent accesses. Input data appearing on the DQs is written to the memory array subject to the DQM input logic level appearing coincident with the data. If a given DQM signal is registered LOW, the corresponding data will be written to memory; if the DQM signal is registered HIGH, the corresponding data inputs will be ignored, and a WRITE will not be executed to that byte/column location.

PRECHARGE

The PRECHARGE command is used to deactivate the open row in a particular bank or the open row in all banks. The bank(s) will be available for a subsequent row access a specified time (tRP) after the PRECHARGE command is issued. Input A10 determines whether one or all banks are to be precharged, and in the case where only one bank is to be precharged, inputs BA0, BA1 select the bank. Otherwise BA0, BA1 are treated as “Don’t Care.” Once a bank has been precharged, it is in the idle state and must be activated prior to any READ or WRITE commands being issued to that bank.

AUTO PRECHARGE

Auto precharge is a feature which performs the same individual-bank PRECHARGE function described above, without requiring an explicit command. This is accomplished by using A10 to enable auto precharge in conjunction with a specific READ or WRITE command. A precharge of the bank/row that is addressed with the READ or WRITE command is automatically performed upon completion of the READ or WRITE burst, except in the full-page burst mode, where auto precharge does not apply. Auto precharge is nonpersistent in that it is either enabled or disabled for each individual READ or WRITE command.

Auto precharge ensures that the precharge is initiated at the earliest valid stage within a burst. The user must not issue another command to the same bank until the precharge time (tRP) is completed. This is determined as if an explicit PRECHARGE command was issued at the earliest possible time, as described for each burst type in the Operation section of this data sheet.

WRITE

The WRITE command is used to initiate a burst write access to an active row. The value on the BA0, BA1 inputs selects the bank, and the address provided on inputs A0-A9 (x4), A0-A8 (x8), or A0-A7 (x16) selects the starting column location. The value on input A10 determines whether or not auto precharge is used. If auto

BURST TERMINATE

The BURST TERMINATE command is used to truncate either fixed-length or full-page bursts. The most recently registered READ or WRITE command prior to the BURST TERMINATE command will be truncated, as shown in the Operation section of this data sheet.

Page 13

AUTO REFRESH

www.DataSheet4U.com

AUTO REFRESH is used during normal operation of the SDRAM and is analagous to CAS#-BEFORE-RAS# (CBR) REFRESH in conventional DRAMs. This command is nonpersistent, so it must be issued each time a refresh is required. All active banks must be PRECHARGED prior to issuing an AUTO REFRESH command. The AUTO REFRESH command should not be issued until the minimum tRP has been met after the PRECHARGE command as shown in the operation section.

The addressing is generated by the internal refresh controller. This makes the address bits “Don’t Care” during an AUTO REFRESH command. The 64Mb SDRAM requires 4,096 AUTO REFRESH cycles every 64ms (tREF), regardless of width option. Providing a distributed AUTO REFRESH command every 15.625µs will meet the refresh requirement and ensure that each row is refreshed. Alternatively, 4,096 AUTO REFRESH commands can be issued in a burst at the minimum cycle rate (tRC), once every 64ms.

SELF REFRESH

The SELF REFRESH command can be used to retain data in the SDRAM, even if the rest of the system is powered down. When in the self refresh mode, the

64Mb: x4, x8, x16

SDRAM

SDRAM retains data without external clocking. The SELF REFRESH command is initiated like an AUTO REFRESH command except CKE is disabled (LOW). Once the SELF REFRESH command is registered, all the inputs to the SDRAM become “Don’t Care,” with the exception of CKE, which must remain LOW.

Once self refresh mode is engaged, the SDRAM provides its own internal clocking, causing it to perform its own AUTO REFRESH cycles. The SDRAM must remain in self refresh mode for a minimum period equal to

RAS and may remain in self refresh mode for an indefi-

nite period beyond that.

The procedure for exiting self refresh requires a sequence of commands. First, CLK must be stable (stable clock is defined as a signal cycling within timing constraints specified for the clock pin) prior to CKE going back HIGH. Once CKE is HIGH, the SDRAM must have NOP commands issued (a minimum of two clocks) for

XSR, because time is required for the completion of

any internal refresh in progress.

Upon exiting the self refresh mode, AUTO REFRESH commands must be issued every 15.625µs or less as both SELF REFRESH and AUTO REFRESH utilize the row refresh counter.

Page 14

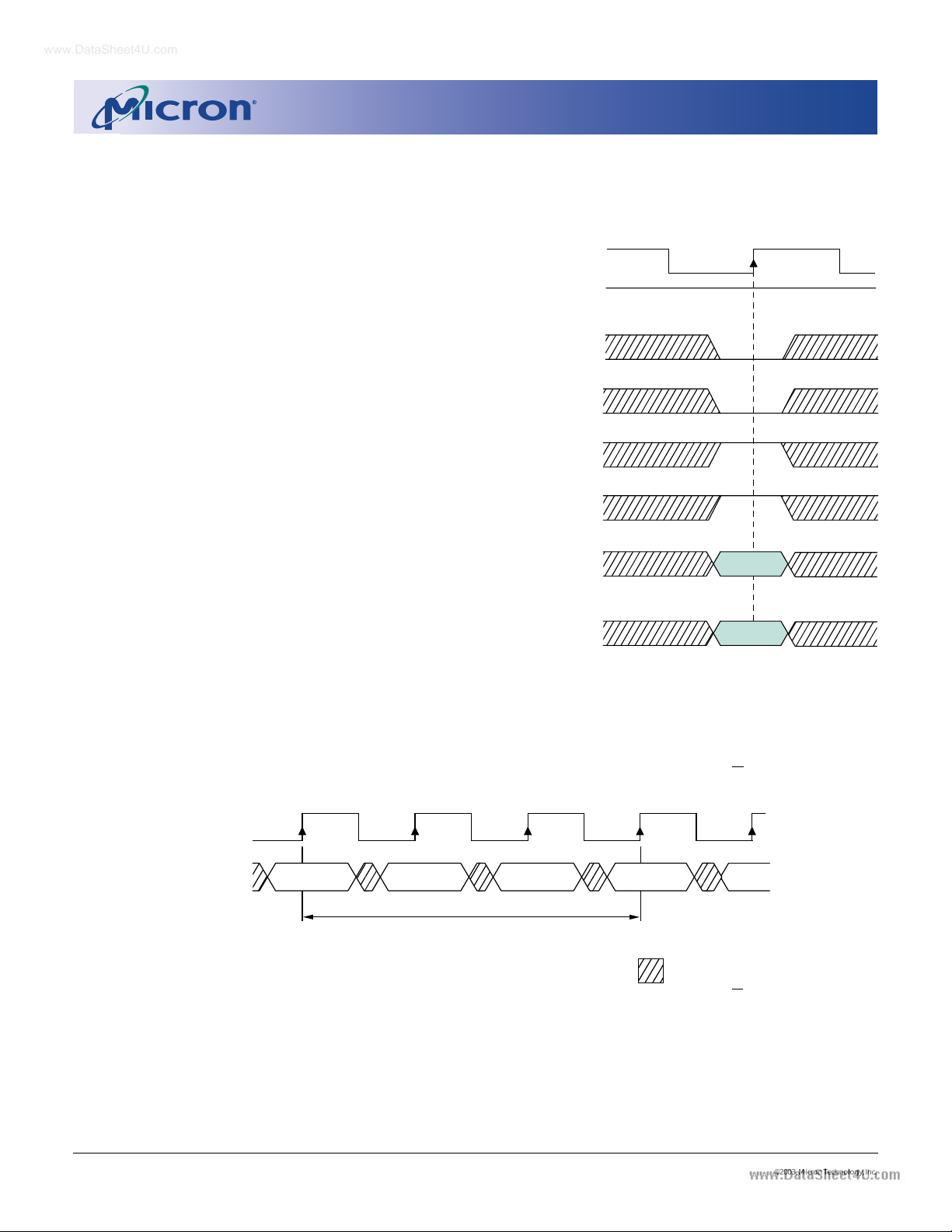

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

Operation

BANK/ROW ACTIVATION

Before any READ or WRITE commands can be issued to a bank within the SDRAM, a row in that bank must be “opened.” This is accomplished via the ACTIVE command, which selects both the bank and the row to be activated (see Figure 3).

After opening a row (issuing an ACTIVE command), a READ or WRITE command may be issued to that row, subject to the tRCD specification. tRCD (MIN) should be divided by the clock period and rounded up to the next whole number to determine the earliest clock edge after the ACTIVE command on which a READ or WRITE command can be entered. For example, a tRCD specification of 20ns with a 125 MHz clock (8ns period) results in 2.5 clocks, rounded to 3. This is reflected in Figure 4, which covers any case where 2 < tRCD (MIN)/tCK £ 3. (The same procedure is used to convert other specification limits from time units to clock cycles).

A subsequent ACTIVE command to a different row in the same bank can only be issued after the previous active row has been “closed” (precharged). The minimum time interval between successive ACTIVE commands to the same bank is defined by tRC.

A subsequent ACTIVE command to another bank can be issued while the first bank is being accessed, which results in a reduction of total row-access overhead. The minimum time interval between successive ACTIVE commands to different banks is defined by

RRD.

Figure 3

Activating a Specific Row in a

Specific Bank

CLK

CKE

CS#

RAS#

CAS#

WE#

A0–A10, A11

BA0, BA1

HIGH

ADDRESS

ROW

BANK

Figure 4

Example: Meeting tRCD (MIN) When 2 < tRCD (MIN)/tCK < 3

T2T1 T3T0

CLK

COMMAND

NOPACTIVE

RCD

NOP

READ or

WRITE

DON’T CARE

Page 15

READs

CLK

T2T1 T3T0

CAS Latency = 3

OUT

COMMAND

NOPREAD

NOP

DON’T CARE

UNDEFINED

CLK

T2T1 T3T0

CAS Latency = 2

OUT

COMMAND

NOPREAD

NOP

www.DataSheet4U.com

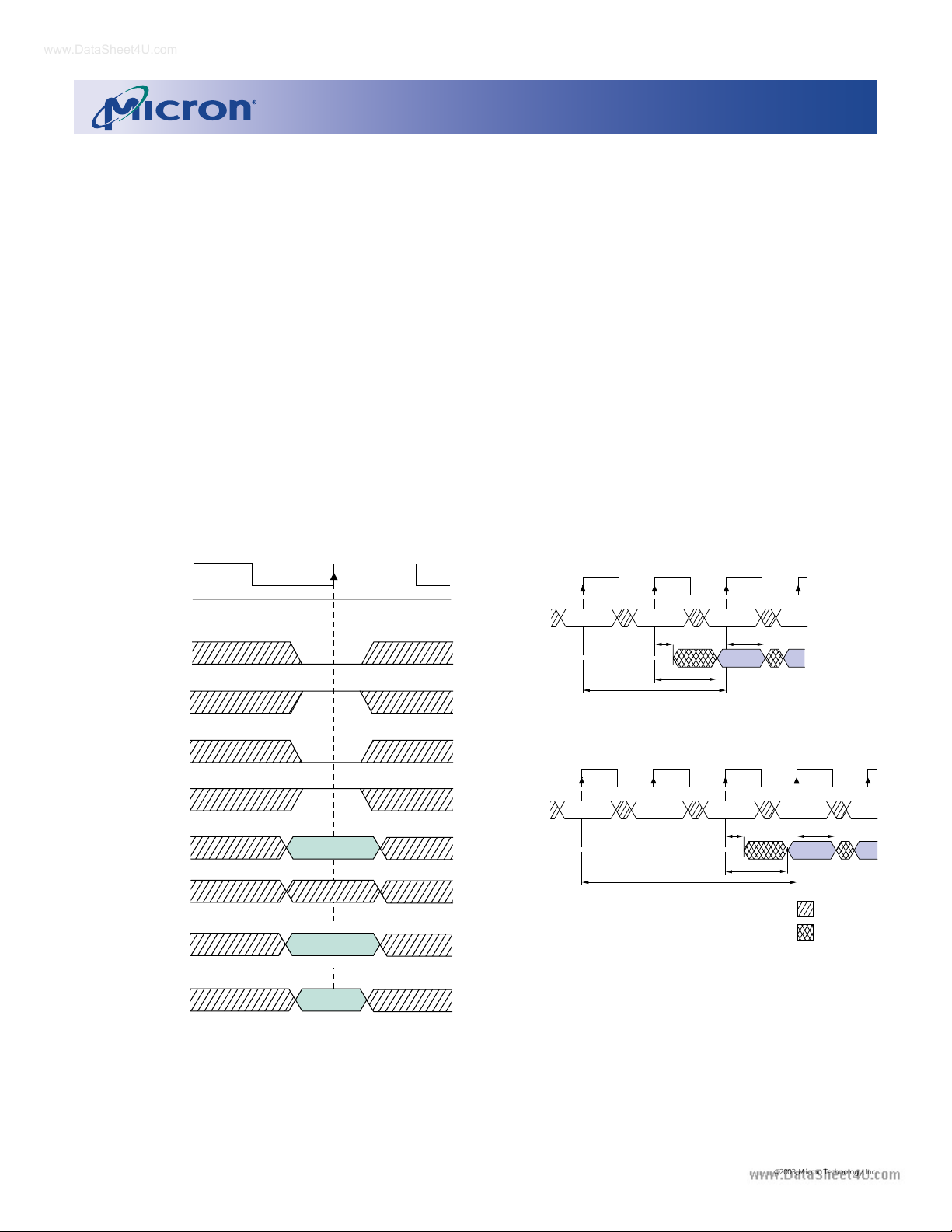

READ bursts are initiated with a READ command, as shown in Figure 5.

The starting column and bank addresses are provided with the READ command, and auto precharge is either enabled or disabled for that burst access. If auto precharge is enabled, the row being accessed is precharged at the completion of the burst. For the generic READ commands used in the following illustrations, auto precharge is disabled.

During READ bursts, the valid data-out element from the starting column address will be available following the CAS latency after the READ command. Each subsequent data-out element will be valid by the next positive clock edge. Figure 6 shows general timing for each possible CAS latency setting.

64Mb: x4, x8, x16

SDRAM

Upon completion of a burst, assuming no other commands have been initiated, the DQs will go High-Z. A full-page burst will continue until terminated. (At the end of the page, it will wrap to column 0 and continue.)

Data from any READ burst may be truncated with a subsequent READ command, and data from a fixedlength READ burst may be immediately followed by data from a READ command. In either case, a continuous flow of data can be maintained. The first data element from the new burst follows either the last element of a completed burst or the last desired data element of a longer burst which is being truncated. The new READ command should be issued x cycles

CLK

CKE

CS#

RAS#

CAS#

WE#

A0-A9: x4 A0-A8: x8 A0-A7: x16

A11: x4

A9, A11: x8

A8, A9, A11: x16

A10

BA0,1

Figure 5

READ Command

HIGH

ENABLE AUTO PRECHARGE

DISABLE AUTO PRECHARGE

COLUMN

ADDRESS

BANK

ADDRESS

Figure 6

CAS Latency

Page 16

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

before the clock edge at which the last desired data element is valid, where x equals the CAS latency minus one. This is shown in Figure 7 for CAS latencies of two and three; data element n + 3 is either the last of a burst of four or the last desired of a longer burst. The 64Mb SDRAM uses a pipelined architecture and therefore

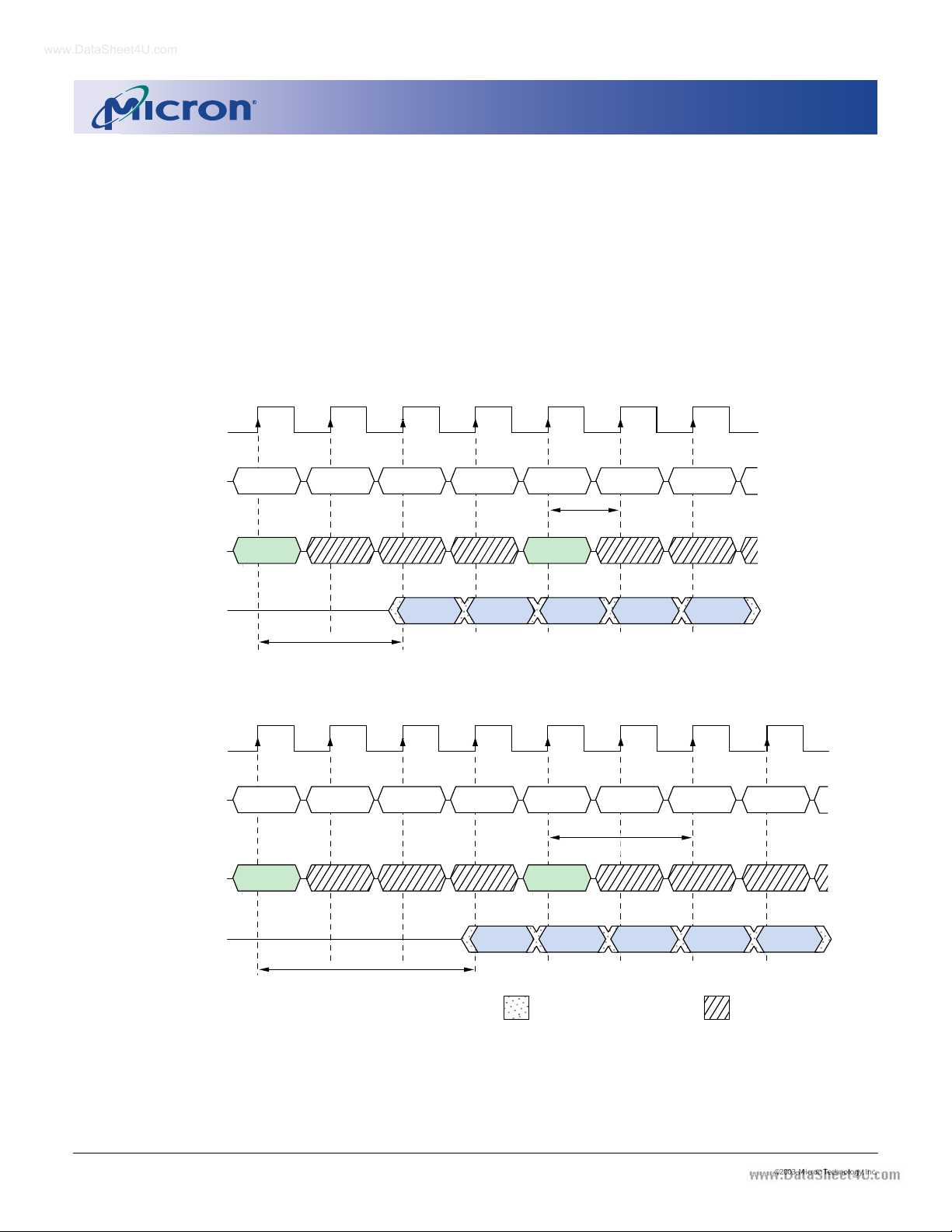

Figure 7

Consecutive READ Bursts

T2T1 T4T3 T6T5T0

CLK

COMMAND

ADDRESS

READ NOP NOP NOP NOP

BANK,

COL n

NOP

OUT

does not require the 2n rule associated with a prefetch architecture. A READ command can be initiated on any clock cycle following a previous READ command. Fullspeed random read accesses can be performed to the same bank, as shown in Figure 8, or each subsequent READ may be performed to a different bank.

READ

X = 1 cycle

BANK, COL b

OUT

n + 1

OUT

n + 2

OUT

D n + 3

OUT

CAS Latency = 2

T2T1 T4T3 T6T5T0

CLK

COMMAND

ADDRESS

READ NOP NOP NOP NOP

BANK,

COL n

CAS Latency = 3

NOP

OUT

NOTE: Each READ command may be to any bank. DQM is LOW.

READ

X = 2 cycles

BANK, COL b

OUT

n + 1

OUT

n + 2

TRANSITIONING DATA

OUT

n + 3

DON’T CARE

NOP

OUT

Page 17

CLK

www.DataSheet4U.com

64Mb: x4, x8, x16

SDRAM

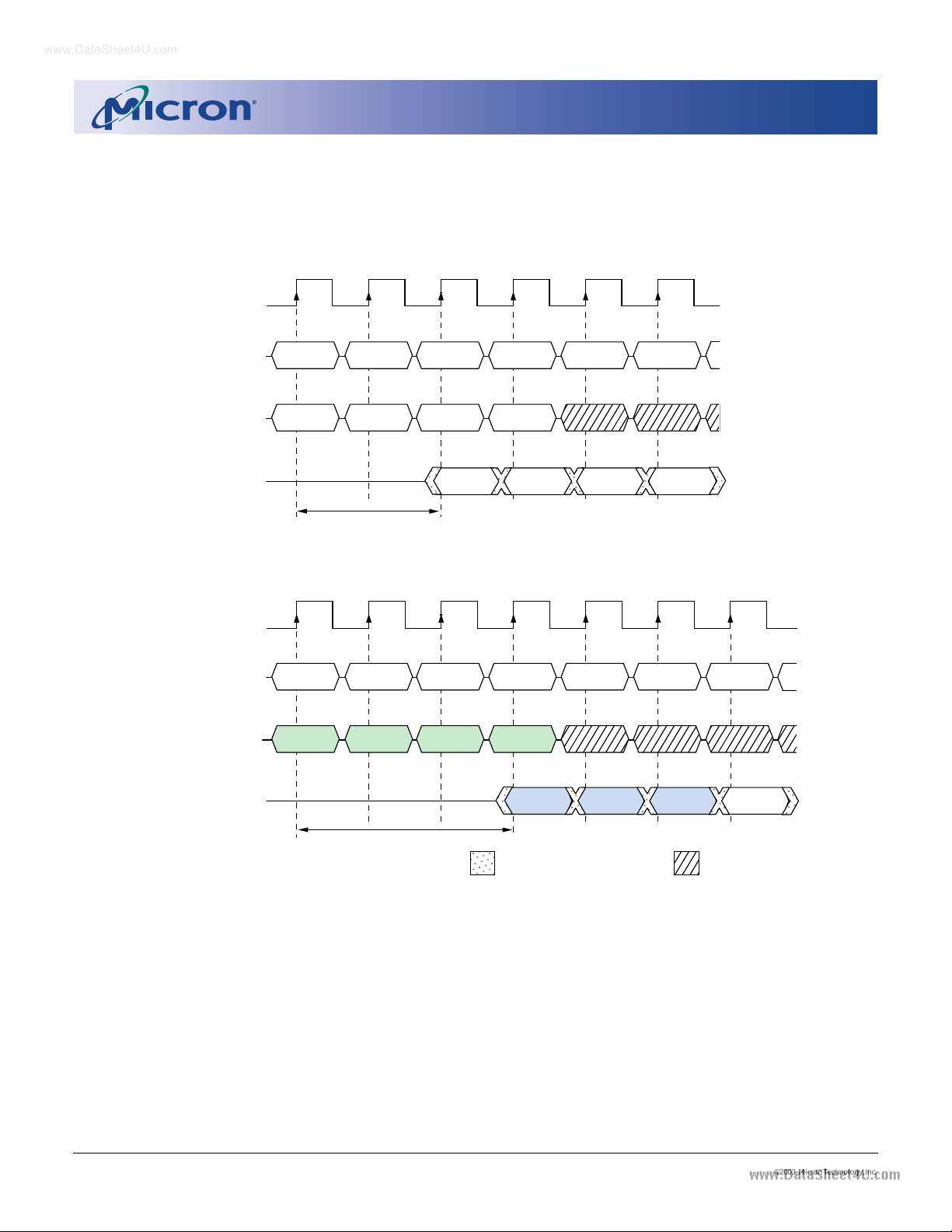

Figure 8

Random READ Accesses

T2T1 T4T3 T5T0

COMMAND

ADDRESS

CLK

COMMAND

ADDRESS

READ NOP

BANK,

COL n

CAS Latency = 2

READ READ READ NOP

BANK,

COL a

BANK,

COL x

BANK,

COL m

OUT

T2T1 T4T3 T6T5T0

READ NOP NOP

BANK,

COL n

READ

BANK,

COL a

READ READ NOP

BANK, COL x

BANK, COL m

OUT

CAS Latency = 3

TRANSITIONING DATA

NOTE: Each READ command may be to any bank. DQM is LOW.

DON’T CARE

Page 18

64Mb: x4, x8, x16

DON’T CARE

READ NOP NOPNOP NOP

DQM

CLK

OUT

T2T1 T4T3T0

COMMAND

ADDRESS

BANK,

COL n

WRITE

DIN b

BANK, COL b

NOTE: A CAS latency of three is used for illustration. The

READ command

may be to any bank, and the WRITE command may be to any bank.

TRANSITIONING DATA

www.DataSheet4U.com

SDRAM

Data from any READ burst may be truncated with a subsequent WRITE command, and data from a fixedlength READ burst may be immediately followed by data from a WRITE command (subject to bus turnaround limitations). The WRITE burst may be initiated on the clock edge immediately following the last (or last desired) data element from the READ burst, provided that I/O contention can be avoided. In a given system design, there may be a possibility that the device driving the input data will go Low-Z before the SDRAM DQs go High-Z. In this case, at least a single-cycle delay should occur between the last read data and the WRITE command.

The DQM input is used to avoid I/O contention, as shown in Figures 9 and 10. The DQM signal must be asserted (HIGH) at least two clocks prior to the WRITE command (DQM latency is two clocks for output

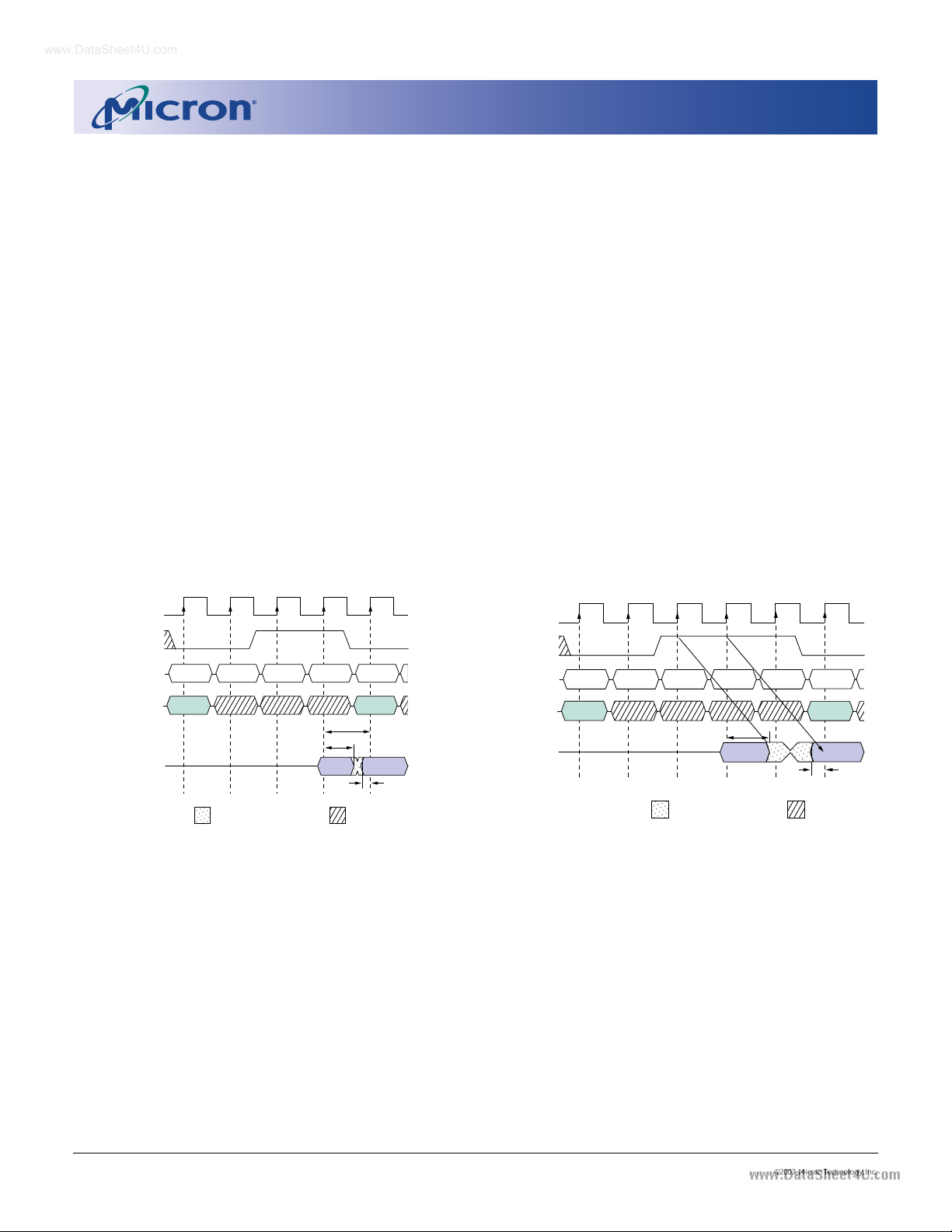

Figure 9

READ to WRITE

T2T1 T4T3T0

CLK

buffers) to suppress data-out from the READ. Once the WRITE command is registered, the DQs will go High-Z (or remain High-Z), regardless of the state of the DQM signal, provided the DQM was active on the clock just prior to the WRITE command that truncated the READ command. If not, the second WRITE will be an invalid WRITE. For example, if DQM was LOW during T4 in Figure 10, then the WRITEs at T5 and T7 would be valid, while the WRITE at T6 would be invalid.

The DQM signal must be de-asserted prior to the WRITE command (DQM latency is zero clocks for input buffers) to ensure that the written data is not masked. Figure 9 shows the case where the clock frequency allows for bus contention to be avoided without adding a NOP cycle, and Figure 10 shows the case where the additional NOP is needed.

Figure 10

READ to WRITE With

Extra Clock Cycle

DQM

COMMAND

ADDRESS

NOTE: A CAS latency of three is used for illustration. The

READ NOP NOP

BANK, COL n

TRANSITIONING DATA

command may be to any bank, and the WRITE command may be to any bank. If a burst of one is used, then DQM is not required.

NOP

OUT

DON’T CARE

WRITE

BANK,

COL b

DIN b

READ

Page 19

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

A fixed-length READ burst may be followed by, or truncated with, a PRECHARGE command to the same bank (provided that auto precharge was not activated), and a full-page burst may be truncated with a PRECHARGE command to the same bank. The PRECHARGE command should be issued x cycles before the clock edge at which the last desired data element is valid, where x equals the CAS latency minus one. This is shown in Figure 11 for each possible CAS latency; data element n + 3 is either the last of a burst of

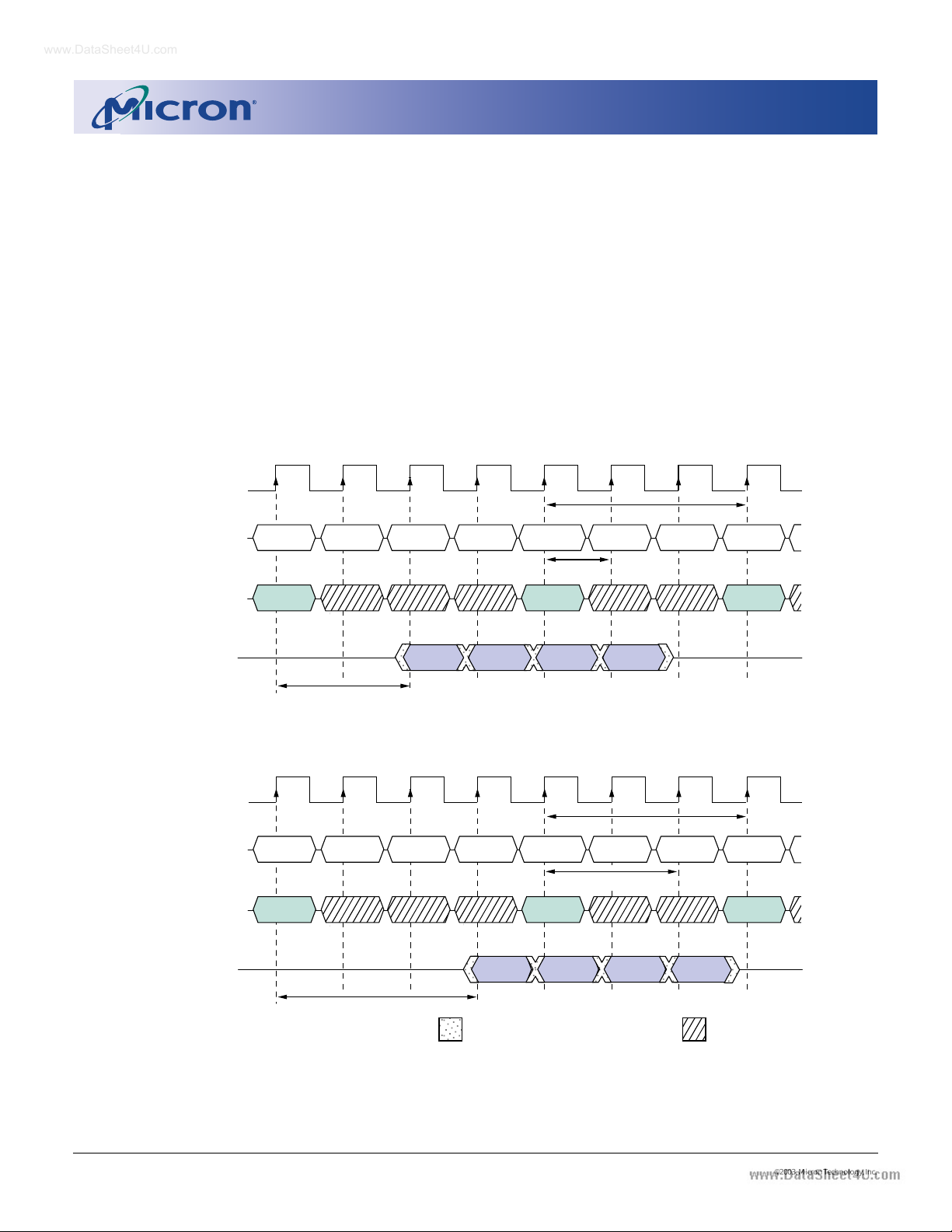

Figure 11

READ to PRECHARGE

T2T1 T4T3 T6T5T0

CLK

COMMAND

ADDRESS

READ NOP NOP NOP NOPNOP

BANK a,

COL n

four or the last desired of a longer burst. Following the PRECHARGE command, a subsequent command to the same bank cannot be issued until tRP is met. Note that part of the row precharge time is hidden during the access of the last data element(s).

PRECHARGE

X = 1 cycle

BANK

(a or all)

ACTIVE

BANK a,

ROW

CLK

COMMAND

ADDRESS

READ NOP NOP NOP NOPNOP

BANK a,

COL n

NOTE: DQM is LOW.

CAS Latency = 2

CAS Latency = 3

OUT

n + 1

OUT

n + 2

T2T1 T4T3 T6T5T0

PRECHARGE

BANK

(a or all)

OUT

n + 1

TRANSITIONING DATA

n + 3

X = 2 cycles

D n + 2

OUT

ACTIVE

BANK a,

ROW

OUT

n + 3

DON’T CARE

Page 20

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

PRECHARGE command is that it requires that the command and address buses be available at the appropriate time to issue the command; the advantage of the PRECHARGE command is that it can be used to truncate fixed-length or full-page bursts.

Full-page READ bursts can be truncated with the BURST TERMINATE command, and fixed-length READ bursts may be truncated with a BURST TERMINATE

Figure 12

Terminating a READ Burst

T2T1 T4T3 T6T5T0

CLK

COMMAND

ADDRESS

READ NOP NOP NOP

BANK, COL n

NOP

command, provided that auto precharge was not activated. The BURST TERMINATE command should be issued x cycles before the clock edge at which the last desired data element is valid, where x equals the CAS latency minus one. This is shown in Figure 12 for each possible CAS latency; data element n + 3 is the last desired data element of a longer burst.

BURST

TERMINATE

X = 1 cycle

NOP

CLK

COMMAND

ADDRESS

NOTE: DQM is LOW.

OUT

CAS Latency = 2

OUT

n + 1

D n + 2

OUT

D n + 3

T2T1 T4T3 T6T5T0

OUT

BURST

TERMINATE

OUT

D n + 1

X = 2 cycles

n + 2

OUT

READ NOP NOP NOP NOP

BANK, COL n

CAS Latency = 3

NOP

TRANSITIONING DATA

OUT

n + 3

DON’T CARE

NOP

Page 21

WRITEs

www.DataSheet4U.com

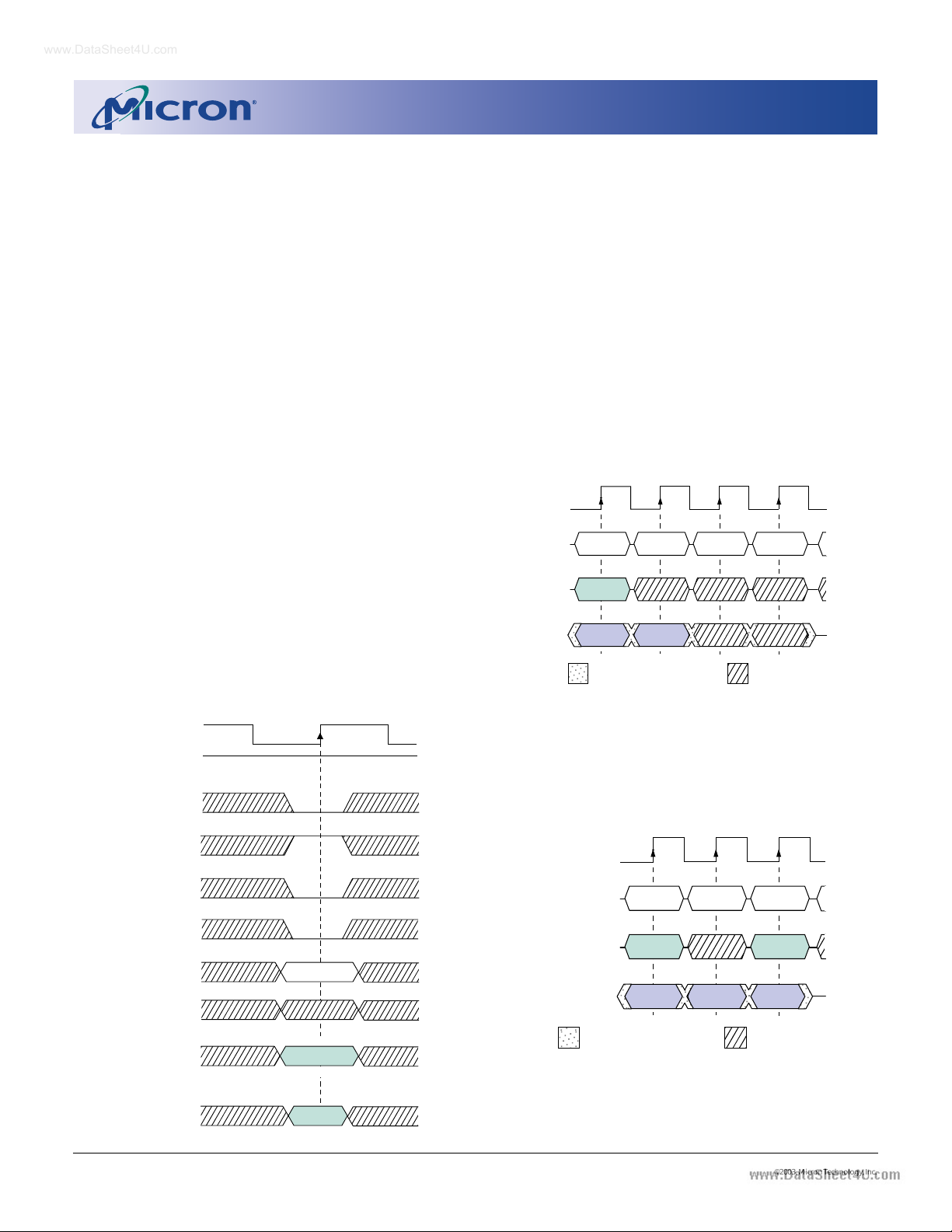

WRITE bursts are initiated with a WRITE command, as shown in Figure 13.

The starting column and bank addresses are provided with the WRITE command, and auto precharge is either enabled or disabled for that access. If auto precharge is enabled, the row being accessed is precharged at the completion of the burst. For the generic WRITE commands used in the following illustrations, auto precharge is disabled.

During WRITE bursts, the first valid data-in element will be registered coincident with the WRITE command. Subsequent data elements will be registered on each successive positive clock edge. Upon completion of a fixed-length burst, assuming no other commands have been initiated, the DQs will remain High-Z and any additional input data will be ignored (see Figure

14). A full-page burst will continue until terminated. (At the end of the page, it will wrap to column 0 and continue.)

Data for any WRITE burst may be truncated with a subsequent WRITE command, and data for a fixedlength WRITE burst may be immediately followed by data for a WRITE command. The new WRITE command can be issued on any clock following the previous WRITE command, and the data provided coincident with the new command applies to the new command.

64Mb: x4, x8, x16

SDRAM

An example is shown in Figure 15. Data n + 1 is either the last of a burst of two or the last desired of a longer burst. The 64Mb SDRAM uses a pipelined architecture and therefore does not require the 2n rule associated with a prefetch architecture. A WRITE command can be initiated on any clock cycle following a previous WRITE command. Full-speed random write accesses within a page can be performed to the same bank, as shown in Figure 16, or each subsequent WRITE may be performed to a different bank.

Figure 14

WRITE Burst

T2T1 T3T0

CLK

COMMAND

ADDRESS

WRITE

BANK,

COL n

NOP NOP

n + 1

NOP

CLK

CKE

CS#

RAS#

CAS#

WE#

A0-A9: x4 A0-A8: x8 A0-A7: x16

A11: x4

A9, A11: x8

A8, A9, A11: x16

A10

BA0,1

Figure 13

WRITE Command

HIGH

COLUMN ADDRESS

ENABLE AUTO PRECHARGE

DISABLE AUTO PRECHARGE

BANK

ADDRESS

TRANSITIONING DATA

NOTE: Burst length = 2. DQM is LOW.

DON’T CARE

Figure 15

WRITE to WRITE

T2T1T0

CLK

COMMAND

ADDRESS

BANK,

COL n

TRANSITIONING DATA

NOTE: DQM is LOW. Each WRITE command may

be to any bank.

NOPWRITE WRITE

BANK, COL b

n + 1

DON’T CARE

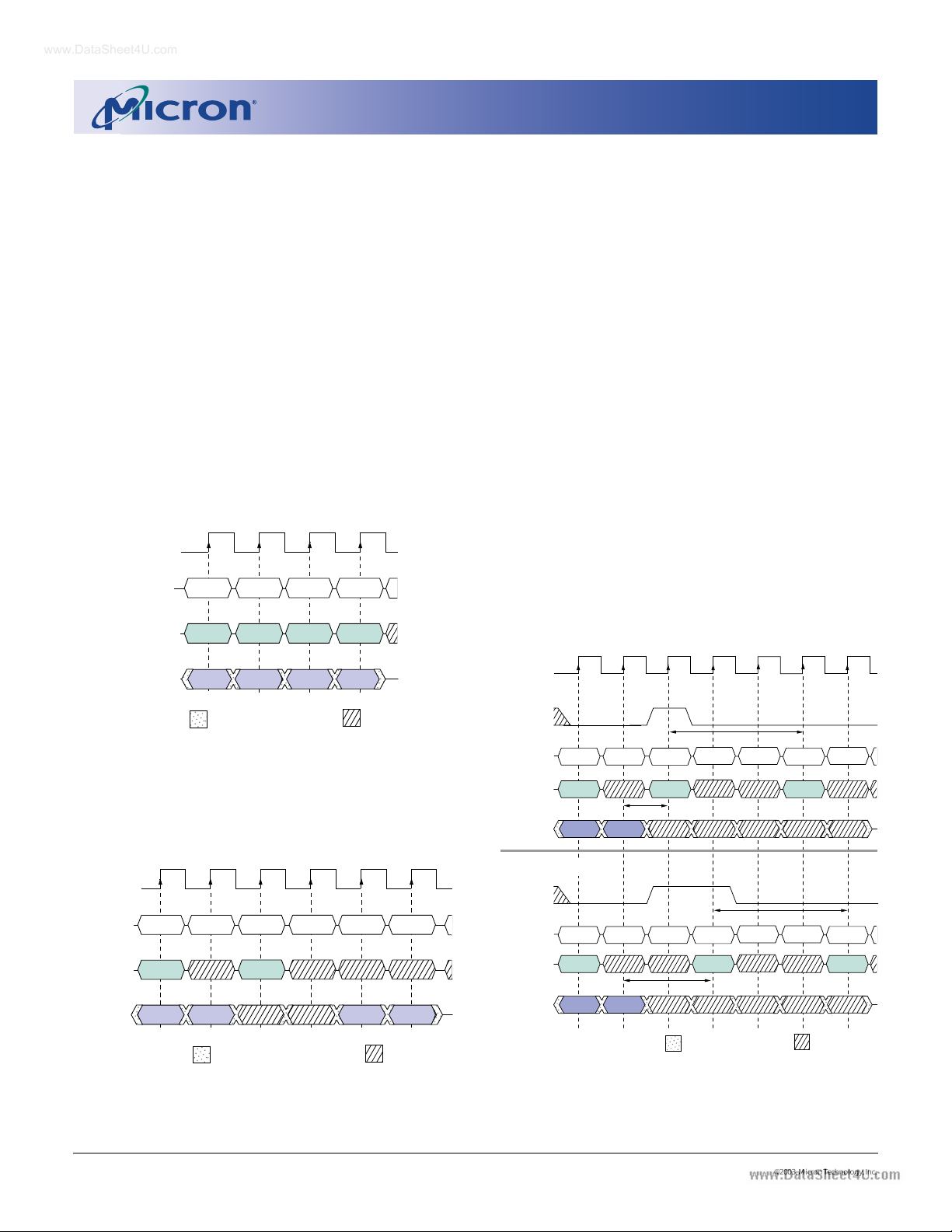

Page 22

Data for any WRITE burst may be truncated with a

www.DataSheet4U.com

subsequent READ command, and data for a fixedlength WRITE burst may be immediately followed by a subsequent READ command. Once the READ command is registered, the data inputs will be ignored, and WRITEs will not be executed. An example is shown in Figure 17. Data n + 1 is either the last of a burst of two or the last desired of a longer burst.

Data for a fixed-length WRITE burst may be followed by, or truncated with, a PRECHARGE command to the same bank (provided that auto precharge was not activated), and a full-page WRITE burst may be truncated with a PRECHARGE command to the same bank. The PRECHARGE command should be issued

Figure 16

Random WRITE Cycles

T2T1 T3T0

CLK

64Mb: x4, x8, x16

SDRAM

WR after the clock edge at which the last desired input data element is registered. The auto precharge mode requires a tWR of at least one clock plus time, regardless of frequency. In addition, when truncating a WRITE burst, the DQM signal must be used to mask input data for the clock edge prior to, and the clock edge coincident with, the PRECHARGE command. An example is shown in Figure 18. Data n + 1 is either the last of a burst of two or the last desired of a longer burst. Following the PRECHARGE command, a subsequent command to the same bank cannot be issued until

In the case of a fixed-length burst being executed to completion, a PRECHARGE command issued at the optimum time (as described above) provides the same operation that would result from the same fixed-length burst with auto precharge. The disadvantage of the PRECHARGE command is that it requires that the command and address buses be available at the appropriate time to issue the command; the advantage of the PRECHARGE command is that it can be used to truncate fixed-length or full-page bursts.

RP is met.

CLK

COMMAND

ADDRESS

COMMAND

ADDRESS

BANK, COL n

WRITE

BANK, COL n

WRITE

BANK,

COL a

WRITE WRITE

BANK, COL x

TRANSITIONING DATA

Figure 17

WRITE to READ

T2T1 T3T0

NOPWRITE

n + 1

READ NOP NOP

BANK, COL b

TRANSITIONING DATA

BANK, COL m

DON’T CARE

T4 T5

NOP

OUT

DON’T CARE

OUT

D b + 1

Figure 18

WRITE to PRECHARGE

T2T1 T4T3T0

CLK

WR @ tCLK ≥ 15ns

DQM

NOPWRITE

n + 1

NOPWRITE

n + 1

PRECHARGE

BANK

(a or all)

NOP

PRECHARGE

BANK

(a or all)

TRANSITIONING DATA

COMMAND

DQM

BANK a,

COL n

BANK a,

COL n

ADDRESS

WR = tCLK < 15ns

COMMAND

ADDRESS

NOTE: DQM could remain LOW in this example if the WRITE burst is a fixed length of two.

NOPNOP

ACTIVE

BANK a,

ROW

NOPNOP

DON’T CARE

NOP

ACTIVE

BANK a,

ROW

Page 23

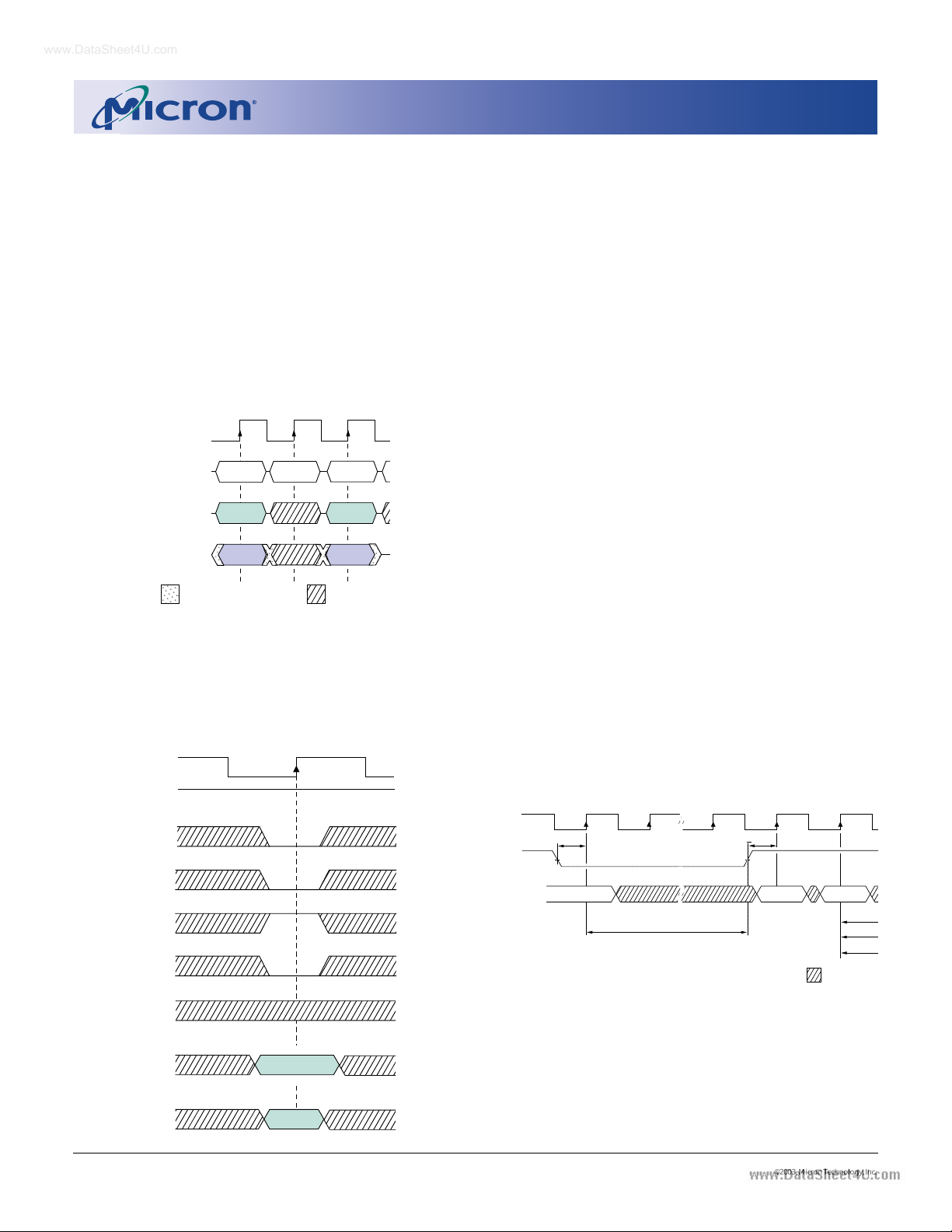

64Mb: x4, x8, x16

DON’T CARE

RAS

RCD

All banks idle

Input buffers gated off

Exit power-down mode.

()(

)

()(

)

()(

)

CKS

> t

CKS

COMMAND

NOP ACTIVE

Enter power-down mode.

NOP

CLK

CKE

()(

)

()(

)

www.DataSheet4U.com

SDRAM

Fixed-length or full-page WRITE bursts can be truncated with the BURST TERMINATE command. When truncating a WRITE burst, the input data applied coincident with the BURST TERMINATE command will be ignored. The last data written (provided that DQM is LOW at that time) will be the input data applied one clock previous to the BURST TERMINATE command. This is shown in Figure 19, where data n is the last desired data element of a longer burst.

Figure 19

Terminating a WRITE Burst

T2T1T0

CLK

COMMAND

ADDRESS

NOTE: DQMs are LOW.

WRITE

BANK, COL n

TRANSITIONING DATA

BURST

TERMINATE

DIN

COMMAND

(ADDRESS)

(DATA)

DON’T CARE

Figure 20

PRECHARGE Command

PRECHARGE

The PRECHARGE command (Figure 20) is used to deactivate the open row in a particular bank or the open row in all banks. The bank(s) will be available for

a subsequent row access some specified time (

RP) after the PRECHARGE command is issued. Input A10 determines whether one or all banks are to be precharged, and in the case where only one bank is to be precharged, inputs BA0, BA1 select the bank. When all banks are to be precharged, inputs BA0, BA1 are treated as “Don’t Care.” Once a bank has been precharged, it is in the idle state and must be activated prior to any READ or WRITE commands being issued to that bank.

POWER-DOWN

Power-down occurs if CKE is registered LOW coincident with a NOP or COMMAND INHIBIT when no accesses are in progress. If power-down occurs when all banks are idle, this mode is referred to as precharge power-down; if power-down occurs when there is a row active in any bank, this mode is referred to as active power-down. Entering power-down deactivates the input and output buffers, excluding CKE, for maximum power savings while in standby. The device may not remain in the power-down state longer than the refresh period (64ms) since no refresh operations are performed in this mode.

The power-down state is exited by registering a NOP or COMMAND INHIBIT and CKE HIGH at the desired clock edge (meeting

CKS). See Figure 21.

CLK

CKE

HIGH

CS#

RAS#

CAS#

WE#

A0-A9

A10

BA0,1

All Banks

Bank Selected

BANK

ADDRESS

Figure 21

Power-Down

Page 24

CLOCK SUSPEND

DON’T CARE

CLK

OUT

T2T1 T4T3 T6T5T0

COMMAND

ADDRESS

READ NOP NOP NOP

BANK,

COL n

NOP

OUT

n + 1

OUT

n + 2

OUT

n + 3

NOTE: For this example, CAS latency = 2, burst length = 4 or greater, and

DQM is LOW.

CKE

INTERNAL

CLOCK

NOP

TRANSITIONING DATA

www.DataSheet4U.com

The clock suspend mode occurs when a column access/burst is in progress and CKE is registered LOW. In the clock suspend mode, the internal clock is deactivated, “freezing” the synchronous logic.

For each positive clock edge on which CKE is sampled LOW, the next internal positive clock edge is suspended. Any command or data present on the input pins at the time of a suspended internal clock edge is ignored; any data present on the DQ pins remains driven; and burst counters are not incremented, as long as the clock is suspended. (See examples in Figures 22 and 23.)

64Mb: x4, x8, x16

SDRAM

Clock suspend mode is exited by registering CKE HIGH; the internal clock and related operation will resume on the subsequent positive clock edge.

BURST READ/SINGLE WRITE

The burst read/single write mode is entered by programming the write burst mode bit (M9) in the mode register to a logic 1. In this mode, all WRITE commands result in the access of a single column location (burst of one), regardless of the programmed burst length. READ commands access columns according to the programmed burst length and sequence, just as in the normal mode of operation (M9 = 0).

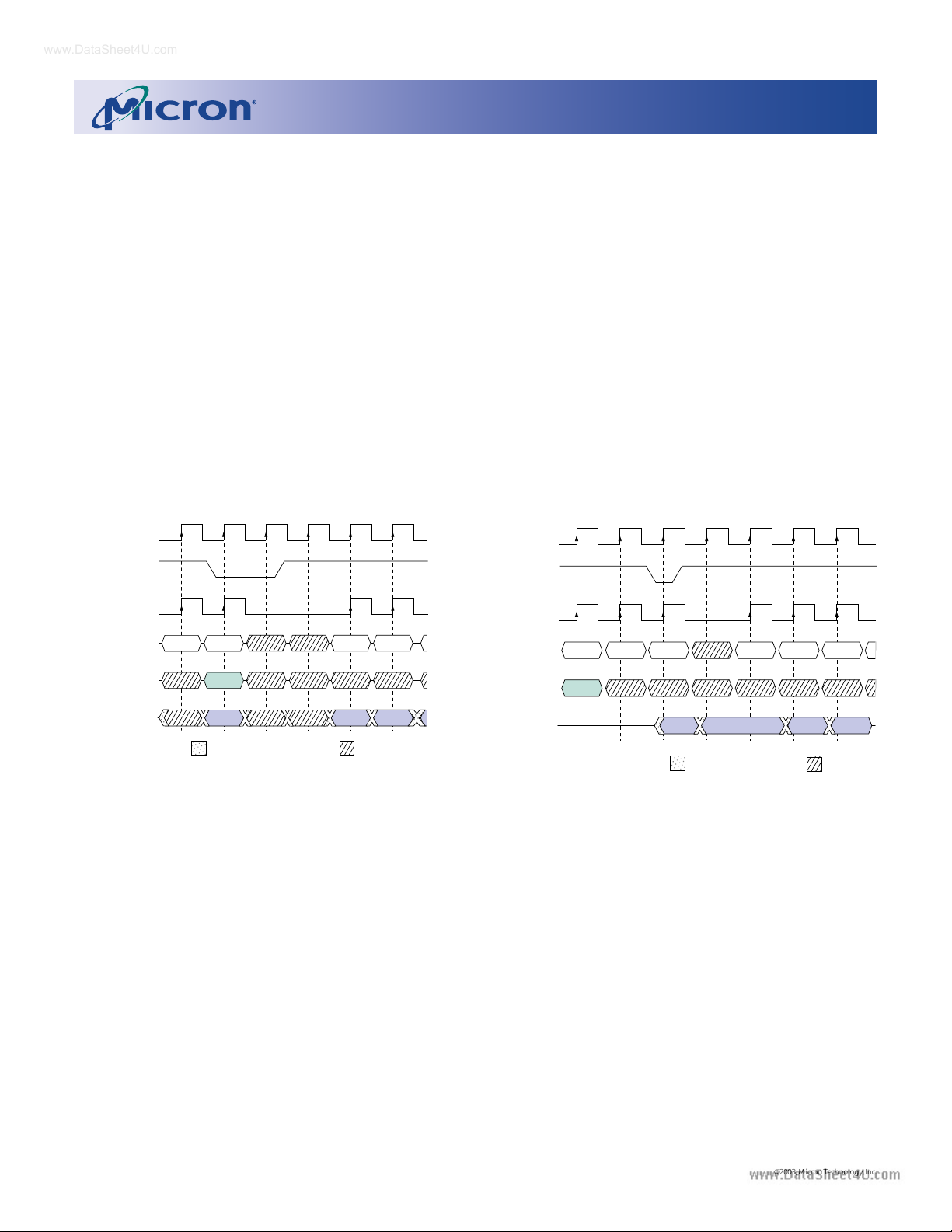

Figure 22

Clock Suspend During WRITE Burst

T2T1 T4T3 T5T0

CLK

CKE

INTERNAL

CLOCK

n + 1

DON’T CARE

NOPNOP

n + 2

COMMAND

ADDRESS

WRITE

NOP

BANK, COL n

TRANSITIONING DATA

Figure 23

Clock Suspend During READ Burst

Page 25

CONCURRENT AUTO PRECHARGE

www.DataSheet4U.com

An access command (READ or WRITE) to another bank while an access command with auto precharge enabled is executing is not allowed by SDRAMs, unless the SDRAM supports CONCURRENT AUTO PRECHARGE. Micron SDRAMs support CONCURRENT AUTO PRECHARGE. Four cases where CONCURRENT AUTO PRECHARGE occurs are defined below.

READ with Auto Precharge

1. Interrupted by a READ (with or without auto

precharge): A READ to bank m will interrupt a READ

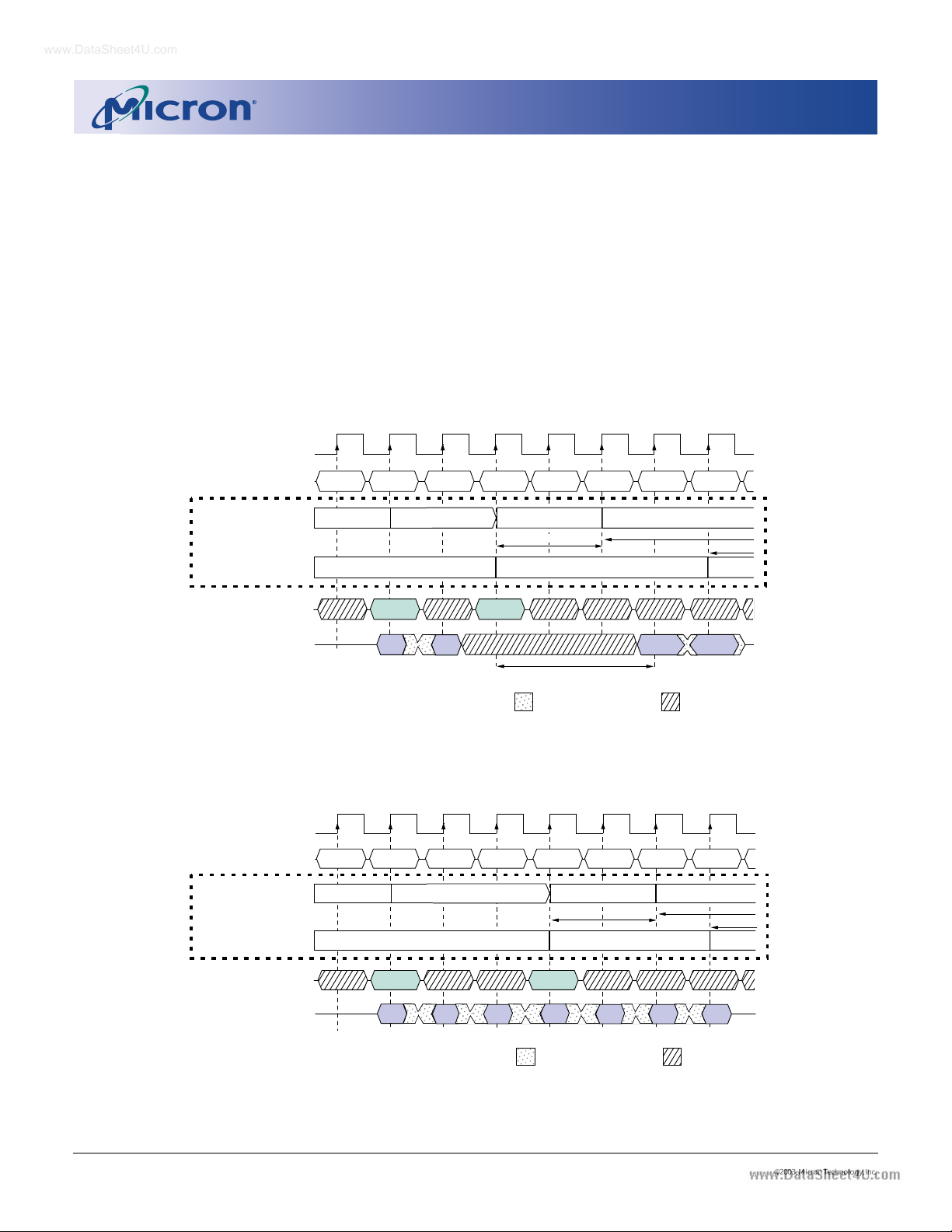

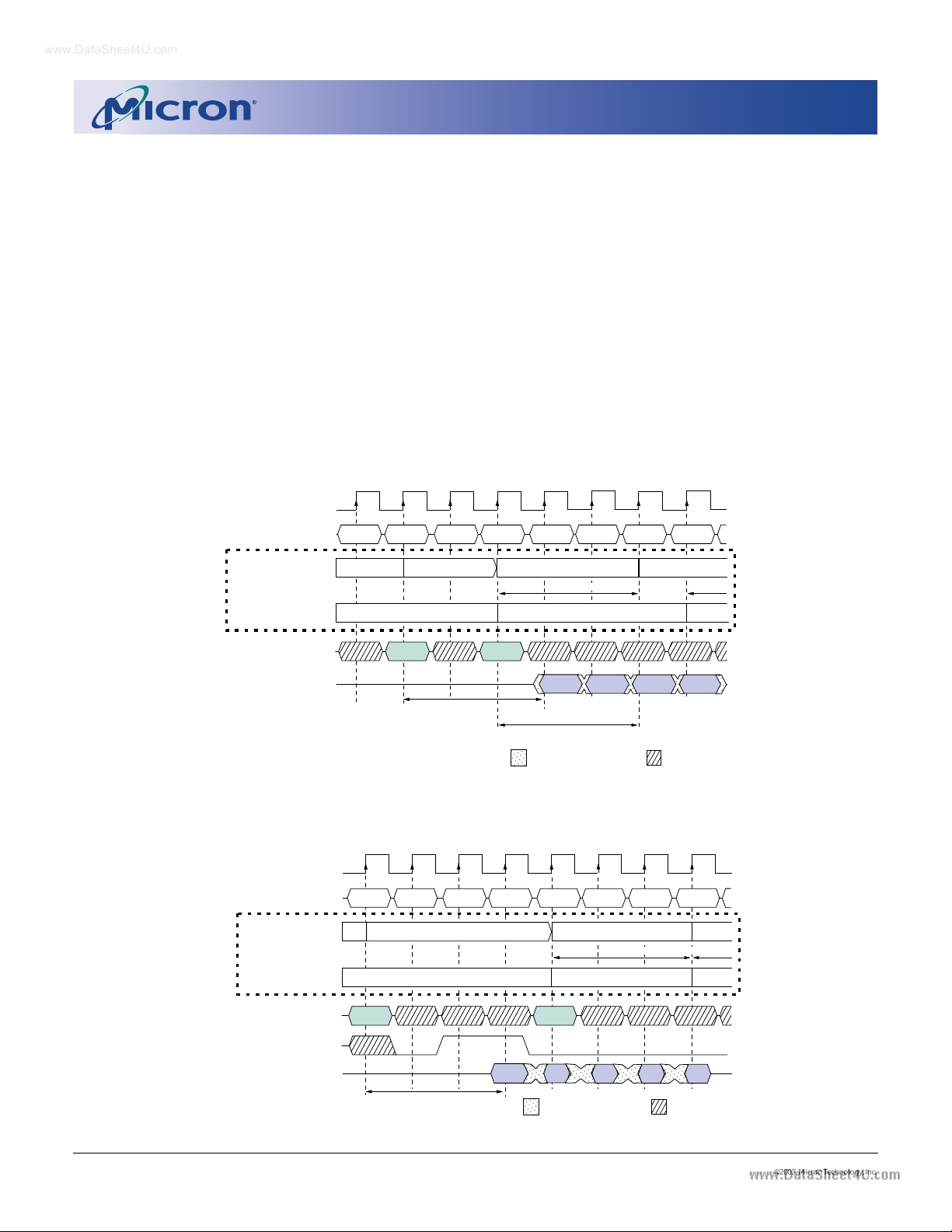

Figure 24

READ With Auto Precharge Interrupted by a READ

64Mb: x4, x8, x16

SDRAM

on bank n, CAS latency later. The PRECHARGE to bank n will begin when the READ to bank m is registered (Figure 24).

2. Interrupted by a WRITE (with or without auto precharge): A WRITE to bank m will interrupt a READ on bank n when registered. DQM should be used two clocks prior to the WRITE command to prevent bus contention. The PRECHARGE to bank n will begin when the WRITE to bank m is registered (Figure 25).

T2T1 T4T3 T6T5T0

CLK

COMMAND

Internal States

ADDRESS

NOTE: DQM is LOW.

BANK n

BANK m

READ - AP

BANK n

Page Active READ with Burst of 4 Interrupt Burst, Precharge

Page Active READ with Burst of 4

BANK n,

COL a

CAS Latency = 3 (BANK n)

READ - AP

BANK m

BANK m,

COL d

CAS Latency = 3 (BANK m)

TRANSITIONING DATA

NOP

RP - BANK n

OUT

NOP NOPNOPNOP

OUT

D a + 1

NOP

Idle

RP - BANK m

Precharge

OUT

d + 1

DON’T CARE

Figure 25

READ With Auto Precharge Interrupted by a WRITE

COMMAND

Internal States

CLK

BANK n

BANK m

T2T1 T4T3 T6T5T0

READ - AP

BANK n

Page

READ with Burst of 4 Interrupt Burst, Precharge

Active

Page Active WRITE with Burst of 4

NOP

WRITE - AP

BANK m

RP -

BANK

NOPNOPNOPNOP

NOP

WR -

Write-Back

Idle

BANK

DQM

BANK n,

COL a

ADDRESS

CAS Latency = 3 (BANK n)

NOTE: 1. DQM is HIGH at T2 to prevent D

OUT

BANK m,

COL d

OUT

-a+1 from contending with DIN-d at T4.

d + 1

d + 2

d + 3

DON’T CARETRANSITIONING DATA

Page 26

WRITE with Auto Precharge

www.DataSheet4U.com

3. Interrupted by a READ (with or without auto precharge): A READ to bank m will interrupt a WRITE on bank n when registered, with the data-out appearing CAS latency later. The PRECHARGE to bank n will begin after tWR is met, where tWR begins when the READ to bank m is registered. The last valid WRITE to bank n will be data-in register ed one clock prior to the READ to bank m (Figure 26).

Figure 26

WRITE With Auto Precharge Interrupted by a READ

T2T1 T4T3 T6T5T0

CLK

64Mb: x4, x8, x16

SDRAM

4. Interrupted by a WRITE (with or without auto precharge): A WRITE to bank m will interrupt a WRITE on bank n when registered. The PRECHARGE to bank n will begin after the WRITE to bank m is registered. The last valid data WRITE to bank n will be data registered one clock prior to a WRITE to bank m (Figure 27).

WR is met, where tWR begins when

COMMAND

Internal States

NOTE: 1. DQM is LOW.

BANK n

BANK m

ADDRESS

WRITE - AP

BANK n

Page Active WRITE with Burst of 4 Interrupt Burst, Write-Back Precharge

Page Active READ with Burst of 4

BANK n,

COL a

a + 1

READ - AP

BANK m

WR - BANK n

BANK m,

COL d

CAS Latency = 3 (BANK m)

NOPNOPNOPNOP

RP - BANK n

NOP NOP

TRANSITIONING DATA

Figure 27

WRITE With Auto Precharge Interrupted by a WRITE

T2T1 T4T3 T6T5T0

CLK

Internal States

COMMAND

BANK n

BANK m

WRITE - AP

BANK n

Page Active WRITE with Burst of 4 Interrupt Burst, Write-Back Precharge

Page Active WRITE with Burst of 4

NOP

WRITE - AP

BANK m

WR - BANK n

NOPNOPNOPNOP

OUT

RP - BANK n

RP - BANK m

OUT

d + 1

DON’T CARE

NOP

WR - BANK m

Write-Back

ADDRESS

NOTE: 1. DQM is LOW.

BANK n,

COL a

a + 1

BANK m,

COL d

a + 2

TRANSITIONING DATA

d + 1

d + 2

d + 3

DON’T CARE

Page 27

TRUTH TABLE 2 – CKE

www.DataSheet4U.com

(Notes: 1-4)

64Mb: x4, x8, x16

SDRAM

CKE

n-1

CKE

CURRENT STATE COMMAND

ACTION

L L Power-Down X Maintain Power-Down

Self Refresh X Maintain Self Refresh

Clock Suspend X Maintain Clock Suspend

L H Power-Down COMMAND INHIBIT or NOP Exit Power-Down 5

Self Refresh COMMAND INHIBIT or NOP Exit Self Refresh 6

Clock Suspend X Exit Clock Suspend 7

H L All Banks Idle COMMAND INHIBIT or NOP Power-Down Entry

All Banks Idle AUTO REFRESH Self Refresh Entry

Reading or Writing VALID Clock Suspend Entry

H H See Truth Table 3

NOTE: 1. CKEn is the logic state of CKE at clock edge n; CKE

2. Current state is the state of the SDRAM immediately prior to clock edge n.

3. COMMANDn is the command registered at clock edge n, and ACTIONn is a result of COMMANDn.

4. All states and sequences not shown are illegal or reserved.

5. Exiting power-down at clock edge n will put the device in the all banks idle state in time for clock edge n + 1 (provided that tCKS is met).

6. Exiting self refresh at clock edge n will put the device in the all banks idle state once tXSR is met. COMMAND INHIBIT or NOP commands should be issued on any clock edges occurring during the tXSR period. A minimum of two NOP commands must be provided during tXSR period.

7. After exiting clock suspend at clock edge n, the device will resume operation and recognize the next command at clock edge n + 1.

was the state of CKE at the previous clock edge.

n-1

NOTES

Page 28

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

TRUTH TABLE 3 – CURRENT STATE BANK n, COMMAND TO BANK n

(Notes: 1-6; notes appear below and on next page)

CURRENT STATE CS# RAS#CAS# WE# COMMAND (ACTION) NOTES

Any H X X X COMMAND INHIBIT (NOP/Continue previous operation)

L H H H NO OPERATION (NOP/Continue previous operation) L L H H ACTIVE (Select and activate row)

Idle L L L H AUTO REFRESH 7

LLLLLOAD MODE REGISTER 7 L L H L PRECHARGE 11 L H L H READ (Select column and start READ burst) 10

Row Active L H L L WRITE (Select column and start WRITE burst) 10

L L H L PRECHARGE (Deactivate row in bank or banks) 8

Read L H L H READ (Select column and start new READ burst) 10

(Auto L H L L WRITE (Select column and start WRITE burst) 10

Precharge L L H L PRECHARGE (Truncate READ burst, start PRECHARGE) 8

Disabled) L H H L BURST TERMINATE 9

Write L H L H READ (Select column and start READ burst) 10 (Auto L H L L WRITE (Select column and start new WRITE burst) 10

Precharge L L H L PRECHARGE (Truncate WRITE burst, start PRECHARGE) 8

Disabled) L H H L BURST TERMINATE 9

NOTE: 1. This table applies when CKE

met (if the previous state was self refresh).

2. This table is bank-specific, except where noted; i.e., the current state is for a specific bank and the commands shown are those allowed to be issued to that bank when in that state. Exceptions are covered in the notes below.

3. Current state definitions:

Idle: The bank has been precharged, and tRP has been met.

Row Active: A row in the bank has been activated, and tRCD has been met. No data bursts/accesses and

Re a d : A READ burst has been initiated, with auto precharge disabled, and has not yet terminated

Write: A WR ITE burst has been initiated, with auto precharge disabled, and has not yet termi-

4. The following states must not be interrupted by a command issued to the same bank. COMMAND INHIBIT or NOP commands, or allowable commands to the other bank should be issued on any clock edge occurring during these states. Allowable commands to the other bank are determined by its current state and Truth Table 3, and according to Truth Table 4.

Precharging: Starts with registration of a PRECHARGE command and ends when tRP is met. Once tRP is

Row Activating: Starts with registration of an ACTIVE command and ends when tRCD is met. Once tRCD is

Read w/Auto

Precharge Enabled: Starts with registration of a READ command with auto precharge enabled and ends when

Write w/Auto

Precharge Enabled: Starts with registration of a WRITE command with auto precharge enabled and ends when

was HIGH and CKEn is HIGH (see Truth Table 2) and after tXSR has been

n-1

no register accesses are in progress. or been terminated. nated or been terminated.

met, the bank will be in the idle state. met, the bank will be in the row active state.

RP has been met. Once tRP is met, the bank will be in the idle state.

(Continued on next page)

Page 29

64Mb: x4, x8, x16

www.DataSheet4U.com

NOTE (continued):

5. The following states must not be interrupted by any executable command; COMMAND INHIBIT or NOP commands must be applied on each positive clock edge during these states.

Refreshing: Starts with registration of an AUTO REFRESH command and ends when

is met, the SDRAM will be in the all banks idle state.

Accessing Mode

been met. Once

Precharging All: Starts with registration of a PRECHARGE ALL command and ends when tRP is met. Once tRP

is met, all banks will be in the idle state.

6. All states and sequences not shown are illegal or reserved.

7. Not bank-specific; requires that all banks are idle.

8. May or may not be bank-specific; if all banks are to be precharged, all must be in a valid state for precharging.

9. Not bank-specific; BURST TERMINATE affects the most recent READ or WRITE burst, regardless of bank.

10. READs or WRITEs listed in the Command (Action) column include READs or WRITEs with auto precharge enabled and READs or WRITEs with auto precharge disabled.

11. Does not affect the state of the bank and acts as a NOP to that bank.

MRD is met, the SDRAM will be in the all banks idle state.

SDRAM

RC is met. Once tRC

MRD has

Page 30

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

TRUTH TABLE 4 – CURRENT STATE BANK n, COMMAND TO BANK m

(Notes: 1-6; notes appear below and on next page)

CURRENT STATE CS# RAS# CAS# WE# COMMAND (ACTION) NOTES

Any H X X X COMMAND INHIBIT (NOP/Continue previous operation)

L H H H NO OPERATION (NOP/Continue previous operation)

Idle XXXXAny Command Otherwise Allowed to Bank m

Row L L H H ACTIVE (Select and activate row)

Activating, L H L H READ (Select column and start READ burst) 7

Active, or L H L L WRITE (Select column and start WRITE burst) 7

Precharging L L H L PRECHARGE

Read L L H H ACTIVE (Select and activate row)

(Auto L H L H READ (Select column and start new READ burst) 7, 10

Precharge L H L L WRITE (Select column and start WRITE burst) 7, 11

Disabled) L L H L PRECHARGE 9

Write L L H H ACTIVE (Select and activate row)

(Auto L H L H READ (Select column and start READ burst) 7, 12

Precharge L H L L WRITE (Select column and start new WRITE burst) 7, 13

Disabled) L L H L PRECHARGE 9

Read L L H H ACTIVE (Select and activate row)

(With Auto L H L H READ (Select column and start new READ burst) 7, 8, 14

Precharge) L H L L WRITE (Select column and start WRITE burst) 7, 8, 15

L L H L PRECHARGE 9

Write L L H H ACTIVE (Select and activate row)

(With Auto L H L H READ (Select column and start READ burst) 7, 8, 16

Precharge) L H L L WRITE (Select column and start new WRITE burst) 7, 8, 17

L L H L PRECHARGE 9

NOTE: 1. This table applies when CKE

was HIGH and CKEn is HIGH (see Truth Table 2) and after tXSR has been met (if the

previous state was self refresh).

2. This table describes alternate bank operation, except where noted; i.e., the current state is for bank n and the commands shown are those allowed to be issued to bank m (assuming that bank m is in such a state that the given command is allowable). Exceptions are covered in the notes below.

3. Current state definitions:

Row Active: A row in the bank has been activated, and tRCD has been met. No data bursts/accesses and

Read w/Auto

Precharge Enabled: Starts with registration of a READ command with auto precharge enabled, and ends when

Write w/Auto

Precharge Enabled: Starts with registration of a WRITE command with auto precharge enabled, and ends when

n-1

Idle: The bank has been precharged, and tRP has been met.

no register accesses are in progress.

Re a d : A READ burst has been initiated, with auto precharge disabled, and has not yet terminated

or been terminated.

Write: A WR IT E b urst has been initiated, with auto precharge disabled, and has not yet

terminated or been terminated.

RP has been met. Once tRP is met, the bank will be in the idle state.

(Continued on next page)

Page 31

64Mb: x4, x8, x16

www.DataSheet4U.com

NOTE (continued):

4. AUTO REFRESH, SELF REFRESH and LOAD MODE REGISTER commands may only be issued when all banks are idle.

5. A BURST TERMINATE command cannot be issued to another bank; it applies to the bank represented by the current state only.

6. All states and sequences not shown are illegal or reserved.

7. READs or WRITEs to bank m listed in the Command (Action) column include READs or WRITEs with auto precharge enabled and READs or WRITEs with auto precharge disabled.

8. CONCURRENT AUTO PRECHARGE: Bank n will initiate the auto precharge command when its burst has been interrupted by bank m’s burst.

9. Burst in bank n continues as initiated.

10. For a READ without auto precharge interrupted by a READ (with or without auto precharge), the READ to bank m will interrupt the READ on bank n, CAS latency later (Figure 7).

11. For a READ without auto precharge interrupted by a WRITE (with or without auto precharge), the WRITE to bank m will interrupt the READ on bank n when registered (Figures 9 and 10). DQM should be used one clock prior to the WRITE command to prevent bus contention.

12. For a WRITE without auto precharge interrupted by a READ (with or without auto precharge), the READ to bank m will interrupt the WRITE on bank n when registered (Figure 17), with the data-out appearing CAS latency later. The last valid WRITE to bank n will be data-in registered one clock prior to the READ to bank m.

13. For a WRITE without auto precharge interrupted by a WRITE (with or without auto precharge), the WRITE to bank m will interrupt the WRITE on bank n when registered (Figure 15). The last valid WRITE to bank n will be data-in registered one clock prior to the READ to bank m.

14. For a READ with auto precharge interrupted by a READ (with or without auto precharge), the READ to bank m will interrupt the READ on bank n, CAS latency later. The PRECHARGE to bank n will begin when the READ to bank m is registered (Figure 24).

15. For a READ with auto precharge interrupted by a WRITE (with or without auto precharge), the WRITE to bank m will interrupt the READ on bank n when registered. DQM should be used two clocks prior to the WRITE command to prevent bus contention. The PRECHARGE to bank n will begin when the WRITE to bank m is registered (Figure 25).

16. For a WRITE with auto precharge interrupted by a READ (with or without auto precharge), the READ to bank m will interrupt the WRITE on bank n when registered, with the data-out appearing CAS latency later. The PRECHARGE to bank n will begin after will be data-in registered one clock prior to the READ to bank m (Figure 26).

17. For a WRITE with auto precharge interrupted by a WRITE (with or without auto precharge), the WRITE to bank m will interrupt the WRITE on bank n when registered. The PRECHARGE to bank n will begin after tWR is met, where tWR begins when the WRITE to bank m is registered. The last valid WRITE to bank n will be data registered one clock prior to the WRITE to bank m (Figure 27).

WR is met, where tWR begins when the READ to bank m is registered. The last valid WRITE to bank n

SDRAM

Page 32

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

ABSOLUTE MAXIMUM RATINGS*

Voltage on VDD, VDDQ Supply

Relative to VSS ............................................ -1V to +4.6V

Voltage on Inputs, NC or I/O Pins

Relative to V

Operating Temperature,

(commercial) ......................................0°C to +70°C

Operating Temperature,

SS ............................................ -1V to +4.6V

*Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only, and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

TA (extended; IT parts)...................... -40°C to +85°C

Storage Temperature (plastic) ............ -55°C to +150°C

Power Dissipation ........................................................ 1W

DC ELECTRICAL CHARACTERISTICS AND OPERATING CONDITIONS

(Notes: 1, 5, 6; notes appear on page 35); VDD, VDDQ = +3.3V ±0.3V

PARAMETER/CONDITION SYMBOL MIN MAX UNITS NOTES

Supply Voltage VDD, VDDQ 3 3.6 V Input High Voltage: Logic 1; All inputs VIH 2VDD + 0.3 V 22 Input Low Voltage: Logic 0; All inputs VIL -0.3 0.8 V 22 Input Leakage Current:

Any input 0V £ VIN £ VDD II -5 5 µA (All other pins not under test = 0V)

Output Leakage Current: DQs are disabled; 0V £ VOUT £ VDDQIOZ -5 5 µ A Output Levels: VOH 2.4 – V

Output High Voltage (IOUT = -4mA) Output Low Voltage (IOUT = 4mA) VOL – 0.4 V

IDD SPECIFICATIONS AND CONDITIONS

(Notes: 1, 5, 6, 11, 13; notes appear on page 35) ; VDD, VDDQ = +3.3V ±0.3V

MAX

PARAMETER/CONDITION

Operating Current: Active Mode; IDD1 150 125 115 95 mA 3, 18, Burst = 2; READ or WRITE; tRC >= tRC (MIN) 19, 32

Standby Current: Power-Down Mode; All banks idle; IDD2 2 222 mA32 CKE = LOW

Standby Current: Active Mode; IDD3 60 45 45 35 mA 3, 12, CKE = HIGH; CS# = HIGH; All banks active after tRCD met; 19, 32 No accesses in progress

Operating Current: Burst Mode; Page burst; IDD4 180 150 140 120 m A 3, 18, READ or WRITE; All banks active 19, 32

Auto Refresh Current:

RFC = tRFC (MIN) IDD5 250 230 210 190 m A 3, 12,

CKE = HIGH; CS# = HIGH 18, 19,

RFC = 15.625µs IDD6 3 3 3 3 32, 33 Self Refresh Current: Standard IDD 7 1 111 mA 4 CKE £ 0.2V Low power (L) 0.5 0.5 0.5 0.5

SYMBOL

-6 -7E -75 -8E UNITS NOTES

Page 33

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CAPACITANCE

(Note: 2; notes appear on page 35)

PARAMETER SYMBOL M I N MAX UNITS NOTES

Input Capacitance: CLK CI1 2.5 3.5 pF 29 Input Capacitance: All other input-only pins CI2 2.5 3.8 pF 30 Input/Output Capacitance: DQs CIO 4.0 6.0 pF 31

ELECTRICAL CHARACTERISTICS AND RECOMMENDED AC OPERATING CONDITIONS

(Notes: 5, 6, 8, 9, 11; notes appear on page 35); VDD, VDDQ = +3.3V ±0.3V

AC CHARACTERISTICS -6 -7E -75 -8E PARAMETER SYMBOL MIN MAX MIN MA X MIN MAX MIN MA X UNITS NOTES

Access time from CLK (pos. edge) CL = 3tAC(3) 5.5 5.4 5.4 6 ns 27

CL = 2tAC(2) – 5.4 6 6 ns Address hold time Address setup time CLK high-level width CLK low-level width Clock cycle time CL = 3tCK(3) 6 7 7.5 8 ns 23

CL = 2tCK(2) – 7.5 10 10 ns 23 CKE hold time CKE setup time CS#, RAS#, CAS#, WE#, DQM hold time CS#, RAS#, CAS#, WE#, DQM setup time Data-in hold time Data-in setup time Data-out high-impedance time CL = 3tHZ(3) 5.5 5.4 5.4 6 ns 10

CL = 2tHZ(2) – 5.4 6 6 ns 10 Data-out low-impedance time Data-out hold time (load) Data-out hold time (no load) ACTIVE to PRECHARGE command ACTIVE to ACTIVE command period ACTIVE to READ or WRITE delay Refresh period (4,096 rows) AUTO REFRESH period PRECHARGE command period ACTIVE bank a to ACTIVE bank b command Transition time WRITE recovery time

Exit SELF REFRESH to ACTIVE command

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

DH 1 0.8 0.8 1 ns

DS 1.5 1.5 1.5 2 ns

LZ1111ns

OH2333ns

RAS 42 120,000 37 120,000 44 120,000 50 120,000 ns

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

REF 64 64 64 64 ms

RFC 60 66 66 70 ns

RP 18 15 20 20 ns

RRD 12 14 15 20 ns

WR 1 CLK + 1 CLK + 1 CLK + 1 CLK + – 24

1.8 1.8 1.8 1.8 ns 28

T 0.3 1.2 0.3 1.2 0.3 1.2 0.3 1.2 ns 7

6ns 7ns 7.5ns 7n s

12 14 15 15 ns 25

XSR 70 67 75 80 ns 20

Page 34

AC FUNCTIONAL CHARACTERISTICS

www.DataSheet4U.com

(Notes: 5, 6, 7, 8, 9, 11; notes appear on page 35) VDD, VDDQ = +3.3V ±0.3V

64Mb: x4, x8, x16

SDRAM

PARAMETER SYMBOL -6 -7E -75 -8E UNITS NOTES

READ/WRITE command to READ/WRITE command CKE to clock disable or power-down entry mode CKE to clock enable or power-down exit setup mode

CCD 1 1 1 1

CKED 1 1 1 1

PED 1 1 1 1 DQM to input data delay tDQD 0 0 0 0 DQM to data mask during WRITEs tDQM 0 0 0 0 DQM to data high-impedance during READs tDQZ 2 2 2 2 WRITE command to input data delay Data-in to ACTIVE command Data-in to PRECHARGE command Last data-in to burst STOP command Last data-in to new READ/WRITE command Last data-in to PRECHARGE command LOAD MODE REGISTER command to ACTIVE or REFRESH command

DWD 0 0 0 0

DAL 5 4 5 4

DPL 2 2 2 2

BDL 1 1 1 1

CDL 1 1 1 1

RDL 2 2 2 2

MRD 2 2 2 2

Data-out to high-impedance from PRECHARGE command CL = 3tROH(3) 3 3 3 3

CL = 2

ROH(2) 2 2 2 2

CK 17

CK 14

CK 17

CK 15, 21

CK 16, 21

CK 17

CK 16, 21

CK 26

CK 17

Page 35

NOTES

www.DataSheet4U.com

1. All voltages referenced to VSS.

2. This parameter is sampled. VDD, VDDQ = +3.3V; f = 1 MHz, TA = 25°C; pin under test biased at 1.4V.

DD is dependent on output loading and cycle rates.

3. I Specified values are obtained with minimum cycle time and the outputs open.

4. Enables on-chip refresh and address counters.

5. The minimum specifications are used only to indicate cycle time at which proper operation over the full temperature range (0°C £ TA £ +70°C and

-40°C £ T

6. An initial pause of 100µs is required after powerup, followed by two AUTO REFRESH commands, before proper device operation is ensured. (VDD and VDDQ must be powered up simultaneously. VSS and VSSQ must be at same potential.) The two AUTO REFRESH command wake-ups should be repeated any time the tREF refresh requirement is exceeded.

7. AC characteristics assume tT = 1ns.

8. In addition to meeting the transition rate specification, the clock and CKE must transit between VIH and VIL (or between VIL and VIH) in a monotonic manner.

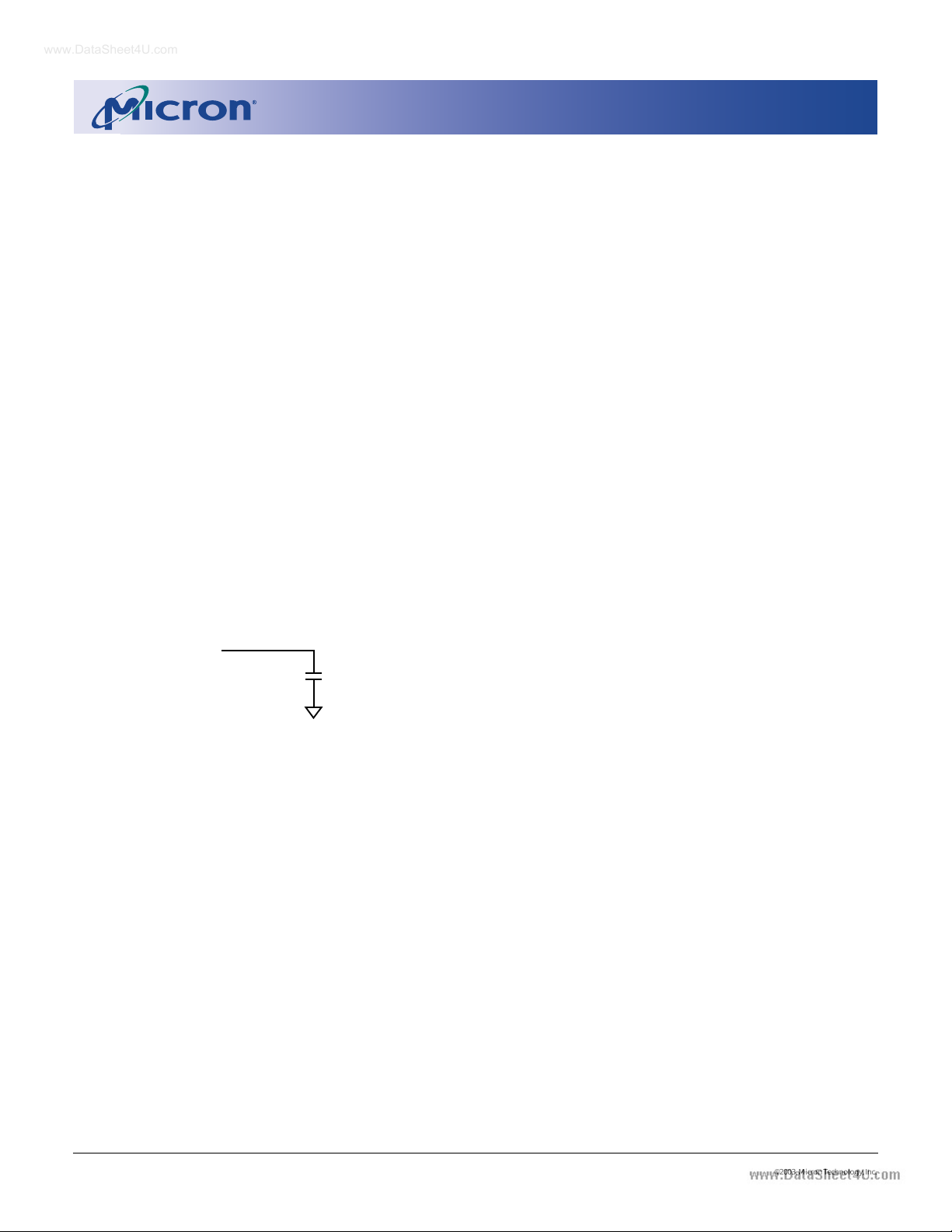

9. Outputs measured at 1.5V with equivalent load:

10.tHZ defines the time at which the output achieves the open circuit condition; it is not a reference to VOH or VOL. The last valid data element will meet

OH before going High-Z.

11. AC timing and IDD tests have VIL = 0V and VIH = 3V, with timing referenced to 1.5V crossover point. If the input transition time is longer than 1 ns, then the timing is referenced at VIL (MAX) and VIH (MIN) and no longer at the 1.5V crossover point. CLK should always be 1.5V referenced to crossover. Refer to Micron Technical Note TN-48-09

12. Other input signals are allowed to transition no more than once every two clocks and are otherwise at valid VIH or VIL levels.

£ +85°C for IT parts) is ensured.

50pF

64Mb: x4, x8, x16

SDRAM

13. IDD specifications are tested after the device is properly initialized.

14. Timing actually specified by tCKS; clock(s) specified as a reference only at minimum cycle rate.

15. Timing actually specified by tWR plus tRP; clock(s) specified as a reference only at minimum cycle rate.

16. Timing actually specified by tWR.

17. Required clocks are specified by JEDEC functionality and are not dependent on any timing parameter.

18. The IDD current will increase or decrease proportionally according to the amount of frequency alteration for the test condition.

19. Address transitions average one transition every two clocks.

20. CLK must be toggled a minimum of two times during this period.

21. Based on tCK = 10ns for -8E , tCK=7.5ns for -75 and -7E, tCK = 6ns for -6.

22. VIH overshoot: VIH (MAX) = VDDQ + 2V for a pulse width £ 3ns, and the pulse width cannot be greater than one third of the cycle rate. VIL undershoot: VIL (MIN) = -2V for a pulse width £ 3ns.

23. The clock frequency must remain constant (stable clock is defined as a signal cycling within timing constraints specified for the clock pin) during access or precharge states (READ, WRITE, including

WR, and PRECHARGE commands). CKE may be

used to reduce the data rate.

24. Auto precharge mode only. The precharge timing budget (tRP) begins 6ns/7ns/7.5ns/7ns after the first clock delay, after the last WRITE is executed.

25. Precharge mode only.

26. JEDEC and PC100 specify three clocks.

27.tAC for -75/-7E at CL = 3 with no load is 4.6ns and is guaranteed by design.

28. Parameter guaranteed by design.

29. PC100 specifies a maximum of 4pF.

30. PC100 specifies a maximum of 5pF.

31. PC100 specifies a maximum of 6.5pF.

32. For -8E, CL = 2 and tCK = 10ns; for -75, CL = 3 and

CK = 7.5ns; for -7E, CL = 2 and tCK = 7.5ns; for -6,

CL = 3 and tCK = 6ns.

33. CKE is HIGH during refresh command period

RFC (MIN) else CKE is LOW. The IDD6 limit is actually a nominal value and does not result in a fail value.

Page 36

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

()(

)

CKS

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

T = 100µs

MIN

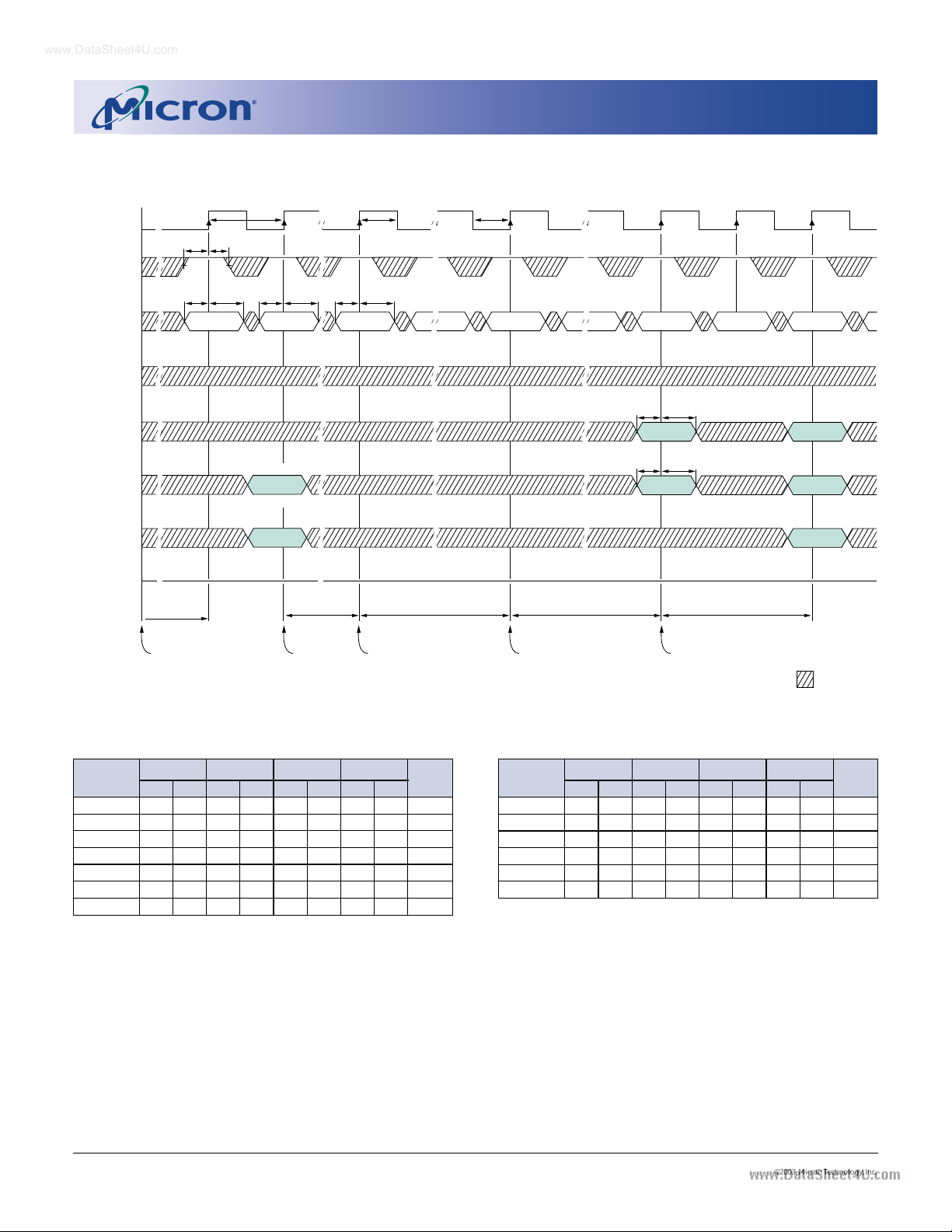

INITIALIZE AND LOAD MODE REGISTER

T0 T1 Tn + 1 To + 1 Tp + 1 Tp + 2 Tp + 3

CMS

NOP

CKH

CMH

High-Z

CMS

PRECHARGE NOP

ALL BANKS

SINGLE BANK

BANKS

ALL

CMH

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

CMS

CMH

AUTO

REFRESH

RFC

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

AUTO

REFRESH

RFC

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

LOAD MODE

CODE

MRD

NOP

ACTIVENOP NOPNOP

ROW

BANK

Power-up:

and

V CLK stable

Precharge all banks

AUTO REFRESH

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

*CAS latency indicated in parentheses.

NOTE: 1. If CS# is HIGH at clock HIGH time, all commands applied are NOP.

2. The mode register may be loaded prior to the AUTO REFRESH cycles if desired.

3. JEDEC and PC100 specify three clocks.

4. Outputs are guaranteed High-Z after command is issued.

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

MRD

RFC 60 66 66 70 ns

RP 18 15 20 20 ns

Program Mode Register

2, 3, 4

DON’T CARE

-6 -7E -75 -8E

22 2 2tCK

Page 37

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

Precharge all

active banks

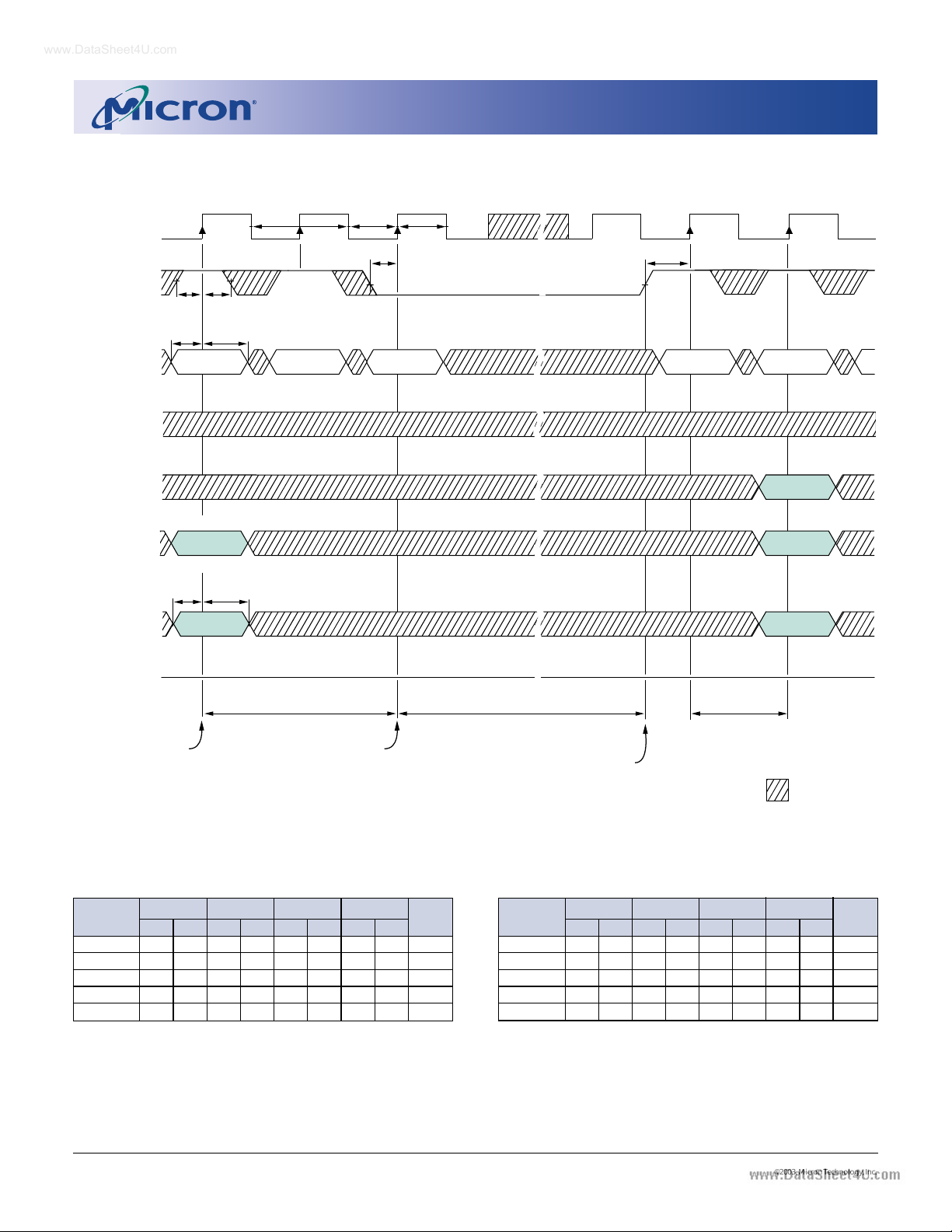

POWER-DOWN MODE

T0 T1 T2 Tn + 1 Tn + 2

CKH

CKS

CMH

CMS

PRECHARGE NOP NOP ACTIVENOP

ALL BANKS

SINGLE BANK

BANK(S)

High-Z

Two clock cycles

CKS

Input buffers gated off while in

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

CKS

power-down mode All banks idle, enter power-down mode

Exit power-down mode

All banks idle

ROW

BANK

TIMING PARAMETERS

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

*CAS latency indicated in parentheses. NOTE: 1. Violating refresh requirements during power-down may result in a loss of data.

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

DON’T CARE

Page 38

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

m + 1

NOPNOP NOP NOPNOPREAD WRITE

COLUMN e

BANK

DIN e

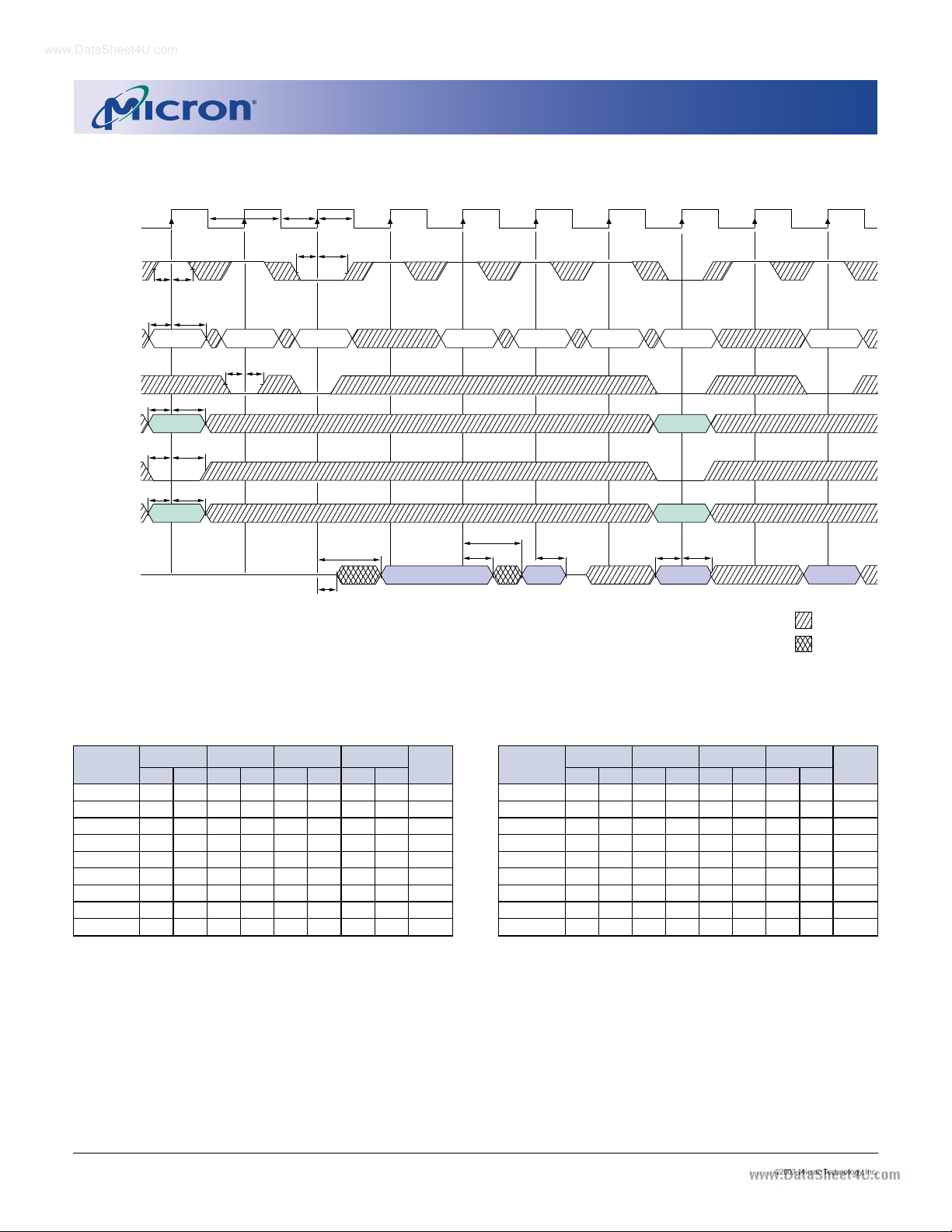

CLOCK SUSPEND MODE

T0 T1 T2 T3 T4 T5 T6 T7 T8 T9

CKS

CMS

COLUMN m

BANK

CKH

CMH

CMS

CMH

CKStCKH

OUT

NOP

DIN e + 1

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AC(3) 5.5 5.4 5.4 6 ns

AC(2) – 5.4 6 6 ns

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

DH 1 0.8 0.8 1 ns

DS 1.5 1.5 1.5 2 ns

HZ(3) 5.5 5.4 5.4 6 ns

HZ(2) – 5.4 6 7 ns

LZ1111 ns

OH2333 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 2, the CAS latency = 3, and auto precharge is disabled.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

-6 -7E -75 -8E

DON’T CARE

UNDEFINED

Page 39

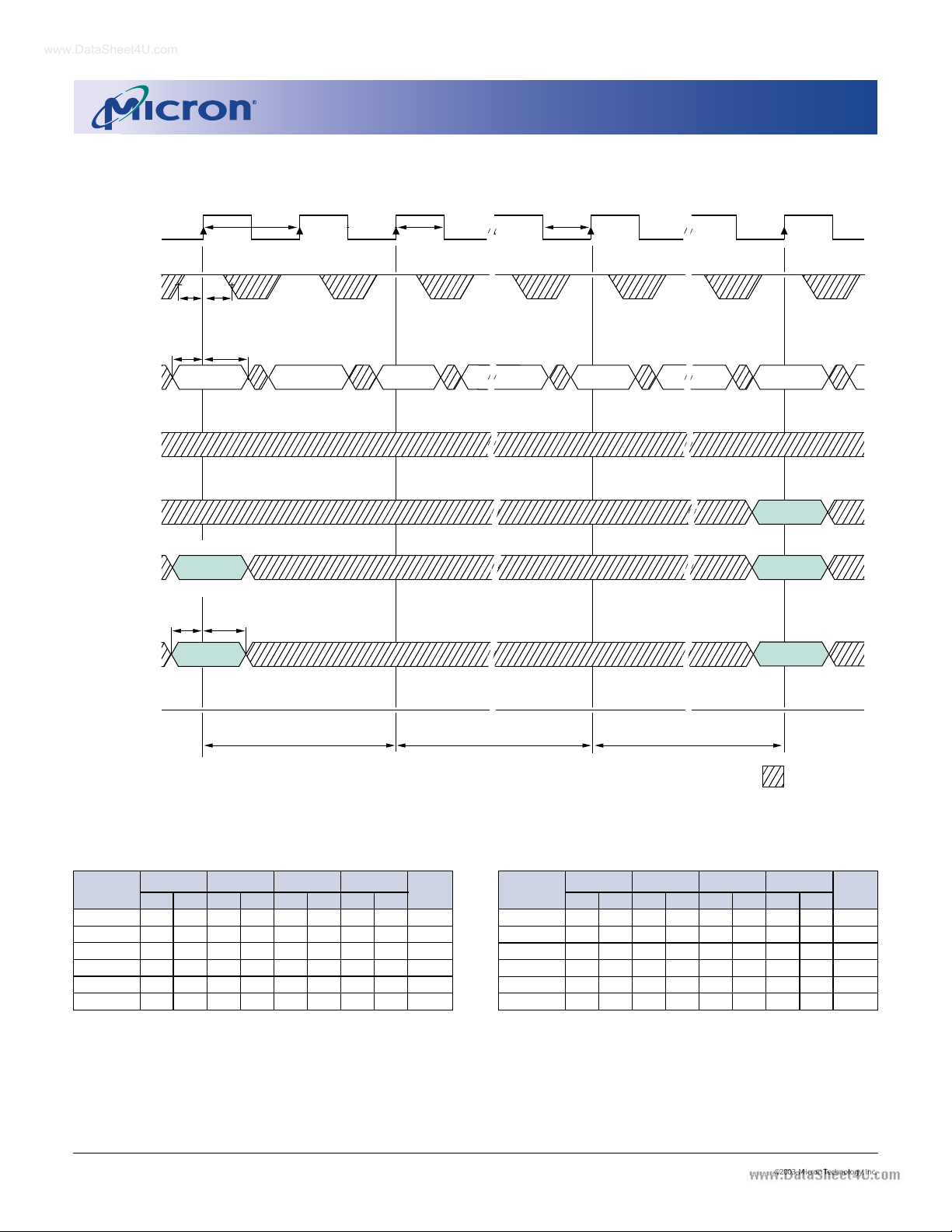

AUTO REFRESH MODE

www.DataSheet4U.com

64Mb: x4, x8, x16

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

T0 T1 T2 Tn + 1 To + 1

CKH

CKS

CMS

CMH

ALL BANKS

SINGLE BANK

BANK(S)

NOP

AUTO

REFRESH

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

AUTO

REFRESH

()(

)

()(

)

()(

)

()(

)

NOPNOP

NOPNOPPRECHARGE

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

ACTIVE

ROW

BANK

High-Z

RFC

()(

)

RFC

()(

)

Precharge all

active banks

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

RFC 60 66 66 70 ns

RP 18 15 20 20 ns

*CAS latency indicated in parentheses.

NOTE: 1. Each AUTO REFRESH command performs a refresh cycle. Back-to-back commands are not required.

-6 -7E -75 -8E

DON’T CARE

Page 40

CLK

www.DataSheet4U.com

CKE

COMMAND

DQM/

DQML, DQMH

64Mb: x4, x8, x16

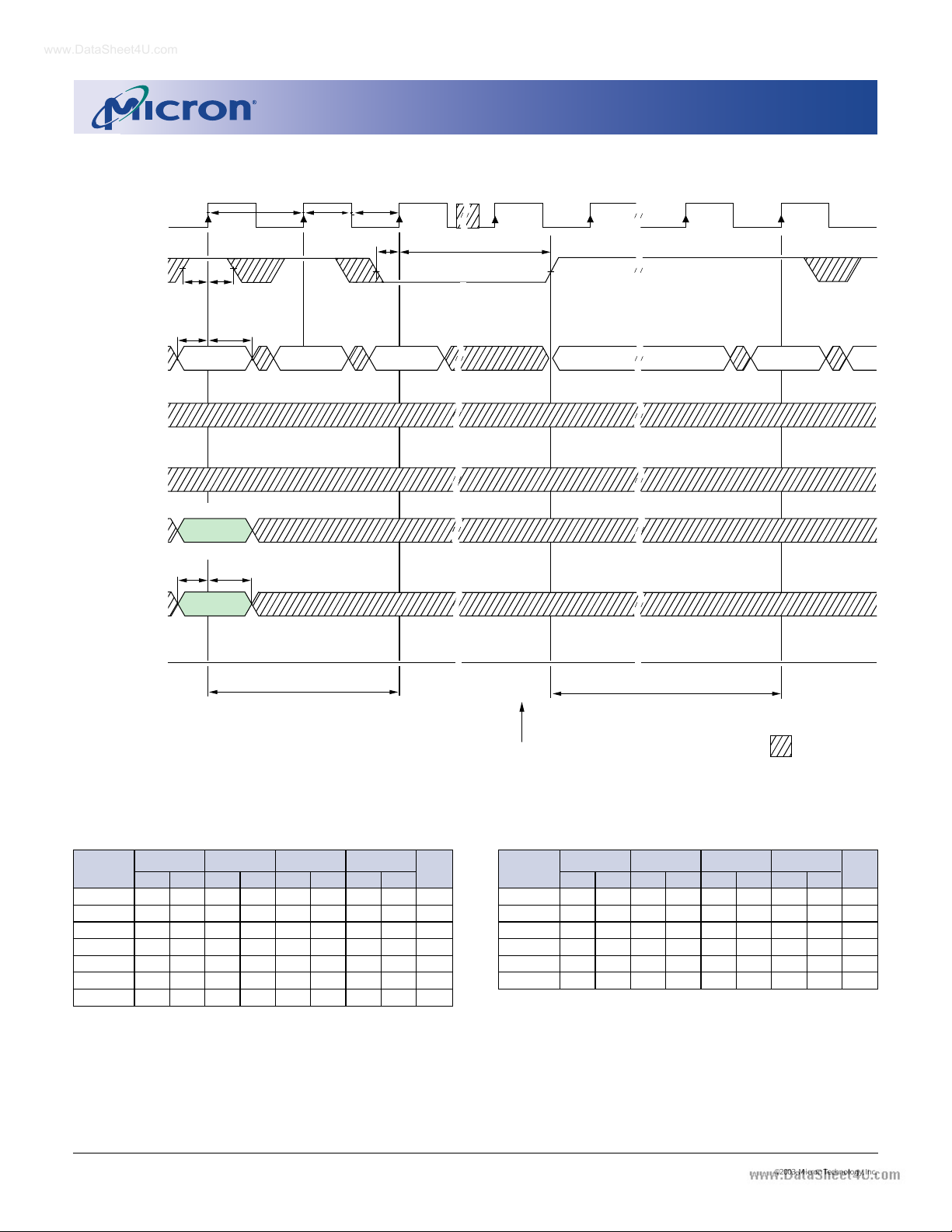

SELF REFRESH MODE

T0 T1 T2 Tn + 1 To + 1 To + 2

CKH

CKS

CMS

CMH

PRECHARGE NOP NOP

CKS

AUTO

REFRESH

≥

RAS(MIN)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

or COMMAND

INHIBIT

()(

)

()(

)

()(

)

SDRAM

AUTO

REFRESH

A0-A9, A11

ALL BANKS

A10

SINGLE BANK

BA0, BA1

BANK(S)

High-Z

Precharge all

active banks

Enter self refresh mode

CLK stable prior to exiting

self refresh mode

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

XSR

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

Exit self refresh mode

(Restart refresh time base)

DON’T CARE

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

RAS 42 120,000 37 120,000 44 120,000 50 120,000 ns

RP 18 15 20 20 ns

XSR 70 67 75 80 ns

*CAS latency indicated in parentheses.

NOTES: 1. No maximum time limit for Self Refresh mode. tRAS(MAX) applies to non-Self Refresh mode.

2.tXSR requires minimum of two clocks regardless of frequency and timing.

Page 41

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

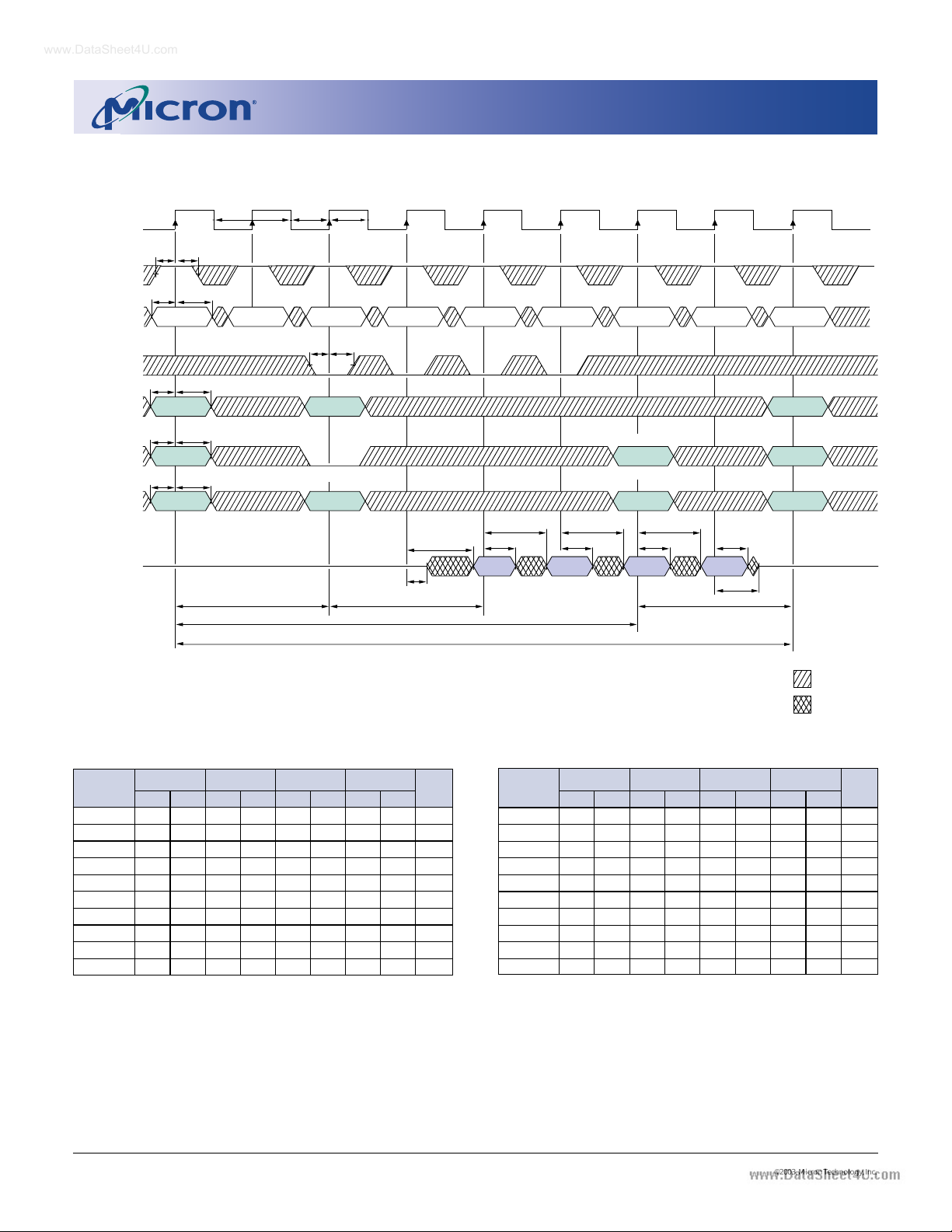

READ – WITHOUT AUTO PRECHARGE

T0 T1 T2 T3 T4 T5 T6 T7 T8

CKS

CMS

ROW

BANK

CKH

CMH

RCD CAS Latency

RAS

CMS

COLUMN m

DISABLE AUTO PRECHARGE

CMH

BANK BANK(S) BANK

NOPNOP NOPACTIVE NOP READ NOP ACTIVE

DOUT m

OUT

m+1

PRECHARGE

ALL BANKS

SINGLE BANKS

OUT

m+2D

OUT

m+3

ROW

DON’T CARE

UNDEFINED

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AC(3) 5.5 5.4 5.4 6 ns

AC(2) – 5.4 6 6 ns

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

HZ(3) 5.5 5.4 5.4 6 ns

HZ(2) – 5.4 6 6 ns

LZ1111ns

OH2333ns

RAS 42 120,000 37 120,000 44 120,000 50 120,000 ns

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

RP 18 15 20 20 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 4, the CAS latency = 2, and the READ burst is followed by a “manual” PRECHARGE.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

-6 -7E -75 -8E

Page 42

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

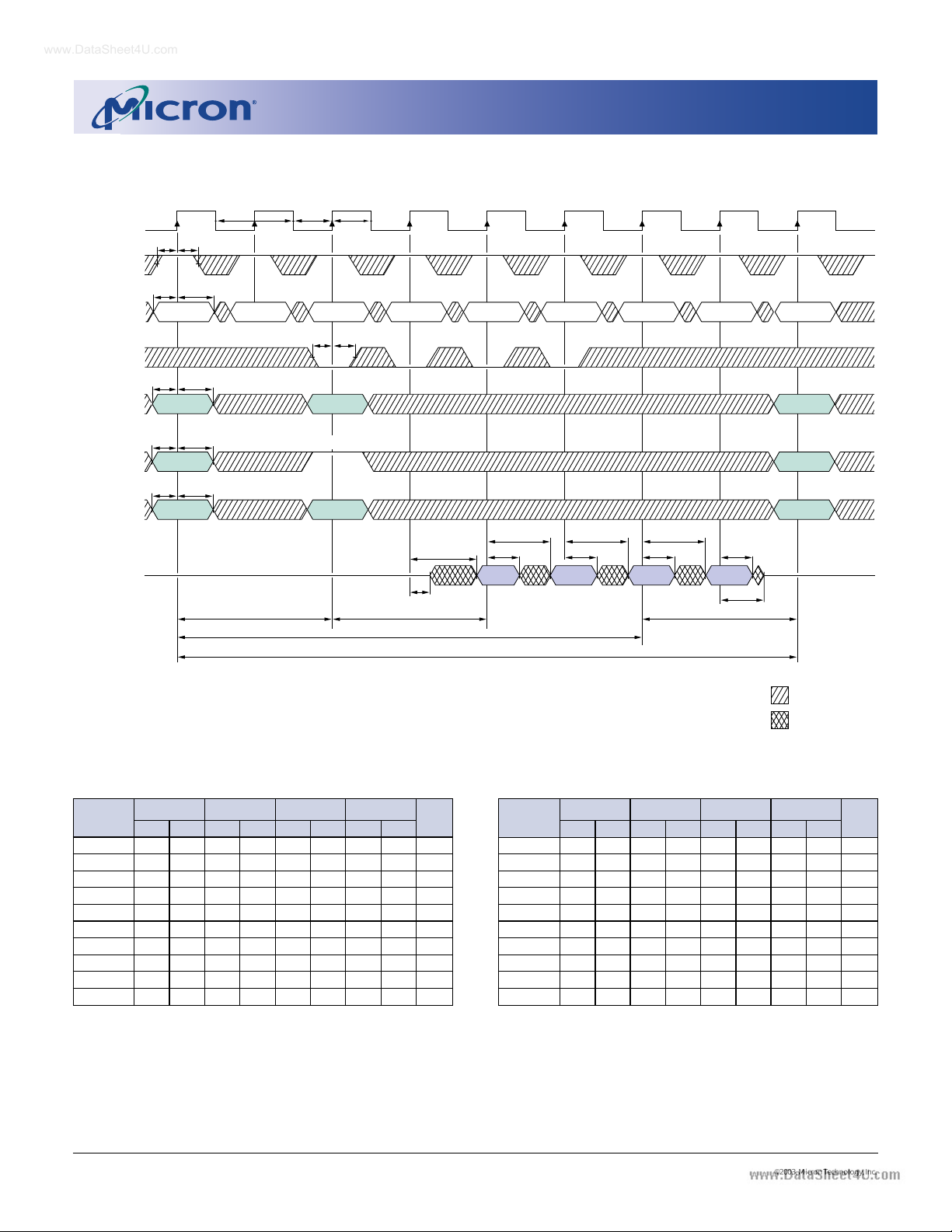

READ – WITH AUTO PRECHARGE

T0 T1 T2 T4T3 T5 T6 T7 T8

CKS

CMS

ROW

BANK

CKH

CMH

t t

RCD RAS

CMS

COLUMN m

ENABLE AUTO PRECHARGE

BANK

CMH

CAS Latency

NOPNOP NOPACTIVE NOP READ NOP ACTIVENOP

OUT

m + 1

OUT

m + 2D

OUT

m + 3

ROW

BANK

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AC(3) 5.5 5.4 5.4 6 ns

AC(2) – 5.4 6 6 ns

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 4, and the CAS latency = 2.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

HZ(3) 5.5 5.4 5.4 6 ns

HZ(2) – 5.4 6 6 ns

LZ1111ns

OH2333ns

RAS 42 120,000 37 120,000 44 120,000 50 120,000 ns

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

RP 18 15 20 20 ns

DON’T CARE UNDEFINED

-6 -7E -75 -8E

Page 43

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

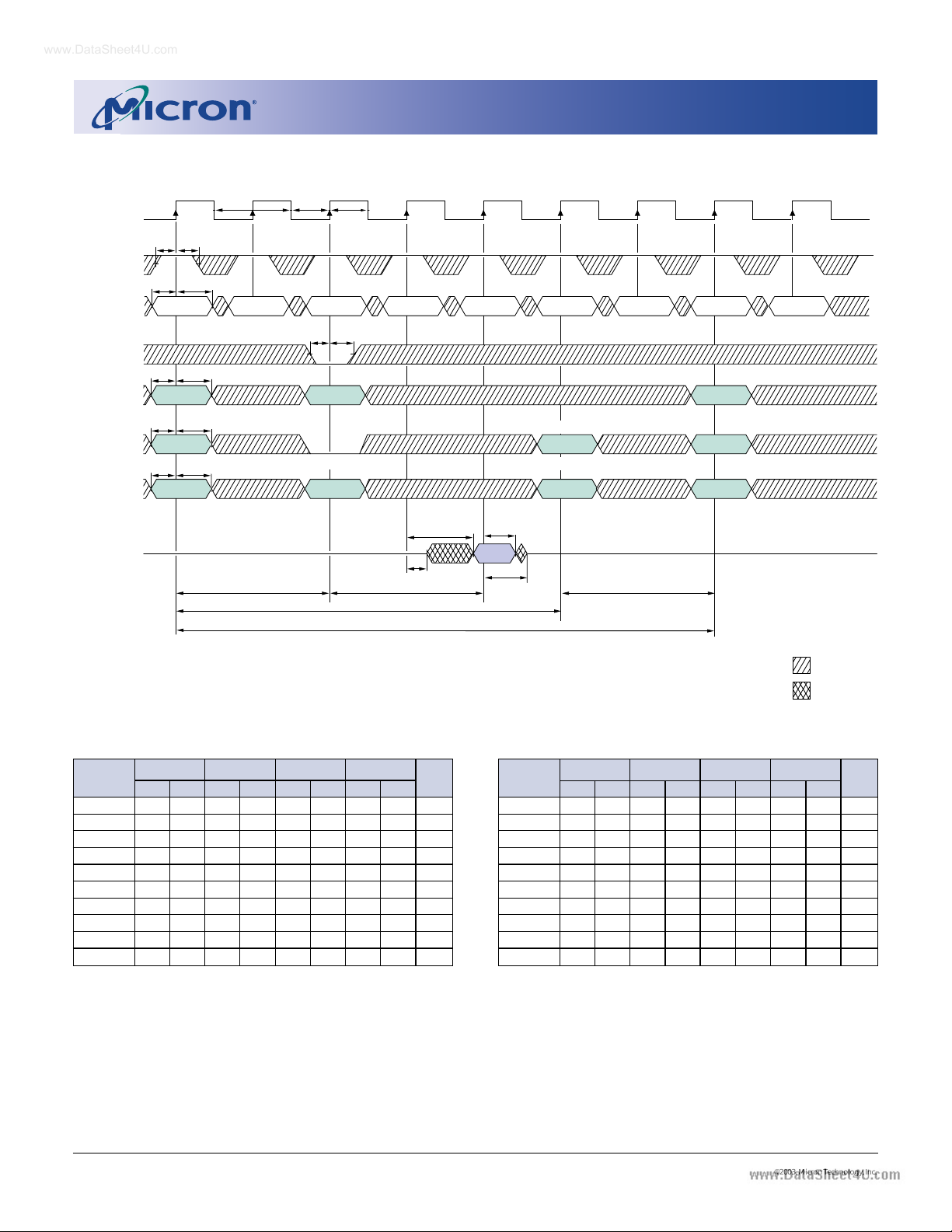

SINGLE READ – WITHOUT AUTO PRECHARGE

T0 T1 T2 T3 T4 T5 T6 T7 T8

CKS

CMS

ACTIVE NOP READ ACTIVE NOP

ROW

BANK

CKH

CMH

RCD CAS Latency

RAS

CMS

COLUMN m

DISABLE AUTO PRECHARGE

CMH

BANK

NOP

PRECHARGE

ALL BANKS

SINGLE BANKS

BANK(S)

OUT

NOPNOP

ROW

BANK

DON’T CARE

UNDEFINED

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AC(3) 5.5 5.4 5.4 6 ns

AC(2) – 5.4 6 6 ns

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

HZ(3) 5.5 5.4 5.4 6 ns

HZ(2) – 5.4 6 6 ns

LZ1111ns

OH2333ns

RAS 42 120,000 37 120,000 44 120,000 50 120,000 ns

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

RP 18 15 20 20 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 1, the CAS latency = 2, and the READ burst is followed by a “manual” PRECHARGE.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

3. PRECHARGE command not allowed else tRAS would be violated.

-6 -7E -75 -8E

Page 44

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMU

A0-A9, A11

A10

BA0, BA1

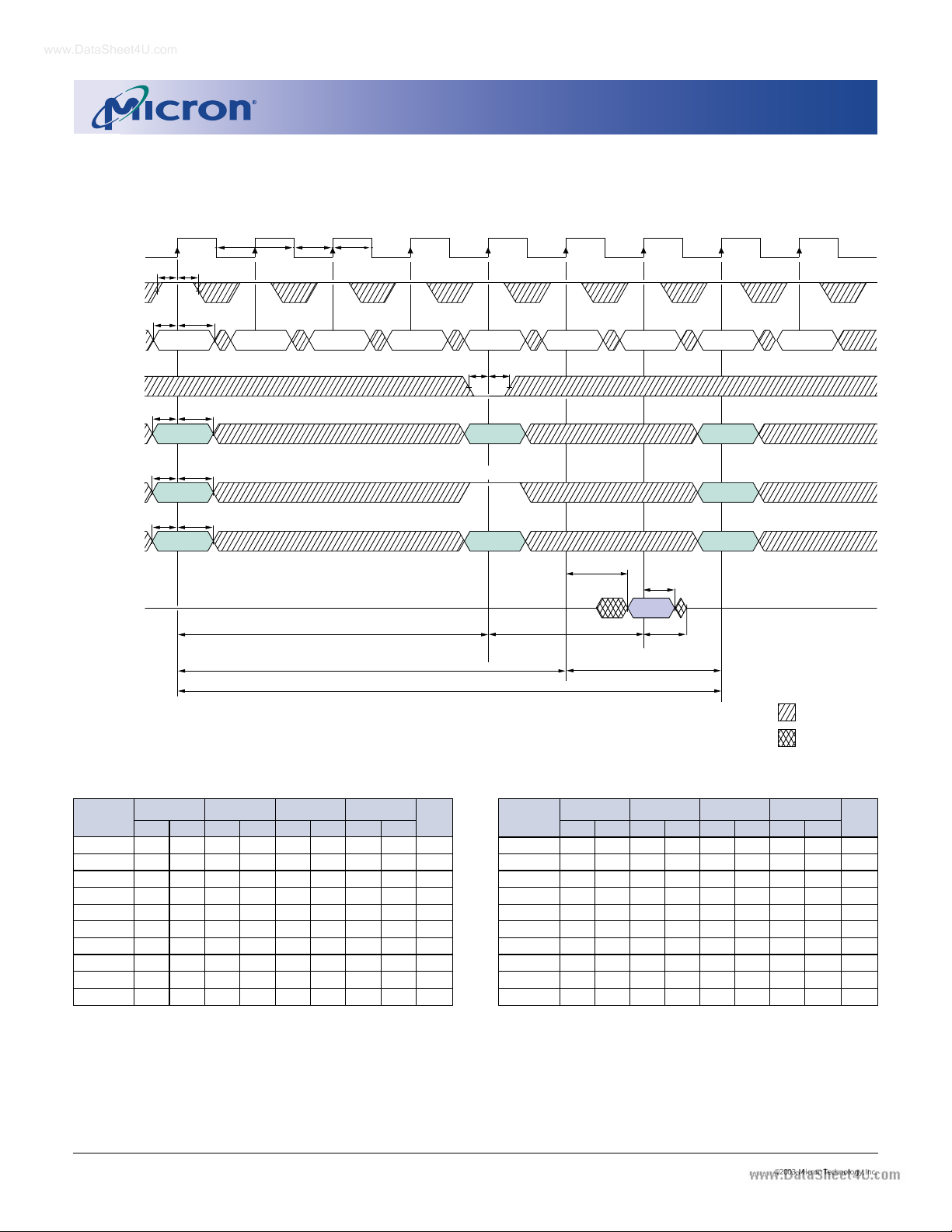

SINGLE READ – WITH AUTO PRECHARGE

T0 T1 T2 T4T3 T5 T6 T7 T8

CKS

CMS

ROW

BANK

CKH

CMH

RCD

NOP

CMS

COLUMN m

ENABLE AUTO PRECHARGE

READACTIVE NOP NOP

CMH

BANK

CAS Latency

NOP

ACTIVENOP

ROW

BANK

OUT

NOP

RAS

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AC(3) 5.5 5.4 5.4 6 ns

AC(2) – 5.4 6 6 ns

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 1, and the CAS latency = 2.

2. READ command not allowed or tRAS would be violated.

3. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

HZ(3) 5.5 5.4 5.4 6 ns

HZ(2) – 5.4 6 6 ns

LZ1111ns

OH2333ns

RAS 42 120,000 37 120,000 44 120,000 50 120,000 ns

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

RP 18 15 20 20 ns

-6 -7E -75 -8E

DON’T CARE UNDEFINED

Page 45

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

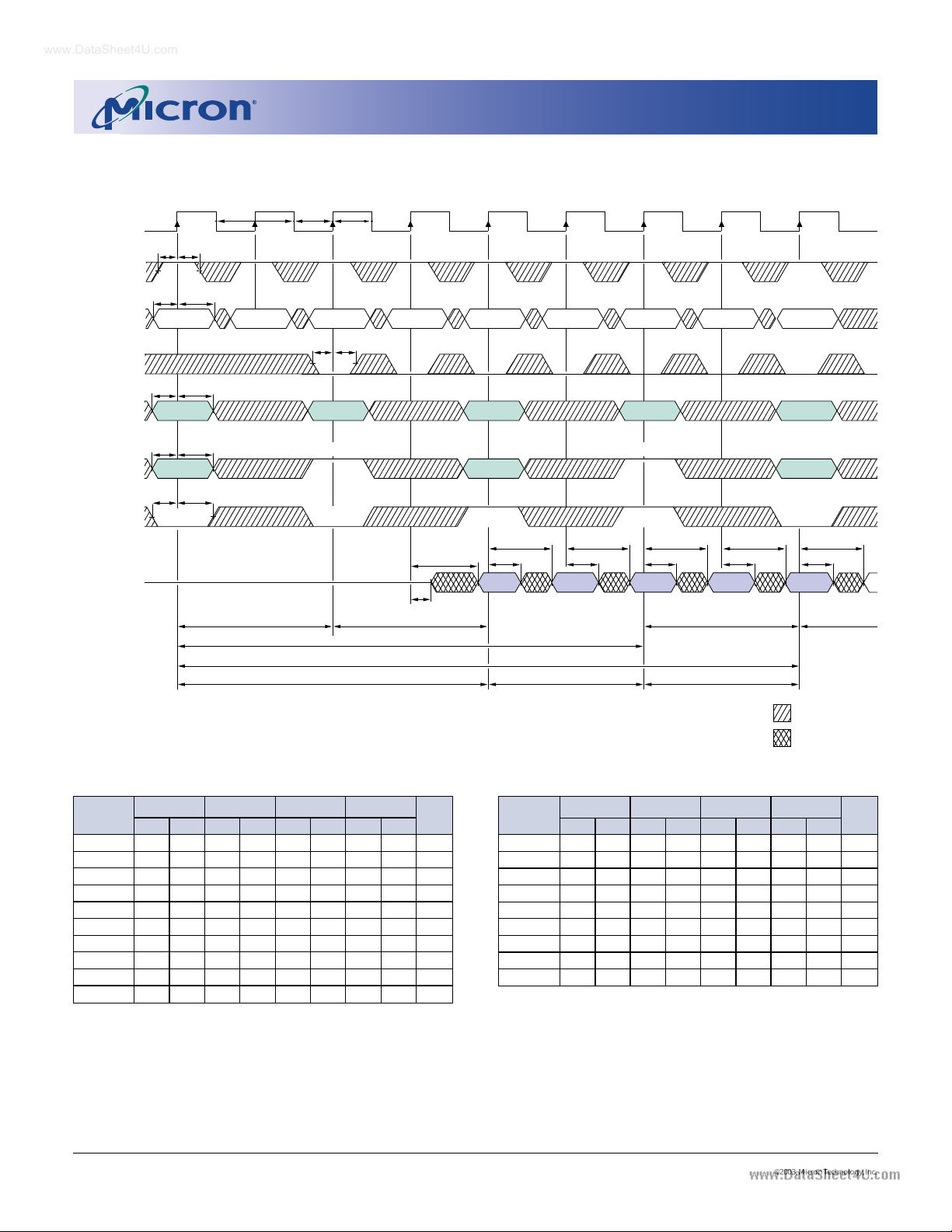

ALTERNATING BANK READ ACCESSES

T0 T1 T2 T4T3 T5 T6 T7 T8

CKS

CMS

ROW

BANK 0 BANK 0 BANK 3 BANK 3

CKH

CMH

RCD - BANK 0

RAS - BANK 0

RC - BANK 0

RRD

CMS

COLUMN m

ENABLE AUTO PRECHARGE

CMH

CAS Latency - BANK 0

NOP NOPACTIVE NOP READ NOP ACTIVE

ACTIVE

ROW

OUT

RCD - BANK 3

ENABLE AUTO PRECHARGE

OUT

m + 1

READ

COLUMN b

OUT

m + 2D

CAS Latency - BANK 3

OUT

m + 3

RP - BANK 0

ROW

BANK 0

OUT

RCD - BANK 0

DON’T CARE UNDEFINED

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AC(3) 5.5 5.4 5.4 6 ns

AC(2) – 5.4 6 6 ns

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

LZ1111ns

OH2333ns

RAS 42 120,000 37 120,000 44 120,000 50 120,000 ns

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

RP 18 15 20 20 ns

RRD 12 14 15 20 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 4, and the CAS latency = 2.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

-6 -7E -75 -8E

Page 46

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

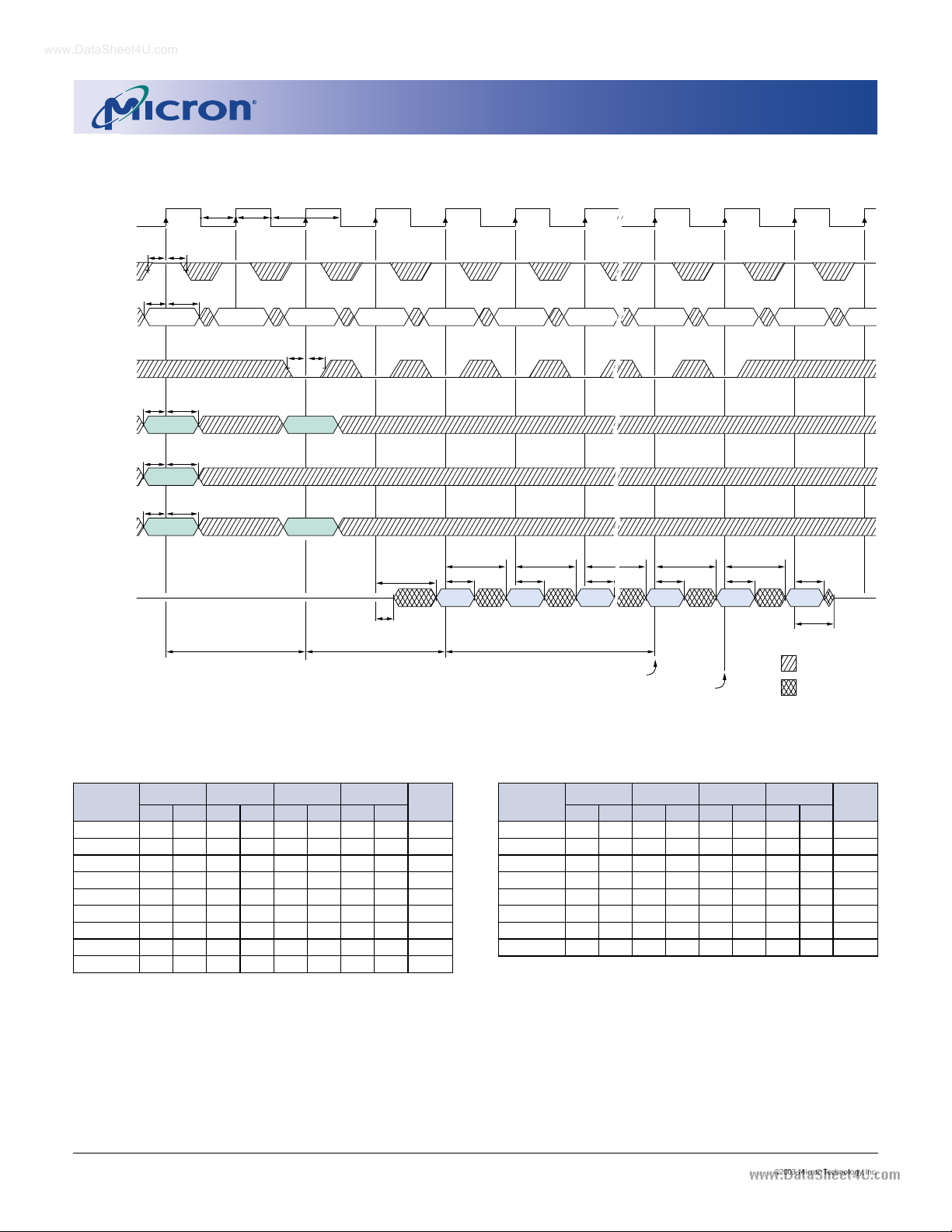

READ – FULL-PAGE BURST

T0 T1 T2 T4T3 T5 T6 Tn + 1 Tn + 2 Tn + 3 Tn + 4

CKS

CMS

ROW

BANK

CKH

CMH

tAHt

RCD CAS Latency

CMS

CMH

COLUMN m

BANK

NOPNOP NOPACTIVE NOP READ NOP BURST TERMNOP NOP

OUT

256 (x16) locations within same row 512 (x8) locations within same row

1,024 (x4) locations within same row

OUT

m+1

Full-page burst does not self-terminate.

Can use BURST TERMINATE command.

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

OUT

m+2

()(

)

Full page completed

NOP

OUT

m-1

OUT

m+1

DON’T CARE

UNDEFINED

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AC(3) 5.5 5.4 5.4 6 ns

AC(2) – 5.4 6 6 ns

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

HZ(3) 5.5 5.4 5.4 6 ns

HZ(2) – 5.4 6 6 ns

LZ1111 ns

OH2333 ns

RCD 18 15 20 20 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the CAS latency = 2.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

3. Page left open; no

RP.

-6 -7E -75 -8E

Page 47

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

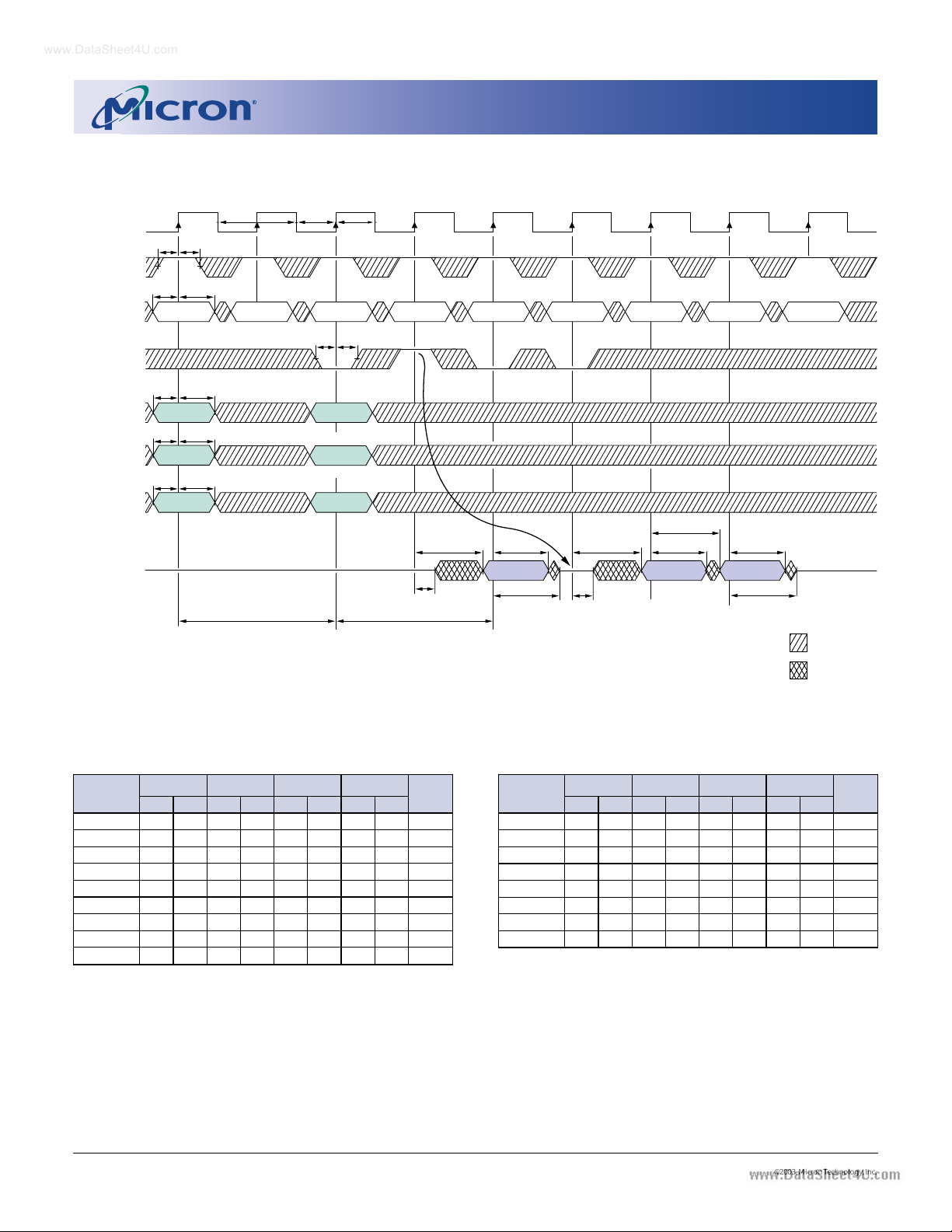

READ – DQM OPERATION

T0 T1 T2 T4T3 T5 T6 T7 T8

CKS

CMS

ROW

BANK

CKH

CMH

RCD CAS Latency

CMS

COLUMN m

ENABLE AUTO PRECHARGE

DISABLE AUTO PRECHARGE

BANK

CMH

NOPNOP NOPACTIVE NOP READ NOPNOP NOP

OUT

m + 2

OUT

m + 3D

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AC(3) 5.5 5.4 5.4 6 ns

AC(2) – 5.4 6 6 ns

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 4, and the CAS latency = 2.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

HZ(3) 5.5 5.4 5.4 6 ns

HZ(2) – 5.4 6 6 ns

LZ1111 ns

OH2333 ns

RCD 18 15 20 20 ns

DON’T CARE

UNDEFINED

-6 -7E -75 -8E

Page 48

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

ALL BANKS

SINGLE BANK

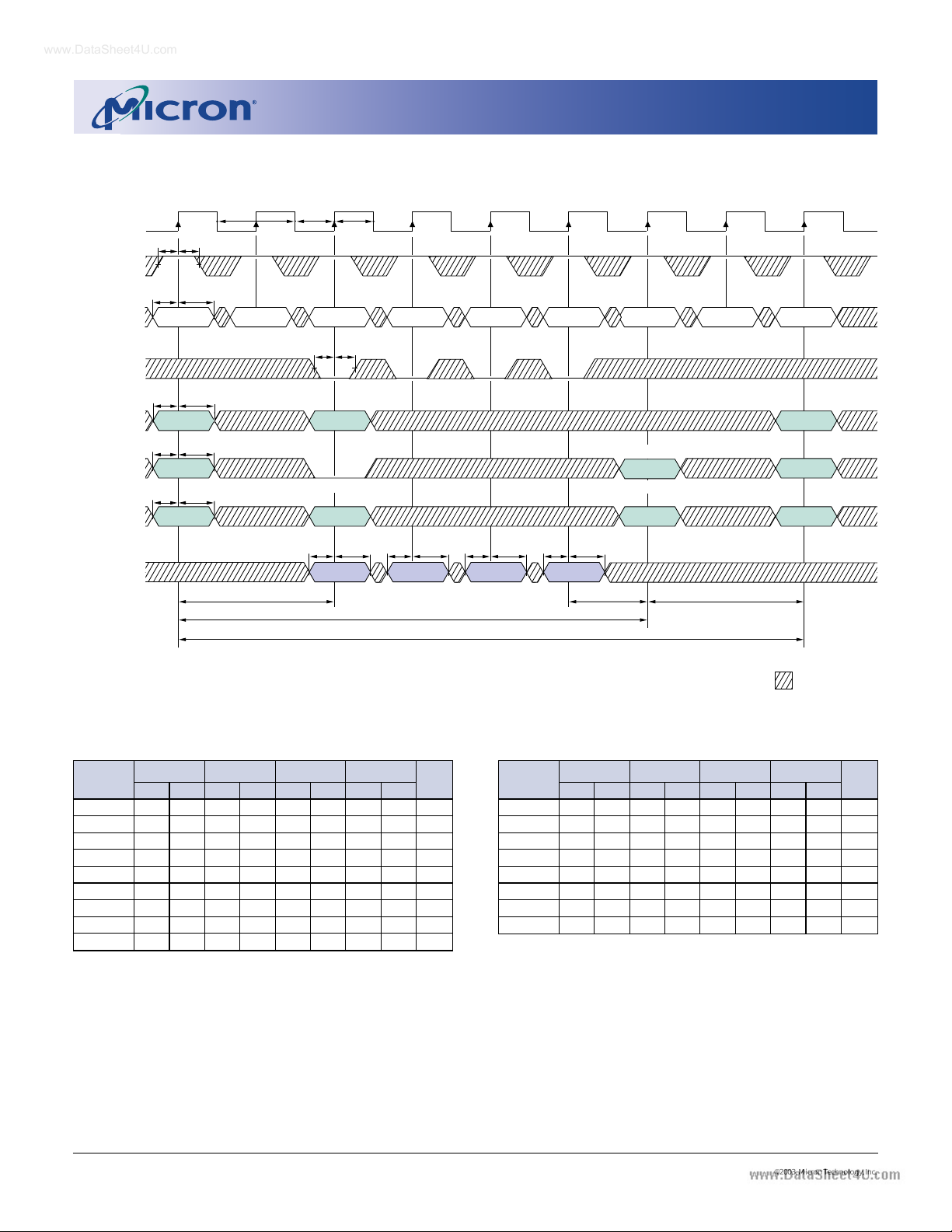

WRITE – WITHOUT AUTO PRECHARGE

T0 T1 T2 T4T3 T5 T6 T7 T8

CKS

CMS

ROW

BANK

CKH

CMH

RCD

RAS

NOPNOP NOPACTIVE NOP WRITE NOPPRECHARGE ACTIVE

CMS

CMH

COLUMN m

DISABLE AUTO PRECHARGE

BANK BANK BANK

DIN m

DIN m + 1 DIN m + 2 DIN m + 3

ROW

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CMS 1.5 1.5 1.5 2 ns

DH 1 0.8 0.8 1 ns

DS 1.5 1.5 1.5 2 ns

RAS 42 120,000 37 120,000 44 120,000 50 120,000 ns

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

RP 18 15 20 20 ns

WR 12 14 15 15 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 4, and the WRITE burst is followed by a “manual” PRECHARGE.

2. 15ns is required between <DIN m> and the PRECHARGE command, regardless of frequency.

3. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

-6 -7E -75 -8E

DON’T CARE

Page 49

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

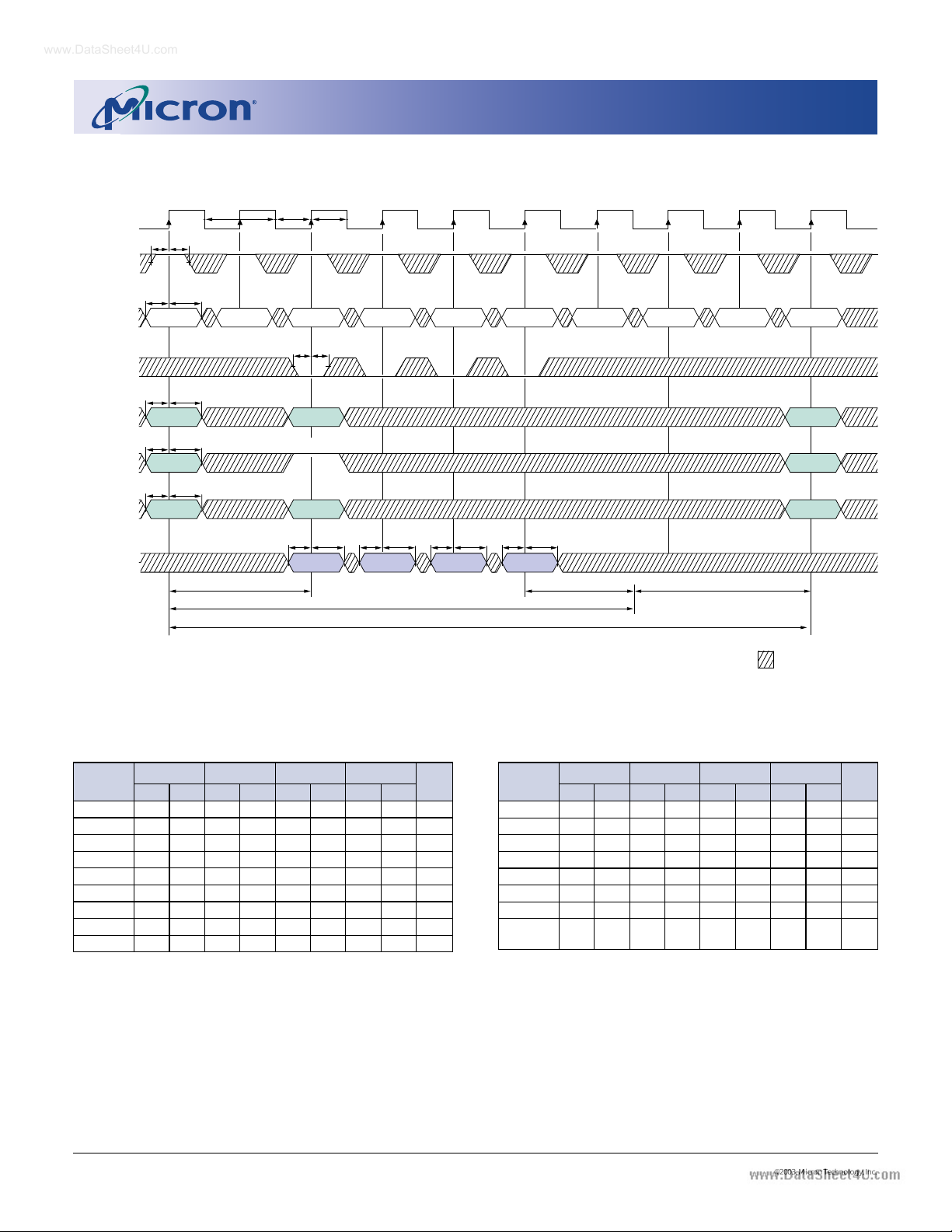

WRITE – WITH AUTO PRECHARGE

T0 T1 T2 T4T3 T5 T6 T7 T8 T9

CKS

CMS

ROW

BANK

CKH

CMH

RCD

RAS

NOPNOP NOPACTIVE NOP WRITE NOP ACTIVE

CMS

CMH

COLUMN m

ENABLE AUTO PRECHARGE

BANK BANK

DIN m

DIN m + 1 DIN m + 2 DIN m + 3

NOP NOP

ROW

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

*CAS latency indicated in parentheses. NOTE: 1. For this example, the burst length = 4.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

DON’T CARE

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CMS 1.5 1.5 1.5 2 ns

DH 1 0.8 0.8 1 ns

DS 1.5 1.5 1.5 2 ns

RAS 42

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

RP 18 15 20 20 ns

WR 1 CLK 1 CLK 1 CLK 1 CLK –

120,000

+ 6ns + 7ns

120,000

+ 7.5ns

120,000

+ 7ns

120,000

Page 50

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

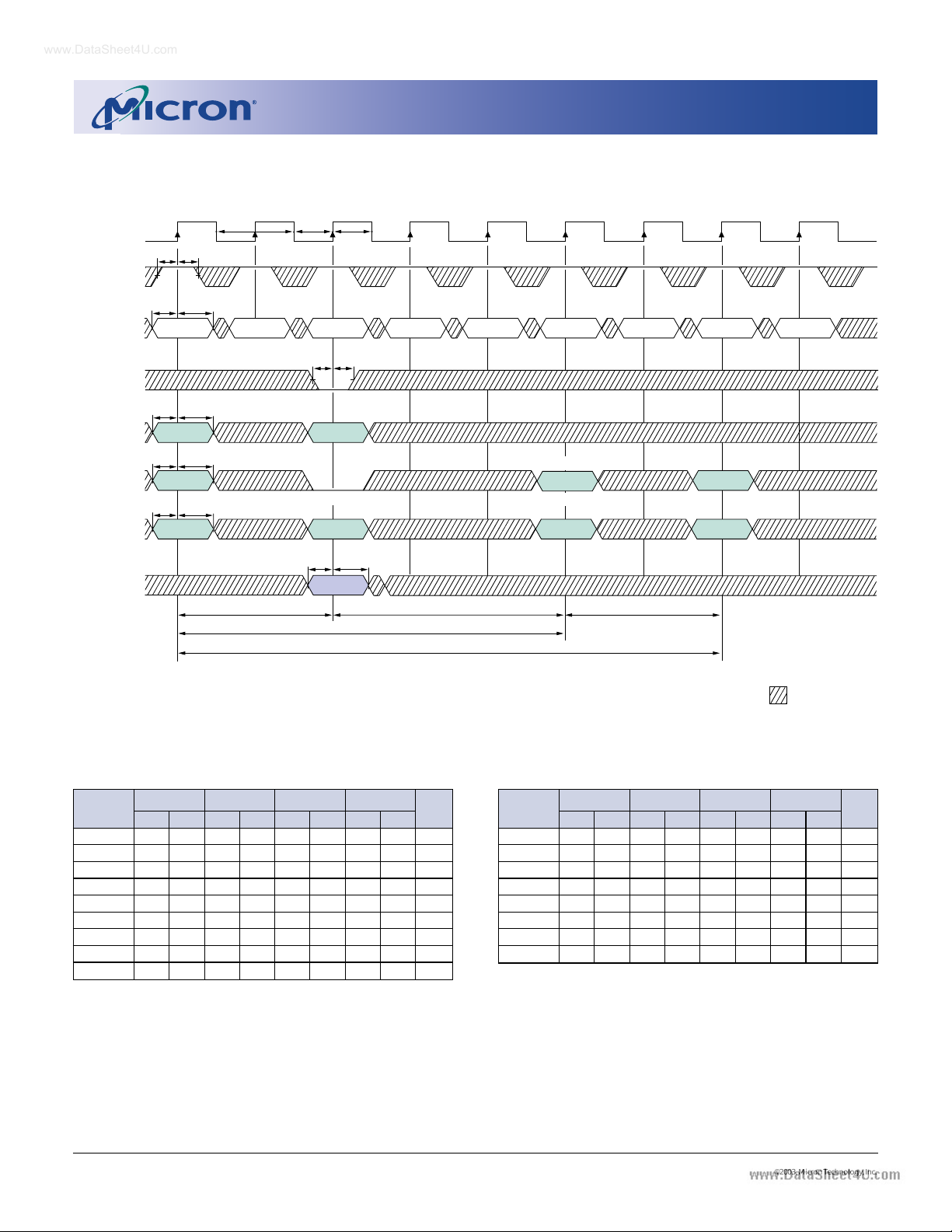

SINGLE WRITE – WITHOUT AUTO PRECHARGE

T0 T1 T2 T4T3 T5 T6 T7 T8

CKS

CMS

ACTIVE NOP WRITE NOP

ROW

BANK

CKH

CMH

RCD

RAS

CMS

CMH

BANK

DIN m

COLUMN m

DISABLE AUTO PRECHARGE

NOP

PRECHARGE ACTIVE NOP

ALL BANKS

SINGLE BANK

BANK BANK

NOP

ROW

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CMS 1.5 1.5 1.5 2 ns

DH 1 0.8 0.8 1 ns

DS 1.5 1.5 1.5 2 ns

RAS 42

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

RP 18 15 20 20 ns

WR 12 14 15 15 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 1, and the WRITE burst is followed by a “manual” PRECHARGE.

2. 15ns is required between <DIN m> and the PRECHARGE command, regardless of frequency.

3. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

4. PRECHARGE command not allowed else tRAS would be violated.

-6 -7E -75 -8E

120,000

DON’T CARE

120,000

Page 51

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

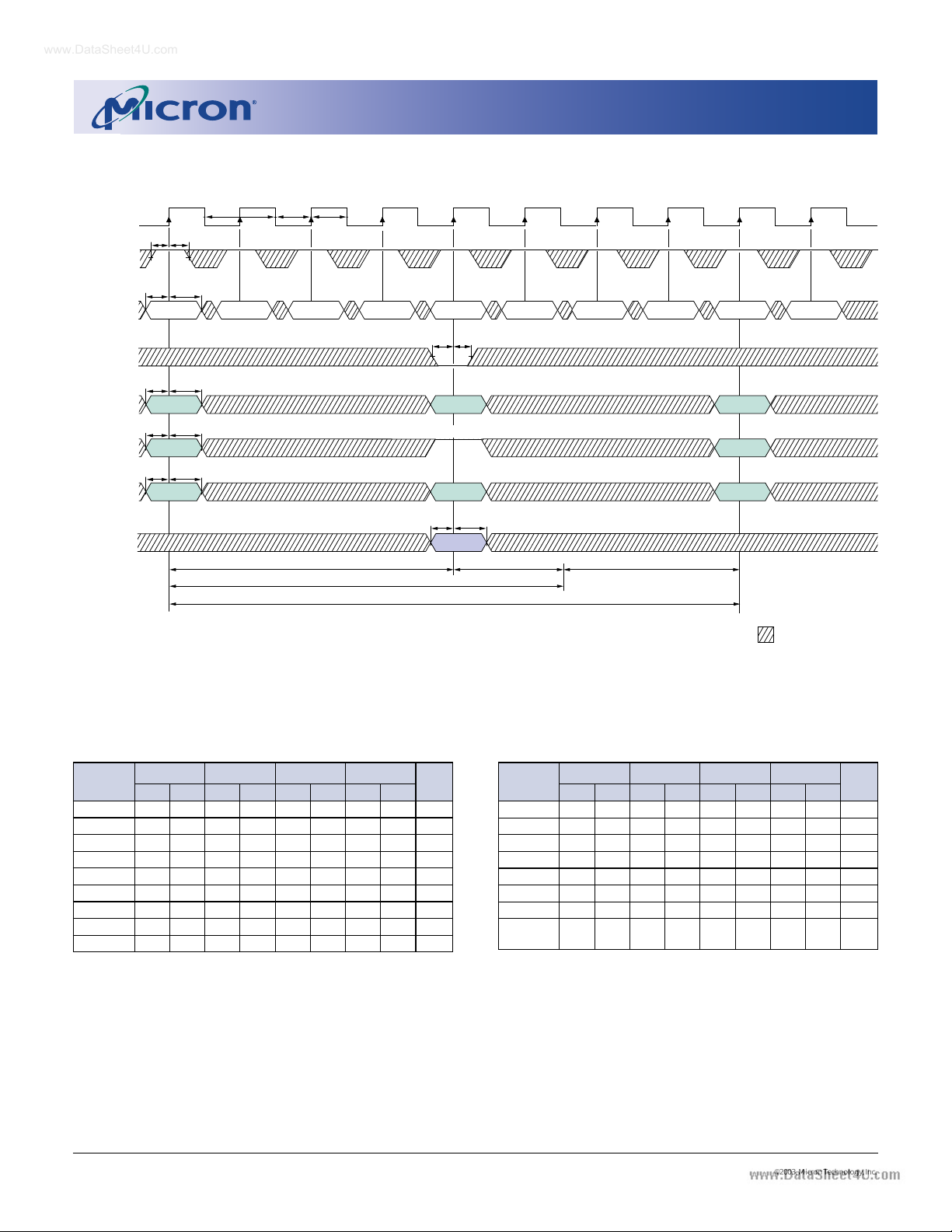

SINGLE WRITE – WITH AUTO PRECHARGE

T0 T1 T2 T4T3 T5 T6 T7 T8 T9

CKS

CMS

ROW

BANK

CKH

CMH

t t t

RCD RAS RC

NOP

CMS

COLUMN m

ENABLE AUTO PRECHARGE

NOPACTIVE NOP

NOP NOP

WRITE

CMH

BANK BANK

DIN m

ACTIVE

ROW

NOP

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

*CAS latency indicated in parentheses. NOTE: 1. For this example, the burst length = 1.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

3. WRITE command not allowed else tRAS would be violated.

DON’T CARE

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CMS 1.5 1.5 1.5 2 ns

DH 1 0.8 0.8 1 ns

DS 1.5 1.5 1.5 2 ns

RAS 42

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

RP 18 15 20 20 ns

WR 1 CLK 1 CLK 1 CLK 1 CLK –

120,000

+ 6ns + 7ns

120,000

+ 7.5ns

120,000

+ 7ns

120,000

Page 52

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

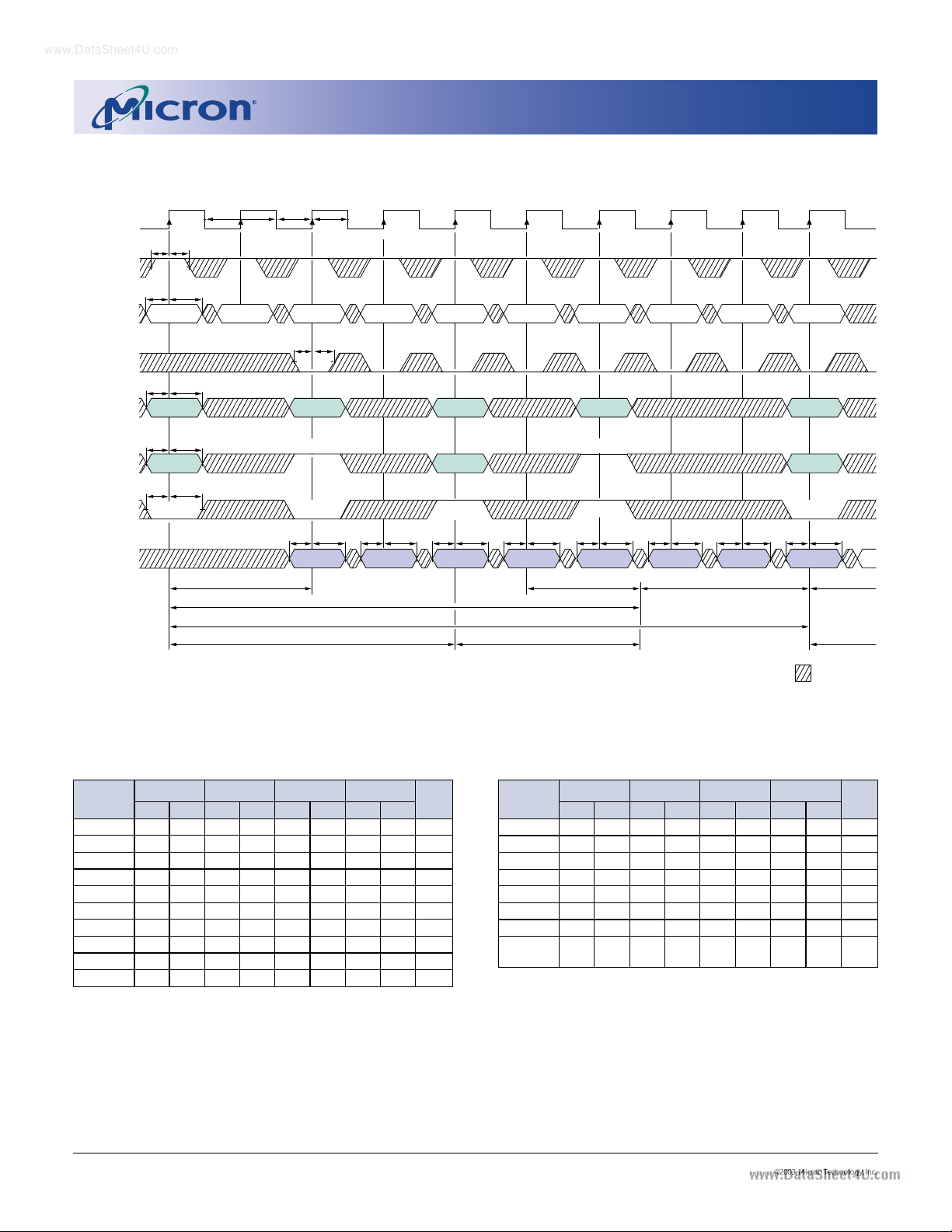

ALTERNATING BANK WRITE ACCESSES

T0 T1 T2 T3 T4 T5 T6 T7 T8 T9

CKS

CMS

ROW

BANK 0 BANK 0 BANK 1

CKH

CMH

t t

RCD - BANK 0 RAS - BANK 0

RC - BANK 0 RRD

CMS

CMH

COLUMN m

ENABLE AUTO PRECHARGE

DIN m

NOP NOPACTIVE NOP WRITE NOP NOP ACTIVE

DIN m + 1 DIN m + 2 DIN m + 3

ACTIVE WRITE

ROW

ENABLE AUTO PRECHARGE

ROW

RCD - BANK 1

WR - BANK 0

COLUMN b

BANK 1

DIN b

DIN b + 1 DIN b + 3 t

RP - BANK 0

DIN b + 2

ROW

BANK 0

RCD - BANK 0

WR - BANK 1

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 4.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

DON’T CARE

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

DH 1 0.8 0.8 1 ns

DS 1.5 1.5 1.5 2 ns

RAS 42

RC 60 60 66 70 ns

RCD 18 15 20 20 ns

RP 18 15 20 20 ns

RRD 12 14 15 20 ns

WR 1 CLK 1 CLK 1 CLK 1 CLK –

120,000

+ 6ns + 7ns

120,000

+ 7.5ns

120,000

+ 7ns

120,000

Page 53

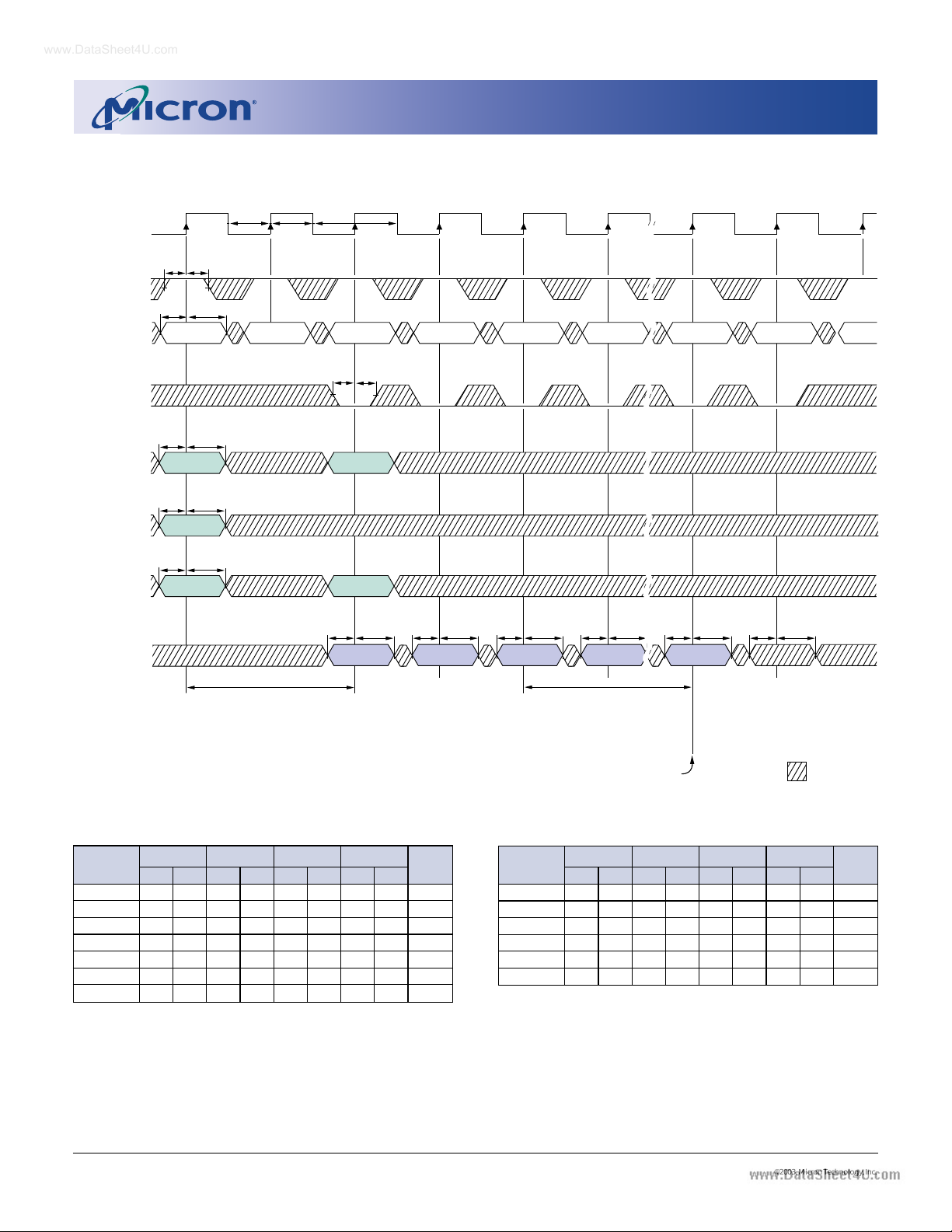

WRITE – FULL-PAGE BURST

www.DataSheet4U.com

64Mb: x4, x8, x16

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

T0 T1 T2 T3 T4 T5 Tn + 1 Tn + 2 Tn + 3

CKS

CMS

ROW

BANK

CKH

CMH

RCD

CMS

COLUMN m

BANK

DIN m

CMH

NOPNOP NOPACTIVE NOP WRITE BURST TERMNOP NOP

DIN m + 1 DIN m + 2 DIN m + 3

256 (x16) locations within same row 512 (x8) locations within same row 1,024 (x4) locations within same row

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

()(

)

DIN m - 1

Full-page burst does not self-terminate. Can use BURST TERMINATE command to stop.

2, 3

Full page completed

DON’T CARE

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

DH 1 0.8 0.8 1 ns

DS 1.5 1.5 1.5 2 ns

RCD 18 15 20 20 ns

*CAS latency indicated in parentheses. NOTE: 1. x16: A8, A9 and A11 = “Don’t Care”

x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

2.tWR must be satisfied prior to PRECHARGE command.

3. Page left open; no tRP.

-6 -7E -75 -8E

Page 54

64Mb: x4, x8, x16

www.DataSheet4U.com

SDRAM

CLK

CKE

COMMAND

DQM /

DQML, DQMH

A0-A9, A11

A10

BA0, BA1

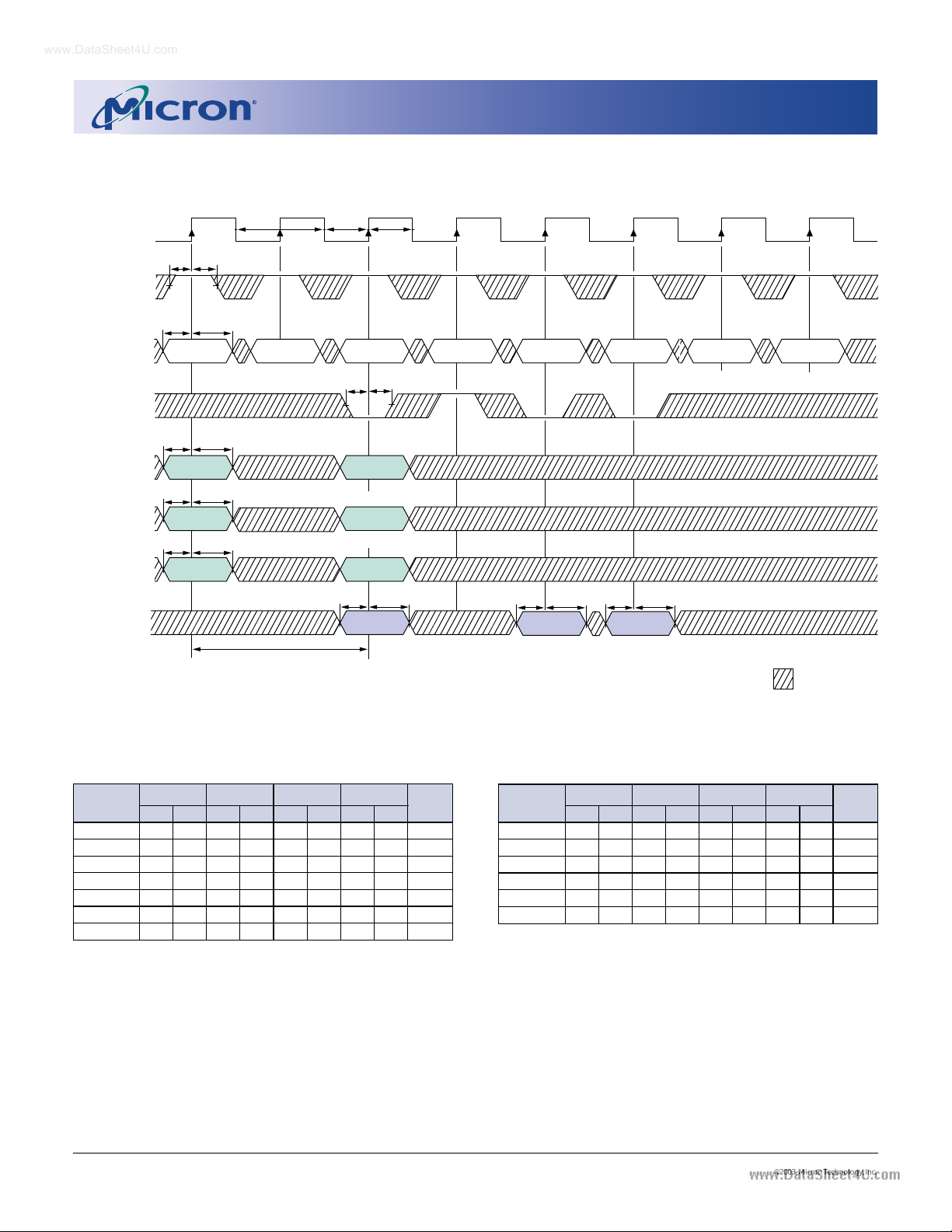

WRITE – DQM OPERATION

T0 T1 T2 T3 T4 T5 T6 T7

CMS

CMH

BANK

DIN m

COLUMN m

ENABLE AUTO PRECHARGE

DISABLE AUTO PRECHARGE

NOPNOP NOPACTIVE NOP WRITE NOPNOP

DIN m + 2

DIN m + 3

CKS

CMS

ROW

BANK

CKH

CMH

RCD

TIMING PARAMETERS

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

AH 1 0.8 0.8 1 ns

AS 1.5 1.5 1.5 2 ns

CH 2.5 2.5 2.5 3 ns

CL 2.5 2.5 2.5 3 ns

CK(3) 6 7 7.5 8 ns

CK(2) – 7.5 10 10 ns

CKH 1 0.8 0.8 1 ns

*CAS latency indicated in parentheses.

NOTE: 1. For this example, the burst length = 4.

2. x16: A8, A9 and A11 = “Don’t Care” x8: A9 and A11 = “Don’t Care” x4: A11 = “Don’t Care”

DON’T CARE

-6 -7E -75 -8E

SYMBOL* MIN MAX MIN MAX MIN MAX MIN MAX UNITS

CKS 1.5 1.5 1.5 2 ns

CMH 1 0.8 0.8 1 ns

CMS 1.5 1.5 1.5 2 ns

DH 1 0.8 0.8 1 ns

DS 1.5 1.5 1.5 2 ns

RCD 18 15 20 20 ns

Page 55

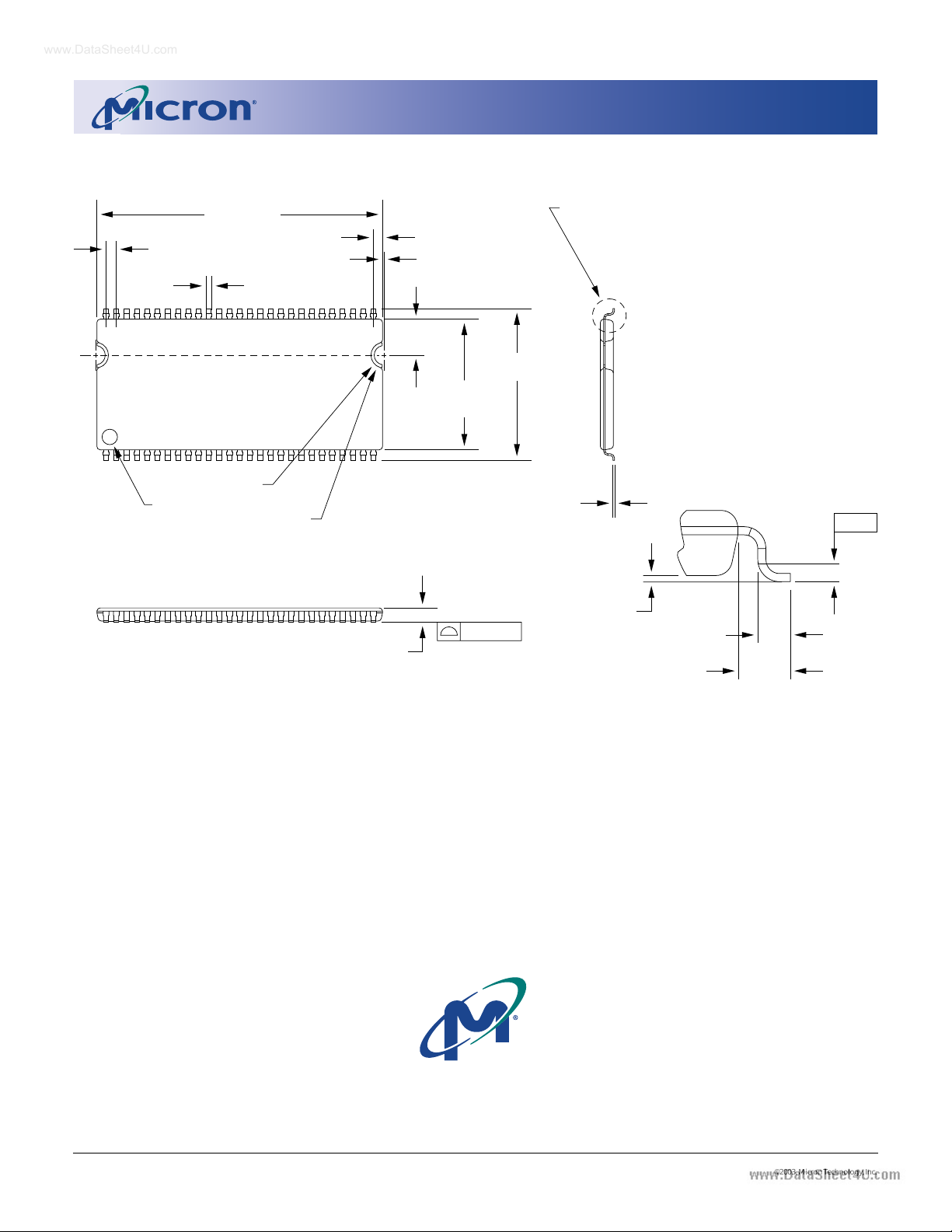

54-PIN PLASTIC TSOP (400 mil)

www.DataSheet4U.com

64Mb: x4, x8, x16

SDRAM

.80 TYP

PIN #1 ID

22.22 ±.08

R .75 (2X)

.375 ±.075 TYP

R 1.00 (2X)

1.2 MAX

2.80

.71 .10 (2X)

10.16 ±.08

11.76 ±.20

.10

.15

+.03

-.02

SEE DETAIL A

+.10

.10

-.05

.25

.50 ±.10

.80 TYP

NOTE: 1. All dimensions in millimeters.

2. Package width and length do not include mold protrusion; allowable mold protrusion is 0.25mm per side.

8000 S. Federal Way, P.O. Box 6, Boise, ID 83707-0006, Tel: 208-368-3900

E-mail: [email protected], Internet: http://www.micron.com, Customer Comment Line: 800-932-4992

Micron, the M logo, and the Micron logo are trademarks and/or service marks of Micron Technology, Inc.

DETAIL A
