DC Plug/Socket
www.schurter.com/PG12

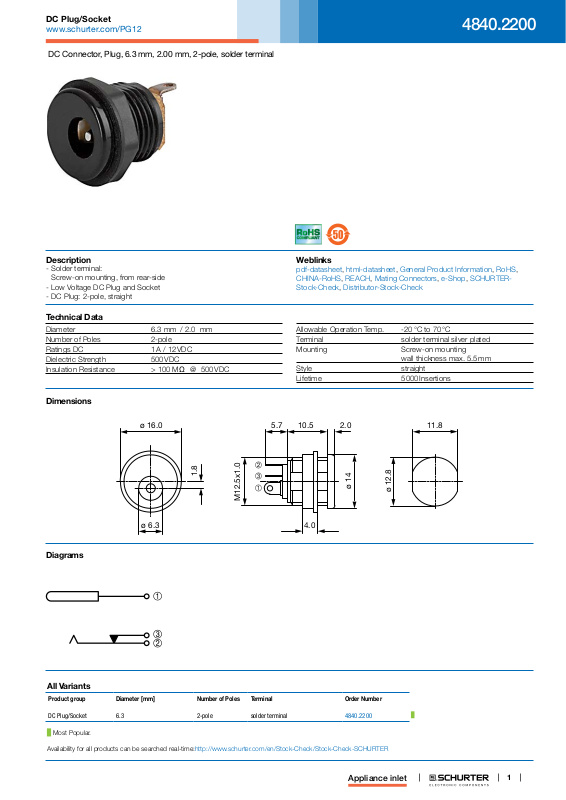

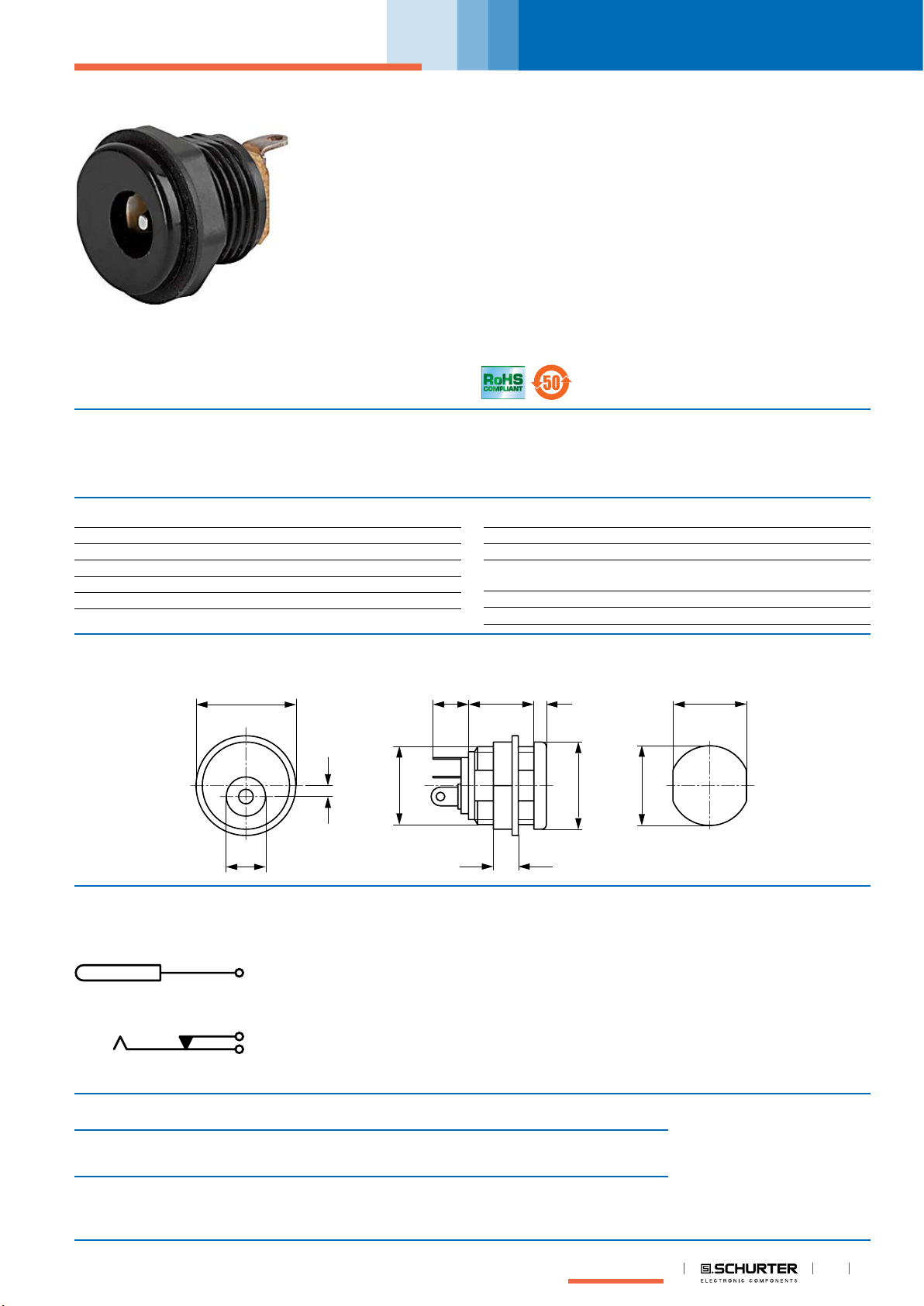

DC Connector, Plug, 6.3 mm, 2.00 mm, 2-pole, solder terminal
4840.2200
Description
- Solder terminal:
Screw-on mounting, from rear-side
- Low Voltage DC Plug and Socket
- DC Plug: 2-pole, straight
Technical Data
Diameter 6.3 mm / 2.0 mm
Number of Poles 2-pole
Ratings DC 1 A / 12 VDC
Dielectric Strength 500 VDC
Insulation Resistance > 100 MΩ␣ @ 500 VDC
Dimensions
ø 16.0
1.8
ø 6.3
M12.5x1.0
Weblinks
pdf-datasheet, html-datasheet, General Product Information, RoHS,
CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTERStock-Check, Distributor-Stock-Check
Allowable Operation Temp. -20 °C to 70 °C
Terminal solder terminal silver plated
Mounting Screw-on mounting
Style straight
Lifetime 5000 Insertions
10.5 11.82.05.7
ø 14
4.0
wall thickness max. 5.5 mm
ø 12.8
Diagrams
All Variants
Product group Diameter [mm] Number of Poles Terminal Order Number
DC Plug/Socket 6.3 2-pole solder terminal 4840.2200
█ Most Popular.
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Appliance inlet
█
1
Page 2
4840.2200
www.schurter.com/PG12
DC Plug/Socket
Packaging unit
Mating Inlets/Plugs
250 Pcs
Category / Description
DC Plug/Socket Overview complete
4840, solder terminal, , Plug, 5.5 mm, 2-pole, DC Plug/Socket 4840.1200
4840, Cable, , Plug, 5.5 mm, 2-pole, DC Plug/Socket 4840.5200
4840, Cable, , Plug, 5.5 mm, 2-pole, DC Plug/Socket 4840.5201
DC Plug/Socket further types to 4840 DC-Stecker, verschiedene
22.07.2014
