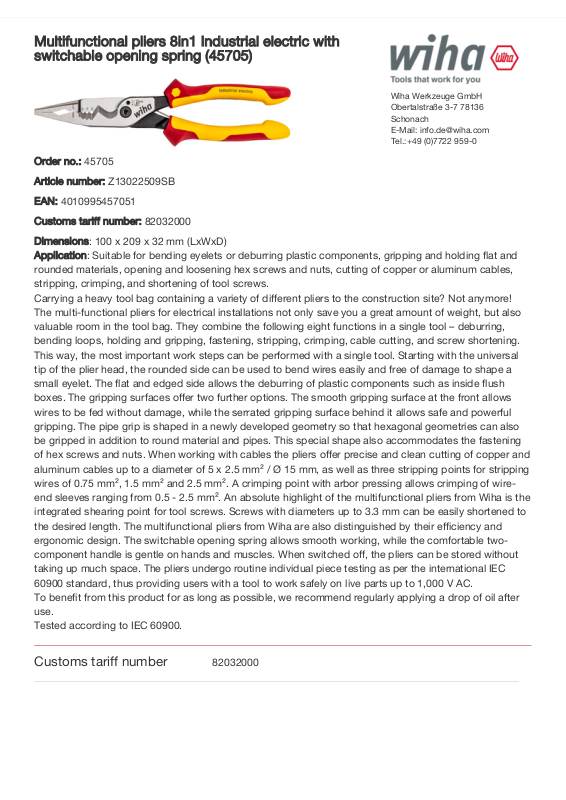

Datasheet 45705 Specification

Multifunctional pliers 8in1 Industrial electric with
switchable opening spring (45705)

Wiha Werkzeuge GmbH
Obertalstraße 3-7 78136
Schonach
E-Mail: [e-mail]
Tel.:[phone]

Order no.: 45705

Article number: Z13022509SB

EAN: 4010995457051

Customs tariff number: 82032000

Dimensions: 100 x 209 x 32 mm (LxWxD)
Application: Suitable for bending eyelets or deburring plastic components, gripping and holding flat and
rounded materials, opening and loosening hex screws and nuts, cutting of copper or aluminum cables,
stripping, crimping, and shortening of tool screws.
Carrying a heavy tool bag containing a variety of different pliers to the construction site? Not anymore!
The multi-functional pliers for electrical installations not only save you a great amount of weight, but also

valuable room in the tool bag. They combine the following eight functions in a single tool – deburring,

bending loops, holding and gripping, fastening, stripping, crimping, cable cutting, and screw shortening.
This way, the most important work steps can be performed with a single tool. Starting with the universal
tip of the plier head, the rounded side can be used to bend wires easily and free of damage to shape a
small eyelet. The flat and edged side allows the deburring of plastic components such as inside flush
boxes. The gripping surfaces offer two further options. The smooth gripping surface at the front allows
wires to be fed without damage, while the serrated gripping surface behind it allows safe and powerful
gripping. The pipe grip is shaped in a newly developed geometry so that hexagonal geometries can also
be gripped in addition to round material and pipes. This special shape also accommodates the fastening
of hex screws and nuts. When working with cables the pliers offer precise and clean cutting of copper and
aluminum cables up to a diameter of 5 x 2.5 mm² / Ø 15 mm, as well as three stripping points for stripping
wires of 0.75 mm², 1.5 mm² and 2.5 mm². A crimping point with arbor pressing allows crimping of wire­end sleeves ranging from 0.5 - 2.5 mm². An absolute highlight of the multifunctional pliers from Wiha is the
integrated shearing point for tool screws. Screws with diameters up to 3.3 mm can be easily shortened to
the desired length. The multifunctional pliers from Wiha are also distinguished by their efficiency and
ergonomic design. The switchable opening spring allows smooth working, while the comfortable two­component handle is gentle on hands and muscles. When switched off, the pliers can be stored without
taking up much space. The pliers undergo routine individual piece testing as per the international IEC
60900 standard, thus providing users with a tool to work safely on live parts up to 1,000 V AC.
To benefit from this product for as long as possible, we recommend regularly applying a drop of oil after
use.
Tested according to IEC 60900.

Customs tariff number

82032000

Area stripped, cross
section min. (mm²)

0.75 mm²

Area stripped, cross
section max. (mm²)

Area stripped min (AWG)

Area stripped max (AWG)

Self service - packing

Cross-sectional area,
max. (mm²)

Overall length (mm)

Overall length (Inch)

2.5 mm²

20

14

Yes

50 mm²

225 mm

9"

Tool for electrics

Country of origin (ISO
3166-1 Alpha 3)

Yes

VNM
