Datasheet 449THFS9028 Datasheet (Marathon Electric)

PRODUCT INFORMATION PACKET

Model No: 449THFS9028

Catalog No: W626

250,1800,TEFC,449T,3/60/460

Severe Duty

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 6

Product Information Packet: Model No: 449THFS9028, Catalog No:W626 250,1800,TEFC,449T,3/60/460 Nameplate Specifications

Output HP 250 Hp Output KW 187.0 kW Frequency Current 285.0 A Speed 1785 rpm Service Factor Efficiency Insulation Class F Design Code B KVA Code Enclosure Totally Enclosed Fan Cooled Overload Protector No Ambient Temperature 40 °C Drive End Bearing Size 6319 Opp Drive End Bearing Size CSA Y CE Y IP Code

60 Hz

1.15

96.5 %

G

6318

56

Voltage

Phase Duty

Frame

UL

460 V

3 Continous

447/449T

Recognized

Technical Specifications

Electrical Type Poles Mounting Rigid Base Motor Orientation Horizontal

Squirrel Cage Inverter Rated 4

Starting Method Rotation

Line Or Inverter Reversible

Drive End Bearing Frame Material Cast Iron Shaft Type T Overall Length 51.84 in Frame Length 28.75 in Shaft Diameter Assembly/Box Mounting F1/F2 Capable Outline Drawing

Ball

3.375 in

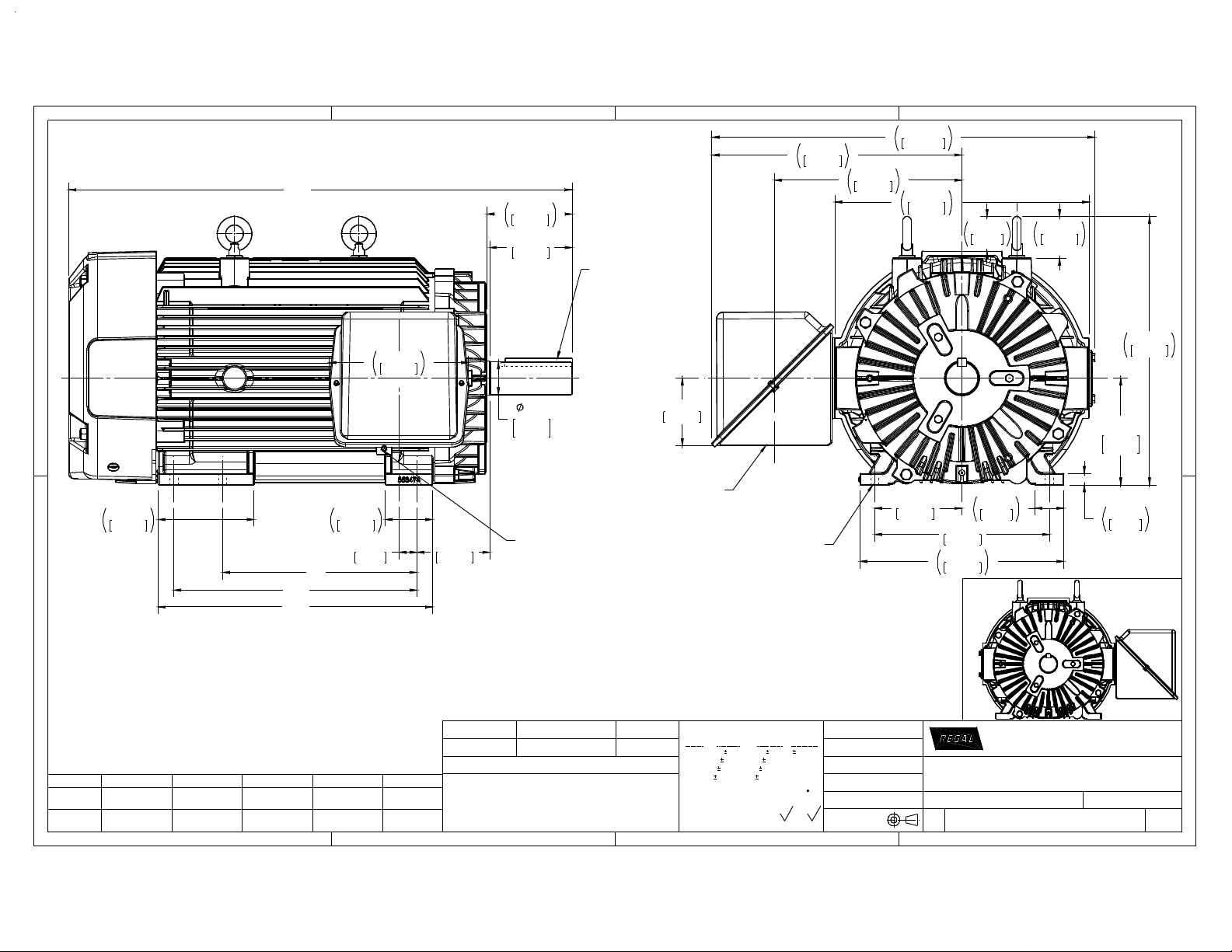

B-SS515631-2875

Opp Drive End Bearing

Shaft Extension

Connection Diagram

Ball

8.81 in

A-EE7300

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/08/2018

2 of 6

Uncontrolled Copy

4

3

2

1

24.93

37.52

26.356

)C(

18.8

17.322

05.8

09.512

88.6x578.x578.

B

43.41

91.463

573.3

473.3

527.58

007.58

88.9

59.052

88.4

38.321

48.1

47.64

05.7

34.091

YEK

B2-CNU31-2/1

.DHTLLUF]50.91[57.

SEDISHTOB

]57.471X522.22X522.22[

49.6

82.671

TPN"4

ELOHDAEL

68.-18.Ø ]48.12-75.02[

SELOH6

13.91

54.094

F2

93.1001

61.62

94.466

65.3

44.09

62.4

02.801

B

16.72

23.107

00.11

49.01

04.972

88.772

00.9

94.822

89.2

75.57

00.81

02.754

00.12

04.335

61.1

64.92

FF2

)B(

WEIV2F

A

:SETON

HSAD EMARF B C F2 FF2

5782 T744 ---

5782 T944 ---

52.82 ]55.717[

.SPETS°09NIDETATOREBNACXOBTIUDNOC-1

48.15 ]47.6131[

4 3

A

.NOITISOP2FNIDETNUOMEBNACXOBTIUDNOC-3

.ROTOMFOEDISXOBTIUDNOCMORFDAEREBOTSETALPEMAN-2

OCE

00.02 ]00.805[

00.52 ]00.536[

NOISIVERGNIWARD

R WJA 5102-32-20

4722700-OCE KJD 5102-32-20

NOITPIRCSEDOCE

ETADYBNOISIVER

ETADYBDEVORPPA

SDRADNATSTNERRUCOTDETADPU

.DEVRESERSTHGIRLLA.CNI,ACIREMATIOLEBLAGERTHGIRYPOC

RMRIFREHTORONOITAROPROC,NOSREPYNA.NOITAMROFNI

NIATRECOTTCEJBUSEBYAMTI.TSEUQERNOPURENWOOTDENRUTEREB

.CED HCNI mm ELGNA

X. [1.0 ]5.2 "03'7

XX. [30.0 ]67.0

XXX [500.0 ]721.0 XXXX. [5000.0 ]7210.0

FOYTREPORPEHTSITNEMUCODSIHT-NOITAMROFNILAITNEDIFNOCDNAYRATEIRPORP

YRATEIRPORPS'RENWOSNIATNOCDNA)"RENWO"(.CNI,ACIREMATIOLEBLAGER

,DEMEEDSITIGNIVIECE DESOLCSIDEBTONLLAHS,TIFOTRAPYNARO/DNA,TITAHTEERGAOT,TIGNIVIECERYB

TPECXE,DESURO/DNA,DETACILPUD,YTITNEREHTORONOITAROPROC,NOSREPYNAOT

LLAHSTNEMUCODSIHT.RENWOYBECNAVDANIGNITIRWNIDEVORPPAYLSSERPXESA

.SNOITALUGERDNASWALLORTNOCTROPXEELBACILPPAREDNUSNOITCIRTSER

SSELNUSECNARELOT

:DEIFICEPSESIWREHTO

PRAHSKAERB&SRRUBEVOMER

54X]183./670.[510./300.:SEGDE

]15.[20.R:STELLIFRENROC

:SECAFRUSDENIHCAM

002 1.5

mmH

CNI

]STEKCARB[NINWOHSmm

YBNWARD

TD

ETAD

6991-30-60

YBDEVORPPA

LJ

6991-50-60

ECNEREFER

ELGNADRIHT

NOITCEJORP

B

MT

NOITPIRCSED

ENILTUO

LAIRETAM

136515SS

.cnI,aciremAtioleBlageR

.DTS-.RFT944-744

HSINIF/SSECORP

TEEHSREBMUNGNIWARDEZIS

1FO1

12

3 of 6

THREE PHASE - SINGLE VOLTAGE

THREE PHASE - SINGLE VOLTAGE MOTOR - CONDUIT BOX @ 'A'

MOTOR - CONDUIT BOX @ 'A'

TO REVERSE ROTATION:

TO REVERSE ROTATION: INTERCHANGE ANY TWO

INTERCHANGE ANY TWO LINE LEAD CONNECTIONS.

LINE LEAD CONNECTIONS.

IF MOTOR HAS

6 LEADS

C

Uncontrolled Copy

T3

T1

B

T2

TERMI NAL BLOCK WHEN SPECIFIED

L1

L2

L3

A

T1

T2

T3

T1 (U1)

T2 (V1)

T3 (W1)

T1(U1)

T1(U1) T1(U1)

T1(U1)

T2(V1)

T2(V1) T2(V1)

T2(V1)

T3(W1)

T3(W1) T3(W1)

T3(W1)

A-9806 DECAL

REVISION BY DATE

DRAWING REVISION

ECO

ECO DESCRIPTION

AB

ECO-0125361

UPDATED TO CURRENT STANDARDS

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATI ON OR OTHER FIRM RECEIVING IT IS DEEMED,

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

REVISION BY DATE

APPROVED BY DATE

JJB

TB

L1

L2

L3

06-27-2017

06-27-2017 06-27-2017

06-27-2017

D

VIEW OF TERMINAL END

DRAWN BY

DATE

APPROVED BY

DATE

REFERENCE

THIRD ANGLE

THIRD ANGLE PROJECTION

PROJECTION

DA

03-26-1993

TB

03-26-1993

DESCRIPTION

CONNECTION DIA GRAM

EXTERNAL - SINGLE VOLTAGE - 3Ø MOTOR

MATERIAL

SIZE DRAWING NUMBER

A

4 of 6

OPTIONAL CORD

CONNECTION

WHITE

L1

L2

L3

TM

Regal Beloit America , Inc.

EE7300

WHITE

RED

BLACK

PROCESS/FINISH

SHEET

1 OF 1

CERTIFICATION DATA SHEET

Model#: 449THFS9028 AF WINDING#: T449446 NONE 3 CONN. DIAGRAM: A-EE7300 ASSEMBLY: F1/F2 CAPABLE OUTLINE: B-SS515631-2875

TYPICAL MOTOR PERFORMANCE DATA

HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN

250 187 1800 1785 447/449T TEFC G B

PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION

3 60 460 285 LINE OR

INVERTER

CONTINUOUSF1 1.15 40 3300

FULL LOAD EFF: 96.5 3/4 LOAD EFF: 96.5 1/2 LOAD EFF: 95.8 GTD. EFF ELEC. TYPE NO LOAD AMPS

FULL LOAD PF: 86 3/4 LOAD PF: 83.5 1/2 LOAD PF: 77 96.2 SQ CAGE INV RATED 87

F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C

736 LB-FT 1825 1450 LB-FT 197 1825 LB-FT 248 65

SOUND PRESSURE

@ 3 FT.

SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS

/HOUR

APPROX. MOTOR

WGT

80 dBA 90 dBA 81 LB-FT^2 2000 LB-FT^2 25 SEC. 1 2700 LBS.

*** SUPPLEMENTAL INFORMATION ***

DE BRACKET

TYPE

ODE BRACKET

TYPE

MOUNT

TYPE

ORIENTATION SEVERE

DUTY

HAZARDOUS

LOCATION

DRIP

COVER

SCREENS PAINT

STANDARD STANDARD RIGID HORIZONTAL PREMIUM

SEVERE DUTY

DIVISION 2 T2B FALSE NONE BLUE (EPOXY)

BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT

MATERIAL

FRAME

MATERIAL

DE OPE

BALL BALL POLYREX EM T NONE NONE 1045 HOT

ROLLED (C-204)

CAST IRON

6319 6318

THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS

THERMOSTATS PROTECTORS WDG RTDs BRG RTDs

NONE NOT NONE NONE NONE FALSE NONE VOLTS

If Inverter equals NONE, contact factory for further

information

* N O T E S *

INVERTER TORQUE: CONSTANT 10:1 INV. HP SPEED RANGE: NONE

ENCODER: NONE NONE NONE NONE NONE PPR

BRAKE: NONE NONE NONE P/N NONE NONE NONE NONE FT-LB NONE V NONE Hz

DATE: 06/21/2017 06:41:51 AM FORM 3531 REV.3 02/07/99 ** Subject to change without notice.

Uncontrolled Copy

5 of 6

Date:

Customer:

Attention:

Submitted by:

Data @

460

v

Load 0% 25% 50% 75% 100% 115% 125% LR

Current (Amps)

87.0 110 158 217 285 322 352 1,825

Torque (ft-lb)

0.00 183 366 550 736 846 920 1,450

RPM

1800 1796 1794 1790 1785 1,782 1780 0

Efficiency (%)

93.0 95.8 96.5 96.5 96.5 96.2

P.F. (%)

4.5 57.0 77.0 83.5 86.0 86.5 86.5 31.0

LR Pull-Up BD Rated Idle

Speed (RPM)

0 900 1725 1785 1800

Information Block

Current (Amps)

1,825 1,725 1,100 285 87.0 250.0

Torque (ft-lb)

1,450 1,250 1,825 736 0.00 1800

449

TEFC

TFN

460

V

60

Hz

A

G

1.15

65

°

C

CONT

40

°

C

1,000

feet

81.0

Lb-Ft²

T449446 NONE

80 dBA

Additional Specifications:

R1 R2 X1 X2 Xm

0.0070 0.0070 0.0920 0.1300 2.9720

CONSTANT 10:1

0 365THFS8036

EQUIV CKT (OHMS / PHASE)

Ref Wdg

Sound Pressure @ 1M

VFD Rating

Outline Dwg B-SS515631-2875 Conn. Diag A-EE7300

Rotor/Shaft wk²

Voltage

Frequency

Design

LR Code letter

Service Factor

Temp Rise @ FL

Duty

Ambient

Elevation

Construction

Motor Speed Data

HP Sync. RPM

Frame Enclosure

Motor Load Data

Submittal

FAREEDA DUDEKULA

Data Sheet

29-06-2017 449THFS9028

0.0

50.0

100.0

150.0

200.0

250.0

300.0

350.0

400.0

30.0

40.0

50.0

60.0

70.0

80.0

90.0

100.0

0% 20% 40% 60% 80% 100% 120% 140%

Efficiency (%) P.F. (%) Current (Amps)

LOAD

A M P S

E F F

P F

0.0

200.0

400.0

600.0

800.0

1000.0

1200.0

1400.0

1600.0

1800.0

2000.0

0.0

200.0

400.0

600.0

800.0

1000.0

1200.0

1400.0

1600.0

1800.0

2000.0

0 200 400 600 800 1000 1200 1400 1600 1800 2000

Speed -Torque Curve

Torque Amps

RPM

T O R Q U E

A M P S

Uncontrolled Copy

6 of 6
