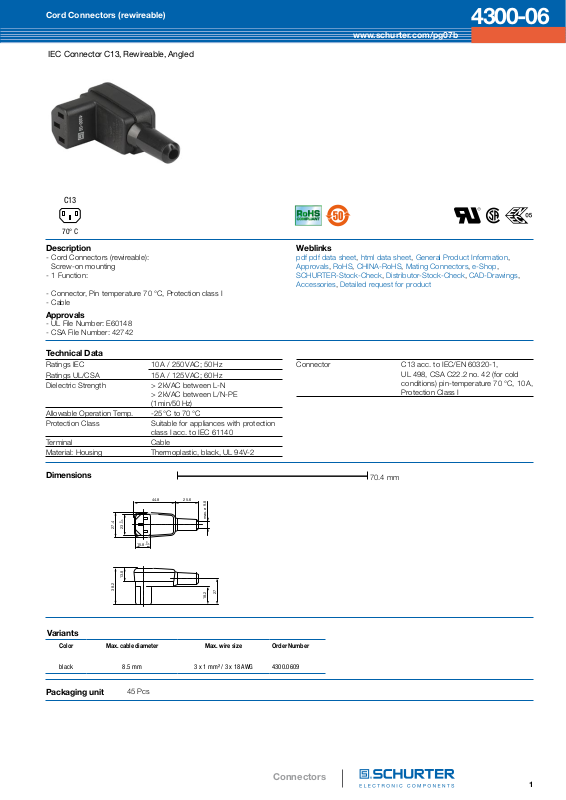

Page 1
Cord Connectors (rewireable)
27.4
23
38.2
44.8
25.6
max. ø 9.8
15.8
27
18.2
13.8
0
-0.5
0
-0.5
IEC Connector C13, Rewireable, Angled
C13
70° C
4300-06
www.schurter.com/pg07b
Description
- Cord Connectors (rewireable):
Screw-on mounting
- 1 Function:
- Connector, Pin temperature 70 °C, Protection class I
- Cable
Approvals
- UL File Number: E60148
- CSA File Number: 42742
Technical Data
Ratings IEC 10 A / 250 VAC; 50 Hz
Ratings UL/CSA 15 A / 125 VAC; 60 Hz
Dielectric Strength > 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
Allowable Operation Temp. -25 °C to 70 °C
Protection Class Suitable for appliances with protection
class I acc. to IEC 61140
Terminal Cable
Material: Housing Thermoplastic, black, UL 94V-2
Dimensions
Weblinks
pdf pdf data sheet, html data sheet, General Product Information,
Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Shop,
SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-Drawings,
Accessories, Detailed request for product
Connector C13 acc. to IEC/EN 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
70.4 mm
Variants
Color Max. cable diameter Max. wire size Order Number
black 8.5 mm 3 x 1 mm² / 3 x 18 AWG 4300.0609
Packaging unit
45 Pcs
Connectors
1
Page 2
4300-06
Mating Inlets/Plugs
Cord Connectors (rewireable)
www.schurter.com/pg07b
Category / Description
Appliance Inlet Overview complete
IEC Appliance Inlet C14, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal 0711
IEC Appliance Inlet C14, Screw-on Mounting, Rear Side, PCB Terminal 1001
IEC Appliance Inlet C18, Screw-on Mounting, Rear Side, PCB Terminal 1005
IEC Appliance Inlet C14, Snap-in Mounting, Solder, Quick-connect, Screw or PCB Terminal 6010
IEC Appliance Inlet C18, Snap-in Mounting, Solder, Quick-connect, Screw- or PCB Terminal 6015
Appliance Inlet further types to 4300-06 ...
Distribution Unit Overview complete
Distribution Unit for Snap-in Mounting with 1 IEC Appliance Inlet C14 and 1 Appliance Outlet F 0712
Distribution Unit with 1 IEC Appliance Inlet C14 or Power Cord, 4 IEC Appliance Outlets F and Extra Components 4740
Distribution Unit with 1 IEC Appliance Inlet C14 and 2 Appliance Outlets F, Shuttered 4741
Distribution Unit with 1 IEC Appliance Inlet C14 and 4 Appliance Outlets F 4747
Distribution Unit further types to 4300-06
Interconnection Cord Overview complete
Interconnection Cord with IEC Plug E, Angled 0607
Interconnection Cord with IEC Plug E, Angled 0608
Interconnection Cord with IEC Plug E, Straight 0609
Interconnection Cord with IEC Plug G, Angled 607B
Interconnection Cord with IEC Plug G, Angled 608B
Interconnection Cord further types to 4300-06 ...
Plug Overview complete
IEC Plug E, Cord Connector (Rewireable), Straight, max. cable Diameter 8.5 mm 4732
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 8.5 mm 4733
IEC Plug E, Cord Connector (Rewireable), Straight, max. Cable Diameter 10 mm 4735
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm 4736
IEC Plug E, Cord Connector (Rewireable), Straight 9009
Plug further types to 4300-06 ...
Power Entry Module Overview complete
IEC Appliance Inlet C14 or C18 with Fuseholder 1- or 2-pole 1062
IEC Appliance Inlet C14 or C18 with Fuseholder 1- or 2-pole 1064
IEC Appliance Inlet C18 with Fuseholder 1-pole 1065
IEC Appliance Inlet C18 with Fuseholder 1- or 2-pole 1066
IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole 1092
Power Entry Module further types to 4300-06 ...
Power Entry Module with line filter Overview complete
IEC Appliance Inlet C14 with Filter 5110
IEC Appliance Inlet C14 with Filter, Circuit Breaker TA45 5145
IEC Appliance Inlet C14 with Filter, Fuseholder 1-pole 5200
IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole 5220
IEC Appliance Inlet C14 with Filter, Fuseholder 2-pole 8843-8
Power Entry Module with line filter further types to 4300-06 ...
05.11.2012
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
2
current information. All content is subject to modifications and amendments.
