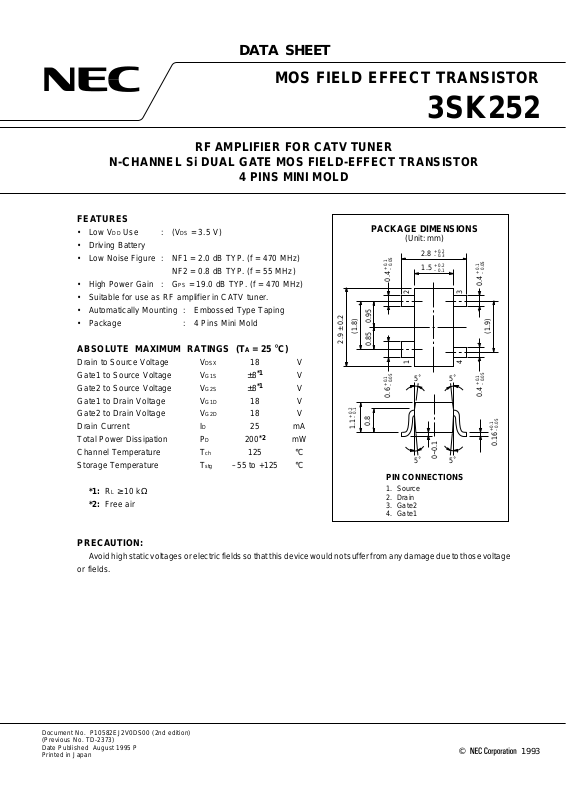

DATA SHEET

MOS FIELD EFFECT TRANSISTOR

3SK252

FEATURES

• Low VDD Use : (VDS = 3.5 V)

• Driving Battery

• Low Noise Figure : NF1 = 2.0 dB TYP. (f = 470 MHz)
NF2 = 0.8 dB TYP. (f = 55 MHz)

• High Power Gain : G

PS = 19.0 dB TYP. (f = 470 MHz)

• Suitable for use as RF amplifier in CATV tuner.

• Automatically Mounting : Embossed Type Taping

• Package : 4 Pins Mini Mold

ABSOLUTE MAXIMUM RATINGS (TA = 25 °C)

Drain to Source Voltage VDSX 18 V
Gate1 to Source Voltage V

G1S ±8

*1

V

Gate2 to Source Voltage VG2S ±8

*1

V
Gate1 to Drain Voltage VG1D 18 V
Gate2 to Drain Voltage V

G2D 18 V

Drain Current ID 25 mA
Total Power Dissipation PD 200

*2

mW

Channel Temperature T

ch 125 °C

Storage Temperature Tstg –55 to +125 °C

*1: R

L ≥ 10 kΩ

*2: Free air

PRECAUTION:

Avoid high static voltages or electric fields so that this device would not suffer from any damage due to those voltage

or fields.

RF AMPLIFIER FOR CATV TUNER

N-CHANNEL Si DUAL GATE MOS FIELD-EFFECT TRANSISTOR

4 PINS MINI MOLD

0.16

0.1

0.05

5˚ 5˚

0.4

0.4

0.1

0.05

2.8

0.2

0.3

1.5

0.2

0.1

+

–

+
–

+
–

0.1

0.05

+

–

3

2

2.9 ± 0.2

(1.8)

0.85 0.95

(1.9)

4

1

0.4

0.6

0.1

0.05

+

–

0.1

0.05

+

–

1.1

0.2

0.1

+

–

0.8

5˚ 5˚

0

~

0.1

+

–

PACKAGE DIMENSIONS

(Unit: mm)

PIN CONNECTIONS

1. Source

2. Drain

3. Gate2

4. Gate1

Document No. P10582EJ2V0DS00 (2nd edition)
(Previous No. TD-2373)
Date Published August 1995 P
Printed in Japan

3SK252

2

ELECTRICAL CHARACTERISTICS (TA = 25 °C)

CHARACTERISTIC SYMBOL MIN. TYP. MAX. UNIT TEST CONDITIONS

Drain to Source Breakdown Voltage

BVDSX 18 V VG1S = VG2S = –2 V, ID = 10 µA

Drain Current IDSX 0.1 5.0 mA

VDS = 3.5 V, VG2S = 3 V, VG1S = 0.75 V
Gate1 to Source Cutoff Voltage VG1S(off) –1.0 0 +1.0 V VDS = 3.5 V, VG2S = 3 V, ID = 10 µA
Gate2 to Source Cutoff Voltage VG2S(off) 0 0.5 1.0 V VDS = 3.5 V, VG1S = 3 V, ID = 10 µA
Gate1 Reverse Current IG1SS ±20 nA VDS = 0, VG2S = 0, VG1S = ±6 V
Gate2 Reverse Current IG2SS ±20 nA VDS = 0, VG1S = 0, VG2S = ±6 V

Forward Transfer Admittance |yfs|141823mS

VDS = 3.5 V, VG2S = 3 V, ID = 7 mA

f = 1 kHz
Input Capacitance Ciss 2.4 2.9 3.4 pF

VDS = 3.5 V, VG2S = 3 V, ID = 7 mA
Output Capacitance Coss 0.9 1.2 1.5 pF

f = 1 MHz
Reverse Transfer Capacitance Crss 0.01 0.03 pF

Power Gain Gps 16 19 22 dB VDS = 3.5 V, VG2S = 3 V, ID = 7 mA
Noise Figure 1 NF1 2.0 3.0 dB

f = 470 MHz

Noise Figure 2 NF2 0.8 2.3 dB

VDS = 3.5 V, VG2S = 3 V, ID = 7 mA

f = 55 MHz

IDSX Classification

Rank U1E/UAE*
Marking U1E
IDSX (mA) 0.1 to 5.0 * Old Specification / New Specification

3SK252

3

TYPICAL CHARACTERISTICS (TA = 25 ˚C)

DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE

V

DS

– Drain to Source Voltage – V

I

D

– Drain Current – mA

DRAIN CURRENT vs.
GATE1 TO SOURCE VOLTAGE

V

G1S

– Gate1 to Source Voltage – V

I

D

– Drain Current – mA

0

FORWARD TRANSFER ADMITTANCE vs.
GATE1 TO SOURCE VOLTAGE

V

G1S

– Gate1 to Source Voltage – V

|y

fs

| – Forward Transfer Admittance – mS

FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT

I

D

– Drain Current – mA

|y

fs

| – Forward Transfer Admittance – mS

INPUT CAPACITANCE vs.
GATE2 TO SOURCE VOLTAGE

V

G2S

– Gate2 to Source Voltage – V

C

iss

– Input Capacitance – pF

V

G2S

= 3 V

V

G1S

= 1.6 V

0

5

10

15

20

25

510

V

DS

= 3.5 V

V

G2S

= 3.5 V

5

10

15

20

25

0.5 1.0 1.5 2.0 2.5

V

DS

= 3.5 V

f = 1 kHz

0

8

16

24

32

40

0.5 1.0 1.5 2.0 2.5

V

DS

= 3.5 V

f = 1 kHz

0

8

16

24

32

40

V

G2S

= 3.5 V

3.0 V

2.5 V

1.5 V

1.0 V

I

D

= 7 mA

(at V

DS

= 3.5 V,

V

G2S

= 3 V)

f = 1 MHz

–1.0 0 1.0 2.0 3.0 4.0

1.0

2.0

3.0

4.0

3.0 V

2.5 V

2.0 V

1.5 V1.0 V

V

G2S

= 3.5 V

2.0 V

5.0

0

1.4 V

1.2 V

1.0 V

0.8 V

0.6 V

3.0 V

2.5 V

2.0 V

1.5 V

1.0 V

4 8 12 16 20

TOTAL POWER DISSIPATION vs.
AMBIENT TEMPERATURE

T

A

– Ambient Temperature – °C

P

D

– Total Power Dissipation – mW

0

100

25 50 75 100 125

200

300

400

3SK252

4

ID = 7 mA
(at VDS = 3.5 V,
V

G2S

= 3.0 V)

f = 1 MHz

OUTPUT CAPACITANCE vs.
GATE2 TO SOURCE VOLTAGE

V

G2S

– Gate2 to Source Voltage – V

C

oss

– Output Capacitance – pF

–1.0

POWER GAIN AND NOISE FIGURE vs.
GATE2 TO SOURCE VOLTAGE

V

G2S

– Gate2 to Source Voltage – V

G

PS

– Power Gain – dB

00 1.0 2.0 3.0 4.0

–1.0

–20

1.0 2.0 3.0 4.0

0

0.5

1.0

1.5

2.0

2.5

NF – Noise Figure – dB

–10

0

10

20

I

D

= 7 mA
(at VDS = 3.5 V,
V

G2S

= 3.0 V)

f = 470 MHz

G

PS

NF

10

5

0

ID = 7 mA
(at VDS = 3.5 V,
V

G2S

= 3.0 V)

f = 1 MHz

3SK252

5

GPS AND NF TEST CIRCUIT AT f = 470 MHz

L1 : 1.2 mm U.E.W 5 mm 1T
L

2

: 1.2 mm U.E.W 5 mm 1T

L

3

: REC 2.2 H

V

G2S

22 kΩ

Ferrite Beads

50 Ω

15 pF

V

G1S

1 000 pF

1 000 pF

22 kΩ

1 000 pF

INPUT

50 Ω

15 pF

1 000 pF

40 pF

L

1

1 000 pF 1 000 pF

V

DS

L

2

L

3

40 pF

φ

µ

φ

φ
φ

OUTPUT

NF TEST CIRCUIT AT f = 55 MHz

V

G2S

V

DS

2.2 kΩ

RFC

50 Ω

3.3 kΩ

1 500 pF

27 pF

1 000 pF

1 000 pF

1 500 pF

47 kΩ

27 pF

INPUT

50 Ω

47 kΩ

3.3
kΩ

V

G1S

Ferrite Beads

OUTPUT

2

3SK252
