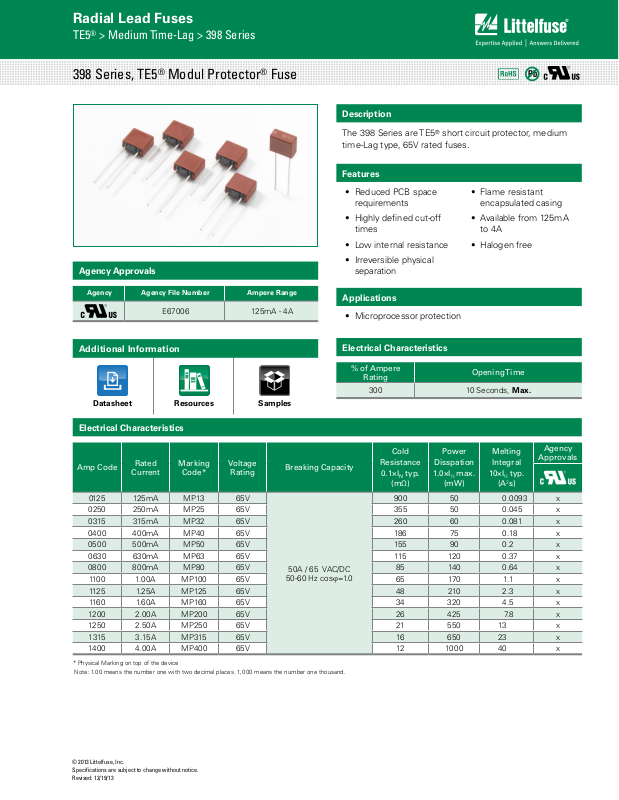

Page 1
Radial Lead Fuses
TE5® > Medium Time-Lag > 398 Series
398 Series, TE5® Modul Protector® Fuse
Description
The 398 Series are TE5® short circuit protector, medium
time-Lag type, 65V rated fuses.
Features
• ReducedPCBspace
requirements
• Highlydenedcut-off
times
• Lowinternalresistance
• Flameresistant
encapsulated casing
• Availablefrom125mA
to 4A
• Halogenfree
• Irreversiblephysical
Agency Approvals
Agency Agency File Number Ampere Range
E67006 125mA - 4A
Additional Information
Datasheet
Resources
Samples
separation
Applications
• Microprocessorprotection
Electrical Characteristics
% of Ampere
Rating
300 10 Seconds, Max.
Opening Time
Electrical Characteristics
Cold
Amp Code
0125 125mA MP13 65V
0250 250mA MP25 65V 355 50 0.045 x
0315 315mA MP32 65V 260 60 0.081 x
0400 400mA MP40 65V 186 75 0.18 x
0500 500mA MP50 65V 155 90 0.2 x
0630 630mA MP63 65V 11 5 120 0.37 x
0800 800mA MP80 65V 85 140 0.64 x
110 0 1.00A MP100 65V 65 170 1.1 x
112 5 1.25A MP125 65V 48 210 2.3 x
116 0 1.60A MP160 65V 34 320 4.5 x
1200 2.00A MP200 65V 26 425 7. 8 x
1250 2.50A MP250 65V 21 550 13 x
1315 3.15A MP315 65V 16 650 23 x
1400 4.00A MP400 65V 12 1000 40 x
* Physical Marking on top of the device
Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
Rated
Current
Marking
Code*
Voltage
Rating
Breaking Capacity
50A / 65 VAC/DC
50-60 Hz cosϕ=1.0
Resistance
0.1×I
typ.
N
(m)
900 50 0.0093 x
Power
Disspation
1.0×I
max.
N
(mW)
Melting
Integral
10×I
typ.
N
2
(A
s)
Agency
Approvals
© 2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/19/13
Page 2
Radial Lead Fuses
CURRENT IN AMPERES
100000
125A
250A
315A
400A
500A
630A0.800A
300
240
Temperature (°C) - Measured on bottom side of board
08
TE5® > Medium Time-Lag > 398 Series
Temperature Rerating Curve
140
120
100
80
60
40
PERCENT OF RATING
20
0
-40-20 020406
23°C
AMBIENTTEMPERATURE (°C)
Average Time Current Curves
0.
0.
1.25A
1.60A
2.50A
0.
0.
0.
1.00A
0.
10000
1000
100
0
10
TIME IN SECONDS
1
0.100
0.010
0.001
1 10 100 10000.20
4.00A
2.00A
3.15A
Soldering Parameters - Wave Soldering
280
260
240
220
200
180
160
140
120
100
80
60
40
20
0
0
102030405060708090
Time (Seconds)
Preheat Time
Recommended Process Parameters:
Wave Parameter Lead-Free Recommendation
Preheat:
(Depends on Flux Activation Temperature)
Temperature Minimum:
Temperature Maximum:
(Typical Industry Recommendation)
100
° C
150
° C
Preheat Time: 60-180 seconds
Solder Pot Temperature:
260
° C Maximum
Solder Dwell Time: 2-5 seconds
100
110
120
130
140
150
160
170
180
190
200
210
220
Recommended Hand-Solder Parameters:
230
Solder Iron Temperature: 350° C +/- 5°C
Dwell Time
Cooling Time
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Specifications are subject to change without notice.
© 2013 Littelfuse, Inc.
Revised: 12/19/13
Page 3
Radial Lead Fuses
8.5
max.
4
TE5® > Medium Time-Lag > 398 Series
Product Characteristics
Materials
Lead Pull Strength 10N (EN 60068-2-21)
Solderability
Soldering Heat
Resistance
Base/Cap: Brown Thermoplastic
Polyamide PA 6.6, UL 94V-0
Round Pins: Copper, Tin-plated
260ºC, ≤ 3s. (Wave)
350ºC, ≤ 1s. (Soldering Iron)
260ºC, 10s. (IEC 60068-2-20)
350ºC, 3s. (Soldering Iron)
Dimensions
max. 818.8
0.6
1.5
0.5 min
5.08
1 +0.1
Holes in the printed circuit board
Dimensions (mm)
Operating Temperature -40ºC to +85ºC (consider de-rating)
Climatic Category
Stock Conditions
Vibration Resistance
-40ºC to +85ºC/21 days
(EN 60068-1,-2-1,-2-2,-78)
+10ºC to +60ºC RH,
≤ 75% yearly average, without dew,
maximum value for 30 days-95%
24 cycles at 15 min. each
(EN 60068-6)
10 - 60 Hz at 0.75 mm amplitude
60 - 2000 Hz at 10 g acceleration
Part Numbering System
Series
Packaging Code
Packaging
Packaging Option Packaging Specification Quantity
398 Series
Tape & Ammopack N/A 1,400 000 N/A
Quantity &
Packaging Code
Reel Size
© 2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/19/13
