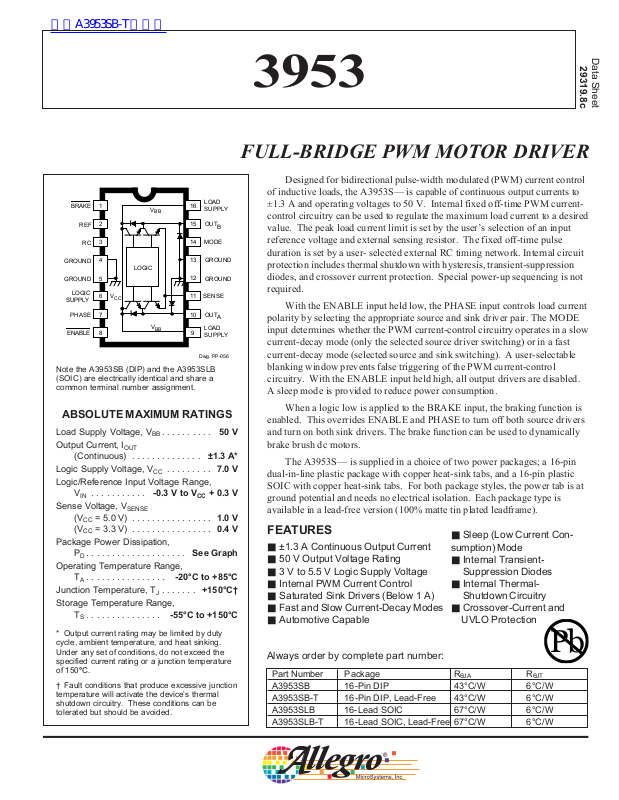

FULL-BRIDGE PWM MOTOR DRIVER

Designed for bidirectional pulse-width modulated (PWM) current control of inductive loads, the A3953S— is capable of continuous output currents to ±1.3 A and operating voltages to 50 V. Internal fixed off-time PWM currentcontrol circuitry can be used to regulate the maximum load current to a desired value. The peak load current limit is set by the user’s selection of an input reference voltage and external sensing resistor. The fixed off-time pulse duration is set by a user- selected external RC timing network. Internal circuit protection includes thermal shutdown with hysteresis, transient-suppression diodes, and crossover current protection. Special power-up sequencing is not required.

With the ENABLE input held low, the PHASE input controls load current polarity by selecting the appropriate source and sink driver pair. The MODE input determines whether the PWM current-control circuitry operates in a slow current-decay mode (only the selected source driver switching) or in a fast current-decay mode (selected source and sink switching). A user-selectable blanking window prevents false triggering of the PWM current-control circuitry. With the ENABLE input held high, all output drivers are disabled. A sleep mode is provided to reduce power consumption.

ABSOLUTE MAXIMUM RATINGS

Load Supply Voltage, VBB. . . . . . . . . . 50 V

Output Current, I

(Continuous) . . . . . . . . . . . . . . ±1.3 A*

Logic Supply Voltage, V Logic/Reference Input Voltage Range,

. . . . . . . . . . . -0.3 V to VCC + 0.3 V

Sense Voltage, V

(VCC = 5.0 V) . . . . . . . . . . . . . . . . 1.0 V

= 3.3 V) . . . . . . . . . . . . . . . . 0.4 V

Package Power Dissipation,

. . . . . . . . . . . . . . . . . . . . See Graph

Operating Temperature Range,

. . . . . . . . . . . . . . . . -20°C to +85°C

Junction Temperature, T Storage Temperature Range,

. . . . . . . . . . . . . . . -55°C to +150°C

* Output current rating may be limited by duty cycle, ambient temperature, and heat sinking. Under any set of conditions, do not exceed the specified current rating or a junction temperature of 150°C.

† Fault conditions that produce excessive junction temperature will activate the device’s thermal shutdown circuitry. These conditions can be tolerated but should be avoided.

OUT

SENSE

. . . . . . . . . 7.0 V

. . . . . . . +150°C†

When a logic low is applied to the BRAKE input, the braking function is enabled. This overrides ENABLE and PHASE to turn off both source drivers and turn on both sink drivers. The brake function can be used to dynamically brake brush dc motors.

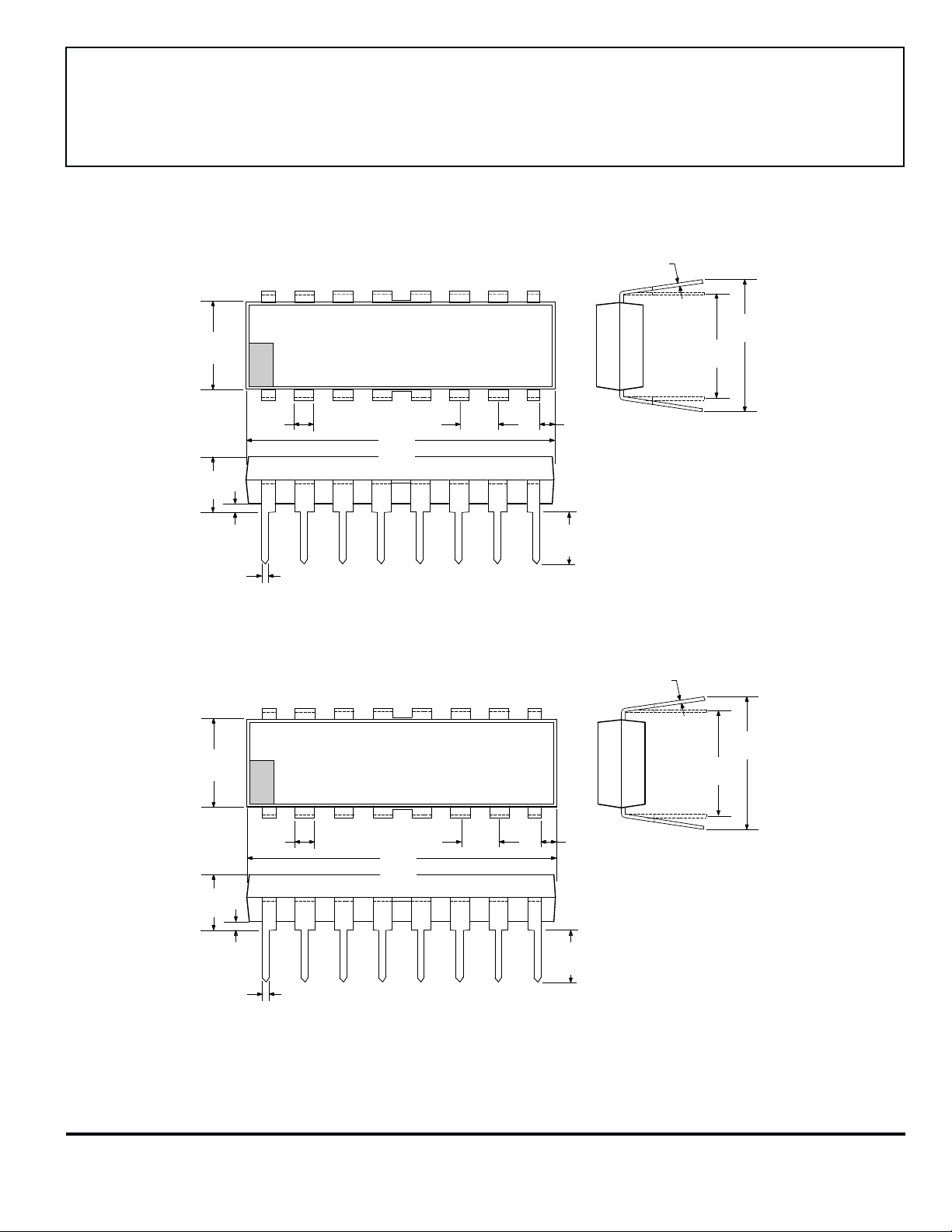

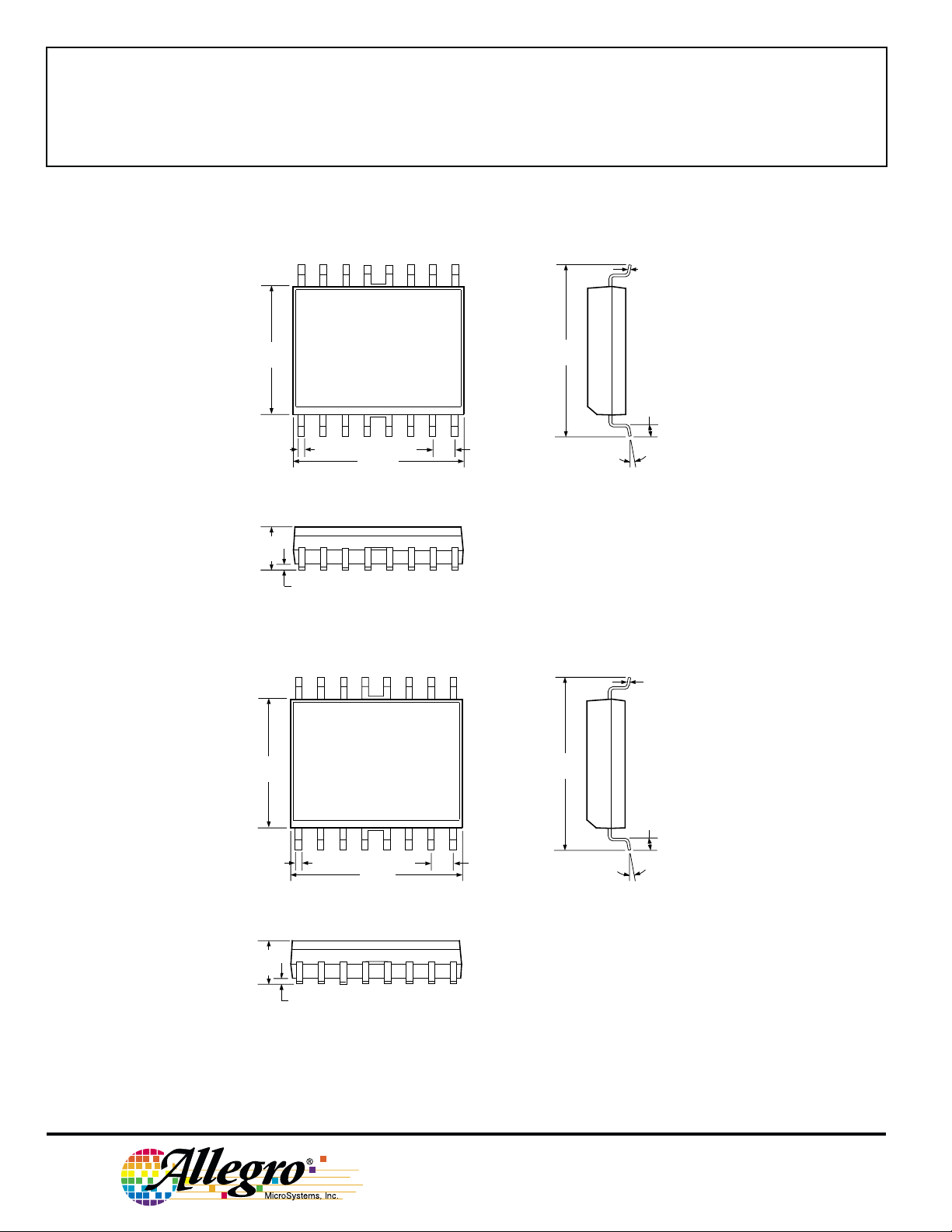

The A3953S— is supplied in a choice of two power packages; a 16-pin dual-in-line plastic package with copper heat-sink tabs, and a 16-pin plastic SOIC with copper heat-sink tabs. For both package styles, the power tab is at ground potential and needs no electrical isolation. Each package type is available in a lead-free version (100% matte tin plated leadframe).

FEATURES

■ ±1.3 A Continuous Output Current

■ 50 V Output Voltage Rating

■ 3 V to 5.5 V Logic Supply Voltage

■ Internal PWM Current Control

■ Saturated Sink Drivers (Below 1 A)

■ Fast and Slow Current-Decay Modes

■ Automotive Capable

■ Sleep (Low Current Con-

sumption) Mode

■ Internal Transient-

Suppression Diodes

■ Internal Thermal-

Shutdown Circuitry

■ Crossover-Current and

UVLO Protection

Always order by complete part number:

Part Number Package R

θJA

A3953SB 16-Pin DIP 43°C/W 6°C/W A3953SB-T 16-Pin DIP, Lead-Free 43°C/W 6°C/W A3953SLB 16-Lead SOIC 67°C/W 6°C/W A3953SLB-T 16-Lead SOIC, Lead-Free 67°C/W 6°C/W

θJT

Page 2

3953

FULL-BRIDGE PWM MOTOR DRIVER

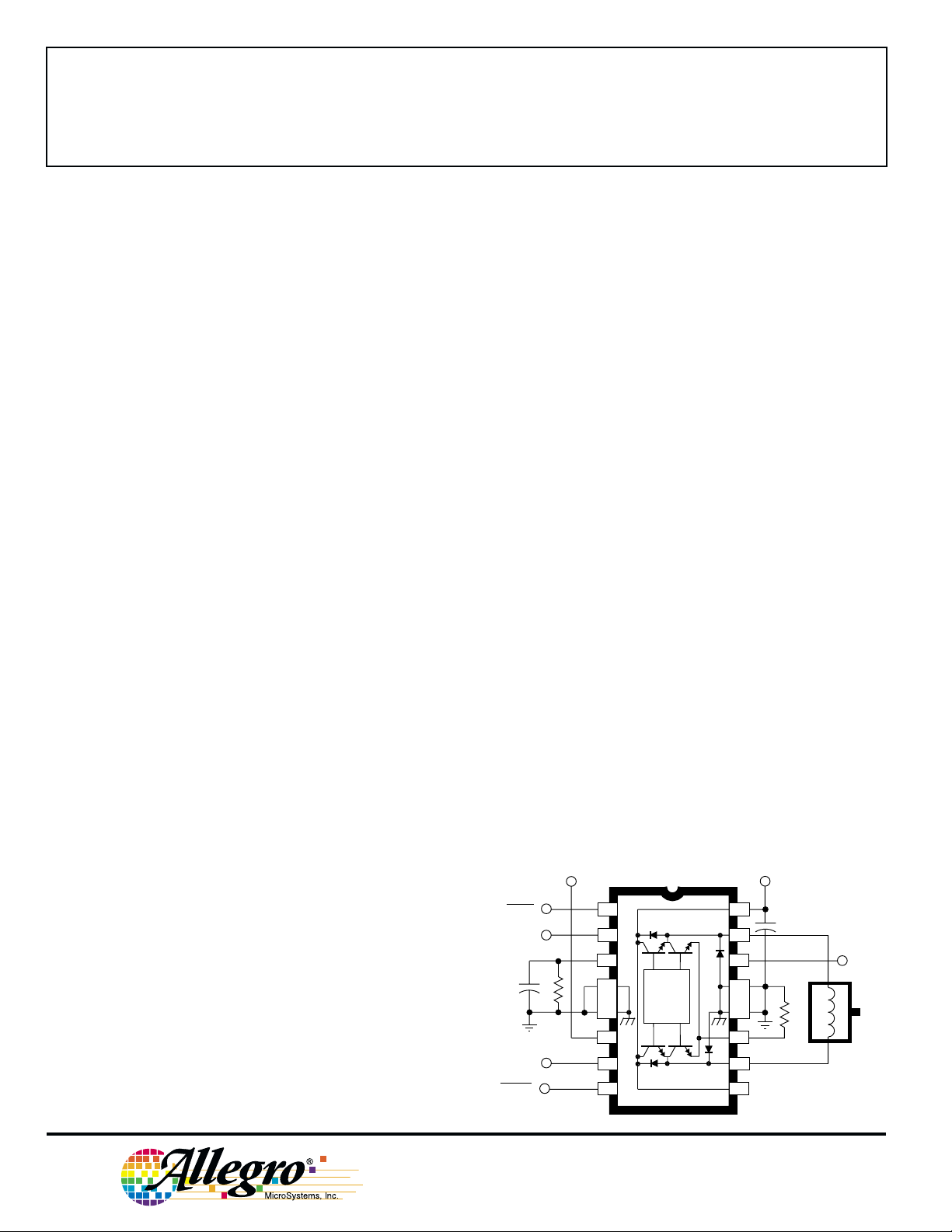

FUNCTIONAL BLOCK DIAGRAM

LOGIC

SUPPLY

MODE

PHASE

ENABLE

BRAKE

GROUND

+ –

OUT

–

LOAD

5 13

SLEEP & STANDBY MODES

UVLO & TSD

INPUT LOGIC

BLANKING

PWM LATCH

SUPPLY

REF

OUT

LOAD

SUPPLY

SENSE

GROUND

TRUTH TABLE

BRAKE ENABLE PHASE MODE OUT

H H X H Off Off Sleep Mode

H H X L Off Off Standby

H L H H H L Forward, Fast Current-Decay Mode

H L H L H L Forward, Slow Current-Decay Mode

H L L H L H Reverse, Fast Current-Decay Mode

H L L L L H Reverse, Slow Current-Decay Mode

L X X H L L Brake, Fast Current-Decay Mode

L X X L L L Brake, No Current Control

X = Irrelevant

115 Northeast Cutoff, Box 15036 Worcester, Massachusetts 01615-0036 (508) 853-5000

OUT

DESCRIPTION

Dwg. FP-036-2A

Page 3

3953

FULL-BRIDGE

PWM MOTOR DRIVER

R = 6.0°C/W

θJT

ALLOWABLE PACKAGE POWER DISSIPATION IN WATTS

SUFFIX 'B', R = 43°C/W

SUFFIX 'LB', R = 63°C/W

50 75 100 125 150

TEMPERATURE IN °C

θJA

Dwg. GP-049-2A

ELECTRICAL CHARACTERISTICS at TJ = 25˚C, VBB = 5 V to 50 V, VCC = 3.0 V to 5.5 V (unless otherwise noted.)

Limits

Characteristic Symbol Test Conditions Min. Typ. Max. Units

Power Outputs

Load Supply Voltage Range V

Output Leakage Current I

Sense Current Offset I

Output Saturation Voltage V

CEX

CE(SAT)

BRAKE = H Source Driver, I

(Forward/Reverse Mode) Source Driver, I

Output Saturation Voltage V

CE(SAT)

BRAKE = L Sink Driver, I

(Brake Mode) Sink Driver, I

Clamp Diode Forward Voltage V

(Sink or Source) IF = 1.3 A — 1.4 1.6 V

Operating, I

= V

OUT

= 0 V — <-1.0 -50 µA

OUT

- I

SENSE

= 0.4 V, VCC = 3.0 V:

SENSE

Sink Driver, I

= 0.4 V, VCC = 3.0 V:

SENSE

= ±1.3 A, L = 3 mH V

OUT

, I

OUT1

= 850 mA, 22 33 38 mA

OUT

= 0 V, VCC = 5 V

= -0.85 A — 1.0 1.1 V

OUT

= -1.3 A — 1.7 1.9 V

OUT

= 0.85 A — 0.4 0.5 V

OUT

= 1.3 A — 1.1 1.3 V

OUT

= 0.85 A — 1.0 1.2 V

OUT

= 1.3 A — 1.3 1.5 V

OUT

— 50 V

— <1.0 50 µA

IF = 0.85 A — 1.2 1.4 V

www.allegromicro.com

Continued next page…

Page 4

3953

FULL-BRIDGE PWM MOTOR DRIVER

ELECTRICAL CHARACTERISTICS at TJ = 25˚C, VBB = 5 V to 50 V, VCC = 3.0 V to 5.5 V (unless otherwise noted.)

Limits

Characteristic Symbol Test Conditions Min. Typ. Max. Units

AC Timing

PWM RC Fixed Off-time t

PWM Turn-Off Time t

PWM Turn-On Time t

PWM Minimum On Time t

PWM(OFF)

PWM(ON)

ON(min)

Propagation Delay Times t

OFF RC

CT = 680 pF, RT= 30 kΩ, VCC = 3.3 V 18.3 20.4 22.5 µs

Comparator Trip to Source Off, — 1.0 1.5 µs

= 25 mA

OUT

Comparator Trip to Source Off, — 1.8 2.6 µs

= 1.3 A

OUT

IRC Charge On to Source On, — 0.4 0.7 µs

= 25 mA

OUT

IRC Charge On to Source On, — 0.55 0.85 µs

= 1.3 A

OUT

VCC = 3.3 V, RT ≥ 12 kΩ, CT = 680 pF 0.8 1.4 1.9 µs

VCC = 5.0 V, RT ≥ 12 kΩ, CT = 470 pF 0.8 1.6 2.0 µs

= ±1.3 A, 50% to 90%:

OUT

ENABLE On to Source On — 1.0 — µs

ENABLE Off to Source Off — 1.0 — µs

ENABLE On to Sink On — 1.0 — µs

ENABLE Off to Sink Off

(MODE = L)

— 0.8 — µs

PHASE Change to Sink On — 2.4 — µs

PHASE Change to Sink Off — 0.8 — µs

PHASE Change to Source On — 2.0 — µs

Crossover Dead Time t

Maximum PWM Frequency f

CODT

PWM(max)

PHASE Change to Source Off — 1.7 — µs

1 kΩ Load to 25 V, VBB = 50 V 0.3 1.5 3.0 µs

= 1.3 A 70 ——kHz

OUT

Continued next page…

115 Northeast Cutoff, Box 15036 Worcester, Massachusetts 01615-0036 (508) 853-5000

Page 5

3953

FULL-BRIDGE

PWM MOTOR DRIVER

ELECTRICAL CHARACTERISTICS at TJ = 25˚C, VBB = 5 V to 50 V, VCC = 3.0 V to 5.5 V (unless otherwise noted. )

Limits

Characteristic Symbol Test Conditions Min. Typ. Max. Units

Control Circuitry

Thermal Shutdown Temp. T

Thermal Shutdown Hysteresis ∆T

— 165 — °C

— 8.0 — °C

UVLO Enable Threshold 2.5 2.75 3.0 V

UVLO Hysteresis 0.12 0.17 0.25 V

Logic Supply Current I

Motor Supply Current I

(No Load) I

CC(ON)

CC(OFF)

CC(Brake)

CC(Sleep)

BB(ON)

BB(OFF)

BB(Brake)

BB(Sleep)

Logic Supply Voltage Range V

Logic Input Voltage V

Logic Input Current I

Voltage Range V

SENSE

SENSE(3.3)

SENSE(5.0)

Reference Input Current I

Comparator Input Offset Volt. V

IN(1)

IN(0)

IN(1)

IN(0)

REF

= 0.8 V, V

ENABLE

= 2.0 V, V

ENABLE

= 0.8 V — 42 50 mA

BRAKE

= V

ENABLE

BRAKE

ENABLE

MODE

= 0.8 V — 2.5 4.0 mA

= 2.0 V, V

= 0.8 V — 1.0 50 µA

= V

MODE

= 2.0 V — 42 50 mA

BRAKE

= 0.8 V — 12 15 mA

MODE

= V

MODE

= 2.0 V — 500 800 µA

BRAKE

= 0.8 V — 1.0 50 µA

= 2.0 V — 1.0 50 µA

Operating 3.0 5.0 5.5 V

2.0 —— V

——0.8 V

= 2.0 V — <1.0 20 µA

= 0.8 V — <-2.0 -200 µA

= 3.0 V to 3.6 V 0 — 0.4 V

= 4.5 V to 5.5 V 0 — 1.0 V

= 0 V to 1 V ——±5.0 µA

REF

= 0 V — ±2.0 ±5.0 mV

REF

www.allegromicro.com

Page 6

3953

FULL-BRIDGE PWM MOTOR DRIVER

FUNCTIONAL DESCRIPTION

Internal PWM Current Control During Forward and Reverse Operation. The A3953S— contains a fixed off-

time pulse-width modulated (PWM) current-control circuit that can be used to limit the load current to a desired value. The peak value of the current limiting (I by the selection of an external current sensing resistor (RS) and reference input voltage (V

). The internal

REF

circuitry compares the voltage across the external sense resistor to the voltage on the reference input terminal (REF) resulting in a transconductance function approximated by:

TRIP

≈

REF

– I

where ISO is the offset due to base drive current.

In forward or reverse mode the current-control circuitry limits the load current as follows: when the load current reaches I

, the comparator resets a latch that

TRIP

turns off the selected source driver or selected sink and source driver pair depending on whether the device is operating in slow or fast current-decay mode, respectively.

TRIP

) is set

The user selects an external resistor (RT) and capaci-

tor (CT) to determine the time period (t

= RT x CT)

OFF

during which the drivers remain disabled (see “RC Fixed Off-Time” below). At the end of the RC interval, the drivers are enabled allowing the load current to increase again. The PWM cycle repeats, maintaining the peak load current at the desired value (see figure 2).

Figure 2

Fast and Slow Current-Decay Waveforms

ENABLE

MODE

LOAD

CURRENT

TRIP

Dwg. WP-015-1

In slow current-decay mode, the selected source driver is disabled; the load inductance causes the current to recirculate through the sink driver and ground clamp diode. In fast current-decay mode, the selected sink and source driver pair are disabled; the load inductance causes the current to flow from ground to the load supply via the ground clamp and flyback diodes.

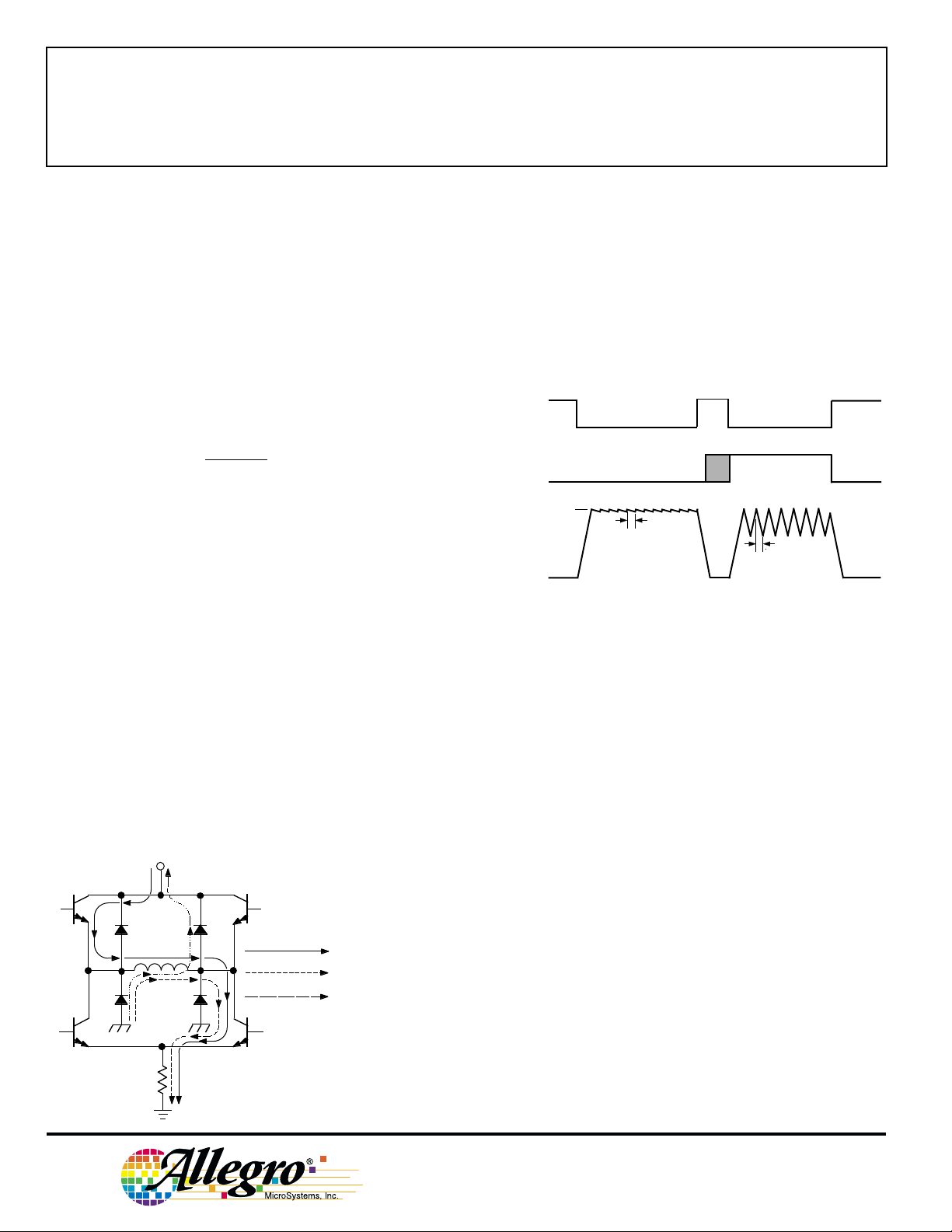

Figure 1 — Load-Current Paths

DRIVE CURRENT

RECIRCULATION (SLOW-DECAY MODE)

RECIRCULATION (FAST-DECAY MODE)

Dwg. EP-006-13A

INTERNAL PWM CURRENT CONTROL

DURING BRAKE-MODE OPERATION

Brake Operation - MODE Input High. The brake circuit turns off both source drivers and turns on both sink drivers. For dc motor applications, this has the effect of shorting the motor’s back-EMF voltage resulting in current flow that dynamically brakes the motor. If the back-EMF voltage is large, and there is no PWM current limiting, the load current can increase to a value that approaches that of a locked rotor condition. To limit the current, when the I

level is reached, the PWM circuit disables the

TRIP

conducting sink drivers. The energy stored in the motor’s inductance is discharged into the load supply causing the motor current to decay.

As in the case of forward/reverse operation, the drivers are enabled after a time given by t (see “RC Fixed Off-Time” below). Depending on the back-EMF voltage (proportional to the motor’s decreasing speed), the load current again may increase to I the PWM cycle will repeat, limiting the peak load current to the desired value.

= RT x C

OFF

TRIP

. If so,

115 Northeast Cutoff, Box 15036 Worcester, Massachusetts 01615-0036 (508) 853-5000

Page 7

3953

FULL-BRIDGE

PWM MOTOR DRIVER

During braking, when the MODE input is high, the

peak current limit can be approximated by:

TRIP BRAKE MH

≈

REF

CAUTION: Because the kinetic energy stored in the motor and load inertia is being converted into current, which charges the VBB supply bulk capacitance (power supply output and decoupling capacitance), care must be taken to ensure the capacitance is sufficient to absorb the energy without exceeding the voltage rating of any devices connected to the motor supply.

Brake Operation - MODE Input Low. During braking, with the MODE input low, the internal current-control circuitry is disabled. Therefore, care should be taken to ensure that the motor’s current does not exceed the ratings of the device. The braking current can be measured by using an oscilloscope with a current probe connected to one of the motor’s leads, or if the back-EMF voltage of the motor is known, approximated by:

– 1V

PEAK BRAKE ML

≈

BEMF

LOAD

RC Fixed Off-Time. The internal PWM current-control circuitry uses a one shot to control the time the driver(s) remain(s) off. The one-shot time, t

(fixed off-time), is

OFF

determined by the selection of an external resistor (RT) and capacitor (CT) connected in parallel from the RC timing terminal to ground. The fixed off-time, over a range of values of CT = 470 pF to 1500 pF and RT = 12 kΩ to 100 kΩ, is approximated by:

≈ RT x C

OFF

The operation of the circuit is as follows: when the PWM latch is reset by the current comparator, the voltage on the RC terminal will begin to decay from approximately

0.60VCC. When the voltage on the RC terminal reaches approximately 0.22VCC, the PWM latch is set, thereby enabling the driver(s).

RC Blanking. In addition to determining the fixed off-time of the PWM control circuit, the CT component sets the comparator blanking time. This function blanks the output of the comparator when the outputs are switched by the internal current-control circuitry (or by the PHASE, BRAKE, or ENABLE inputs). The comparator output is blanked to prevent false over-current detections due to reverse recovery currents of the clamp diodes, and/or switching transients related to distributed capacitance in the load.

During internal PWM operation, at the end of the t

OFF

time, the comparator’s output is blanked and CT begins to be charged from approximately 0.22VCC by an internal current source of approximately 1 mA. The comparator output remains blanked until the voltage on CT reaches approximately 0.60VCC.

When a transition of the PHASE input occurs, CT is discharged to near ground during the crossover delay time (the crossover delay time is present to prevent simultaneous conduction of the source and sink drivers). After the crossover delay, CT is charged by an internal current source of approximately 1 mA. The comparator output remains blanked until the voltage on CT reaches approximately 0.60VCC.

When the device is disabled, via the ENABLE input, CT is discharged to near ground. When the device is reenabled, CT is charged by an internal current source of approximately 1 mA. The comparator output remains blanked until the voltage on CT reaches approximately

0.60VCC.

For 3.3 V operation, the minimum recommended value for CT is 680 pF ± 5 %. For 5.0 V operation, the minimum recommended value for CT is 470 pF ± 5%.

These values ensure that the blanking time is sufficient to avoid false trips of the comparator under normal operating conditions. For optimal regulation of the load current, the above values for CT are recommended and the value of RT can be sized to determine t

. For more information

OFF

regarding load current regulation, see below.

www.allegromicro.com

Page 8

3953

FULL-BRIDGE PWM MOTOR DRIVER

LOAD CURRENT REGULATION

WITH INTERNAL PWM

CURRENT-CONTROL CIRCUITRY

When the device is operating in slow current-decay mode, there is a limit to the lowest level that the PWM current-control circuitry can regulate load current. The limitation is the minimum duty cycle, which is a function of the user-selected value of t pulse t

max that occurs each time the PWM latch is

ON(min)

reset. If the motor is not rotating (as in the case of a stepper motor in hold/detent mode, a brush dc motor when stalled, or at startup), the worst case value of current regulation can be approximated by:

≈

AVE

where t

[(VBB – V

OFF

SAT(source+sink)

1.05 x (t

= RT x CT, R load, VBB is the motor supply voltage and t specified in the electrical characteristics table. When the motor is rotating, the back EMF generated will influence the above relationship. For brush dc motor applications, the current regulation is improved. For stepper motor applications, when the motor is rotating, the effect is more complex. A discussion of this subject is included in the section on stepper motors below.

The following procedure can be used to evaluate the worst-case slow current-decay internal PWM load current regulation in the system:

Set V

to 0 volts. With the load connected and the

REF

PWM current control operating in slow current-decay mode, use an oscilloscope to measure the time the output is low (sink on) for the output that is chopping. This is the typical minimum on time (t CT then should be increased until the measured value of t

is equal to t

ON(min)

characteristics table. When the new value of CT has been set, the value of RT should be decreased so the value for t

= RT x CT (with the artificially increased value of CT) is

OFF

equal to the nominal design value. The worst-case loadcurrent regulation then can be measured in the system under operating conditions.

and the minimum on-time

OFF

) x t

is the series resistance of the

LOAD

ON(min)

max] – (1.05(V

ON(min)

max + t

) x R

OFF

ON(min)

LOAD

max is

typ) for the device. The

SAT(sink)

max as specified in the electrical

+ VF) x t

PWM of the PHASE and ENABLE Inputs. The PHASE and ENABLE inputs can be pulse-width modulated to regulate load current. Typical propagation delays from the PHASE and ENABLE inputs to transitions of the power outputs are specified in the electrical characteristics table. If the internal PWM current control is used, the comparator blanking function is active during phase and enable transitions. This eliminates false tripping of the over-current comparator caused by switching transients (see “RC Blanking” above).

Enable PWM. With the MODE input low, toggling the ENABLE input turns on and off the selected source and sink drivers. The corresponding pair of flyback and

ground-clamp diodes conduct after the drivers are

)

OFF

disabled, resulting in fast current decay. When the device is enabled the internal current-control circuitry will be active and can be used to limit the

load current in a slow current-decay mode.

For applications that PWM the ENABLE input and desire the internal current-limiting circuit to function in the fast decay mode, the ENABLE input signal should be inverted and connected to the MODE input. This prevents the device from being switched into sleep mode when the ENABLE input is low.

Phase PWM. Toggling the PHASE terminal selects which sink/source pair is enabled, producing a load current that varies with the duty cycle and remains continuous at all times. This can have added benefits in bidirectional brush dc servo motor applications as the transfer function between the duty cycle on the PHASE input and the average voltage applied to the motor is more linear than in the case of ENABLE PWM control (which produces a discontinuous current at low current levels). For more information see “DC Motor Applications” below.

Synchronous Fixed-Frequency PWM. The internal PWM current-control circuitry of multiple A3953S— devices can be synchronized by using the simple circuit shown in figure 3. A 555 IC can be used to generate the reset pulse/blanking signal (t1) for the device and the period of the PWM cycle (t2). The value of t1 should be a minimum of 1.5 ms. When used in this configuration, the RT and CT components should be omitted. The PHASE and ENABLE inputs should not be PWM with this circuit configuration due to the absence of a blanking function synchronous with their transitions.

115 Northeast Cutoff, Box 15036 Worcester, Massachusetts 01615-0036 (508) 853-5000

Page 9

3953

FULL-BRIDGE

PWM MOTOR DRIVER

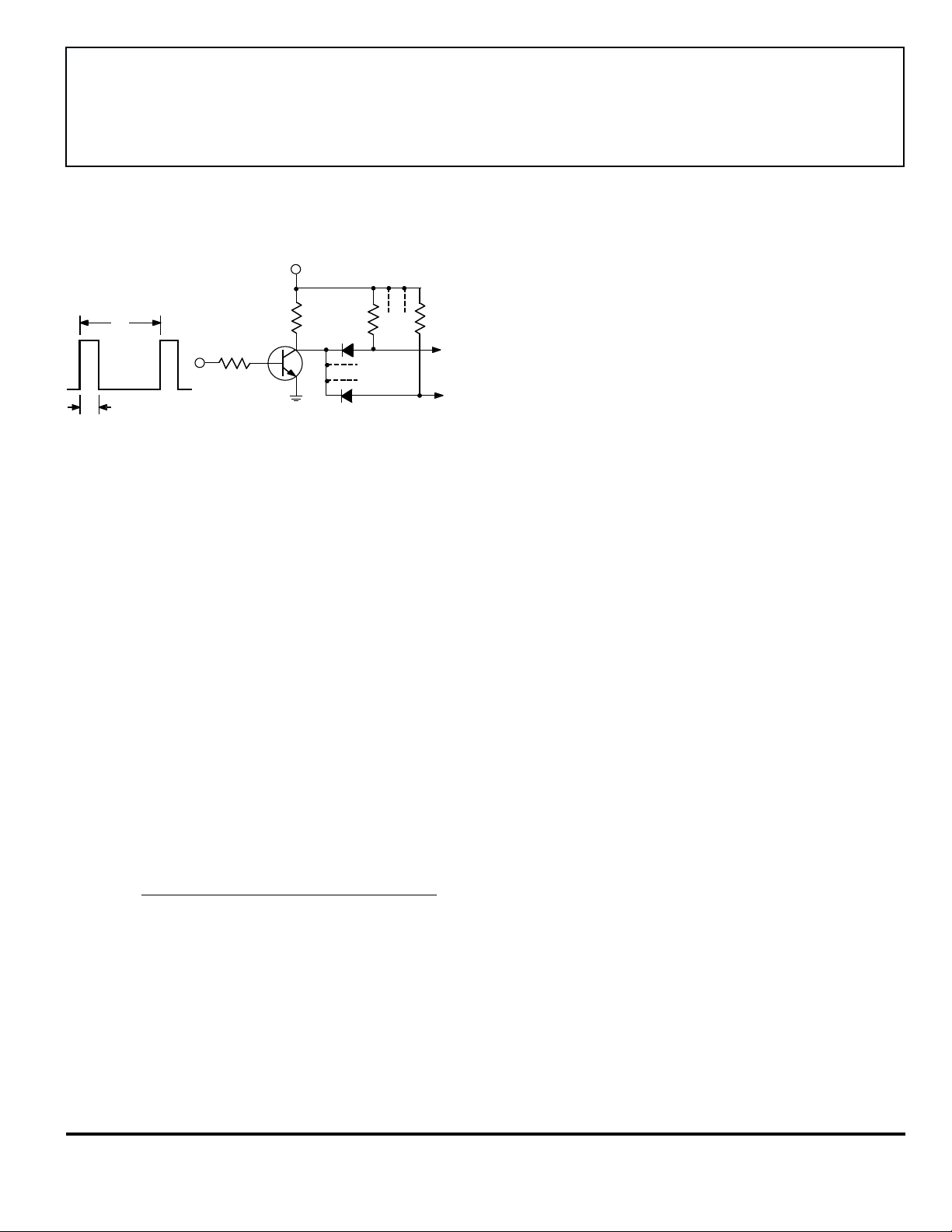

Figure 3

Synchronous Fixed-Frequency Control Circuit

2N2222

20 kΩ

1N4001

100 kΩ

Dwg. EP-060

Miscellaneous Information. A logic high applied to both the ENABLE and MODE terminals puts the device into a sleep mode to minimize current consumption when not in use.

An internally generated dead time prevents crossover

currents that can occur when switching phase or braking.

Thermal protection circuitry turns off all drivers should the junction temperature reach 165°C (typical). This is intended only to protect the device from failures due to excessive junction temperatures and should not imply that output short circuits are permitted. The hysteresis of the thermal shutdown circuit is approximately 15°C.

To minimize current-sensing inaccuracies caused by ground trace I x R drops, the current-sensing resistor should have a separate return to the ground terminal of the device. For low-value sense resistors, the I x R drops in the printed wiring board can be significant and should be taken into account. The use of sockets should be avoided as their contact resistance can cause variations in the effective value of RS.

Generally, larger values of RS reduce the aforementioned effects but can result in excessive heating and

power loss in the sense resistor. The selected value of R should not cause the absolute maximum voltage rating of

1.0 V (0.4 V for VCC = 3.3 V operation), for the SENSE terminal, to be exceeded.

The current-sensing comparator functions down to ground allowing the device to be used in microstepping, sinusoidal, and other varying current-profile applications.

Thermal Considerations. For reliable operation it is recommended that the maximum junction temperature be kept below 110°C to 125°C. The junction temperature can be measured best by attaching a thermocouple to the power tab/batwing of the device and measuring the tab temperature, T

. The junction temperature can then be

TAB

approximated by using the formula:

TJ ≈ T

TAB

+ (I

x 2 x VF x R

LOAD

θJT

)

APPLICATION NOTES

Current Sensing. The actual peak load current (I will be above the calculated value of I

due to delays in

TRIP

the turn off of the drivers. The amount of overshoot can be approximated by:

(VBB – [(I

TRIP

x R

LOAD

) + V

BEMF

]) x t

PWM(OFF)

IOS ≈

LOAD

where VBB is the motor supply voltage, V EMF voltage of the load, R

LOAD

and L

LOAD

is the back-

BEMF

are the resistance and inductance of the load respectively, and t

PWM(OFF)

is specified in the electrical characteristics table.

The reference terminal has a maximum input bias current of ±5 µA. This current should be taken into account when determining the impedance of the external circuit that sets the reference voltage value.

www.allegromicro.com

PEAK

)

where VF may be chosen from the electrical specification table for the given level of I

. The value for R

LOAD

θJT

is given in the package thermal resistance table for the appropriate package.

The power dissipation of the batwing packages can be improved by 20% to 30% by adding a section of printed circuit board copper (typically 6 to 18 square centimeters) connected to the batwing terminals of the device.

The thermal performance in applications that run at high load currents and/or high duty cycles can be improved by adding external diodes in parallel with the internal diodes. In internal PWM slow-decay applications, only the two ground clamp diodes need be added. For internal fast-decay PWM, or external PHASE or ENABLE input PWM applications, all four external diodes should be added for maximum junction temperature reduction.

PCB Layout. The load supply terminal, VBB, should be decoupled with an electrolytic capacitor (>47 µF is recom-

Page 10

3953

FULL-BRIDGE PWM MOTOR DRIVER

mended) placed as close to the device as is physically practical. To minimize the effect of system ground I x R drops on the logic and reference input signals, the system ground should have a low-resistance return to the motor supply voltage.

See also “Current Sensing” and “Thermal Consider-

ations” above.

Fixed Off-Time Selection. With increasing values of t

OFF,

switching losses will decrease, low-level load-current regulation will improve, EMI will be reduced, the PWM frequency will decrease, and ripple current will increase. The value of t

can be chosen for optimization of these

OFF

parameters. For applications where audible noise is a concern, typical values of t

are chosen to be in the

OFF

range of 15 µs to 35 µs.

Stepper Motor Applications. The MODE terminal can be used to optimize the performance of the device in microstepping/sinusoidal stepper-motor drive applications. When the load current is increasing, slow decay mode is used to limit the switching losses in the device and iron losses in the motor. This also improves the maximum rate at which the load current can increase (as compared to fast decay) due to the slow rate of decay during t

OFF

. When the load current is decreasing, fast-decay mode is used to regulate the load current to the desired level. This prevents tailing of the current profile caused by the backEMF voltage of the stepper motor.

In stepper-motor applications applying a constant current to the load, slow-decay mode PWM is typically used to limit the switching losses in the device and iron losses in the motor.

DC Motor Applications. In closed-loop systems, the speed of a dc motor can be controlled by PWM of the PHASE or ENABLE inputs, or by varying the reference input voltage (REF). In digital systems (microprocessor controlled), PWM of the PHASE or ENABLE input is used typically thus avoiding the need to generate a variable analog voltage reference. In this case, a dc voltage on the REF input is used typically to limit the maximum load current.

In dc servo applications, which require accurate positioning at low or zero speed, PWM of the PHASE input is selected typically. This simplifies the servo control loop because the transfer function between the duty cycle on the PHASE input and the average voltage applied to

the motor is more linear than in the case of ENABLE PWM control (which produces a discontinuous current at low current levels).

With bidirectional dc servo motors, the PHASE terminal can be used for mechanical direction control. Similar to when braking the motor dynamically, abrupt changes in the direction of a rotating motor produces a current generated by the back-EMF. The current generated will depend on the mode of operation. If the internal current control circuitry is not being used, then the maximum load current generated can be approximated by I

LOAD

= (V

BEMF

+ VBB)/R

LOAD

where V

is proportional to

BEMF

the motor’s speed. If the internal slow current-decay control circuitry is used, then the maximum load current generated can be approximated by I

LOAD

= V

BEMF/RLOAD

. For both cases care must be taken to ensure that the maximum ratings of the device are not exceeded. If the internal fast current-decay control circuitry is used, then the load current will regulate to a value given by:

LOAD

= V

REF/RS

CAUTION: In fast current-decay mode, when the direction of the motor is changed abruptly, the kinetic energy stored in the motor and load inertia will be converted into current that charges the VBB supply bulk capacitance (power supply output and decoupling capacitance). Care must be taken to ensure that the capacitance is sufficient to absorb the energy without exceeding the voltage rating of any devices connected to the motor supply.

Datasheet 3953 Datasheet (ALLEGRO)

Specifications and Main Features

Frequently Asked Questions

User Manual
