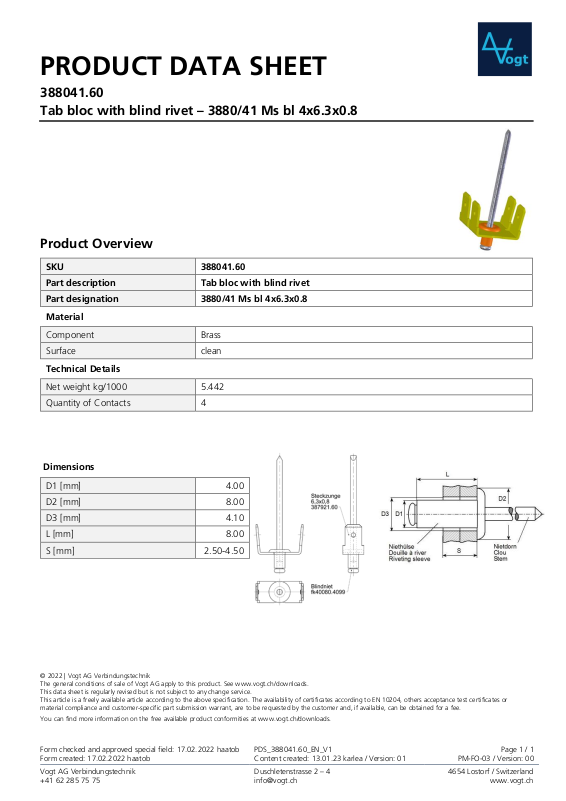

PRODUCT DATA SHEET
388041.60
Tab bloc with blind rivet – 3880/41 Ms bl 4x6.3x0.8
Form checked and approved special field: 17.02.2022 haatob
Form created: 17.02.2022 haatob
PDS_388041.60_EN_V1
Content created: 13.01.23 karlea / Version: 01
Page 1 / 1
PM-FO-03 / Version: 00
Vogt AG Verbindungstechnik
+41 62 285 75 75
Duschletenstrasse 2 – 4
info@vogt.ch
4654 Lostorf / Switzerland
www.vogt.ch
Product Overview
SKU
388041.60
Part description
Tab bloc with blind rivet
Part designation
3880/41 Ms bl 4x6.3x0.8
Material
Component
Brass
Surface
clean
Technical Details
Net weight kg/1000
5.442
Quantity of Contacts
4
Dimensions
© 2022 | Vogt AG Verbindungstechnik
The general conditions of sale of Vogt AG apply to this product. See www.vogt.ch/downloads.
This data sheet is regularly revised but is not subject to any change service.
This article is a freely available article according to the above specification. The availability of certificates according to EN 10204, others acceptance test certificates or
material compliance and customer-specific part submission warrant, are to be requested by the customer and, if available, can be obtained for a fee.
You can find more information on the free available product conformities at www.vogt.ch/downloads.
D1 [mm]
4.00
D2 [mm]
8.00
D3 [mm]
4.10
L [mm]
8.00
S [mm]
2.50-4.50
