Datasheet 3816/10.5X20 Specification

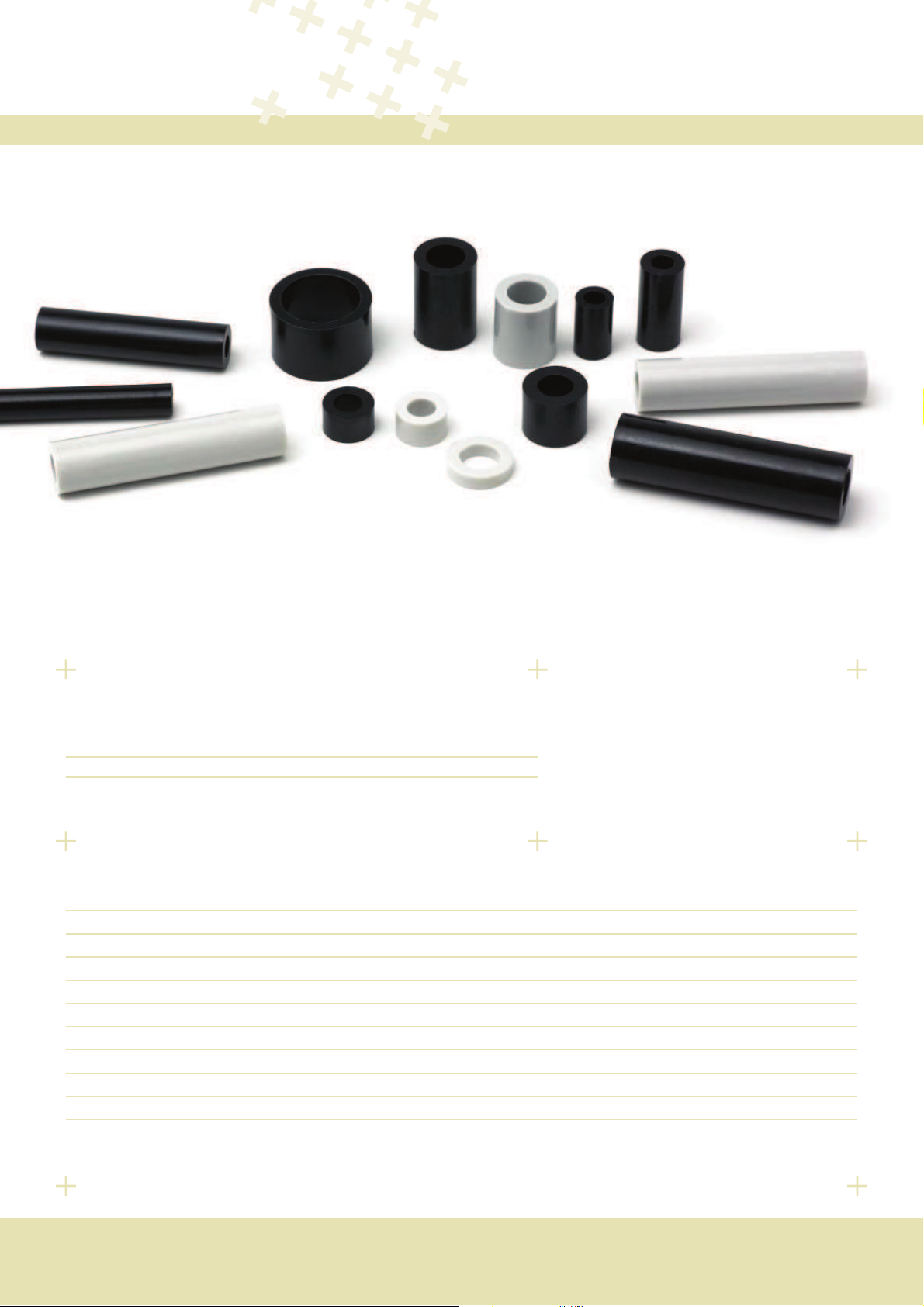

Standard range – spacer sleeves [ Plastic ]

Order No. Execution Material Diameter D (mm) Diameter d (mm)

Standard lengths in mm increments

384 / 1.5 x (length) DH Polyamide 4 1.5 from 2 mm to 10 mm

384 / 2.2 x DH Polyamide 4 2.2 from 2 mm to 50 mm

385 / 2.7 x DH Polyamide 5 2.7 from 2 mm to 55 mm

386 / 3.4 x DH Polyamide 6 3.4 from 2 mm to 60 mm

388 / 4.2 x DH Polyamide 8 4.2 from 2 mm to 60 mm

3810 / 5.2 x DH Polyamide 10 5.2 from 2 mm to 57 mm

3810 / 6.2 x DH Polyamide 10 6.2 from 2 mm to 55 mm

3812 / 8.2 x DH Polyamide 12 8.2 from 2 mm to 63 mm

3816 / 10.5 x DH Polyamide 16 10.5 from 2 mm to 50 mm

Ordering example: 386 / 3.4 x 25 mm = DH / Polyamide / 6 (3.4) x 25 mm

EXECUTION DII [ Internal / internal thread ]

[ Brass, nickel-plated, Polyamide black ]

spacer sleeves

Hotline: 0700-Dremec DE (0700-37 363 233) | Telefon [phone] . 15 30 00 | Fax [phone] . 15 33 00 30

28

(*Makrolon grey upon request)

Material Specific contact Dielectric Heat
resistance strength resistance

Polyamide > 10

12

Ohm/cm 80 kV/mm 110°C

*Makrolon > 10

16

Ohm/cm 36 kV/mm 140°C

Technical data [ Reference values ]

*All Polyamide spacer sleeves are
also available in Makrolon! Please
quote dimensions and quantity in
your inquiry!

Order No. Execution Material Diameter D (mm) Diameter d (mm) Standard lengths in mm

314 / 2.1 x (length) DH Brass 4.0 2.1 2, 3, 4, 5, 6, 7, 8, 9, 10, 12,

315 / 2.6 x DH Brass 5.0 2.6 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15,

316 / 3.2 x DH Brass 6.0 3.2 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15,

18, 20, 25, 30

318 / 4.3 x DH Brass 8.0 4.3 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15,

18, 20, 25, 30

3110 / 5.3 x DH Brass 10.0 5.3 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15,

18, 20, 25, 30

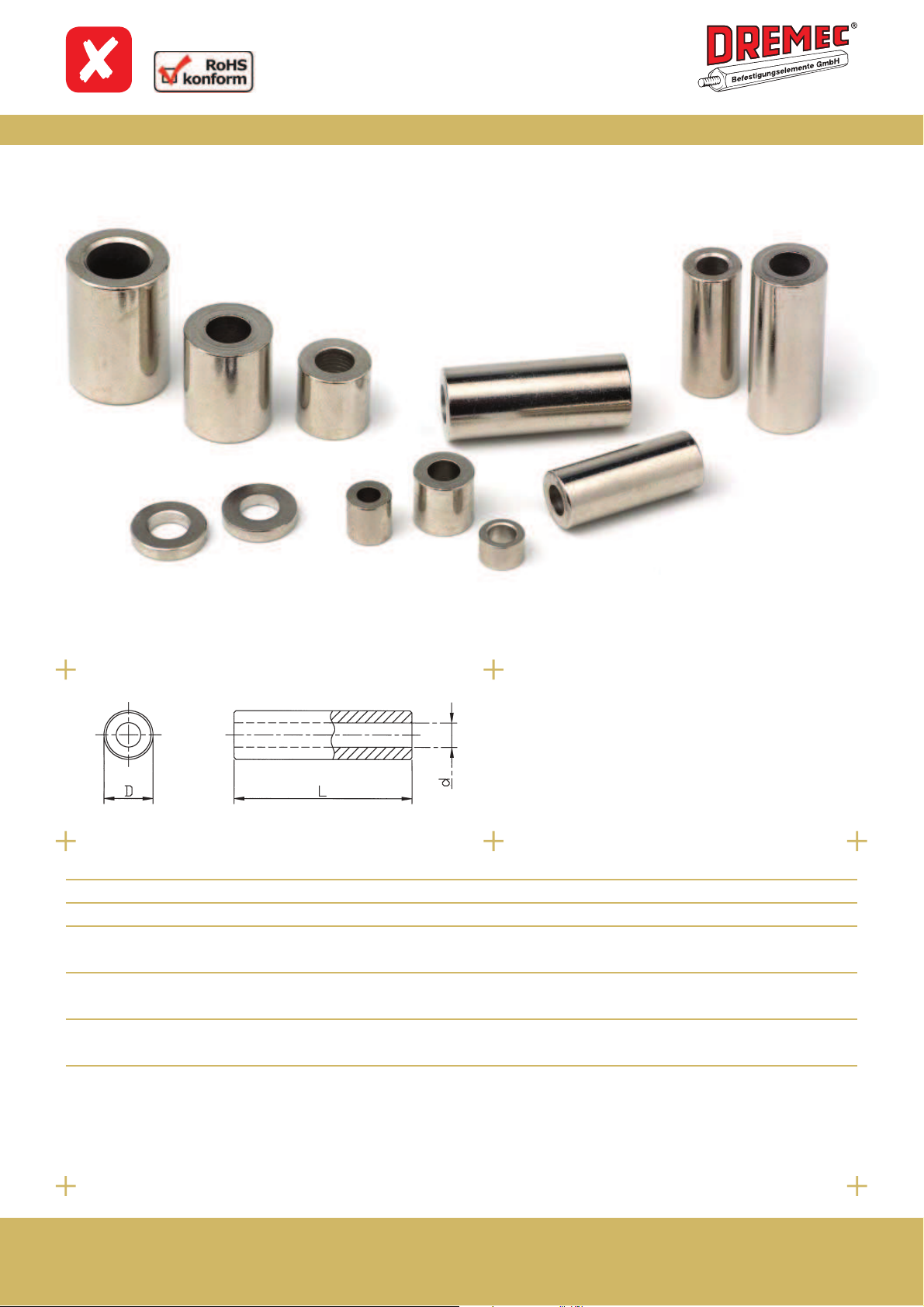

Standard range – spacer sleeves [ Brass, nickel plated ]

E-Mail: [e-mail] | Internet: www.dremec.de | Portal: www.dremec.net

29

– Tolerance for length dimensions: +/- 0.1 mm

– Available from stock. Delivery times

for intermediate lengths and special
versions upon request.
