Page 1
64
3-815-1
3-805-4
3-835-2
3-871-6
3-875-6
3-575-6
3-761-10
3-565-1

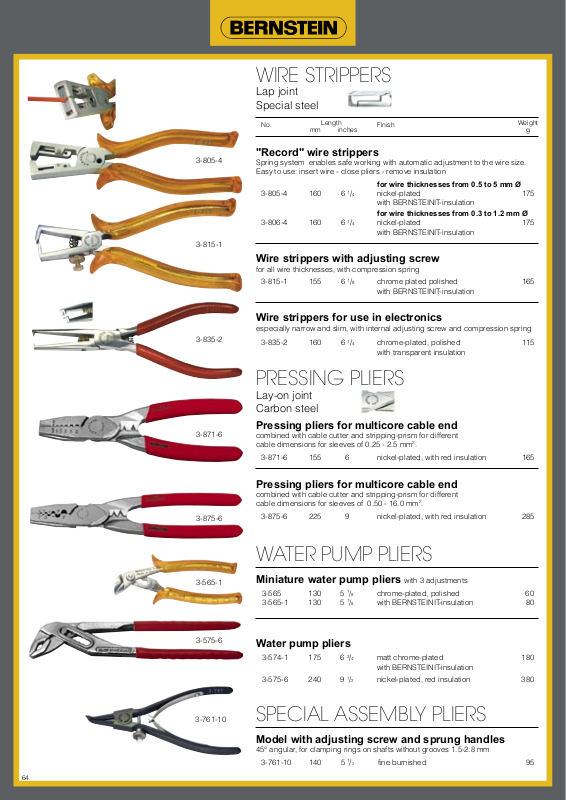

WIRE STRIPPERS
Lap joint
Special steel
No.
Length
Finish
Weight
mm inches g
"Record" wire strippers
Spring system enables safe working with automatic adjustment to the wire size.
Easy to use: insert wire - close pliers - remove insulation
for wire thicknesses from 0.5 to 5 mm Ø
3-805-4 160 6 1/4 nickel-plated 175
with BERNSTEINIT-insulation
for wire thicknesses from 0.3 to 1.2 mm Ø
3-806-4 160 6 1/4 nickel-plated 175
with BERNSTEINIT-insulation
Wire strippers with adjusting screw
for all wire thicknesses, with compression spring
3-815-1 155 6 1/8 chrome plated polished 165
with BERNSTEINIT-insulation
Wire strippers for use in electronics
especially narrow and slim, with internal adjusting screw and compression spring
3-835-2 160 6 1/4 chrome-plated, polished 115
with transparent insulation
PRESSING PLIERS
Lay-on joint
Carbon steel
Pressing pliers for multicore cable end
combined with cable cutter and stripping-prism for different
cable dimensions for sleeves of 0.25 - 2.5 mm2.
3-871-6 155 6 nickel-plated, with red insulation 165
Pressing pliers for multicore cable end
combined with cable cutter and stripping-prism for different
cable dimensions for sleeves of 0.50 - 16.0 mm2.
3-875-6 225 9 nickel-plated, with red insulation 285
WATER PUMP PLIERS
Miniature water pump pliers with 3 adjustments
3-565 130 5 1/8 chrome-plated, polished 60
3-565-1 130 5 1/8 with BERNSTEINIT-insulation 80
Water pump pliers
3-574-1 175 6 3/4 matt chrome-plated 180
with BERNSTEINIT-insulation
3-575-6 240 9 1/2 nickel-plated, red insulation 380
SPECIAL ASSEMBLY PLIERS
Model with adjusting screw and sprung handles
45° angular, for clamping rings on shafts without grooves 1.5-2.8 mm
3-761-10 140 5 1/2 fine burnished 95
