Datasheet 3402.0014.11, 3402.0047.11, 3402.0011.11, 3402.0015.11, 3402.0008.11 Specification
...Page 1
Non resettable fuses
0.1
1.6
3
5.8
0.8
7.4
2.6
2
3.1
+0.15
-0
±0.1
±0.1
+0.1
-0
2.8
3.53
Surface Mount Fuse, 7.4 x 3.1 mm, Quick-Acting F, 63 VAC, 63 VDC
OMF 63
UL 248-14 · 63 VAC · 63 VDC · Quick-Acting F
OMF 63
www.schurter.com/pg01_2
Description
- Directly solderable on printed circuit boards
Standards
- UL 248-14
- CSA C22.2 no. 248.14
Approvals
- UL File Number: E41599
- CSA File Number: 51172
Technical Data
Rated Voltage 63 VAC, 63 VDC
Rated Current 0.063 - 10 A
Breaking Capacity 50 A
Characteristic Quick-Acting F
Mounting PCB,SMT
Admissible Ambient Air Temp. -55 °C to 125 °C
Climatic Category 55/125/21 acc. to IEC 60068-1
Material: Housing Thermoplastic, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight 0.1 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking , Type, Current, Approvals
References
Packaging Details
Corresponding Fuseholder OMH 12
Assembled Fuseholder OMK 6
Fuse Kit Fuse Kit OM
F
5
3
Weblinks
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
e-Store, SCHURTER-Stock-Check, Distributor-Stock-Check
Soldering Methods Reflow, Wave
Solderability 245 °C / 3 sec acc. to IEC 60068-2-58,
Resistance to Soldering Heat 260 +0/-5 °C / 40 sec acc. to IPC/JE-
Current Carrying Capacity acc. to EIA/IS-722, Test 4.3.3
Terminal Strength MIL-STD-202, Method 211A
Case Resistance acc. to EIA/IS-722, Test 4.7
Mechanical Shock MIL-STD-202, Method 213B
Vibration, High Frequency MIL-STD-202, Method 204D
Flammability min. UL 94V-1
Test Td
DEC J-STD-020D, Level 1
(Deflection of board 1 mm for 1 minute)
>100 MΩ (between leeds and body)
(Shock 50gn, half sine wave, 11 ms)
(Shock 20 gn, 20 min, 10-2 kHz, 12
cyc.)
(acc. to EIA/IS-722, Test 4.12)
Dimensions
7.4 mm
Soldering pads
Fuses
1
Page 2
2
OMF 63
www.schurter.com/pg01_2
Pre-Arcing Time
Rated Current In 1.0 x In min. 2.0 x In max. 4.0 x In max.
0.063 A - 5 A 4 h 1 s 10 ms
6.3 A - 8 A 4 h 5 s 50 ms
10 A 4 h 20 s 60 ms
Variants
Rated Cur-
rent [A]
Rated Voltage [VAC]
Rated Vol-
tage [VDC]
Breaking
Capacity
Voltage Drop
1.0 In typ.
[mV]
Power Dissi-
pation 1.0 In
typ. [mW]
Melting I²t 4.0
In typ. [A²s]
Non resettable fuses
Order Number
0.063 63 63 1) 2550 160 0.00011
0.1 63 63 1) 1770 180 0.00067
0.125 63 63 1) 1770 220 0.0011
0.16 63 63 1) 1770 270 0.0018
0.25 63 63 1) 990 250 0.0058
0.35 63 63 1) 990 350 0.0076
0.375 63 63 1) 990 370 0.013
0.4 63 63 1) 960 380 0.016
0.5 63 63 1) 350 180 0.01
0.63 63 63 1) 290 180 0.02
0.75 63 63 1) 260 200 0.031
1 63 63 1) 220 220 0.078
1.25 63 63 1) 220 280 0.14
1.5 63 63 1) 200 300 0.24
1.6 63 63 1) 200 320 0.27
2 63 63 1) 200 400 0.44
2.5 63 63 1) 190 480 0.97
3 63 63 1) 190 570 1.3
3.15 63 63 1) 190 600 1.2
3.5 63 63 1) 140 490 1.6
4 63 63 1) 140 560 2.1
5 63 63 1) 140 700 2.9
6.3 63 63 1) 110 690 14
7 63 63 1) 105 740 16
8 63 63 1) 100 800 20
10 63 63 1) 80 800 54
1) 50 A @ 63 VAC/DC
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
l l l
3402.0003.xx
3402.0004.xx
3402.0049.xx
3402.0005.xx
3402.0006.xx
3402.0043.xx
3402.0044.xx
3402.0007.xx
3402.0045.xx
3402.0008.xx
3402.0046.xx
3402.0009.xx
3402.0010.xx
3402.0047.xx
3402.0011.xx
3402.0012.xx
3402.0013.xx
3402.0014.xx
3402.0048.xx
3402.0015.xx
3402.0016.xx
3402.0017.xx
3402.0018.xx
3402.0019.xx
3402.0020.xx
3402.0040.xx
Packaging Unit
.xx = .11 Plastic Bag (100 pcs.)
.xx = .22 Blister Tape 18 cm Reel (750 pcs.)
.xx = .24 Blister Tape 33 cm Reel (3000 pcs.)
Fuses
Page 3
Non resettable fuses
0.001
0.01
0.1
1
10
100
1000
10000
100000
1
10
≤ 5 A
6.3 A – 8A
10 A

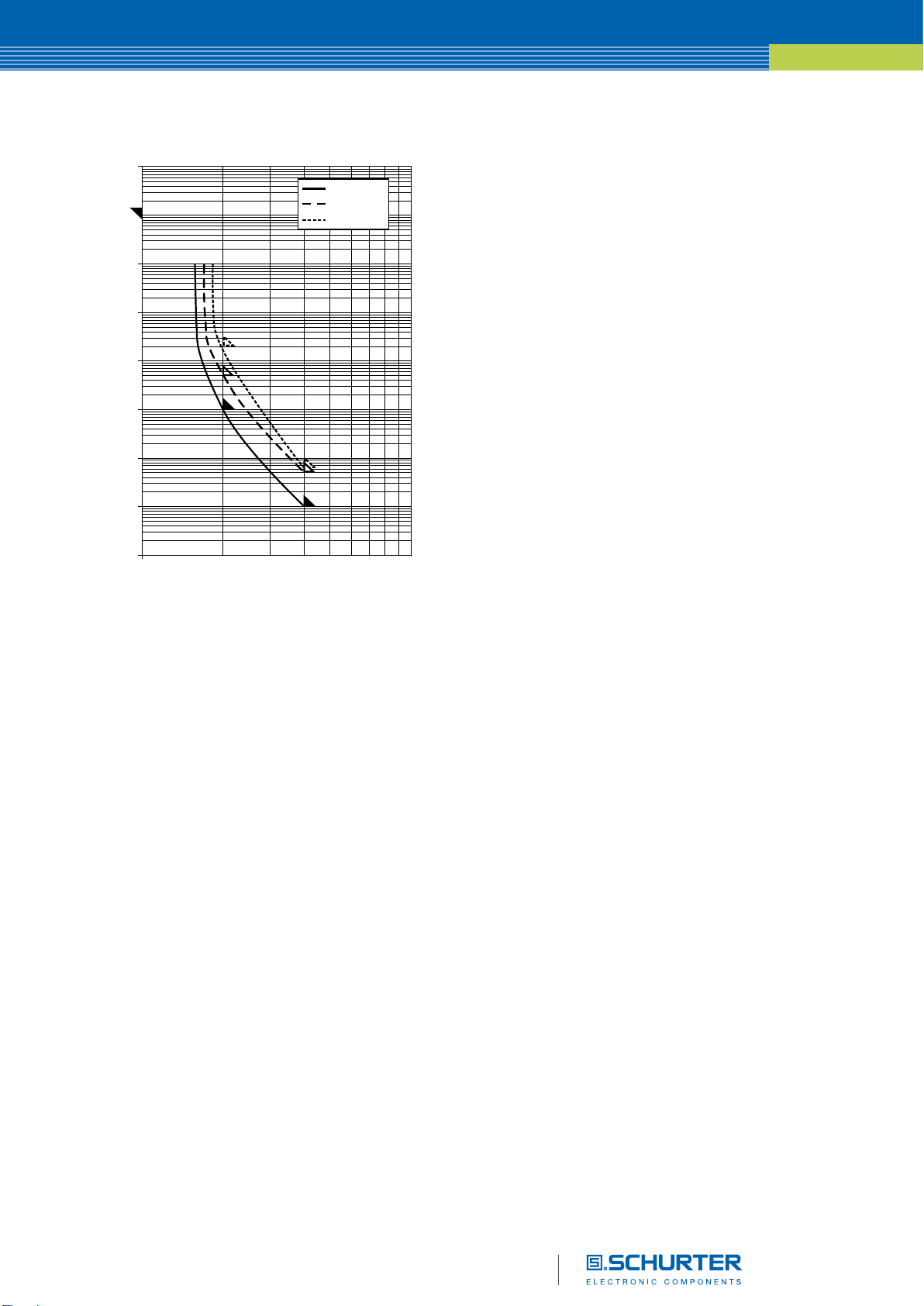

Time-Current-Curves
Time in Seconds
OMF 63
www.schurter.com/pg01_2
Multiple of Rated Current In
The specifications, descriptions and illustrations indicated in this document are based on
current information. All content is subject to modifications and amendments.
