Page 1

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex. †“Fluorinert” is a registered trademark of 3M Co. Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.

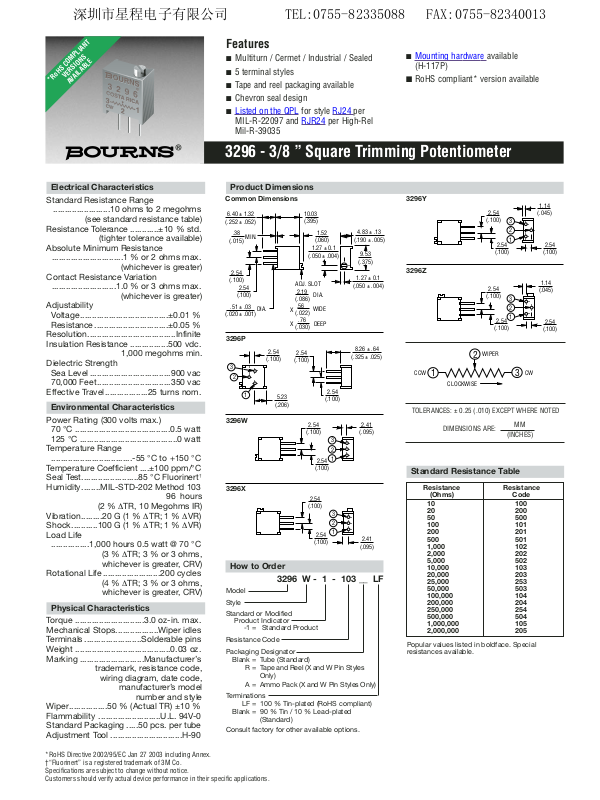

3296 - 3/8 ” Square Trimming Potentiometer

Features

■ Multiturn / Cermet / Industrial / Sealed

■ 5 terminal styles

■ Tape and reel packaging available

■ Chevron seal design

■ Listed on the QPL for style RJ24 per

MIL-R-22097 and RJR24

per High-Rel

Mil-R-39035

■ Mounting hardware available

(H-117P)

■ RoHS compliant* version available

Electrical Characteristics

Standard Resistance Range

........................10 ohms to 2 megohms

(see standard resistance table)

Resistance Tolerance ............±10 % std.

(tighter tolerance available)

Absolute Minimum Resistance

..............................1 % or 2 ohms max.

(whichever is greater)

Contact Resistance Variation

...........................1.0 % or 3 ohms max.

(whichever is greater)

Adjustability

Voltage.....................................±0.01 %

Resistance...............................±0.05 %

Resolution.....................................Infinite

Insulation Resistance ................500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level ..................................900 vac

70,000 Feet...............................350 vac

Effective Travel..................25 turns nom.

Environmental Characteristics

Power Rating (300 volts max.)

70 °C ........................................0.5 watt

125 °C .........................................0 watt

Temperature Range

..................................-55 °C to +150 °C

Temperature Coefficient ....±100 ppm/°C

Seal Test........................85 °C Fluorinert

†

Humidity........MIL-STD-202 Method 103

96 hours

(2 % ∆TR, 10 Megohms IR)

Vibration.........20 G (1 % ∆TR; 1 % ∆VR)

Shock...........100 G (1 % ∆TR; 1 % ∆VR)

Load Life

................1,000 hours 0.5 watt @ 70 °C

(3 % ∆TR; 3 % or 3 ohms, whichever is greater, CRV)

Rotational Life........................200 cycles

(4 % ∆TR; 3 % or 3 ohms, whichever is greater, CRV)

Physical Characteristics

Torque .............................3.0 oz-in. max.

Mechanical Stops..................Wiper idles

Terminals ........................Solderable pins

Weight ........................................0.03 oz.

Marking ...........................Manufacturer’s

trademark, resistance code,

wiring diagram, date code,

manufacturer’s model

number and style

Wiper................50 % (Actual TR) ±10 %

Flammability ..........................U.L. 94V-0

Standard Packaging .....50 pcs. per tube

Adjustment Tool ..............................H-90

CLOCKWISE

CCW

WIPER

1.27 ± 0.1

(.050 ± .004)

4.83 ± .13

(.190 ± .005)

9.53

(.375)

1.27 ± 0.1

(.050 ± .004)

5.23

(.206)

2.41

(.095)

8.26 ± .64

(.325 ± .025)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.41

(.095)

10.03 (.395)

1.52

(.060)

.38

(.015)

6.40 ± 1.32

(.252 ± .052)

.51 ± .03

(.020 ± .001)

2.54

(.100)

2.54

(.100)

MIN.

DIA.

ADJ. SLOT

2.19 (.086) .56 (.022) .76 (.030)

WIDE

DEEP

DIA.

1.14

(.045)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

1.14

(.045)

Resistance Resistance

(Ohms) Code

10 100 20 200 50 500 100 101 200 201 500 501 1,000 102 2,000 202 5,000 502 10,000 103 20,000 203 25,000 253 50,000 503 100,000 104 200,000 204 250,000 254 500,000 504 1,000,000 105 2,000,000 205

Standard Resistance Table

DIMENSIONS ARE:

(INCHES)

TOLERANCES: ± 0.25 (.010) EXCEPT WHERE NOTED

Popular values listed in boldface. Special resistances available.

How to Order

3296 W - 1 - 103 __ LF

Model Style Standard or Modified

Product Indicator

-1 = Standard Product

Resistance Code Packaging Designator

Blank = Tube (Standard)

R = Tape and Reel (X and W Pin Styles

Only)

A = Ammo Pack (X and W Pin Styles Only)

Terminations

LF = 100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

(Standard)

Consult factory for other available options.

Product Dimensions

Common Dimensions

3296P

3296W

3296X

3296Y

3296Z

*RoHS COMPLIANT

VERSIONS

AVAILABLE

深圳市星程电子有限公司 TEL:0755-82335088 FAX:0755-82340013

Page 2

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

SIDE ADJUST 3296X-1

18 ± .76

(.709 ± .030)

8.89 + .76 /- .51

(.350 + .030 /- .020)

28.07 ± .76

(1.105 ± .030)

3.81 ± .71

(.15 ± .028)

4.83 + .30/ -.25

(.190 + .012/ -.010)

2.41 ± .25

(.095 ± .010)

12.70 (.500)

REF.

12.7 + 0.3/ - 0.25

(.500 + .012/ - .010)

18 + 1.0/ - 0.5

(709 + .040/ - .020)

4.0 ± .03

(.157 ± .001)

DIA.

ALL PINS IN-LINE ON CENTER

DIMENSIONS:

1000/REEL/BOX

2.54

(.100)

(INCHES)

12.70

(.500)

TOP ADJUST 3296W-1

29.59 ± .76

(1.165 ± .030)

REF.

4.83 + .30/ -.25

(.190 + .012/ -.010)

2.41 ± .25

(.095 ± .010)

18 ± .76

(.709 ± .030)

4.0 ± .03

(.157 ± .001)

DIA.

12.7 + 0.3/ - 0.25

(.500 + .012/ - .010)

18 + 1.0/ - 0.5

(709 + .040/ - .020)

8.89 + .76 /- .51

(.350 + .030 /- .020)

3.81 ± .71

(.150 ± .028)

.51 ± .051

(020 ± .002)

DIA. TYP.

(.100)

2.54

ALL PINS IN-LINE ON CENTER

DIMENSIONS:

1000/REEL/BOX

2.54

(.100)

(INCHES)

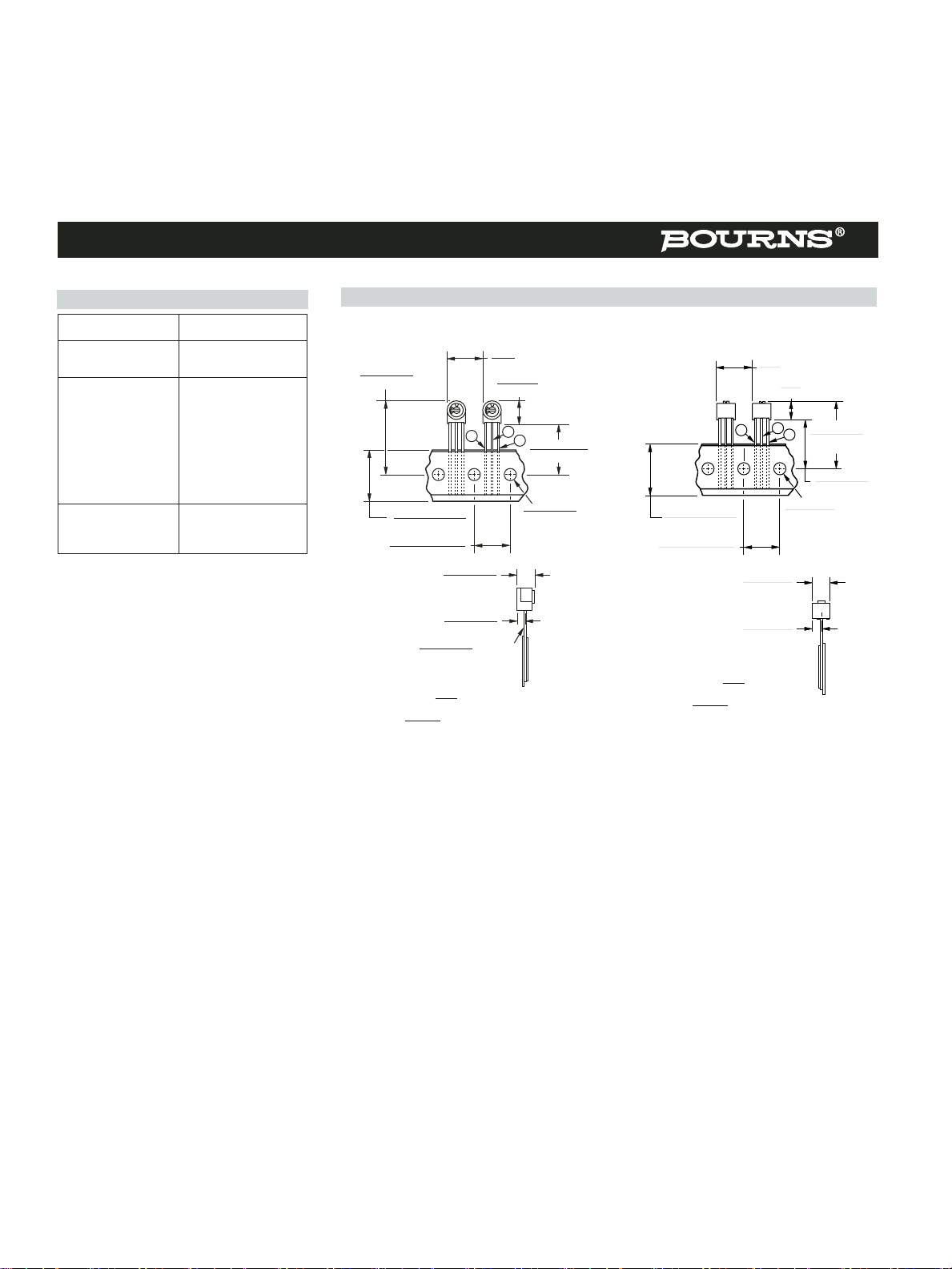

Packaging Specifications

Meets EIA Specification 468.

3296 - 3/8 ” Square Trimming Potentiometer

REV. 10/05

深圳市星程电子有限公司 TEL:0755-82335088 FAX:0755-82340013

Page 3

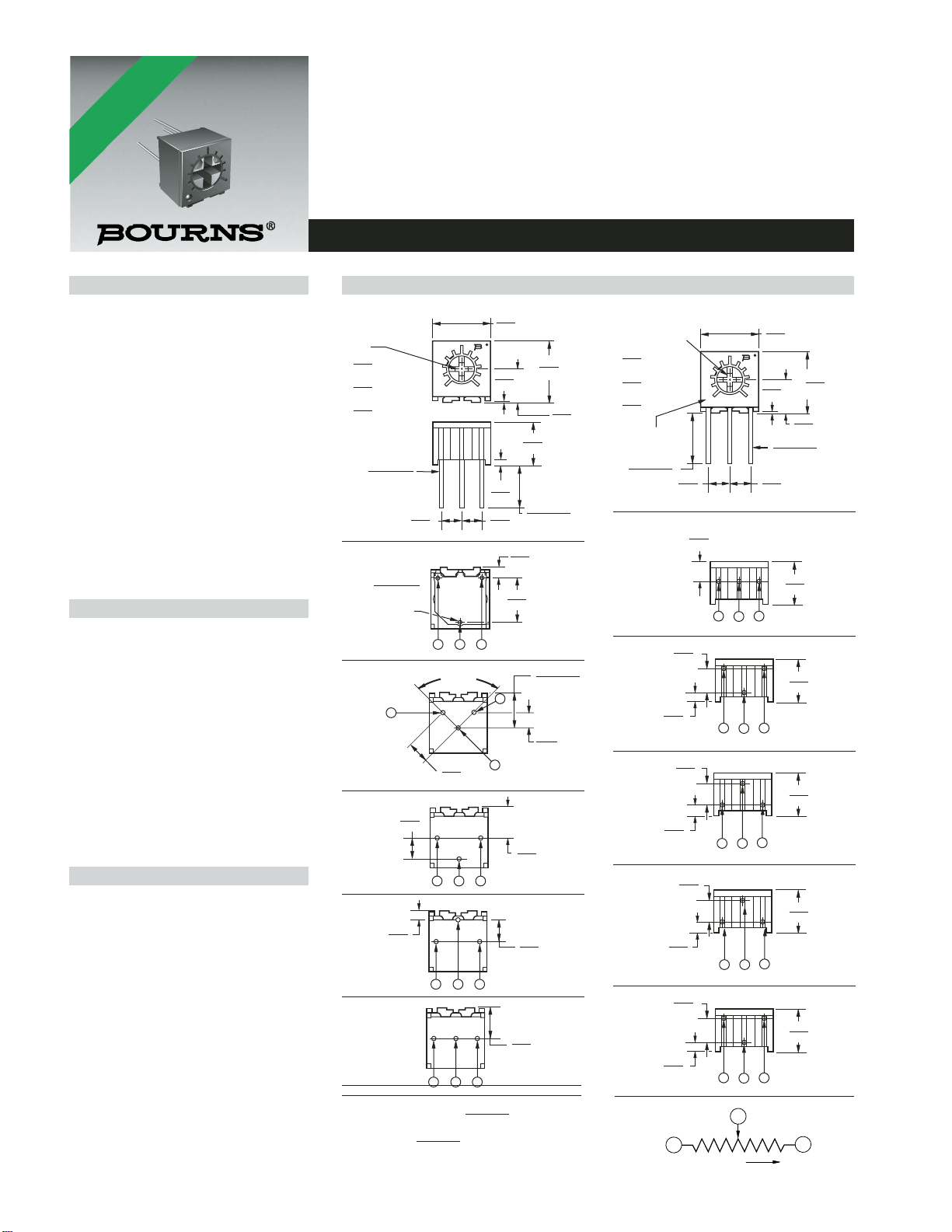

3266 - 1/4 ” Square Trimming Potentiometer

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

†“Fluorinert” is a registered trademark of 3M Co.

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

Features

■ Multiturn / Cermet / Industrial / Sealed

■ Standoffs allow thorough PC board

washing

■ Tape and reel packaging available

■ Patent #4427966 drive mechanism

■ RoHS compliant* version available

Electrical Characteristics

Standard Resistance Range

....................................10 to 1 megohm

(see standard resistance table)

Resistance Tolerance ............±10 % std.

Absolute Minimum Resistance

..............................1 % or 2 ohms max.

(whichever is greater)

Contact Resistance Variation

...........................3.0 % or 3 ohms max.

(whichever is greater)

Adjustability

Voltage.....................................±0.02 %

Resistance...............................±0.05 %

Resolution.....................................Infinite

Insulation Resistance ................500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level ..................................600 vac

80,000 Feet...............................250 vac

Effective Travel..................12 turns nom.

Environmental Characteristics

Power Rating (300 volts max.)

70 °C ......................................0.25 watt

150 °C .........................................0 watt

Temperature Range ....-55 °C to +150 °C

Temperature Coefficient ....±100 ppm/°C

Seal Test........................85 °C Fluorinert

†

Humidity........MIL-STD-202 Method 103

96 hours (2 % ∆TR, 10 Megohms IR)

Vibration.........30 G (1 % ∆TR; 1 % ∆VR)

Shock...........100 G (1 % ∆TR; 1 % ∆VR)

Load Life ...1,000 hours 0.25 watt 70 °C

(3 % ∆TR; 3 % CRV)

Rotational Life........................200 cycles

(4 % ∆TR; 3 % or 3 ohms, whichever is greater, CRV)

Physical Characteristics

Torque .............................3.0 oz-in. max.

Mechanical Stops..................Wiper idles

Terminals ........................Solderable pins

Weight ......................................0.015 oz.

Marking ...........................Manufacturer’s

trademark, resistance code,

wiring diagram, date code,

manufacturer’s model

number and style

Wiper................50 % (Actual TR) ±10 %

Flammability...........................U.L. 94V-0

Standard Packaging .....50 pcs. per tube

Adjustment Tool ..............................H-90

CLOCKWISE

CCW

WIPER

How to Order

3266 W - 1 - 103 __ LF

Model Style Standard or Modified

Product Indicator

-1 = Standard Product

Resistance Code Packaging Designator

Blank = Tube (Standard)

R = Tape and Reel (Z and Y Pin Styles

Only)

A = Ammo Pack (Z and Y Pin Styles Only)

Terminations

LF = 100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

(Standard)

Consult factory for other available options.

DIMENSIONS ARE:

(INCHES)

TOLERANCES: ± 0.25 (.010) EXCEPT WHERE NOTED

**COMMON DIMENSIONS

*RoHS COMPLIANT

VERSIONS

AVAILABLE

深圳市星程电子有限公司 TEL:0755-82335088 FAX:0755-82340013

3266W Common Dimensions

(.285 ±.020)

4.78 ±.38** (.188 ±.015)

3266P

3266X

4.50 ±.38** (.177 ±.015)

7.24 ±.51

2.54

(.100)

0.76 ± .25

(.030 ± .010)

(.100 ± .010)

2.54 ± .25

(.100 ± .010)

2.54

(.100)

1.24 ±.25**

(.049 ±.010)

TYP.**

(.040)

1.52

(.06)

2.54 ± .25

(.100)

1.02

(.040)

1.02

2.54

123

1.02

(.040)

123

1.02 ±.25

(.040 ±.010)

123

(.264 ±.015)

1.22 ±.25

(.048 ±.010)

6.71 ±.38 TYP.

ADJ. SLOT

1.78 DIA.

(.070) .51

WIDE

(.020) .64

DEEP

(.025)

.46 ±.13

(.018 ±.005)

.46 ±.03

2.54

(.100)

4.42 ± .51

6.48 ±.51

1.24 ±.25

(.049 ±.010)

1.22 ±.25

(.048 ±.010)

.46 ±.13

(.018 ±.005)

.76

(.030)

DIA.**

2.54

(.100)

MIN.**

(.018 ±.001)

.76** (.030)

(.174 ±.020)

(.255 ±.020)

2.54 ± .25

(.100 ± .010)

2.54

(.100)

3266Y

4.50 ±.38

(.177 ±.015)

MIN.

3266Z

(.177 ±.015)

1.22 ±.25

(.048 ±.010)

0.46 ±.13

(.018 ±.005)

4.32

(.170)

1.24 ±.25**

(.049 ±.010)

4.50 ±.38

0.38

(.015)

4.32

(.170)

1.24 ±.25** (.049 ±.010)

2.54

(.100)

2.16

(.085)

MIN.

2.54

(.100)

2.16

(.085)

1.02

(.040)

123

6.71 ±.38

(.264 ±.015)

1.02

(.040 )

6.85 ±.51

(.270 ±.020)

2.54

(.100)

3.18

(.125)

7.24 ±.51

(.285 ±.020)

1.22 ±.25

(.048 ±.010)

6.85 ±.51

(.270 ±.020)

2.54

(.100)

3.18

(.125)

4.50 ±.38

(.177 ±.015)

Page 4

Resistance Resistance

(Ohms) Code

10 100 20 200 50 500 100 101 200 201 500 501

1,000 102 2,000 202 5,000 502 10,000 103 20,000 203

25,000 253 50,000 503 100,000 104 200,000 204 250,000 254 500,000 504 1,000,000 105

Standard Resistance Table

Popular distribution resistance values listed in boldface. Special resistances available.

Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.

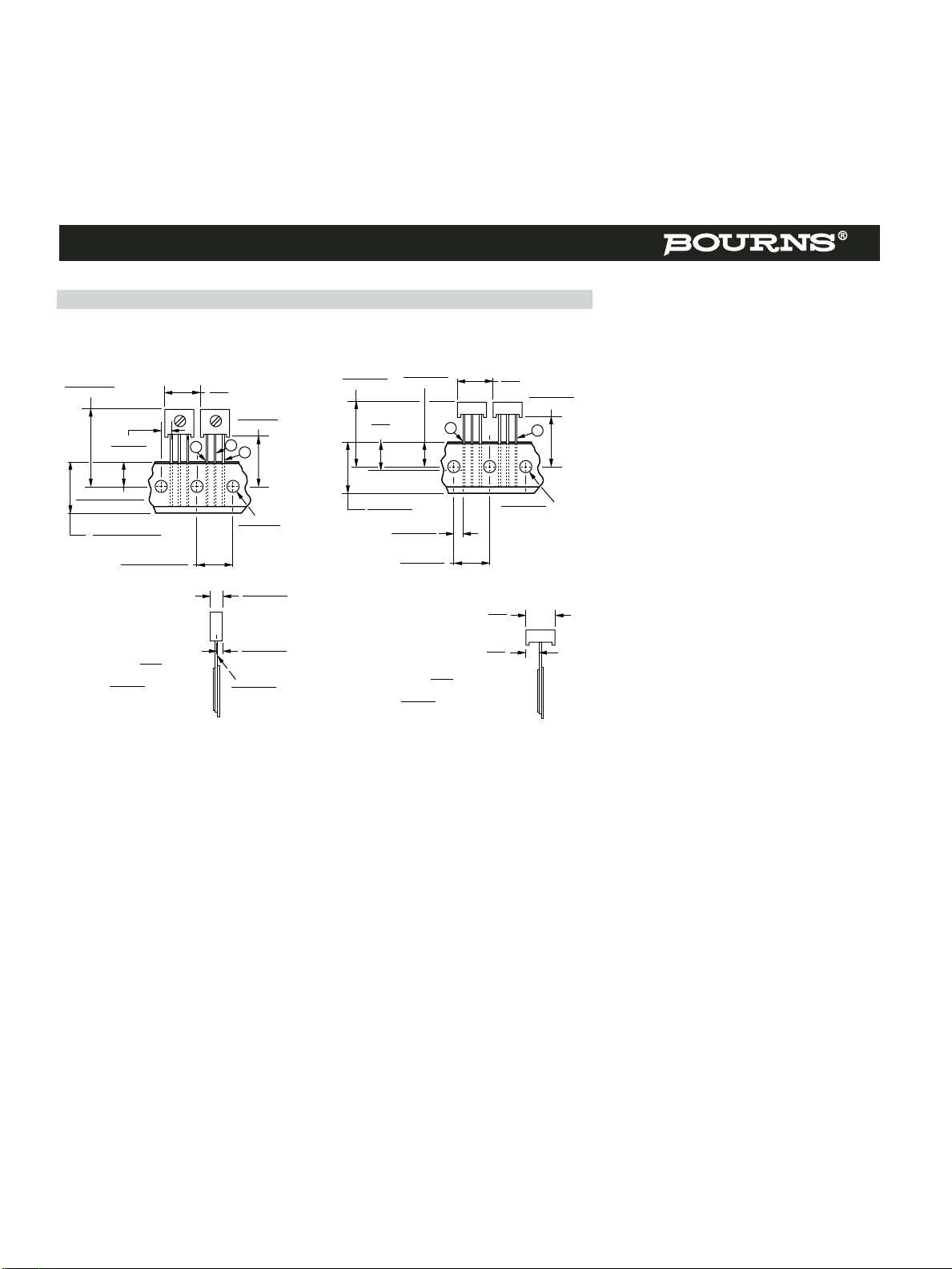

SIDE ADJUST 3266Z-1

12.70 (.500)

18 ± .76

(.709 ± .030)

12.7 + 0.3/ - 0.25

(.500 + .012/ - .010)

18 + 1.0/ - 0.5

(709 + .040/ - .020)

24.9 + .76

(.980 + .030)

4.0 ± .03

(.157 ± .001)

3.81 ± .71

(.150 ± .028)

4.32 ± .38

(.170 ± .015)

2.16 ± .25

(.085 ± .010)

.43 ± .05

(017 ± .002)

8.9 + .76 /- .5

(.035 + .030/ .020)

REF.

DIA.

DIA. TYP.

ALL PINS IN-LINE ON CENTER

DIMENSIONS:

1000/REEL/BOX

2.54

(.100)

(INCHES)

TOP ADJUST 3266Y-1

12.70

(.500)

18 ± .76

(.709 ± .030)

4.0 ± .03

(.157 ± .001)

3.81 ± .71

(.150 ± .028)

25.9 ± 0.76

(1.020 ± .030)

18 + 1.0/ - 0.5

(709 + .040/ - .020)

12.7 + 0.3/ - 0.25

(.500 + .012/ - .010)

4.32 ± .38

(.170 ± .015)

2.16 ± .25

(.085 ± .010)

3.81 ± .71

(.150 ± .028)

REF.

DIA.

8.9 + .76 /- .5

(.035 + .030/ .020)

ALL PINS IN-LINE ON CENTER

DIMENSIONS:

1000/REEL/BOX

2.54

(.100)

(INCHES)

Packaging Specifications

Meets EIA Specification 468.

3266 - 1/4 ” Square Trimming Potentiometer

REV. 03/07

深圳市星程电子有限公司 TEL:0755-82335088 FAX:0755-82340013

Page 5

Features

CLOCKWISE

CCW

WIPER

1.40

(.055)

6.35

(.250)

19.05

(.750)

1.52

(.060)

.38

(.015)

5.33 ± .89

(.210 ± .035)

.76

(.030)

.51 ± .03 (.020 ± .001)

4.83

(.190)

4.70 ± .38

(.185 ± .015)

3.30

(.130)

5.08

(.200)

12.70

(.500)

2.54

(.100)

Common Dimensions

3006P

1.40

(.055)

.64

(.025)

7.62

(.300)

17.78

(.700)

3006Y

3.30

(.130)

5.08

(.200)

12.70 (.500)

3006W

5.08

(.200)

2.54

(.100)

DIA. PINS TYP.

MIN.

ADJ. SLOT

2.36 (.093) .79 (.031) .64 (.025)

WIDE

DEEP

DIA.

*RoHS COMPLIANT

VERSIONS

AVAILABLE

深圳市星程电子有限公司 TEL:0755-82335088 FAX:0755-82340013

■ 3/4 ” Rectangular / Multiturn

Cermet / Industrial / Sealed

■ Low PC board profile - only 1/4 ” high

■ Panel mount option available

■ Transparent housing available, can

be set visually without hook-up and instrumentation (“P” style only)

■ RoHS compliant* version available

3006 - Trimpot®Trimming Potentiometer

Electrical Characteristics

Standard Resistance Range

..................................10 to 5 megohms

Resistance Tolerance ............±10 % std.

Absolute Minimum Resistance

...........................1.0 % or 2 ohms max.

Contact Resistance Variation

.............................1.0 % or 1 ohm max.

Adjustability

Voltage.....................................±0.01 %

Resistance ...............................±0.05 %

Resolution.....................................Infinite

Insulation Resistance ................500 vdc.

Dielectric Strength

Sea Level ...............................1,000 vac

80,000 Feet...............................250 vac

Adjustment Angle .............15 turns nom.

Environmental Characteristics

Power Rating (400 volts max.)

70 °C ......................................0.75 watt

125 °C .........................................0 watt

Temperature Range ....-55 °C to +125 °C

Temperature Coefficient ....±100 ppm/°C

Seal Test........................85 °C Fluorinert

Humidity........MIL-STD-202 Method 103

Vibration.........20 G (2 % ∆TR; 2 % ∆VR)

Shock.............50 G (2 % ∆TR; 2 % ∆VR)

Load Life ...1,000 hours 0.75 watt 70 °C

Rotational Life ........................200 cycles

Physical Characteristics

(see standard resistance table)

(tighter tolerance available)

(whichever is greater)

1,000 megohms min.

(3 % ∆TR, 20 Megohms IR)

(3 % ∆TR; 1 % or 1 ohm,

whichever is greater, CRV)

†

96 hours

(4 % ∆TR)

How To Order

3006 P - 1 - 103 Z LF

Model

Style

Standard or Modified

Product Indicator

-1 = Standard Product

-7 = Transparent Housing

Resistance Code

Optional Suffix Letter

Z = Panel Mount

(Factory Installed)

Terminations

LF = 100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

Consult factory for other available options.

(Standard)

Standard Resistance Table

Resistance Resistance

(Ohms) Code

10 100 20 200 50 500 100 101 200 201

500 501 1,000 102 2,000 202 5,000 502 10,000 103 20,000 203 25,000 253 50,000 503 100,000 104 200,000 204

250,000 254 500,000 504 1,000,000 105 2,000,000 205

Popular distribution values listed in boldface. Special resistances available.

Torque ..............................5.0 oz-in. max.

Mechanical Stops ..................Wiper idles

Terminals.........................Solderable pins

Weight.........................................0.04 oz.

Marking ............................Manufacturer’s

trademark, resistance code,

terminal numbers, date code,

manufacturer’s model number

and style

Wiper ....................50 % (Actual TR) ±10 %

Flammability............................U.L. 94V-0

Standard Packaging......25 pcs. per tube

Adjustment Tool ...............................H-90

REV. 10/04

TOLERANCES: ± 0.25 (.010) EXCEPT WHERE NOTED

DIMENSIONS ARE:

(INCHES)

Page 6

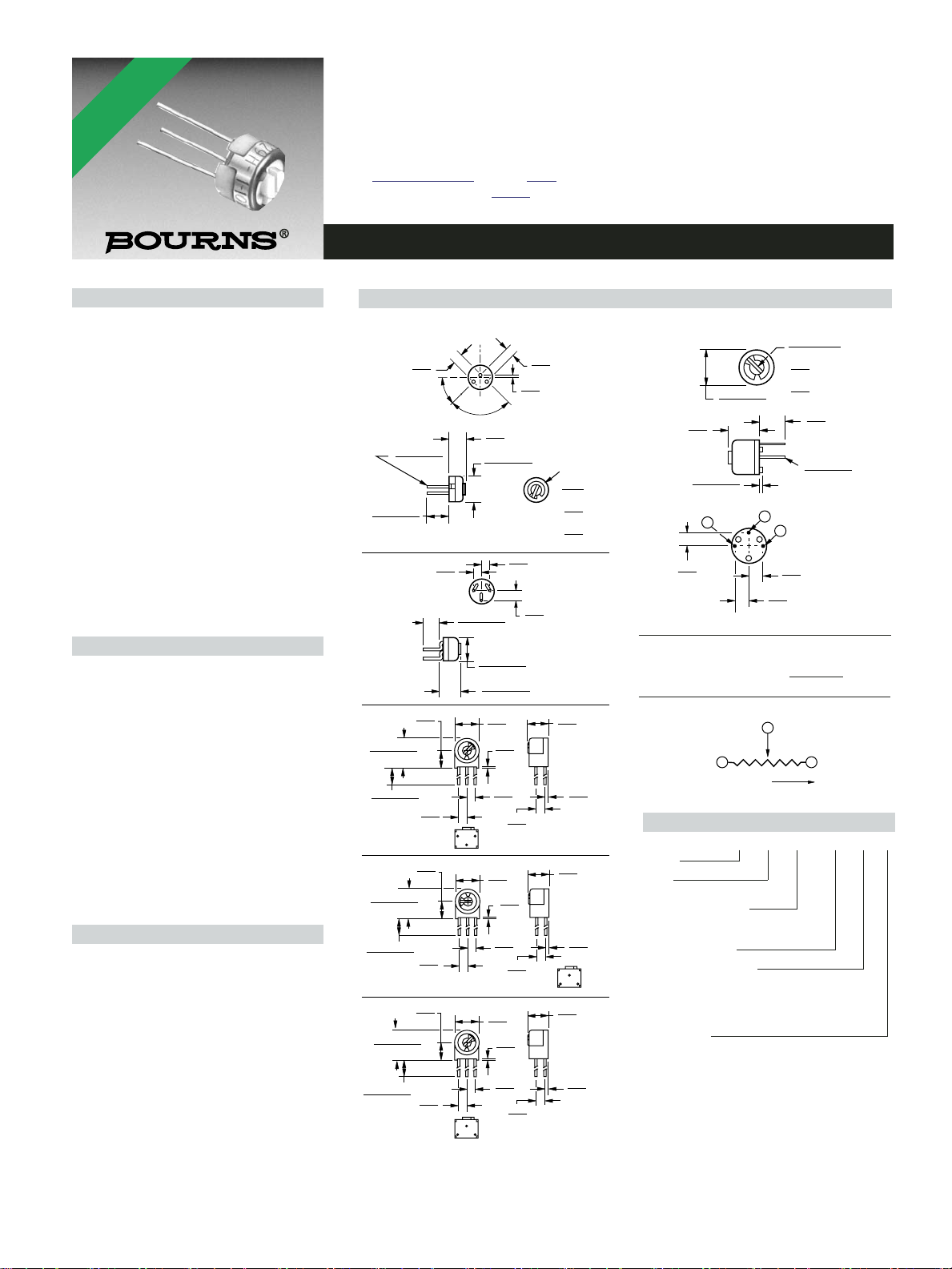

3329 - 1/4 ” Round Trimming Potentiometer

Features

■ 1/4” Round / Single-Turn / Cermet

Industrial / Sealed

■ 5 standard terminal styles

■ Tape and reel packaging available

■ Listed on the QPL for style RJ50 per

MIL-PRF-22097 and RJR50

per

High-Rel MIL-PRF-39035

■ RoHS compliant* version available

Electrical Characteristics

Standard Resistance Range

...................................10 to 1 megohm

(see standard resistance table)

Resistance Tolerance ............±10 % std.

(closer tolerance available)

Absolute Minimum Resistance

......................................1 % or 2 ohms

(whichever is greater)

Contact Resistance Variation

..........................3.0 % or 3 ohms max.

(whichever is greater)

Adjustability

Voltage....................................±0.05 %

Resistance ..............................±0.15 %

Resolution.....................................Infinite

Insulation Resistance ................500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level .................................600 vac

80,000 Feet..............................250 vac

Adjustment Angle ..................240 ° nom.

Environmental Characteristics

Power Rating @ 85 °C (300 volts max.)

.................................................0.5 watt

Power Rating @ 150 °C.................0 watt

Temperature Range ....-55 °C to +150 °C

Temperature Coefficient ....±100 ppm/°C

Seal Test........................85 °C Fluorinert

†

Humidity........MIL-STD-202 Method 106

96 hours

(3 % ∆TR, 10 Megohms IR)

Vibration.........30 G (1 % ∆TR; 1 % ∆VR)

except “P” pin style

Shock...........100 G (1 % ∆TR; 1 % ∆VR)

Load Life

..............1,000 hours 0.5 watt @ 85 °C

(3 % ∆TR; 3 % CRV)

Rotational Life........................200 cycles

(4 % ∆TR; 4 % CRV)

Physical Characteristics

Mechanical Angle ..................260 ° nom.

Torque .............................5.0 oz-in. max.

Stop Strength..................5.0 oz -in. min.

Terminals ........................Solderable pins

Weight ........................................0.02 oz.

Marking.........Manufacturer’s trademark,

resistance code, date code,

manufacturer’s model number

and style

Wiper................50 % (Actual TR) ±10 %

Standard Packaging .....50 pcs. per tube

Adjustment Tool ..............................H-90

4.57

(.180)

45° REF.

90° ± 5°

.46 ± .05

(.018 ± .002)

6.35 ± .51

(.250 ± .020)

6.78 ± 2.24

(.267 ± .088)

3329H

3329P

5.82 ± .25

(.229 ± .010)

3329S

6.10

(.240)

.89

(.035)

6.60

(.260)

.38

(.015)

7.75 ± 2.97

(.305 ± .117)

8.38 ± .51

(.330 ± .020)

5.08

(.200)

3329W

3329X

3329P-DK9-RC

6.35 ± .51

(.250 ± .020)

5.79

(.228)

4.75

(.187)

.46 ± .05 (.018 ± .002)

.43 ± .13

(.017 ± .005)

2.54

(.100)

ADJ. SLOT

2.79 ± .038 (.110 ± ..001) .64 (.025) .51 (.020)

2.54

(.100)

2.54

(.100)

WIDE

DEEP

DIA.

MIN.

DIA. 3 PINS

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

6.10

(.240)

6.10

(.240)

5.08

(.200)

5.08

(.200)

6.60

(.260)

6.60

(.260)

.89

(.035)

.89

(.035)

2.54

(.100)

.38

(.015)

DIA. TYP.

6.78 ± 2.24

(.267 ± .088)

6.35 ± .51

(.250 ± .020)

7.75 ± 2.97

(.305 ± .117)

7.75 ± 2.97

(.305 ± .117)

8.38 ± .51

(.330 ± .020)

8.38 ± .51

(.330 ± .020)

.38

(.015)

.38

(.015)

ADJ. SLOT

3.56 (.140) .64 (.025)

1.02 (.040)

WIDE

DEEP

LONG

How To Order

3329 M - 1 - 103 __ LF

Model Style Standard or Modified

Product Indicator

-1 = Standard Product

-DK9 = Plastic Spacer

Resistance Code Packaging Designator

Blank = Tube (Standard)

R = Tape and Reel (M and U Pin Styles

Only)

A = Ammo Pack (M and U Pin Styles Only)

Terminations

LF = 100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

(Standard)

Consult factory for other available options.

DIMENSIONS ARE:

(INCHES)

TOLERANCES: ± 0.25 (.010) EXCEPT WHERE NOTED

1 3

CCW CW

CLOCKWISE

WIPER

Product Dimensions

*RoHS COMPLIANT

VERSIONS

AVAILABLE

深圳市星程电子有限公司 TEL:0755-82335088 FAX:0755-82340013

Page 7

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

Standard Resistance Table

Popular distribution resistance values listed in boldface. Special resistances available.

Resistance Resistance

(Ohms) Code

10 100 20 200 50 500

100 101 200 201 500 501 1,000 102 2,000 202 5,000 502 10,000 103 20,000 203 25,000 253 50,000 503 100,000 104

200,000 204 250,000 254 500,000 504 1,000,000 105

REV. 09/07

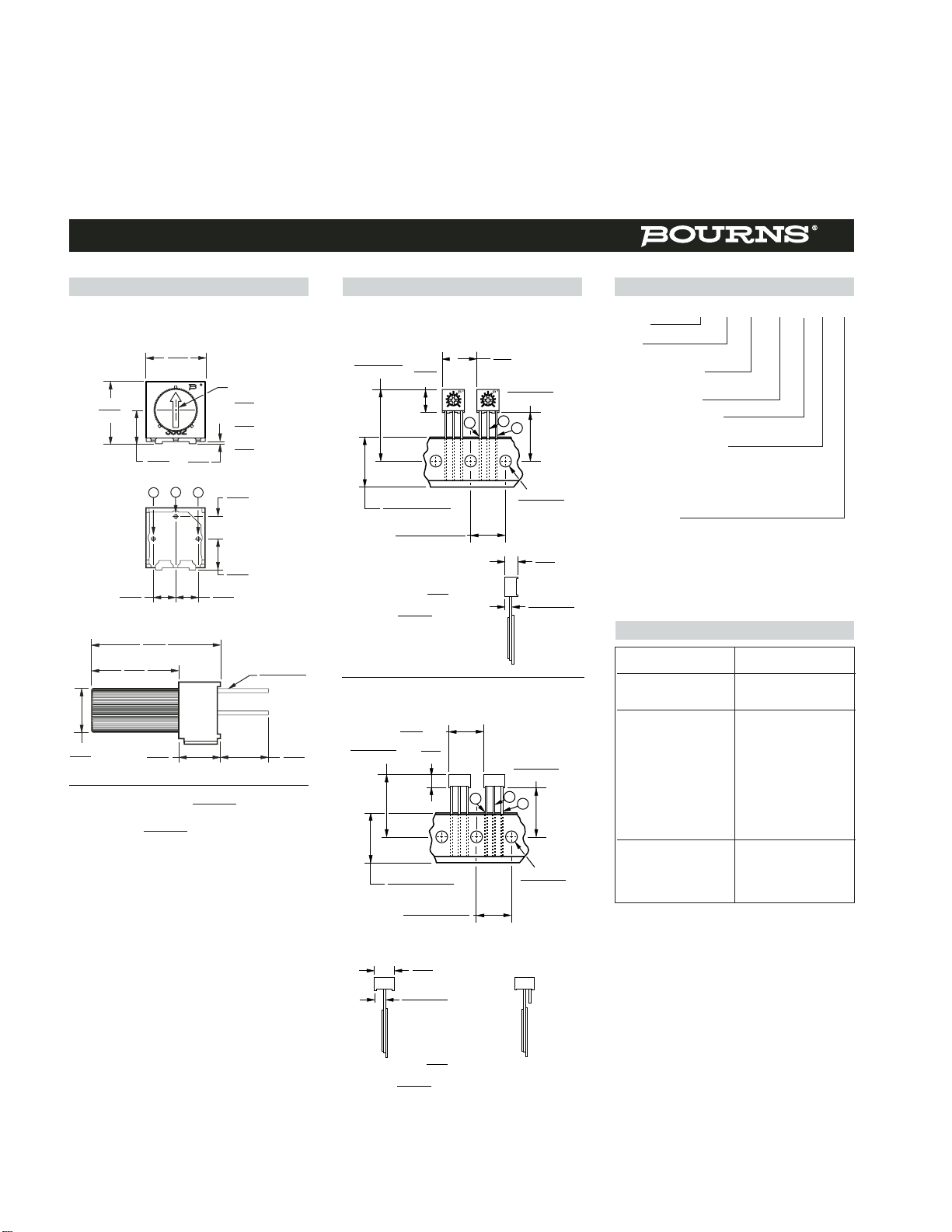

SIDE ADJUST 3329M-1

12.70

(.500)

12.70 + 0.3/ - 0.25

(.500 + .012/ - .010)

8.38 ± .51 (.33 ± .02)

18 + 1.0/ - 0.5

(.709 + .039/ .020)

26.4 ± .76

(1.040 ± .030)

4.0 ± 0.3

(.157 ± .012)

6.1 ± .25

(.240 ± .010)

3.43 ± .25

(.135 ± .010)

.457 ± .051

(.018 ± .002)

REF.

DIA.

18.034 ± 0.762 (.71 ± .03)

DIA. TYP.

ALL PINS IN-LINE ON CENTER

DIMENSIONS:

1000/REEL/BOX

2.54

(.100)

(INCHES)

18 ± .76

(.709 ± .030)

TOP ADJUST 3329U-1

4.0 ± 0.3

(.157 ± .012)

6.35 ± .5

(.250 ± .020)

2.79 ± .25

(.110 ± .010)

24.38 ± 0.76 (.960 ± .030)

6.35

(.250)

18 + 1.0/ - 0.5

(.709 + .039/ .020)

12.70 + 0.3/ - 0.25

(.500 + .012/ - .010)

12.70

(.500)

REF.

MAX.

DIA.

ALL PINS IN-LINE ON CENTER

DIMENSIONS:

1000/REEL/BOX

2.54

(.100)

(INCHES)

Packaging Specifications

Meets EIA Specification 468.

3329 - 1/4 ” Round Trimming Potentiometer

深圳市星程电子有限公司 TEL:0755-82335088 FAX:0755-82340013

Page 8

Features

*RoHS COMPLIANT

VERSIONS

AVAILABLE

3362

深圳市星程电子有限公司 TEL:0755-82335088 FAX:0755-82340013

■ Single-Turn / Cermet / Industrial / Sealed

■ Miniature package

■ Rotor designed for automatic machine

adjust interface

■ Withstands harsh environments and

immersion cleaning processes

■ Available on tape and reel packaging

■ RoHS compliant* version available

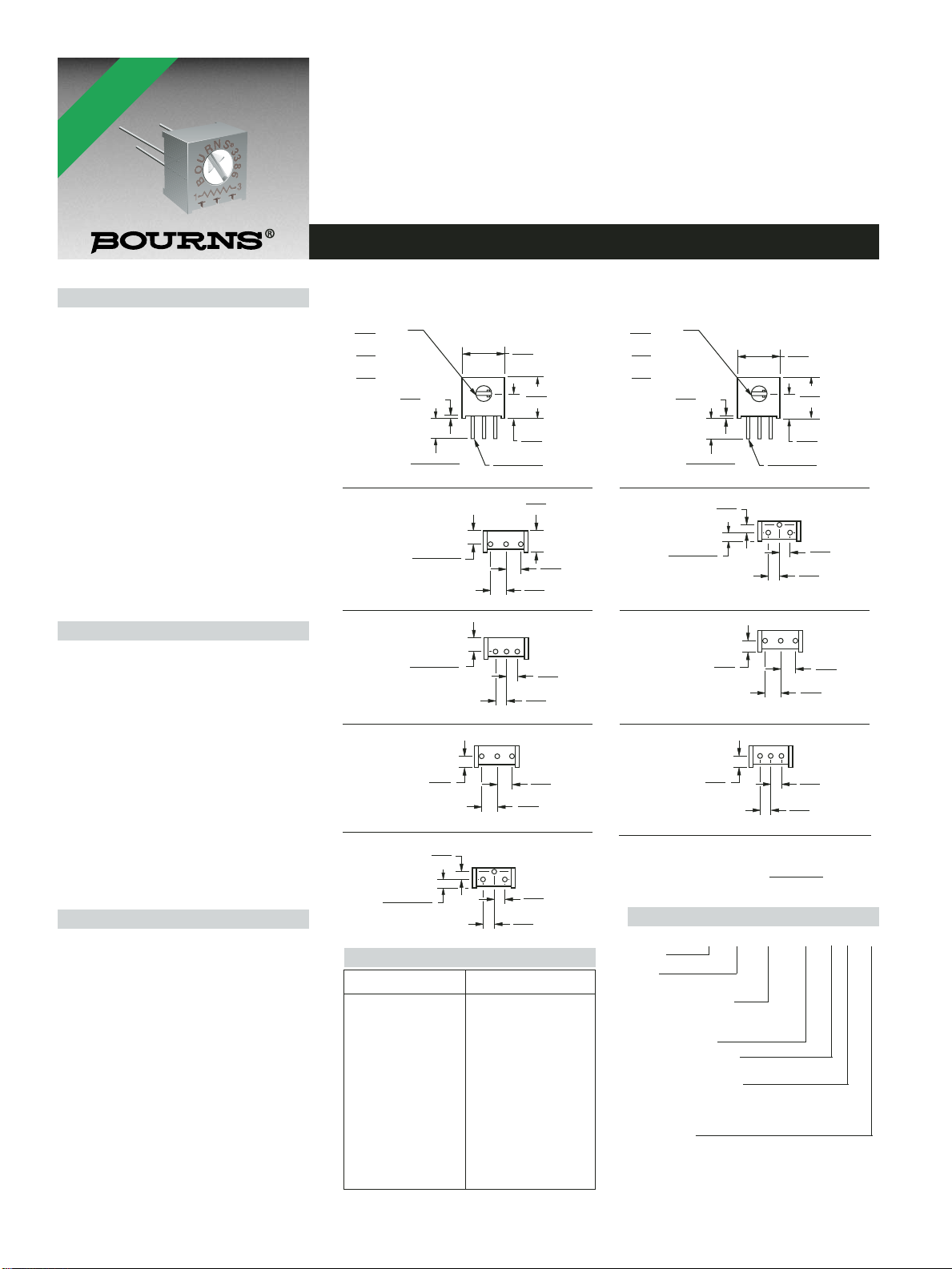

3362 - 1/4 ” Square Trimming Potentiometer

Electrical Characteristics

Standard Resistance Range

................................10 to 2 megohms

(see standard resistance table)

Resistance Tolerance ...........±10 % std.

(tighter tolerance available) Absolute Minimum Resistance

.................................... 1 % or 2 ohms

(whichever is greater) Contact Resistance Variation

........................... 1 % or 3 ohms max.

(whichever is greater) Adjustability

Voltage .................................. ±0.05 %

Resistance ............................ ±0.15 %

Resolution ................................... Inﬁ nite

Insulation Resistance ...............500 vdc.

1,000 megohms min. Dielectric Strength

Sea Level................................ 900 vac

80,000 Feet ............................ 350 vac

Adjustment Angle ................. 240 ° nom.

Environmental Characteristics

Power Rating (300 volts max.)

70 °C ....................................0.50 watt

125 °C .......................................0 watt

Temperature Range ... -55 °C to +125 °C Temperature Coefﬁ cient ... ±100 ppm/°C

Seal Test ......................85 °C Fluorinert†

Humidity .......MIL-STD-202 Method 103

96 hours (2 % ∆TR; 10 Megohms IR)

Vibration ....... 30 G (1 % ∆TR; 1 % ∆VR)

Shock ......... 100 G (1 % ∆TR; 1 % ∆VR)

Load Life ..1,000 hours 0.5 watt @ 70 °C (3 % ∆TR; 3 % or 3 ohms, whichever is greater, CRV)

Rotational Life .......................200 cycles

(4 % ∆TR; 3 % or 3 ohms, whichever is greater, CRV)

Physical Characteristics

Mechanical Angle ................. 270 ° nom.

Torque .............................3.0 oz-in. max.

Stop Strength .................7.0 oz -in. min.

Terminals .......................Solderable pins

Weight .......................................0.02 oz.

Marking ....................... Resistance code,

terminal numbers, manufacturer’s model number, style and date code

Wiper ............... 50 % (Actual TR) ±10 %

Flammability ..........................U.L. 94V-0

Standard Packaging .....50 pcs. per tube

Adjustment Tool ..............................H-90

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex. †“Fluorinert” is a registered trademark of 3M Co. Speciﬁ cations are subject to change without notice. Customers should verify actual device performance in their speciﬁ c applications

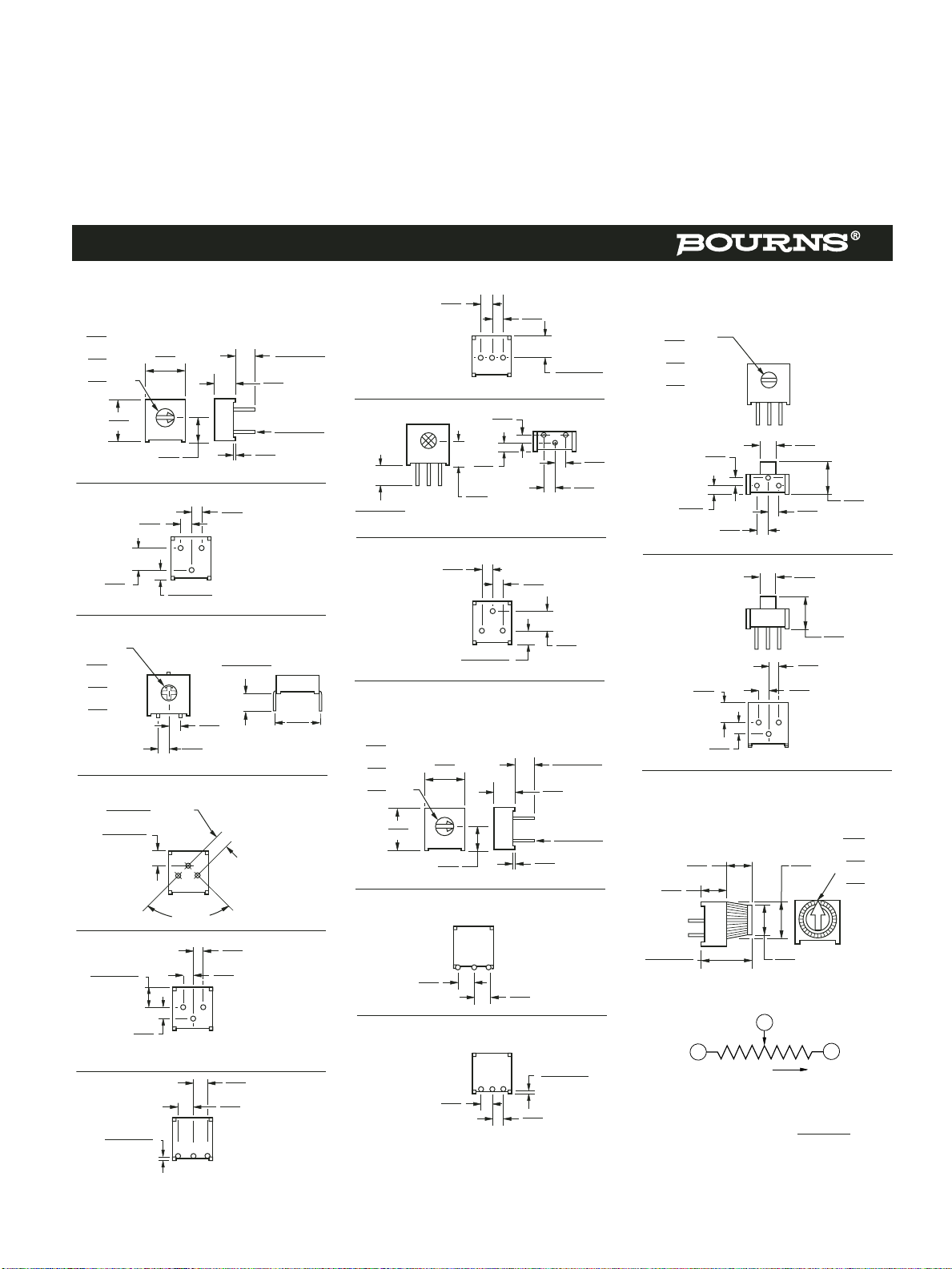

Product Dimensions

Common Dimensions Top Adjust

ADJ. CROSS SLOT

2.77 LONG X

(.109)

.64

WIDE X

(.025)

.89

DEEP X

(.035)

.46 ± .03

(.018 ± .001)

2.54

(.100)

3362F

.46 ± .12

(.018 ± .005)

DIA.

3 PLCS.

3362H

3362P

3362R

1.02

(.040)

3362U

DIMENSIONS: (INCHES)

TOLERANCES: ± (.010)

2.54

(.100)

0.25

90° ± 5°

2.54

(.100)

6.60

(.260)

.254

TYP.

(010)

(.185)

.330

(.013)

2.54

(.215 ± .015)

(.100)

1.22

(.048)

5.08

(.200)

31 2

TYP.

3.53

(.139)

31 2

2.54

(.100)

31 2

3.53

(.139)

31 2

EXCEPT WHERE NOTED

6.99

(.275)

3.84

(.151)

4.70

5.46 ± .38

4.06 ± .38

(.160 ± .015)

1.80

(.071)

Common Dimensions Side Adjust

ADJ. CROSS SLOT

2.77 LONG X

(.109)

.64

WIDE X

(.025)

.89

DEEP X

(.035)

PIN MARKING REVERSED FOR STYLE W

5.46 ± .38

(.215 ± .015)

3362M

3362S

3362W

3362X

3362Z

CCW

1.02

(.040)

1.02

(.040)

1.02

(.040)

1.02

(.040)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

(.100)

2.54

2.29

(.090)

CLOCKWISE

3 2

1 2

6.60

(.260)

6.99

.25

(.275)

TYP.

(010)

3.84

(.151)

4.70

(.185)

4.70

(.185)

4.70

(.185)

4.70

(.185)

DIA.

3 PLCS.

.46 ± .03

(.018 ± .001)

2.54

(.100)

(.185)

WIPER

Page 9

3362 - 1/4 ” Square Trimming Potentiometer

深圳市星程电子有限公司 TEL:0755-82335088 FAX:0755-82340013

Product Dimensions

Top adjust models 3362F, H, P, R and U are available with a knob for ﬁ nger adjustment. Add sufﬁ x letter “T” to order code.

6.71

(.264)

ADJ. SLOT

4.0

2.54

(.157)

(.024)

(.039)

2.54

(.100)

3.53

(.139)

0.6

1.0

LONG

X WIDE

X DEEP

DIA. 3 PLCS.

0.46 ± 0.25

(.018 ± .010)

7.04

(.277)

3.84

(.151)

2.54

(.100)

14.63 (.576)

9.93

(.391)

5.00 DIA.

(.197)

TOLERANCES: ± (.010)

4.7

(.185)

DIMENSIONS: (INCHES)

0.25

(.010)

(.100)

EXCEPT WHERE NOTED

5.46

(.215)

Packaging Speciﬁ cations

SIDE ADJUST 3362M-1

27.56 ± .76

(1.085 ± .030)

ALL PINS IN-LINE ON CENTER

DIMENSIONS:

1000/REEL/BOX

TOP ADJUST 3362U-1, 3362P-1

22.7 ± .76

(.893 ± .029)

SIDE VIEW 3362U-1

7.0

(.275)

18 + 1.0/ - 0.5

(.709 + .039 -.019)

12.7 + 0.3/ -0.25

(.500 + .012/ -.009)

2.54

(.100)

(INCHES)

12.70 REF.

(.500)

4.7

(.185)

18 + .76/ -.5

(.708 + .029 -.019)

12.70 + 0.3/ - 0.25

(.500 + .011 -.009)

7.0

(.275)

3.56 ± .38

(.140 ± .014)

12.70 REF.

(.500)

18 ± .76

(.708 ± .029)

4.0 ± 0.3

(.157 ± .011)

(.090 ± .014)

18 ± .76

(.708 ± .029)

4.0 ± 0.3

(.157 ± .011)

SIDE VIEW 3362P-1

4.7

(.185)

2.3 ± .38

DIA.

How To Order

3362 P - 1 - 502 T __ LF

Model Style Standard or Modiﬁ ed

Product Indicator

-1 = Standard Product Resistance Code Optional Sufﬁ x Letter

T = Knob* Packaging Designator

Blank = Tube (Standard) R = Tape and Reel (M, U and P Pin Styles Only) A = Ammo Pack (M, U and P Pin Styles Only)

Terminations LF = 100 % Tin-plated (RoHS compliant) Blank = 90 % Tin / 10 % Lead-plated (Standard)

*Knob option is available only in standard Tube packaging for terminal styles F, H, P, R and U.

Consult factory for other available options.

Standard Resistance Table

Resistance Resistance (Ohms) Code

10 100 20 200 50 500

100 101

200 201 500 501 1,000 102 2,000 202 5,000 502 10,000 103 20,000 203 25,000 253 50,000 503 100,000 104

200,000 204 250,000 254 500,000 504 1,000,000 105 2,000,000 205

Popular distribution resistance values listed in boldface. Special resistances available.

(INCHES)

2.54

(.100)

ALL PINS IN-LINE ON CENTER

DIMENSIONS:

750/REEL 1000/BOX

Meets EIA Speciﬁ cation 468.

Speciﬁ cations are subject to change without notice.

Customers should verify actual device performance in their speciﬁ c applications

REV. 01/09

Page 10

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex. Fluorinert is a registered trademark of 3M Co. Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.

3386 - 3/8 ” Square Trimming Potentiometer

How To Order

3386 P - 1 - 103 T __ LF

Model Style

Standard or Modified

Product Indicator

-1 = Standard Product

-EY5 = Extended Shaft Resistance Code Optional Suffix Letter

T = Knob**

Packaging Designator

Blank = Tube (Standard)

R = Tape & Reel (W and U Pin Styles Only) A = Ammo Pack (W and U Pin Styles Only)

Terminations

LF = 100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

(Standard) **Knob option is available only in standard Tube packaging.

Consult factory for other available options.

Features

■ Single Turn / Cermet / Industrial / Sealed

■ Available on tape and reel

■ Available with a knob for finger adjust

■ Available with extended shaft

■ Available with cross-slot rotor

Features

■ Top and side adjust types (F, P, H, W, X
