Service Manual Princess/Nova 1(3)
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko /Ton van de Sande
Datum - Date
07/12/2009
Rev
R1A
Article 320200 Nova Steam Station Star
Article 321200 Princess Steam Station
This product is in the category :

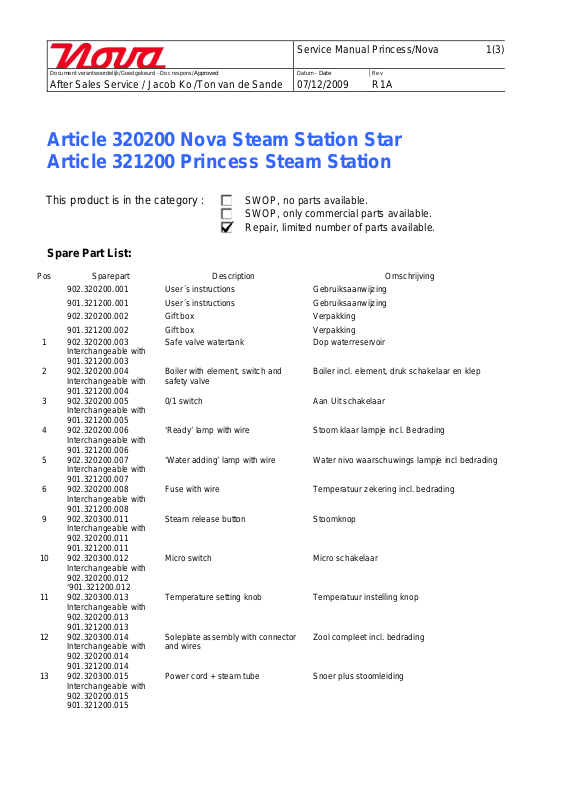

Spare Part List:
Pos Sparepart Description Omschrijving
902.320200.001 User´s instructions Gebruiksaanwijzing
901.321200.001 User´s instructions Gebruiksaanwijzing
902.320200.002 Gift box Verpakking
901.321200.002 Gift box Verpakking
1
902.320200.003
Interchangeable with
901.321200.003
2
902.320200.004
Interchangeable with
901.321200.004
3
902.320200.005
Interchangeable with
901.321200.005
4
902.320200.006
Interchangeable with
901.321200.006
5
902.320200.007
Interchangeable with
901.321200.007
6
902.320200.008
Interchangeable with
901.321200.008
9
902.320300.011
Interchangeable with
902.320200.011
901.321200.011
10
902.320300.012
Interchangeable with
902.320200.012
‘901.321200.012
11
902.320300.013
Interchangeable with
902.320200.013
901.321200.013
12
902.320300.014
Interchangeable with
902.320200.014
901.321200.014
13
902.320300.015
Interchangeable with
902.320200.015
901.321200.015
Safe valve watertank
Boiler with element, switch and
safety valve
0/1 switch
‘Ready’ lamp with wire
‘Water adding’ lamp with wire
Fuse with wire
Steam release button
Micro switch
Temperature setting knob
Soleplate assembly with connector
and wires
Power cord + steam tube
SWOP, no parts available.
SWOP, only commercial parts available.
Repair, limited number of parts available.
Dop waterreservoir
Boiler incl. element, druk schakelaar en klep
Aan Uit schakelaar
Stoom klaar lampje incl. Bedrading
Water nivo waarschuwings lampje incl bedrading
Temperatuur zekering incl. bedrading
Stoomknop
Micro schakelaar
Temperatuur instelling knop
Zool compleet incl. bedrading
Snoer plus stoomleiding
Page 2
Service Manual Princess/Nova 2(3)
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko /Ton van de Sande
Datum - Date
07/12/2009
Article 321200 Princess Steam Station
Article 320200 Nova Steam Station Star

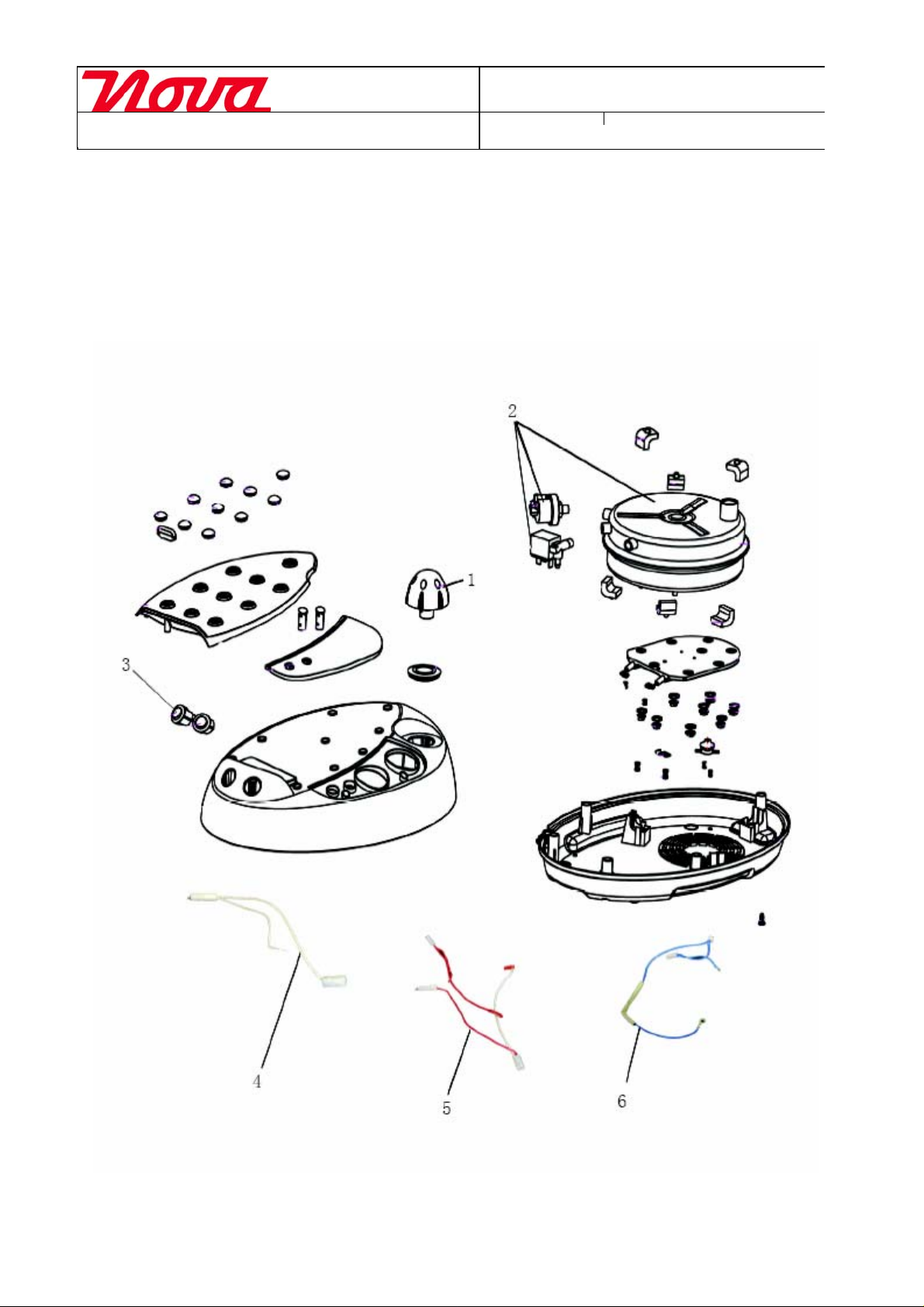

Exploded view:
Rev
R1A
Page 3
Service Manual Princess/Nova 3(3)
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko /Ton van de Sande
Datum - Date
07/12/2009
Article 321200 Princess Steam Station
Article 320200 Nova Steam Station Star

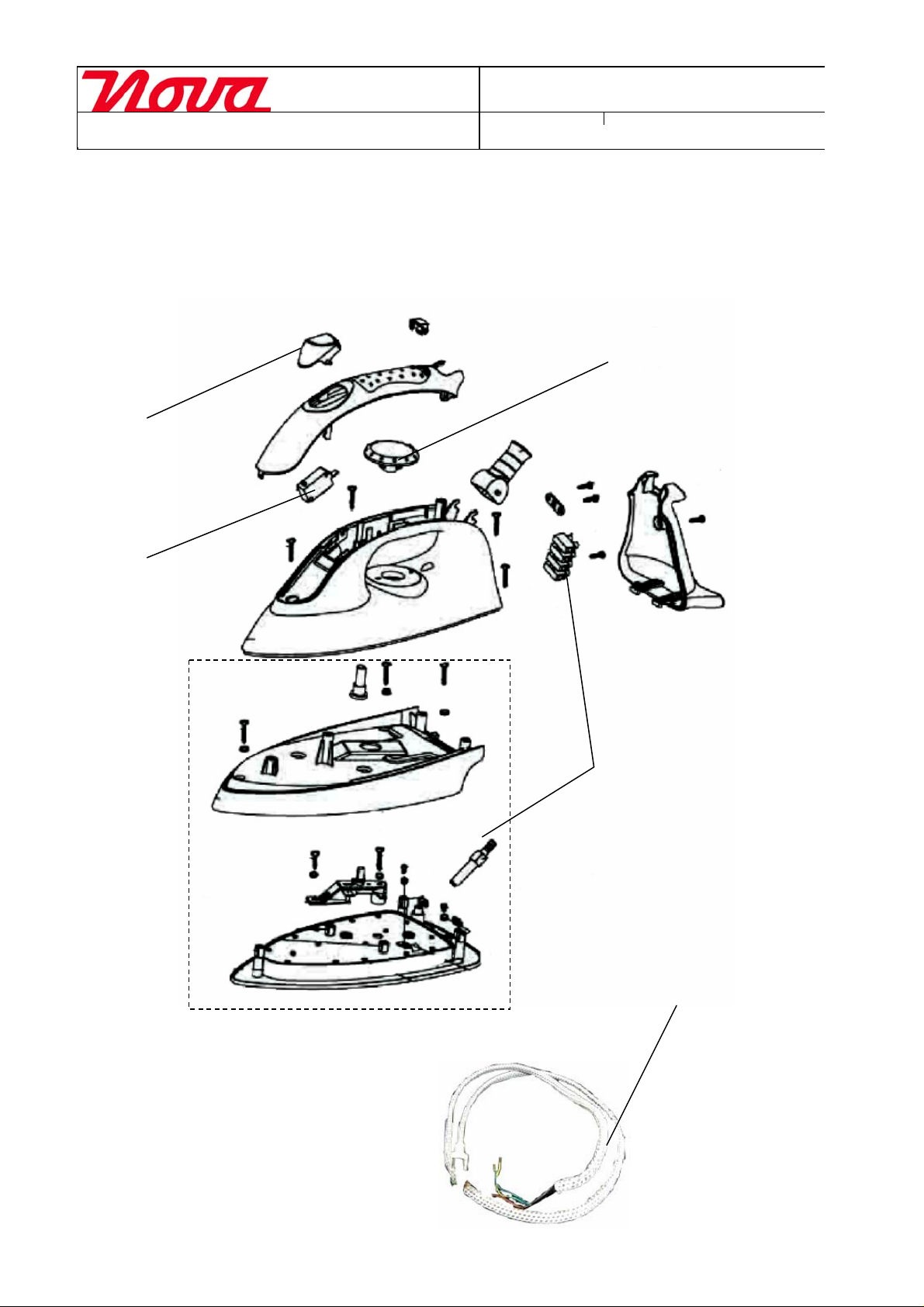

Exploded view:
9
Rev
R1A
11
10
12
13
