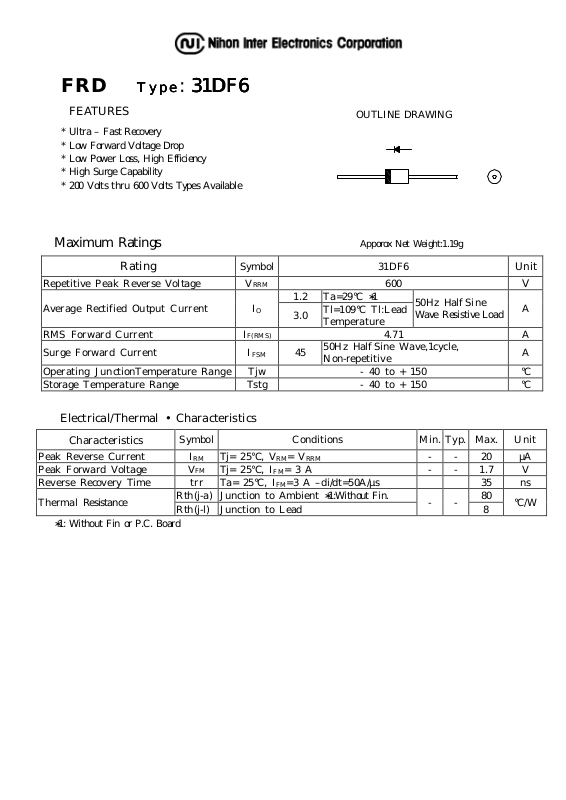

Page 1
FRD Type
Type: 31
TypeType
31DF6
3131
DF6
DF6DF6
FEATURES
* Ultra – Fast Recovery
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Capability
* 200 Volts thru 600 Volts Types Available
OUTLINE DRA WING
Maximum Ratings Apporox Net Weight:1.19g
Rating
Repetitive Peak Reverse Voltage
Average Rectified Output Current IO
RMS Forward Current I
Surge Forward Current I
Operating JunctionTemperature Range
Storage Temperature Range
Symbol 31DF6
V
600
RRM
1.2
3.0
4.71 A
F(RMS)
45
FSM
Tjw - 40 to + 150
Tstg - 40 to + 150
Ta=29°C ∗1
Tl=109°C Tl:Lead
Temperature
50Hz Half Sine Wave,1cycle,
Non-repetitive
50Hz Half Sine
Wave Resistive Load
Unit
V
A
A
°C
°C
Electrical/Thermal • Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time
Thermal Resistance
∗1: Without Fin or P.C. Board
Symbol Conditions Min. Typ. Max. Unit
I
V
trr
Rth(j-a)
Rth(j-l) Junction to Lead
Tj= 25°C, V
RM
Tj= 25°C, I
FM
Ta= 25°C, I
Junction to Ambient ∗1:Without Fin.
= V
RM
= 3 A
FM
=3 A –di/dt=50A/µs
FM
RRM
- - 20
- - 1.7 V
35 ns
- -
80
8
µA
°C/W
Page 2
31DF6 OUTLINE DRAWING (Dimensions in mm)
