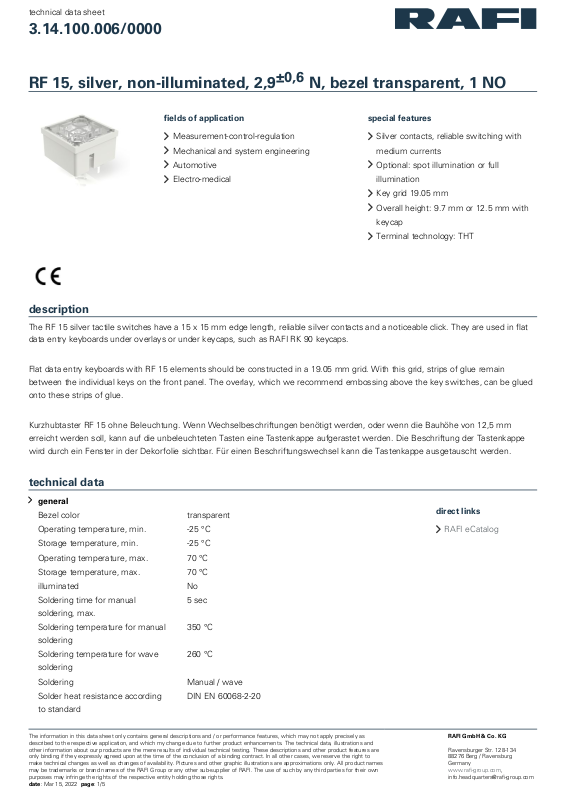

Page 1
technical data sheet
Measurement-control-regulation
Mechanical and system engineering
Automotive
Electro-medical
Silver contacts, reliable switching with
medium currents
Optional: spot illumination or full
illumination
Key grid 19.05 mm
Overall height: 9.7 mm or 12.5 mm with
keycap
Terminal technology: THT
RAFI eCatalog
3.14.100.006/0000
RF 15, silver, non-illuminated, 2,9
fields of application
±0,6
N, bezel transparent, 1 NO
special features
description
The RF 15 silver tactile switches have a 15 x 15 mm edge length, reliable silver contacts and a noticeable click. They are used in flat
data entry keyboards under overlays or under keycaps, such as RAFI RK 90 keycaps.
Flat data entry keyboards with RF 15 elements should be constructed in a 19.05 mm grid. With this grid, strips of glue remain
between the individual keys on the front panel. The overlay, which we recommend embossing above the key switches, can be glued
onto these strips of glue.
Kurzhubtaster RF 15 ohne Beleuchtung. Wenn Wechselbeschriftungen benötigt werden, oder wenn die Bauhöhe von 12,5 mm
erreicht werden soll, kann auf die unbeleuchteten Tasten eine Tastenkappe aufgerastet werden. Die Beschriftung der Tastenkappe
wird durch ein Fenster in der Dekorfolie sichtbar. Für einen Beschriftungswechsel kann die Tastenkappe ausgetauscht werden.
technical data
general
Bezel color transparent
Operating temperature, min. -25 °C
Storage temperature, min. -25 °C
Operating temperature, max. 70 °C
Storage temperature, max. 70 °C
illuminated No
Soldering time for manual
soldering, max.
Soldering temperature for manual
soldering
Soldering temperature for wave
soldering
Soldering Manual / wave
Solder heat resistance according
to standard
5 sec
350 °C
260 °C
DIN EN 60068-2-20
direct links
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
date:Mar 15, 2022page:1/5
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi-group.com,
info.headquarters@rafi-group.com
Page 2
technical data sheet
3.14.100.006/0000
Packaging Tube
Packaging unit 32 pcs.
Operating life 1,000,000 cycles
B10 1,300,000 cycles
MOQ order 32 pcs.
RoHS compliant Yes
REACH compliant Yes
mounting diameters
Installation height 9.7 mm
Grid, min. 19.05 mm
Outside dimension, length 15 mm
Outside dimension, width 15 mm
Outside dimension, height 9.7 mm
mechanical data
Actuation function momentary contact function
Operating force, max. 100 N
Operating force, min.
Switching travel
Contact function 1 NO
Contact system Snap-action contact
Contact material Silver
Fixing Soldering
Terminal on the rear THT
Solderability Yes
electrical data
Operating voltage of the luminous
element, max.
Rated voltage, min. 3 V
Rated voltage, max. 35 V
Rated current, min. 0.0001 A
Rated current, max. 0.25 A
Rated power, max. 12.5 W
2,9
0,5
5 V
±0,6
+0,2
N
mm
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
date:Mar 15, 2022page:2/5
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi-group.com,
info.headquarters@rafi-group.com
Page 3
technical data sheet
3.14.100.006/0000
drawings
Dimensioned drawing
System drawing
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
date:Mar 15, 2022page:3/5
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi-group.com,
info.headquarters@rafi-group.com
Page 4
technical data sheet
3.14.100.006/0000
PCB drawing
PCB drawing
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
date:Mar 15, 2022page:4/5
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi-group.com,
info.headquarters@rafi-group.com
Page 5
technical data sheet
3.14.100.006/0000
front panel drawing
front panel drawing
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
date:Mar 15, 2022page:5/5
