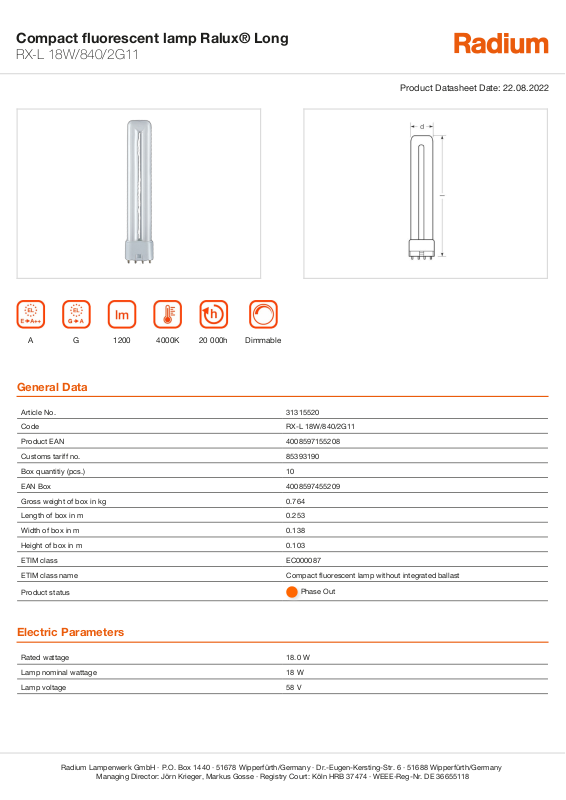

Page 1
A G 1200 4000K 20 000h Dimmable
Phase Out
Product Datasheet Date: 22.08.2022
General Data
Article No. 31315520
Code RX-L 18W/840/2G11
Product EAN 4008597155208
Customs tariff no. 85393190
Box quantitiy (pcs.) 10
EAN Box 4008597455209
Gross weight of box in kg 0.764
Length of box in m 0.253
Width of box in m 0.138
Height of box in m 0.103
ETIM class EC000087
ETIM class name Compact fluorescent lamp without integrated ballast
Product status
Electric Parameters
Rated wattage 18.0 W
Lamp nominal wattage 18 W
Lamp voltage 58 V
Compact fluorescent lamp Ralux® Long
RX-L 18W/840/2G11
Radium Lampenwerk GmbH · P.O. Box 1440 · 51678 Wipperfürth/Germany · Dr.-Eugen-Kersting-Str. 6 · 51688 Wipperfürth/Germany
Managing Director: Jörn Krieger, Markus Gosse · Registry Court: Köln HRB 37474 · WEEE-Reg-Nr. DE 36655118
Page 2
Electric Parameters
Mains voltage 230 V
Compensation capacitor for 50Hz operation 4.2 µF
dimmable Yes
Light Application Parameters
Luminous flux 1200 lm
Rated lamp luminous flux 1200 lm
Luminous flux nominal 1200 lm
max. luminous flux at 25 °C
Luminous efficiency 66.67 lm/W
Radium light colour white
Code of light color 840
Colour temperature 4000 K
Color rendering index Ra 80-89
Mean luminance 2.1
Lumen maintenance at 2000h 0.94
Lumen maintenance at 4000h 0.90
Lumen maintenance at 6000h 0.88
Lumen maintenance at 8000h 0.85
Lumen maintenance at 12000h 0.84
Lumen maintenance at 16000h 0.81
Lumen maintenance at 20000h 0.80
Service Life
Average nominal lifespan 20000 h
No. switching cycles >50000
Lamp survival factor at 2000h 0.99
Lamp survival factor at 4000h 0.99
Lamp survival factor at 6000h 0.99
Lamp survival factor at 8000h 0.99
Lamp survival factor at 12000h 0.95
Lamp survival factor at 16000h 0.81
Lamp survival factor at 20000h 0.50
Compact fluorescent lamp Ralux® Long
RX-L 18W/840/2G11
Radium Lampenwerk GmbH · P.O. Box 1440 · 51678 Wipperfürth/Germany · Dr.-Eugen-Kersting-Str. 6 · 51688 Wipperfürth/Germany
Managing Director: Jörn Krieger, Markus Gosse · Registry Court: Köln HRB 37474 · WEEE-Reg-Nr. DE 36655118
Page 3
light colour 840 Spectralux® white (21) daylight(D 65)
Specification
Energy Label A to G G
Energylabel A++ to E A
Diameter 38 mm
Length max. 217 mm
Total length 221 mm
Length 217 mm
Mercury content 1.7 mg
Base 2G11
Colour White
Miscellaneous
EU-date of phase-out 25.02.2023
EU Directive RoHS
Notes
Compact fluorescent lamp, light colour 840, high luminous efficiency, good colour rendering, long life, base 2G11. Controllable by Dim-ECG.
Please, refer to www.radium.de/recycling for notes on disposal of burned-out lamps as well as lamp breakage.
The "lifespan L70" described for LED lamps indicates the number of hours when the luminous flux has decreased to 70% of its initial value.
The optinal field 'info about service life' contains the frame conditions according to standards based on which the specific service life has been
determined. So, for example, "12B50, 50Hz" means that the mean service life (B50) has been determined with a 12h switching cycle at mains
(frequency 50Hz), "3B50, HF" is based on a 3h switching cycle at electronic control gear (high frequency).
BaseBase
2G11
IEC/EN 60061-1
sheet 7004-82-1
SpectrumSpectrum
Natural daylight is a mixture of direct sunlight and the light of the sky. Therefore, its spectral composition changes permanently due to the changing
time of day. The standardised light classification D65 corresponds to a daylight with a colour temperature of approximately 6500 K.
Every fluorescent lamp type has got an individual spectral power distribution according to its phosphor coating inside the bulb. From this result
important properties light colour or colour rendering.
Visible region from 380 to 780 nm; height of graph corresponding with relative spectral emission (400mW/klm) per 10nm.
Special featuresSpecial features
Compact fluorescent lamp Ralux® Long
RX-L 18W/840/2G11
Radium Lampenwerk GmbH · P.O. Box 1440 · 51678 Wipperfürth/Germany · Dr.-Eugen-Kersting-Str. 6 · 51688 Wipperfürth/Germany
Managing Director: Jörn Krieger, Markus Gosse · Registry Court: Köln HRB 37474 · WEEE-Reg-Nr. DE 36655118
Page 4
General notesGeneral notes
The technical design data in accordance with DIN and IEC. The producer does not take any responsibility for damage to persons or property in case
of unsuitable operation or handling of the product. Operating data and dimensions are valid within the usual tolerances. Related lamp types (different
bases, mains voltages) may be available on request. Sale and delivery are effected in accordance with the Radium Terms of Delivery and Payment
valid on the day of conclusion of contract. Packing units offer economical advantages to the purchase and logistic department. Please match your
quantity volume accordingly. For orders of a minimum quantity (clefts) with a lamp model the amount lower than the volume of each packaging unit,
we will invoice 10 % additional charge per lamp type. Technical changes and terms of delivery are reserved. Manipulation of any kind to packaging or
product is not permissible as this will violate Radium brand rights. Furthermore, technical properties of the product can change to its disadvantage or
even destruction. Therefore, Radium cannot be responsible for consequential damages.
® = Registered trademark
Subject to change without notice. Errors and omissions excepted.
All technical data without guarantee.All technical data without guarantee.
