304121 AVK 2,5304121 AVK 2,5
2,5mm2,s c rew ty p e ,single deck feed through terminal2,5mm2,s c rew ty p e ,single deck feed through terminal
block,Insula tio n mate ria l PA,Blu eblock,Insula tio n mate ria l PA,Blu e
Ge n e ral P roduct I n formationGe n e ral P roduct I n formation
Insulating material PA
Inflammability class acc. to UL 94 V2
Packing Unit 100
Weight (g)
Dimen sionsDimen sions
Width 5 mm
Length 44.2 mm
Height (MR 32) --- mm
Height (MR 35x7.5) 44.5 mm
TSE / CE Te ch n ical DataTSE / CE Te ch n ical Data
Nominal Vol tage 750 V ~
Nominal Current 24 A
Cross Section
2.5 mm
2
Norm EN 60947-7-1
VDE Te ch n ical DataVDE Te ch n ical Data
Nominal Vol tage 750 V ~
Nominal Current 24 A
Cross Section
2.5 mm
2
VDE Norm IEC 60947-7-1
UL / CSA T e ch n ical DataUL / CSA T e c h n ical Data
Nominal Vol tage 600 V ~
Nominal Current 20 A
Cross Section AWG/26-12
ATEX T e c h n ical DataATEX T e c h n ical Data
Nominal Vol tage 630 V ~
Nominal Current 21 A
Cross Section 2.5
Connection DataConnection Data
Minimum sol id strand cross section
0.5 mm
2
Page 2
Maximum solid Strand cross section
4 mm
2
Minimum fi ne Strand cross section
1.5 mm
2
Maximum fine strand cross section
2.5 mm
2
AWG Conductor Range 26-12
Connection Type screw/vidalı
Insulation Strippi ng l ength 10 mm
Tightening torque 0.4 Nm

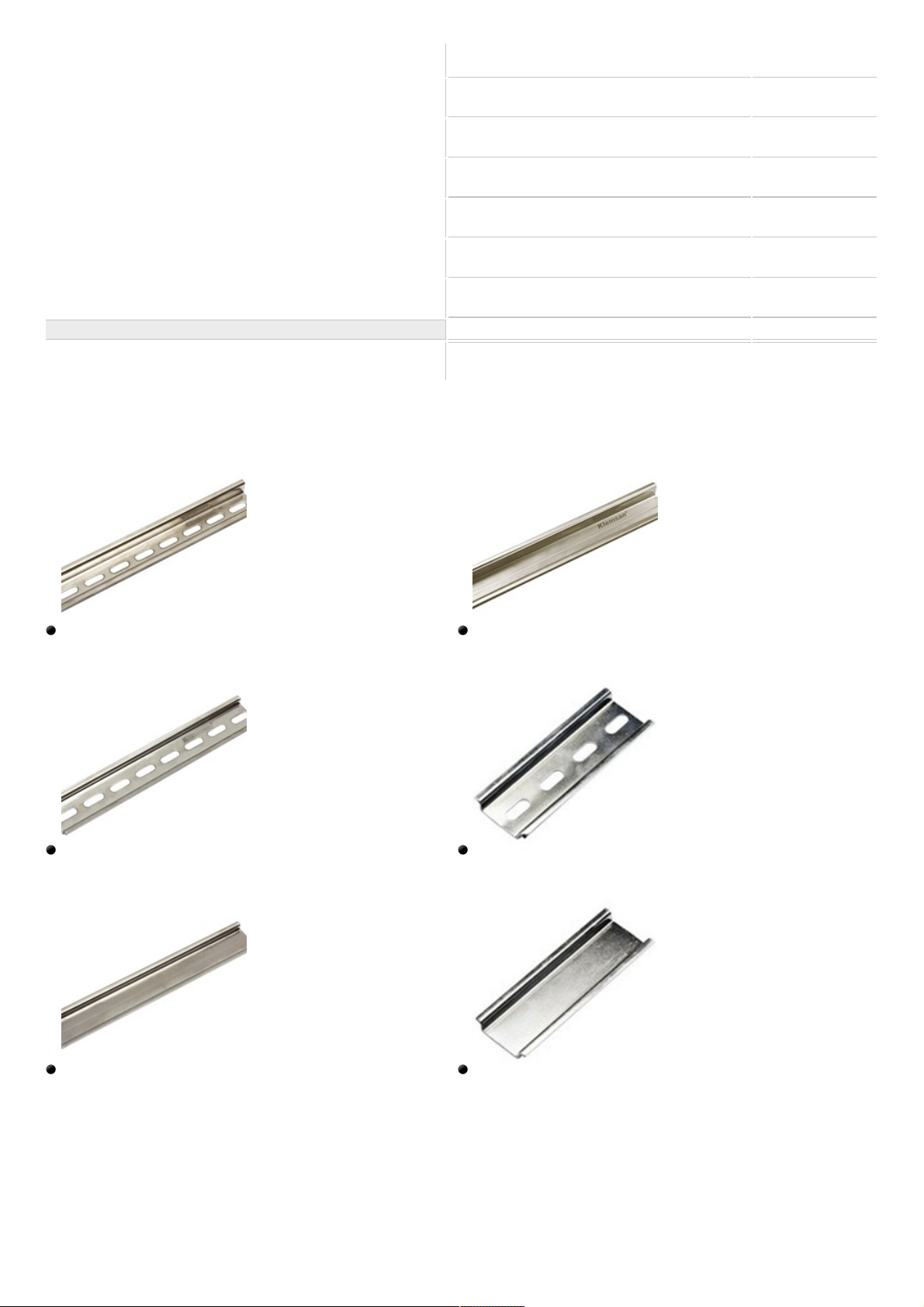

Moun t ing RailsMoun t ing Rails
MR 35x15-MR
35x15, Slotted
MR 35x15 (1
m.)-MR 35x15 (1 m.) Non-Slotted
MR 35x7,5-MR
35x7,5 - Slotted
MR 35x7,5-MR
35x7,5 Slotted
MR 35x7,5 (1
m.)-MR 35x7,5 (1 m.) Non-Slotted
MR 35x7,5 (2
m.)-MR 35x7,5 (2 m.) Non-Slotted
