Features
1
3
CW
CLOCKWISE
CCW
2
WIPER
1.40
(.055)
6.35
(.250)
19.05
(.750)
1.52
(.060)
.38
(.015)
5.33 ± .89
(.210 ± .035)
1
23
.76
(.030)
.51 ± .03
(.020 ± .001)
4.83
(.190)
4.70 ± .38
(.185 ± .015)
3.30
(.130)
5.08
(.200)
12.70
(.500)
2.54
(.100)

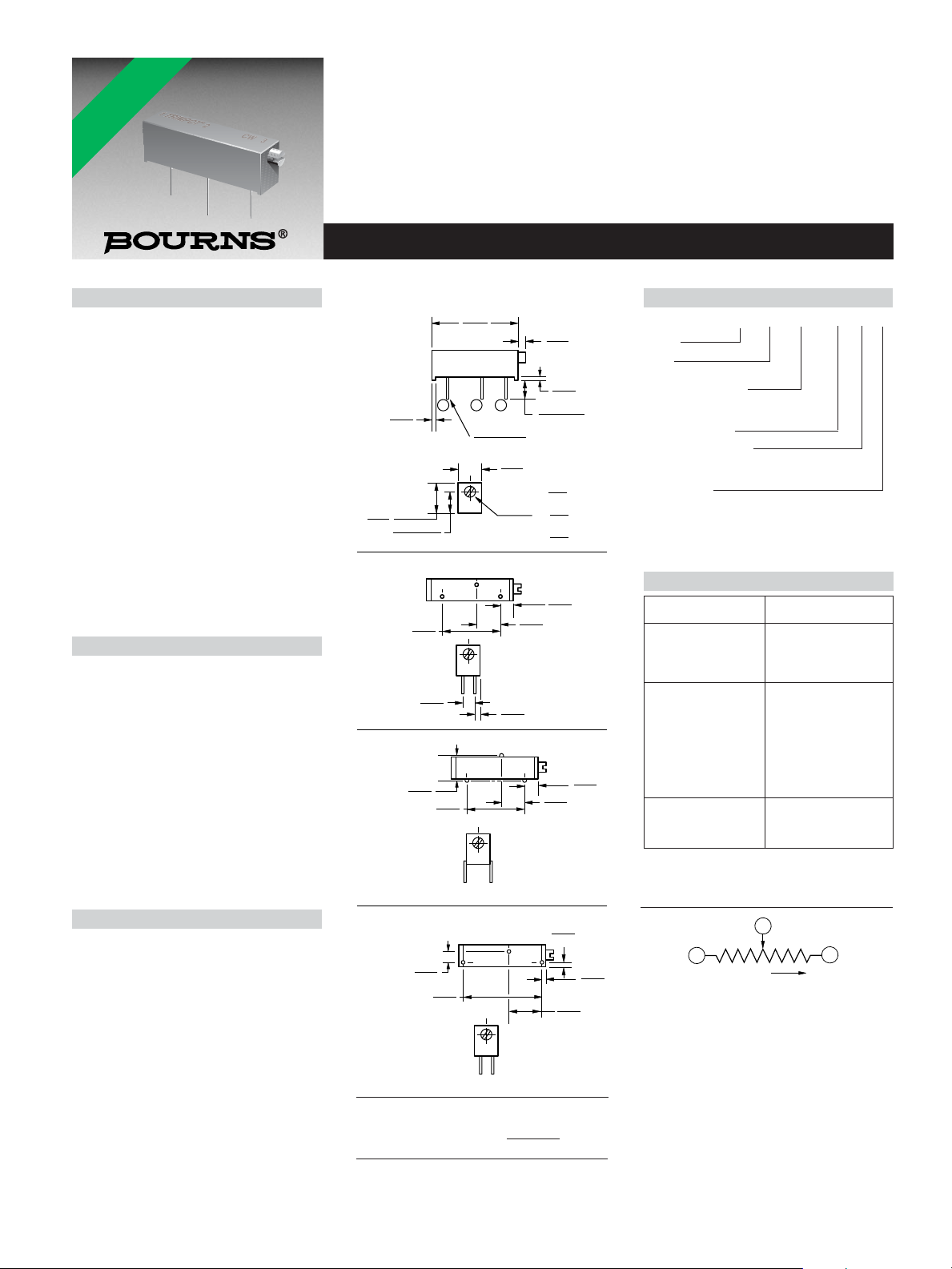

Common Dimensions
3006P
1.40
(.055)
.64
(.025)
7.62
(.300)
17.78
(.700)
3006Y
3.30
(.130)
5.08
(.200)
12.70
(.500)
3006W
5.08
(.200)
2.54
(.100)
DIA. PINS TYP.
MIN.
ADJ. SLOT
2.36
(.093)
.79
(.031)
.64
(.025)
WIDE
X
X
DEEP
DIA.
*RoHS COMPLIANT
VERSIONS
AVAILABLE
■ 3/4 ” Rectangular / Multiturn
Cermet / Industrial / Sealed
■ Low PC board profile - only 1/4 ” high
■ Panel mount option available
■ Transparent housing available, can
be set visually without hook-up and
instrumentation (“P” style only)
■ RoHS compliant* version available

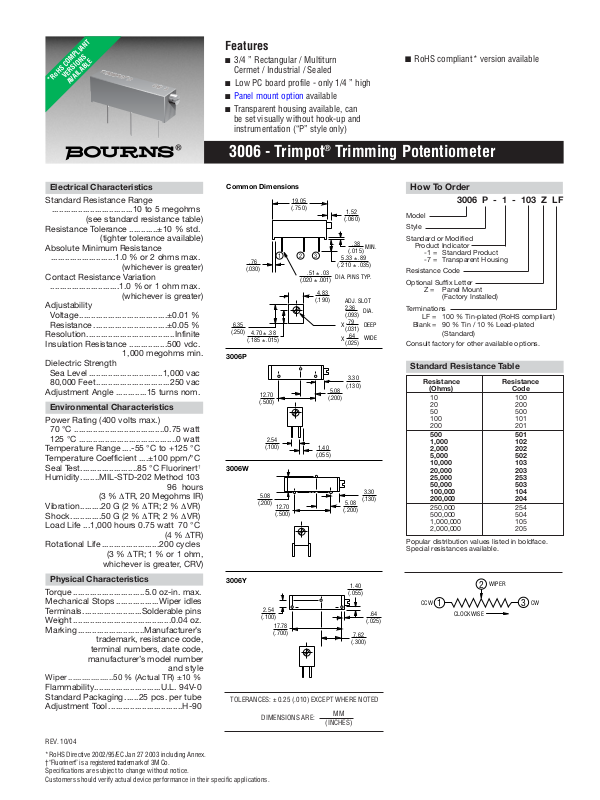

3006 - Trimpot®Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
..................................10 to 5 megohms
Resistance Tolerance ............±10 % std.
Absolute Minimum Resistance
...........................1.0 % or 2 ohms max.
Contact Resistance Variation
.............................1.0 % or 1 ohm max.
Adjustability
Voltage.....................................±0.01 %
Resistance ...............................±0.05 %
Resolution.....................................Infinite
Insulation Resistance ................500 vdc.
Dielectric Strength
Sea Level ...............................1,000 vac
80,000 Feet...............................250 vac
Adjustment Angle .............15 turns nom.
Environmental Characteristics
Power Rating (400 volts max.)
70 °C ......................................0.75 watt
125 °C .........................................0 watt
Temperature Range ....-55 °C to +125 °C
Temperature Coefficient ....±100 ppm/°C
Seal Test........................85 °C Fluorinert
Humidity........MIL-STD-202 Method 103
Vibration.........20 G (2 % ∆TR; 2 % ∆VR)
Shock.............50 G (2 % ∆TR; 2 % ∆VR)
Load Life ...1,000 hours 0.75 watt 70 °C
Rotational Life ........................200 cycles
Physical Characteristics
Torque ..............................5.0 oz-in. max.
Mechanical Stops ..................Wiper idles
Terminals.........................Solderable pins
Weight.........................................0.04 oz.
Marking ............................Manufacturer’s
Wiper ....................50 % (Actual TR) ±10 %
Flammability............................U.L. 94V-0
Standard Packaging......25 pcs. per tube
Adjustment Tool ...............................H-90
REV. 10/04
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
†“Fluorinert” is a registered trademark of 3M Co.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
(see standard resistance table)
(tighter tolerance available)
(whichever is greater)
(whichever is greater)
1,000 megohms min.
(3 % ∆TR, 20 Megohms IR)
(3 % ∆TR; 1 % or 1 ohm,
whichever is greater, CRV)
trademark, resistance code,
terminal numbers, date code,
manufacturer’s model number
96 hours
(4 % ∆TR)
and style
How To Order
3006 P - 1 - 103 Z LF
Model
Style
Standard or Modified
Product Indicator
-1 = Standard Product
-7 = Transparent Housing
Resistance Code
Optional Suffix Letter
Z = Panel Mount
(Factory Installed)
Terminations
LF = 100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
Consult factory for other available options.
(Standard)
Standard Resistance Table
Resistance Resistance
(Ohms) Code
10 100
20 200
50 500
100 101
200 201
500 501
1,000 102
2,000 202
5,000 502
†
TOLERANCES: ± 0.25 (.010) EXCEPT WHERE NOTED
DIMENSIONS ARE:
MM
(INCHES)
10,000 103
20,000 203
25,000 253
50,000 503
100,000 104
200,000 204
250,000 254
500,000 504
1,000,000 105
2,000,000 205
Popular distribution values listed in boldface.
Special resistances available.
