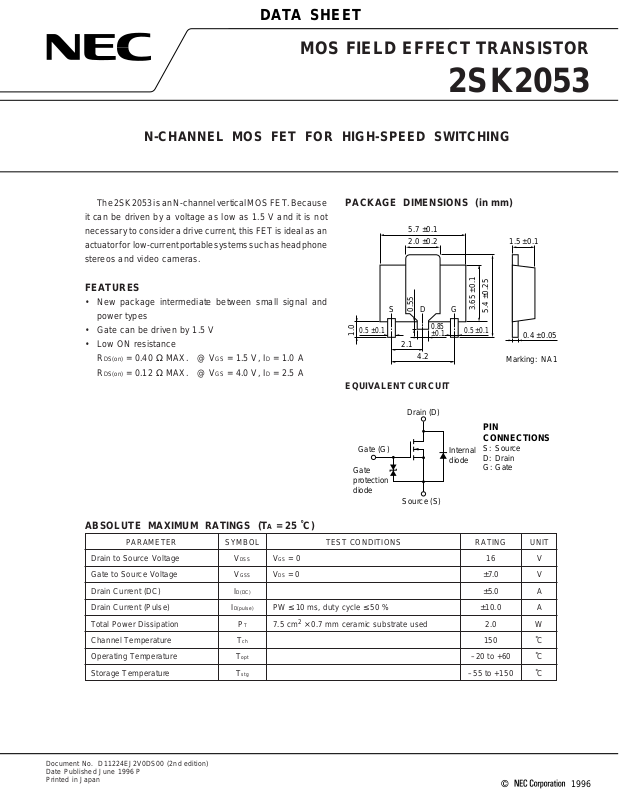

DATA SHEET
2.0 ±0.2
5.7 ±0.1
3.65 ±0.1
1.0
0.5 ±0.1
0.55
2.1
4.2
0.5 ±0.1
0.85
±0.1
SDG
5.4 ±0.25
1.5 ±0.1
0.4 ±0.05
Marking: NA1
)
MOS FIELD EFFECT TRANSISTOR
2SK2053
N-CHANNEL MOS FET FOR HIGH-SPEED SWITCHING
The 2SK2053 is an N-channel vertical MOS FET. Because
it can be driven by a voltage as low as 1.5 V and it is not
necessary to consider a drive current, this FET is ideal as an
actuator for low-current portable systems such as headphone
stereos and video cameras.
FEATURES
• New package intermediate between small signal and
power types
• Gate can be driven by 1.5 V
• Low ON resistance
DS(on) = 0.40 Ω MAX. @ VGS = 1.5 V, ID = 1.0 A
R
DS(on) = 0.12 Ω MAX. @ VGS = 4.0 V, ID = 2.5 A
R
PACKAGE DIMENSIONS (in mm)
EQUIVALENT CURCUIT
Drain (D)
PIN
CONNECTIONS
Source
Gate (G)
Gate
protection
diode
Internal
diode
Source (S
S:
D:
G:
Drain
Gate
ABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C)
PARAMETER SYMBOL TEST CONDITIONS RATING UNIT
Drain to Source Voltage VDSS VGS = 0 16 V
Gate to Source Voltage VGSS VDS = 0 ±7.0 V
Drain Current (DC) ID(DC) ±5.0 A
Drain Current (Pulse) ID(pulse) PW ≤ 10 ms, duty cycle ≤ 50 % ±10.0 A
Total Power Dissipation PT 7.5 cm2 × 0.7 mm ceramic substrate used 2.0 W
Channel Temperature Tch 150 ˚C
Operating Temperature Topt –20 to +60 ˚C
Storage Temperature Tstg –55 to +150 ˚C
Document No. D11224EJ2V0DS00 (2nd edition)
Date Published June 1996 P
Printed in Japan
©
1996
Page 2
ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)
PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
Drain Cut-Off Current IDSS VDS = 16 V, VGS = 0 1.0
Gate Leakage Current IGSS VGS = ±7.0 V, V DS = 0 ±3.0
Gate Cut-Off Voltage VGS(off) VDS = 3 V, ID = 1 mA 0.5 0.8 1.1 V
Forward Transfer Admittance |yfs|VDS = 3 V, ID = 2.5 A 4 S
Drain to Source On-State Resistance
Drain to Source On-State Resistance
Drain to Source On-State Resistance
Input Capacitance Ciss VDS = 3 V, VGS = 0, f = 1.0 MHz 730 pF
Output Capacitance Coss 640 pF
Reverse Transfer Capacitance Crss 230 pF
Turn-ON Delay Time td(on) VDD = 3 V, ID = 2.5 A, VGS(on) = 3 V, 85 ns
Rise Time tr
Turn-OFF Delay Time td(off) 280 ns
Fall Time tf 310 ns
RDS(on)1 VGS = 1.5 V, ID = 0.5 A 0.19 0.40 Ω
RDS(on)2 VGS = 2.5 V, ID = 2.5 A 0.08 0.15 Ω
RDS(on)3 VGS = 4.0 V, ID = 2.5 A 0.06 0.12 Ω
RG = 10 Ω, RL = 1.2 Ω
450 ns
2SK2053
µ
A
µ
A
2
Page 3

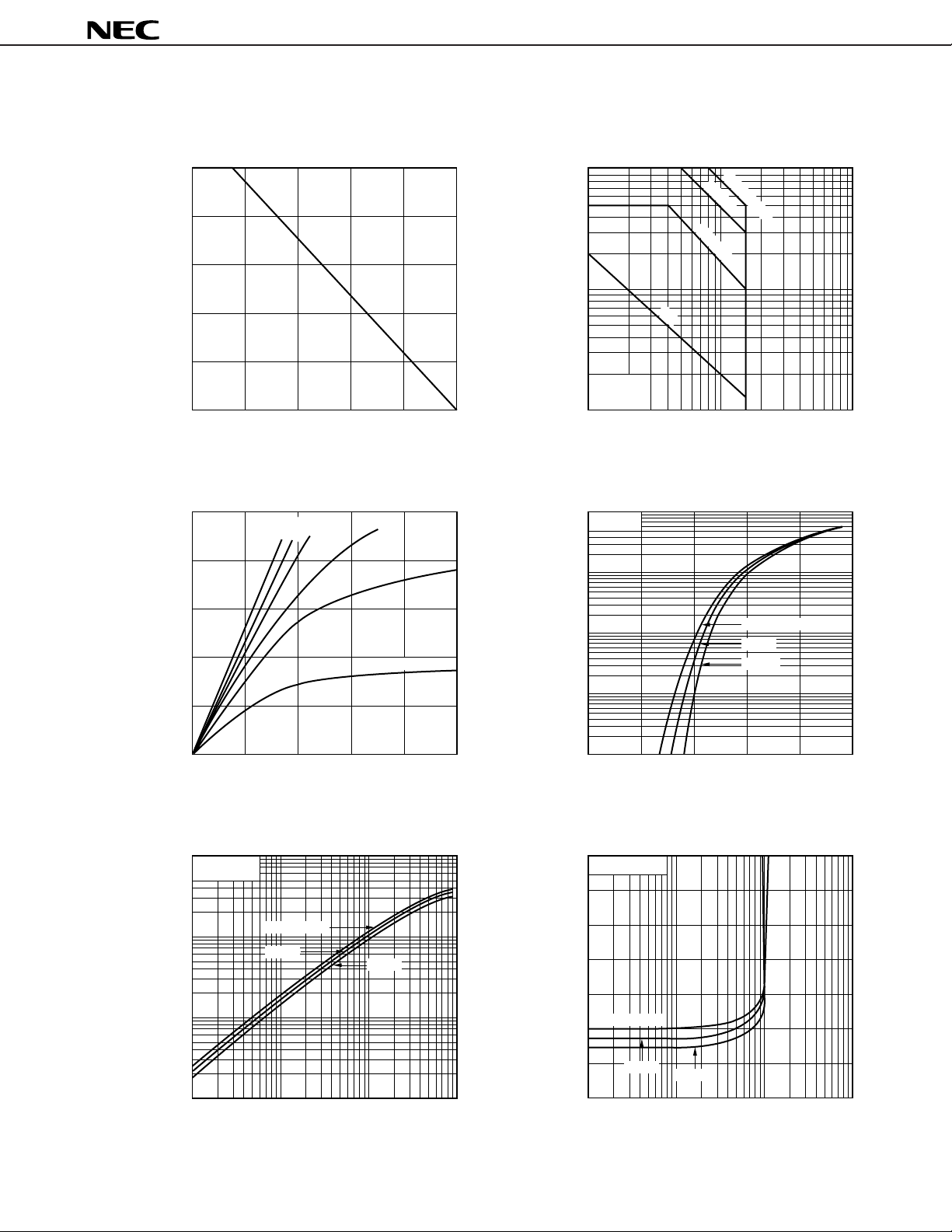

TYPICAL CHARACTERISTICS (TA = 25 ˚C)
2SK2053
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
100
80
60
40
- Derating Factor - %
T
d
20
0
A
- Ambient Temperature - ˚C
T
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
5
4
4.0 V
3.0 V
2.5 V
2.0 V
1.8 V
12030 60 90 150
FORWARD BIAS SAFE OPERATING AREA
10
5
2
1
0.5
- Drain Current - A
D
I
0.2
Single
pulse
0.1
1
2 5 10 20 50 100
V
TRANSFER CHARACTERISTICS
10
VDS = 3 V
1
PW = 1 ms
10 ms
100 ms
DC
DS
- Drain to Source Voltage - V
3
2
- Drain Current - A
D
I
1
0
0.2 0.4 0.6 0.8 1.0
DS
- Drain to Source Voltage - V
V
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
10
VDS = 3 V
3
1
TA = –25 ˚C
25 ˚C
0.3
0.1
| - Forward Transfer Admittance - S
0.03
fs
|y
0.01
0.001
0.003
0.01 0.03 0.1 0.3 1
D
- Drain Current - A
I
GS
V
= 1.5 V
75 ˚C
0.1
- Drain Current - A
D
I
0.01
0.001
0
0.5 1 1.5 2 2.5
V
GS
- Gate to Source Voltage - V
TA = 75 ˚C
25 ˚C
–25˚C

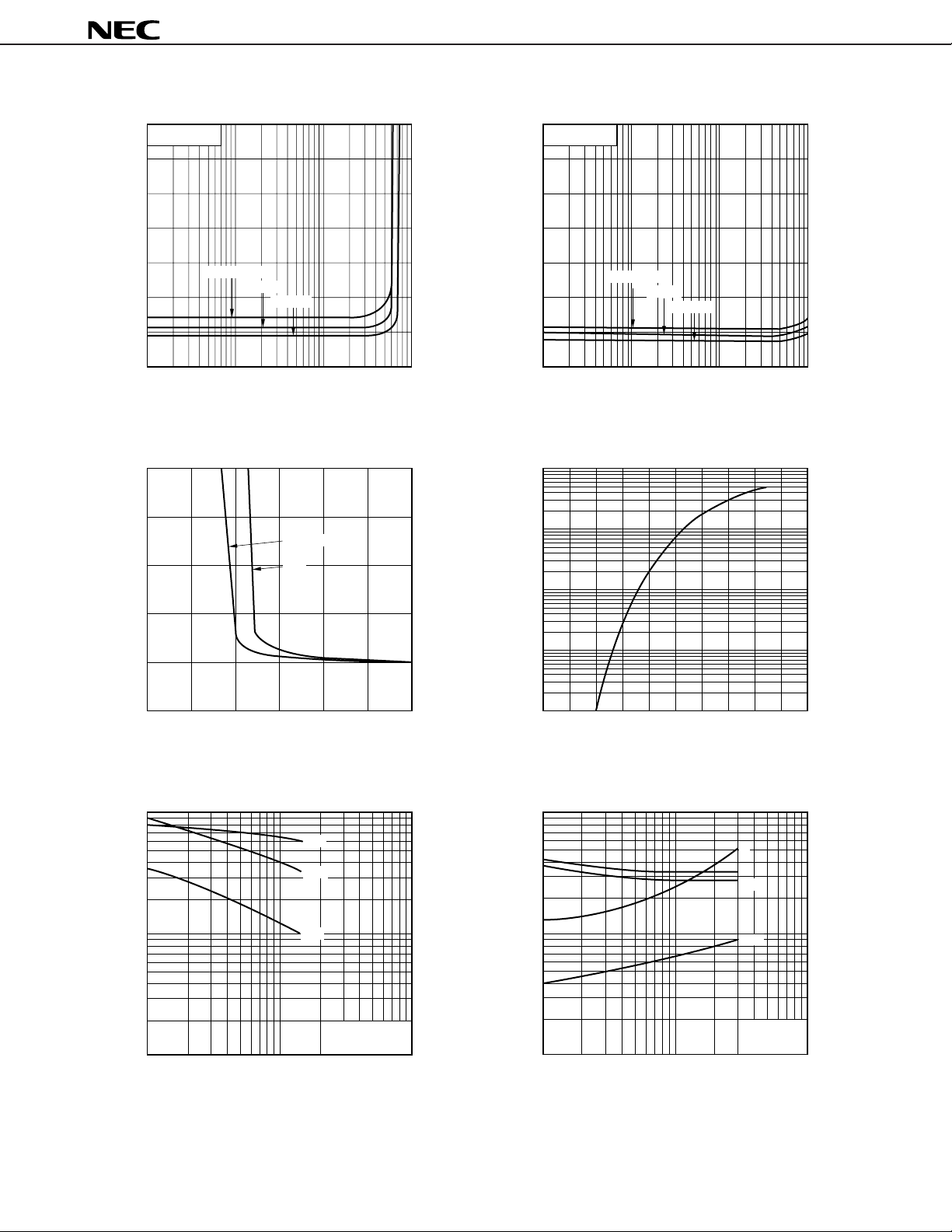

DRAIN TO SOURCE ON-STATE RESISTANCE vs.
DRAIN CURRENT
0.7
VGS = 1.5 V
0.6
0.5
0.4
0.3
TA = 75 ˚C
0.2
0.1
RDS(on) - Drain to Source On-State Resistance - Ω
0
0.01
25 ˚C
–25 ˚C
0.10.03 0.3 1 3 10
I
D
- Drain Current - A
3
Page 4
2SK2053
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
DRAIN CURRENT
0.7
VGS = 2.5 V
0.6
0.5
0.4
0.3
0.2
TA = 75 ˚C
25 ˚C
–25 ˚C
0.1
0
RDS(on) - Drain to Source On-State Resistance - Ω
0.01
0.03 0.1 0.3 1 3 10
D - Drain Current - A
I
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
0.5
0.4
ID = 1 A, 2.5 A
0.3
5 A
0.2
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
DRAIN CURRENT
0.7
VGS = 4.0 V
0.6
0.5
0.4
0.3
TA = 75 ˚C
0.2
25 ˚C
–25 ˚C
0.1
0
RDS(on) - Drain to Source On-State Resistance - Ω
0.01
0.03 0.1 0.3 1 3 10
D - Drain Current - A
I
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
10
1
0.1
0.1
RDS(on) - Drain to Source On-State Resistance - Ω
0
V
CAPACITANCE vs.
DRAIN TO SOURCE VOLTAGE
1 000
500
200
100
50
Ciss, Crss, Coss - Capacitance - pF
20
10
1
2 5 10 20 50 100
V
246
GS - Gate to Source Voltage - V
Ciss
Coss
Crss
GS = 0
V
f = 1 MHz
DS - Drain to Source Voltage - V
0.01
ISD - Diode Forward Current - A
0.001
0.2
0.4 0.6 0.8 1.0 1.2
SD - Source to Drain Voltage - V
V
SWITCHING CHARACTERISTICS
1 000
500
200
100
50
20
td(on), tr, td(off), tf - Switching Time - ns
10
0.1
0.2 0.5 1 2 5 10
D - Drain Current - A
I
tr
tf
td(off)
td(on)
VDD = 3 V
GS(on) = 3 V
V
4
Page 5
2SK2053
REFERENCE
Document Name Document No.
NEC semiconductor device reliability/quality control system TEI-1202
Quality grade on NEC semiconductor devices IEI-1209
Semiconductor device mounting technology manual C10535E
Guide to quality assurance for semiconductor devices MEI-1202
Semiconductor selection guide X10679E
