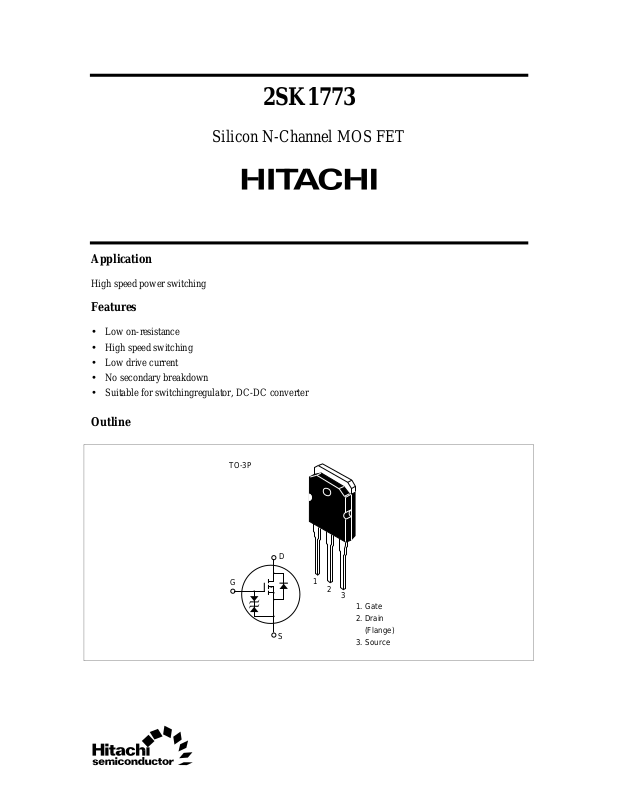

2SK1773
Silicon N-Channel MOS FET
Application
High speed power switching
Features
• Low on-resistance
• High speed switching
• Low drive current
• No secondary breakdown
• Suitable for switchingregulator, DC-DC converter
Outline
TO-3P
G
D
1
2
3
1. Gate
2. Drain
S
(Flange)
3. Source
Page 2
2SK1773
Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Ratings Unit
Drain to source voltage V
Gate to source voltage V
Drain current I
Drain peak current I
Body to drain diode reverse drain current I
Channel dissipation Pch*
DSS
GSS
D
D(pulse)
DR
1
*
2
Channel temperature Tch 150 °C
Storage temperature Tstg –55 to +150 °C
Notes 1. PW ≤ 10 µs, duty cycle ≤ 1 %
2. Value at Tc = 25 °C
1000 V
±30 V
5A
15 A
5A
100 W
2
Page 3
Electrical Characteristics (Ta = 25°C)
Item Symbol Min Typ Max Unit Test Conditions
Drain to source breakdown
V
(BR)DSS
voltage
Gate to source breakdown
V
(BR)GSS
voltage
Gate to source leak current I
Zero gate voltage drain current I
Gate to source cutoff voltage V
Static drain to source on state
R
GSS
DSS
GS(off)
DS(on)
resistance
Forward transfer admittance |yfs| 3.2 5.0 — S ID = 3 A
Input capacitance Ciss — 1700 — pF VDS = 10 V
Output capacitance Coss — 700 — pF VGS = 0
Reverse transfer capacitance Crss — 315 — pF f = 1 MHz
Turn-on delay time t
Rise time t
Turn-off delay time t
Fall time t
Body to drain diode forward
V
d(on)
r
d(off)
f
DF
voltage
Body to drain diode reverse
t
rr
recovery time
Note 1. Pulse Test
1000 — — V ID = 10 mA, VGS = 0
±30 — — V IG = ±100 µA, VDS = 0
——±10 µAVGS = ±25 V, VDS = 0
— — 250 µAVDS = 800 V, VGS = 0
2.0 — 3.0 V ID = 1 mA, VDS = 10 V
— 1.5 2.0 Ω ID = 3 A
V
= 10 V*
GS
V
= 20 V*
DS
1
1
— 25 — ns ID = 3 A
— 110 — ns VGS = 10 V
— 210 — ns RL = 10 Ω
— 135 — ns
— 0.85 — V IF = 5 A, VGS = 0
— 1050 — ns IF = 5 A, VGS = 0,
di
/ dt = 100 A / µs
F
2SK1773
3
Page 4
2SK1773
Power vs. Temperature Derating
160
120
Maximum Safe Operation Area
50
30
Operationm in this area
is limited by R (on)
10
D
3
DS
10 sµ
100 sµ
PW = 10 ms (1 shot)
DC Operation (Tc = 25°C)
1 ms
80
40
Channel Dissipation Pch (W)
0
50 100 150 200
Case Temperature Tc (°C)
Typical Output Characteristics
10
8
D
6
4
Drain Current I (A)
2
10 V
8 V
V = 3.5 V
GS
5.5 V
Pulse Test
5 V
4 V
1
Drain Current I (A)
0.3
Ta = 25°C
0.1
0.05
10
30 100 300 1000 3000
Drain to Source Voltage V (V)
Typical Transfer Characteristics
5
V = 10 V
DS
4
Pulse Test
D
3
2
Drain Current I (A)
Tc = 75°C
1
10000
DS
25°C
–25°C
0
10
Drain to Source Voltage V (V)
20 30 40 50
DS
02
Gate to Source Voltage V (V)
46810
GS
4
Page 5
2SK1773
Drain to Source Saturation Voltage
vs. Gate to Source Voltage
20
16
12
8
DS
4
Drain to Source Saturation Voltage
V (on) (V)
0
4
Gate to Source Voltage V (V)
812
Static Drain to Source on State
Resistance vs. Temperature
10
5 A
2 A
I = 1 A
D
Pulse Test
16
GS
Static Drain to Source on State
Resistance vs. Drain Current
50
20
Ω
10
DS
Static Drain–Source on State
Resistance R (on) ( )
20
0.5
Pulse Test
5
V = 10 V
2
1
0.2 0.5 1 2 5 10 20
Drain Current I (A)
GS
D
Forward Transfer Admittance
vs. Drain Current
10
Pulse Test
8
V = 10 V
GS
Ω
6
DS
4
Static Drain–Source on State
Resistance R (on) ( )
2
0
–40 0
40 80 120
Case Temperature T (°C)
I = 5 A
D
2 A
C
1 A
160
5
2
1
fs
0.5
Forward Transfer Admittance
|y | (S)
0.2
0.1
0.05
Tc = – 25°C
V = 10 V
DS
Pulse Test
0.1 0.2 0.5 1 2 5
Drain Current I (A)
25°C
75°C
D
5
Page 6
2SK1773
Body to Drain Diode Reverse
Recovry Time
5000
2000
1000
500
200
V = 0, Ta =25°C
GS
µdi / dt = 100 A / s
Reverse Recovery Time trr (ns)
100
50
0.1
0.2 0.5 1 2 5
Reverse Drain Current I (A)
Dynamic Input Characteristics
1000
800
DS
V
DS
600
400
V = 600 V
200
Drain to Source Voltage V (V)
04080
DD
400 V
250 V
Gate Charge Qg (nc)
V
GS
V = 250 V
DD
400 V
600 V
120
DR
I = 5 A
D
160 200
10000
1000
Capacitance C (pf)
100
10
20
16
12
10
500
200
GS
100
50
8
Switing Time t (ns)
20
4
Gate to Source Voltage V (V)
10
0
Typical Capacitance vs. Drain
to Source Voltage
V = 0
GS
f = 1 MHz
010
20
30 40 50
Drain to Source Voltage V (V)
Switching Characteristics
td (off)
tf
tr
td (on)
.
V = 10 V, V 30 V
GS
PW = 2 s, duty < 1%
5
0.1
0.2 0.5 1 2 5 10
=
.
DD
µ
Drain Current I (A)
D
Ciss
Coss
Crss
DS
6
Page 7
Recerse Drain Current vs. Source
to Drain Voltage
10
2SK1773
8
DR
6
4
V = 10 V
Reverse Drain Current I (A)
GS
2
0 0.4 0.8 1.2
Normalized Transient Thermal Impedance vs. Pulse Width
3
γ
1.0
0.3
0.1
0.03
0.01
Normalized Transient Thermal Impedance s (t)
D = 1
0.5
0.2
0.1
0.05
0.02
0.01
µ
10 100
1 shot Pulse
µ
1 m
Pulse Test
0, – 5 V
1.6
Source to Drain Voltage V (V)
10 m
SD
2.0
θch – c(t) = s(t) ch – c
ch – c = 1.25°C / W, Tc = 25°C
θ
P
100 m
γ
DM
T
Tc = 25°C
.
θ
PW
1
D =
PW
T
10
Pulse Width PW (S)
7
Page 8
2SK1773
Switching Time Test Circuit
Vin Monitor
Vin
10 V
Waveforms
Vout Monitor
D.U.T
R
L
Ω
50
.
=
.
V 30 V
DD
Vin
10 %
Vout
td (on) td (off)
10 %
90 %
tr
90 %
10 %
90 %
tf
8
Page 9
1.6
0.5
15.6 ± 0.3
φ3.2 ± 0.2
1.0
2.0
Unit: mm
4.8 ± 0.2
1.5
5.0 ± 0.3
19.9 ± 0.2
14.9 ± 0.2
0.3
1.4 Max
3.6
2.0
0.9
1.0
1.0 ± 0.2
5.45 ± 0.55.45 ± 0.5
18.0 ± 0.5
2.8
0.6 ± 0.2
Hitachi Code
JEDEC
EIAJ
Weight
(reference value)
TO-3P
—
Conforms
5.0 g
