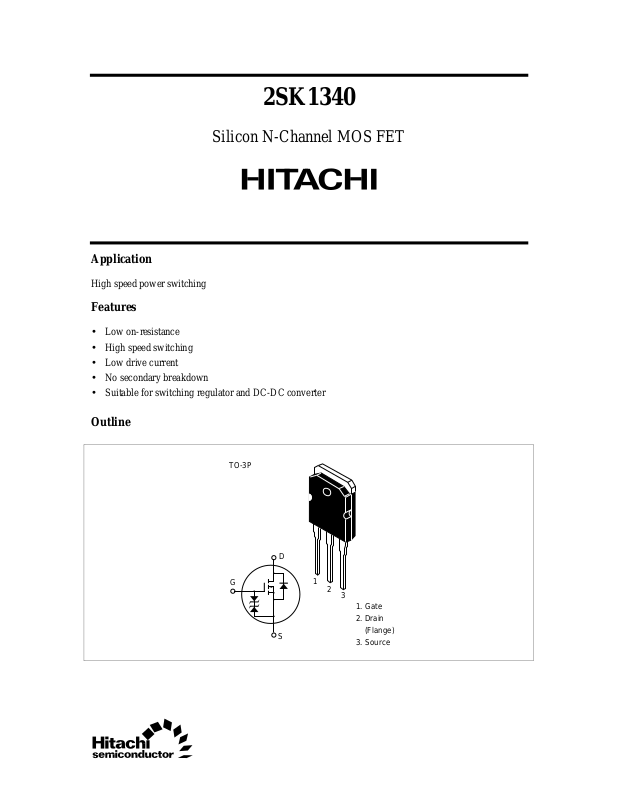

2SK1340
Silicon N-Channel MOS FET
Application
High speed power switching
Features
• Low on-resistance
• High speed switching
• Low drive current
• No secondary breakdown
• Suitable for switching regulator and DC-DC converter
Outline
TO-3P
G
D
1
2
3
1. Gate
2. Drain
S
(Flange)
3. Source
Page 2
2SK1340
Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Ratings Unit
Drain to source voltage V
Gate to source voltage V
Drain current I
Drain peak current I
Body to drain diode reverse drain current I
Channel dissipation Pch*
DSS
GSS
D
D(pulse)
DR
1
*
2
Channel temperature Tch 150 °C
Storage temperature Tstg –55 to +150 °C
Notes: 1. PW ≤ 10 µs, duty cycle ≤ 1%
2. Value at T
= 25°C
C
900 V
±30 V
5A
12 A
5A
100 W
2
Page 3
2SK1340
Electrical Characteristics (Ta = 25°C)
Item Symbol Min Typ Max Unit Test conditions
Drain to source breakdown
V
(BR)DSS
voltage
Gate to source breakdown
V
(BR)GSS
voltage
Gate to source leak current I
Zero gate voltage drain current I
Gate to source cutoff voltage V
Static drain to source on state
R
GSS
DSS
GS(off)
DS(on)
resistance
Forward transfer admittance |yfs| 2.0 3.2 — S ID = 3 A, VDS = 20 V *
Input capacitance Ciss — 740 — pF VDS = 10 V, VGS = 0,
Output capacitance Coss — 305 — pF f = 1 MHz
Reverse transfer capacitance Crss — 150 — pF
Turn-on delay time t
Rise time t
Turn-off delay time t
Fall time t
Body to drain diode forward
V
d(on)
r
d(off)
f
DF
voltage
Body to drain diode reverse
t
rr
recovery time
Note: 1. Pulse test
900 — — V ID = 10 mA, VGS = 0
±30——V I
= ±100 µA, VDS = 0
G
——±10 µAVGS = ±25 V, VDS = 0
— — 250 µAVDS = 720 V, VGS = 0
2.0 — 3.0 V ID = 1 mA, VDS = 10 V
— 3.0 4.0 Ω ID = 3 A, VGS = 10 V *
— 15 — ns ID = 3 A, VGS = 10 V,
— 70 — ns RL = 10 Ω
—90—ns
—90—ns
— 0.9 — V IF = 5 A, VGS = 0
— 900 — ns IF = 5 A, VGS = 0,
di
/dt = 100 A/µs
F
1
1
3
Page 4
2SK1340
Power vs. Temperature Derating
150
100
50
Channel Dissipation Pch (W)
0 50 100 150
Case Temperature T
(°C)
C
Typical Output Characteristics
5
Pulse Test
6 V
5 V
4
(A)
D
3
10 V
4.5 V
2
Maximum Safe Operation Area
50
20
10
(A)
5
D
DC Operation (T
DS (on)
2
1
Operation in this Area
is Limited by R
0.5
Drain Current I
0.2
0.1
Ta = 25°C
0.05
1 3 30 300
10 100 1,000
Drain to Source Voltage V
Typical Transfer Characteristics
5
V
= 20 V
DS
Pulse Test
4
(A)
D
3
2
75°C
10 µs
100 µs
PW = 10 ms (1 Shot)
1 ms
C
= 25°C)
DS
(V)
Drain Current I
1
0
10 30 40
Drain to Source Voltage V
4 V
V
= 3.5 V
GS
20 50
(V)
DS
Drain Current I
TC = 25°C
1
0
268
Gate to Source Voltage V
–25°C
410
(V)
GS
4
Page 5
2SK1340
Drain to Source Saturation Voltage
vs. Gate to Source Voltage
20
5 A
16
12
(V)
DS (on)
8
V
4
Drain to Source Saturation Voltage
820
412160
Gate to Source Voltage V
2 A
ID = 1 A
Pulse Test
(V)
GS
Static Drain to Source on State
Resistance vs. Temperature
10
V
= 10 V
GS
Pulse Test
8
6
(Ω)
DS (on)
4
R
ID = 5 A
1 A
2
0
Static Drain to Source on State Resistance
–40
0 80 120
40 160
Case Temperature T
(°C)
C
2 A
Static Drain to Source on State
Resistance vs. Drain Current
50
Pulse Test
20
10
V
= 10 V
(Ω)
GS
5
DS (on)
R
15 V
2
1
0.5
Static Drain to Source on State Resistance
120
0.5 2 100.2
Drain Current I
D
5
(A)
Forward Transfer Admittance
vs. Drain Current
10
5
2
–25°C
Tc = 25°C
75°C
1
0.5
0.2
Forward Transfer Admittance yfs (S)
0.1
0.05
0.2 5
0.1 0.5 2
Drain Current I
V
= 20 V
DS
Pulse Test
1
(A)
D
5
Page 6
2SK1340
Body to Drain Diode Reverse
Recovery Time
5,000
di/dt = 100 A/µs, Ta = 25°C
V
= 0
(ns)
2,000
rr
GS
Pulse Test
1,000
500
200
100
Reverse Recovery Time t
50
0.1
0.5 10
0.2 1 5
Reverse Drain Current IDR (A)
Dynamic Input Characteristics
1,000
V
= 250 V
(V)
DS
800
600
DD
V
400 V
600 V
DS
400
200
V
= 250 V
Drain to Source Voltage V
DD
20 60 800
Gate Charge Qg (nc)
2
ID = 5 A
V
GS
600 V
400 V
40 100
10,000
1,000
100
Capacitance C (pF)
10
(V)
GS
500
200
100
20
16
12
50
8
20
4
0
Switching Time t (ns)
Gate to Source Voltage V
10
5
0.1
Typical Capacitance vs.
Drain to Source Voltage
V
= 0
GS
f = 1 MHz
Ciss
20 50
10 30 40
0
Drain to Source Voltage V
Switching Characteristics
V
= 10 V VDD = 30 V
GS
PW = 2 µs, duty < 1%
t
d (off)
t
f
t
r
t
d (on)
0.5 10
0.2 1 5
Drain Current I
2
D
Coss
Crss
(A)
DS
(V)
•
•
6
Page 7
Reverse Drain Current vs.
Source to Drain Voltage
10
Pulse Test
(A)
8
DR
6
4
2
5V, 10 V
Reverse Drain Current I
0.8 2.0
0
0.4 1.2 1.6
Source to Drain Voltage V
V
GS
= 0, –5 V
SD
2SK1340
(V)
(t)
S
Normalized Transient Thermal Impedance γ
0.03
0.01
3
D = 1
1.0
0.5
0.3
0.2
0.1
0.1
0.05
0.02
0.01
1 Shot Pulse
10 µ
100 µ 10 m 100 m 1 101 m
Switching Time Test Circuit
Vin Monitor
Vin
50 Ω
10 V
Normalized Transient Thermal Impedance vs. Pulse Width
θch–c (t) = γS (t) · θch–c
θch–c = 1.25°C/W, T
P
DM
Pulse Width PW (s)
Waveforms
Vout Monitor
D.U.T
R
L
V
DD
.
=
30 V
.
Vin
Vout
t
d (on)
10%
10%
90%
t
r
PW
T
t
TC = 25°C
90%
d (off)
= 25°C
C
D =
90%
PW
T
10%
t
f
7
Page 8
1.6
0.5
15.6 ± 0.3
φ3.2 ± 0.2
1.0
2.0
Unit: mm
4.8 ± 0.2
1.5
5.0 ± 0.3
19.9 ± 0.2
14.9 ± 0.2
0.3
1.4 Max
3.6
2.0
0.9
1.0
1.0 ± 0.2
5.45 ± 0.55.45 ± 0.5
18.0 ± 0.5
2.8
0.6 ± 0.2
Hitachi Code
JEDEC
EIAJ
Weight
(reference value)
TO-3P
—
Conforms
5.0 g
Page 9
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as failsafes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
