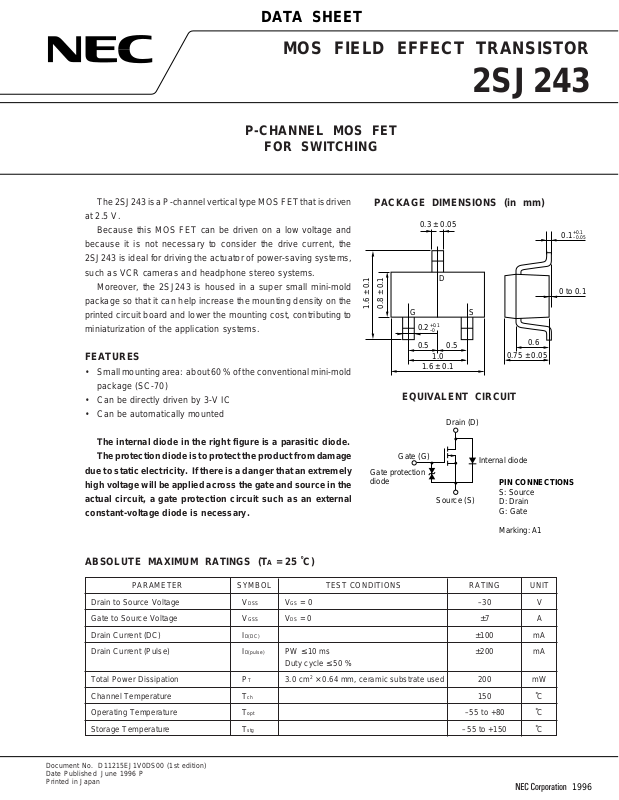

DATA SHEET
0.3 ± 0.05
1.6 ± 0.1
0.8 ± 0.1
G
0.2
+0.1
–0
0.5 0.5
1.0
1.6 ± 0.1
D
S
0.6
0.75 ± 0.05
0 to 0.1
0.1
+0.1
–0.05
Source (S)
Internal diode
Gate protection
diode
Gate (G)
Drain (D)
PIN CONNECTIONS
S: Source
D: Drain
G: Gate
Marking: A1
MOS FIELD EFFECT TRANSISTOR
P-CHANNEL MOS FET
FOR SWITCHING
2SJ243
The 2SJ243 is a P-channel vertical type MOS FET that is driven
at 2.5 V.
Because this MOS FET can be driven on a low voltage and
because it is not necessary to consider the drive current, the
2SJ243 is ideal for driving the actuator of power-saving systems,
such as VCR cameras and headphone stereo systems.
Moreover, the 2SJ243 is housed in a super small mini-mold
package so that it can help increase the mounting density on the
printed circuit board and lower the mounting cost, contributing to
miniaturization of the application systems.
FEATURES
• Small mounting area: about 60 % of the conventional mini-mold
package (SC-70)
• Can be directly driven by 3-V IC
• Can be automatically mounted
The internal diode in the right figure is a parasitic diode.
The protection diode is to protect the product from damage
due to static electricity. If there is a danger that an extremely
high voltage will be applied across the gate and source in the
actual circuit, a gate protection circuit such as an external
constant-voltage diode is necessary.
PACKAGE DIMENSIONS (in mm)
EQUIVALENT CIRCUIT
Document No. D11215EJ1V0DS00 (1st edition)
Date Published June 1996 P
Printed in Japan
ABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C)
PARAMETER SYMBOL TEST CONDITIONS RATING UNIT
Drain to Source Voltage VDSS VGS = 0 –30 V
Gate to Source Voltage VGSS VDS = 0 ±7A
Drain Current (DC) ID(DC) ±100 mA
Drain Current (Pulse) ID(pulse) PW ≤ 10 ms ±200 mA
Total Power Dissipation PT
Channel Temperature Tch 150 ˚C
Operating Temperature Topt –55 to +80 ˚C
Storage Temperature Tstg –55 to +150 ˚C
Duty cycle ≤ 50 %
3.0 cm2 × 0.64 mm, ceramic substrate used
200 mW
1996
Page 2
2SJ243
ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)
PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
Drain Cut-Off Current IDSS VDS = –30 V, VGS = 0 –1.0
Gate Leakage Current IGSS VGS = ±5 V, VDS = 0 ±0.1 ±3.0
Gate Cut-Off Voltage VGS(off) VDS = –3 V, ID = –10 µA –1.6 –1.9 –2.3 V
Forward Transfer Admittance |yfs|VDS = –3 V, ID = 10 mA 20 30 mS
Drain to Source On-State Resistance
Drain to Source On-State Resistance
RDS(on)1 VGS = –2.5 V, ID = –1 mA 55 100 Ω
RDS(on)2 VGS = –4.0 V, ID = –10 mA 20 25 Ω
Input Capacitance Ciss VDS = –5.0 V, VGS = 0, f = 1 MHz 16 pF
Output Capacitance Coss 13 pF
Reverse Transfer Capacitance Crss 2pF
Turn-On Delay Time td(on) VDD = –5V, ID = –10 mA 10 ns
Rise Time tr
Turn-Off Delay Time td(off)
VGS(on) = –5 V, RG = 10 Ω
RL = 500 Ω
40 ns
130 ns
Fall Time tf 80 ns
µ
A
µ
A
SWITCHING TIME MEASUREMENT CIRCUIT AND CONDITIONS (Resistive Load)
V
GS
Gate
L
R
V
DD
Voltage
Waveform
Drain
Current
Waveform
10 %
D
I
t
d(on)
0
10 %
trt
I
D
V
GS(on)
d(off)
90 %
PG.
0
V
GS
τ
τ = 1 s
µ
Duty cycle ≤ 1 %
DUT
R
G
90 %
90 %
t
f
10 %
2
Page 3
TYPICAL CHARACTERISTICS (TA = 25 ˚C)
2SJ243
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
100
80
60
40
dT - Derating Factor - %
20
20 40 60 80 100 120 140 160
0
T
C
- Case Temperature - ˚C
TRANSFER CHARACTERISTICS
–100
DS
= –3 V
V
Pulsed
–10
150 ˚C
TOTAL POWER DISSIPATION vs.
AMBIENT TEMPERATURE
240
200
160
120
80
- Total Power Dissipation - mW
T
40
P
0
30 60 90 120 150 180
A
- Ambient Temperature - ˚C
T
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
400
100
25 ˚C
2
× 0.64 mm
3.0 cm
Using ceramic substrate
VDS = –3 V
Pulsed
TA = 75 ˚C
210
–1
–0.1
- Drain Current - mA
D
I
–0.01
–0.001
–1.5 –2.0 –2.5 –3.0 –3.5 –4.0
–1.0
V
GS
DRAIN TO SOURCE ON-STATE RESISTANCE
vs. GATE TO SOURCE VOLTAGE
30
20
ID = –10 mA
10
- Drain to Source On-State Resistance - Ω
DS(on)
R
0
–1 –2 –3 –4 –5 –6 –7 –8 –0.6 –1 –2 –5 –10
GS
V
TA = –25 ˚C
25 ˚C
75 ˚C
- Gate to Source Voltage - V
ID = –0.1 A
- Gate to Source Voltage - V
Pulsed
30
–25 ˚C
10
3
| - Forward Transfer Admittance - mS
fs
y
|
1
–0.5
–1.0 –3.0 –10 –30 –200
D
- Drain Current - mA
I
DRAIN TO SOURCE ON-STATE RESISTANCE
vs. DRAIN CURRENT
120
100
80
TA = –25 ˚C
60
40
- Drain to Source On-State Resistance - Ω
DS(on)
20
R
–0.3
D
- Drain Current - mA
I
25 ˚C
150 ˚C
GS
= –2.5 V
V
Pulsed
–100
75 ˚C
150 ˚C
3
Page 4
2SJ243
DRAIN TO SOURCE ON-STATE RESISTANCE
vs. DRAIN CURRENT
130
V
GS
= –4 V
Pulsed
100
75 ˚C
50
25 ˚C
TA = 150 ˚C
- Drain to Source On-State Resistance - Ω
0
DS(on)
R
–0.5 –3 –10 –30 –60
–1
–25 ˚C
ID - Drain Current - mA
SWITCHING CHARACTERISTICS
500
DD
= – 5 V
V
V
GS
= – 5 V
R
in
= 10 Ω
200
CAPACITANCE vs.
DRAIN TO SOURCE VOLTAGE
60
30
V
DS
= –5 V
f = 1 MHz
C
iss
10
C
oss
- Capacitance - pF
rss
3
, C
oss
, C
iss
C
0.5
1
–0.3
–1 –3 –10 –40
DS
- Gate to Source Voltage - V
V
C
rss
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
–200
–100
t
r
–30
V
GS
= 0
Pulsed
100
- Switching Time - ns
f
50
, t
d(off)
, tr, t
20
d(on)
t
10
–6
–10
–30 –50 –100 –300
I
D
- Drain Current - mA
t
t
f
d(on)
t
d(off)
–10
–3
–1
- Diode Forward Current - mA
SD
I
–0.3
–0.1
–0.4
–0.5 –0.6 –0.7 –0.8 –0.9 –1.0 –1.1 –1.2 –1.3
SD
- Source to Drain Voltage - V
V
4
Page 5
2SJ243
