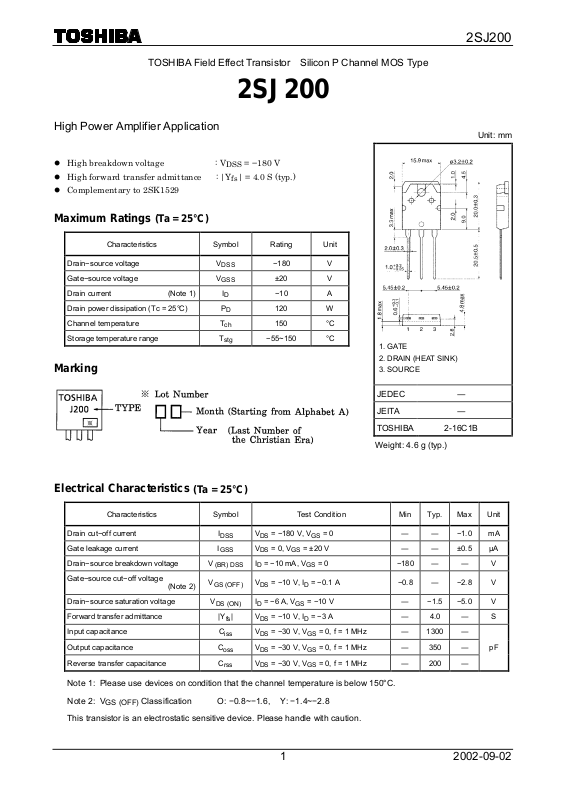

Page 1
TOSHIBA Field Effect Transistor Silicon P Channel MOS Type
2SJ200
2SJ200
High Power Amplifier Application
l High breakdown voltage : V
l High forward transfer admittance : |Y
l Complementary to 2SK1529
Maximum Ratings
Characteristics Symbol Rating Unit
Drain−source voltage V
Gate−source voltage V
Drain current (Note 1) ID −10 A
Drain power dissipation (Tc = 25°C) PD 120 W
Channel temperature Tch 150 °C
Storage temperature range T
(Ta = 25°C)
= −180 V
DSS
| = 4.0 S (typ.)
fs
−180 V
DSS
±20 V
GSS
−55~150 °C
stg
Marking
Unit: mm
1. GATE
2. DRAIN (HEAT SINK)
3. SOURCE
JEDEC ―
JEITA ―
TOSHIBA 2-16C1B
Weight: 4.6 g (typ.)
Electrical Characteristics
Characteristics Symbol Test Condition Min Typ. Max Unit
Drain cut−off current I
Gate leakage current I
Drain−source breakdown voltage V
Gate−source cut−off voltage
(Note 2)
Drain−source saturation voltage V
Forward transfer admittance |Yfs| VDS = −10 V, ID = −3 A ― 4.0 ― S
Input capacitance C
Output capacitance C
Reverse transfer capacitance C
(Ta = 25°C)
(BR) DSSID
V
GS (OFF) VDS
DS (ON)
VDS = −180 V, VGS = 0 ― ― −1.0 mA
DSS
VDS = 0, VGS = ±20 V ― ― ±0.5 µA
GSS
= −10 mA, VGS = 0 −180 ― ― V
= −10 V, ID = −0.1 A −0.8 ― −2.8 V
ID = −6 A, VGS = −10 V ― −1.5 −5.0 V
VDS = −30 V, VGS = 0, f = 1 MHz ― 1300 ―
iss
VDS = −30 V, VGS = 0, f = 1 MHz ― 350 ―
oss
VDS = −30 V, VGS = 0, f = 1 MHz ― 200 ―
rss
Note 1: Please use devices on condition that the channel temperature is below 150°C.
pF
Note 2: V
GS (OFF)
Classification O: −0.8~−1.6, Y: −1.4~−2.8
This transistor is an electrostatic sensitive device. Please handle with caution.
1
2002-09-02

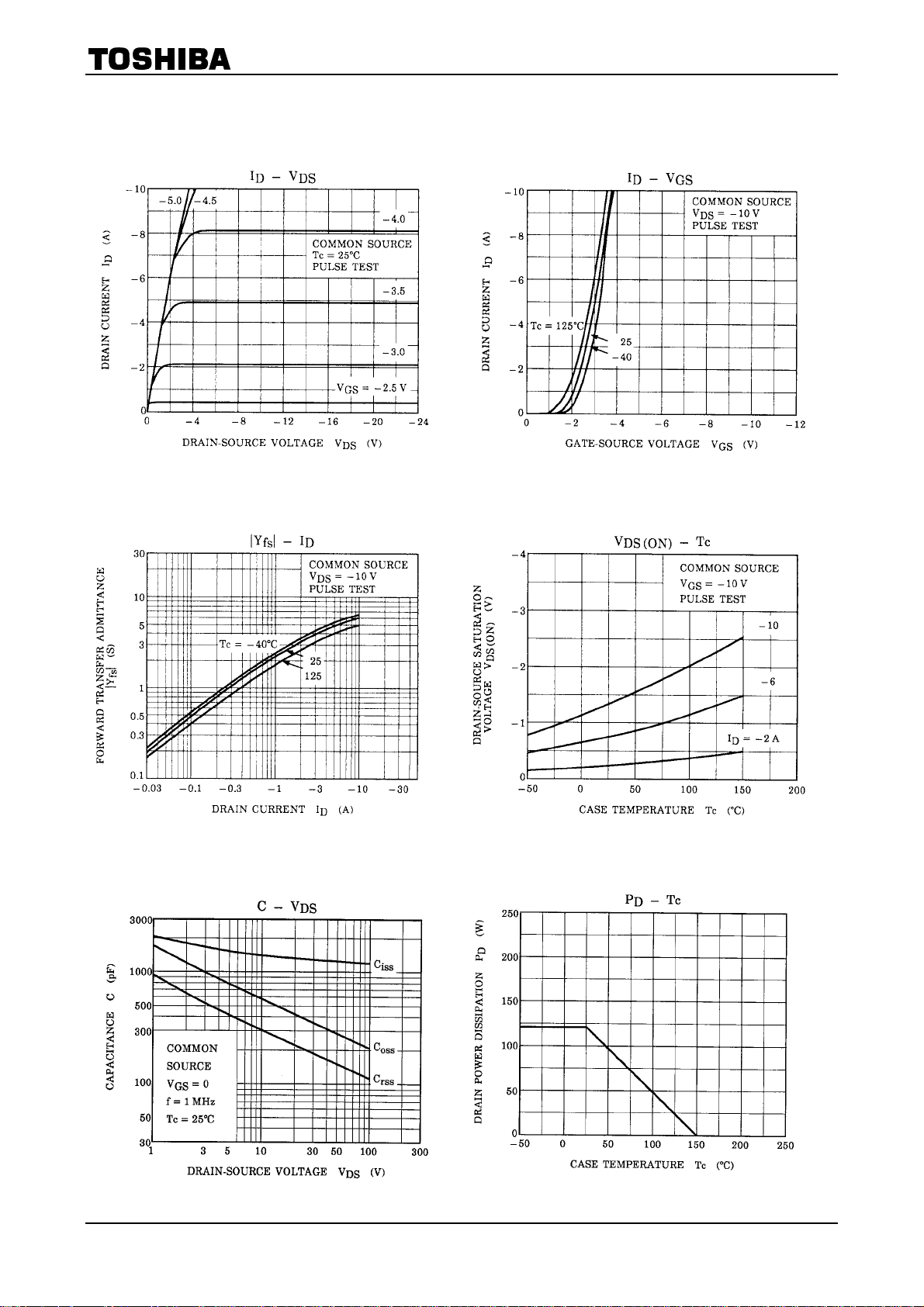

Page 2
2SJ200
2
2002-09-02
Page 3
2SJ200
Switching Time Test Circuit Waveforms
3
2002-09-02
