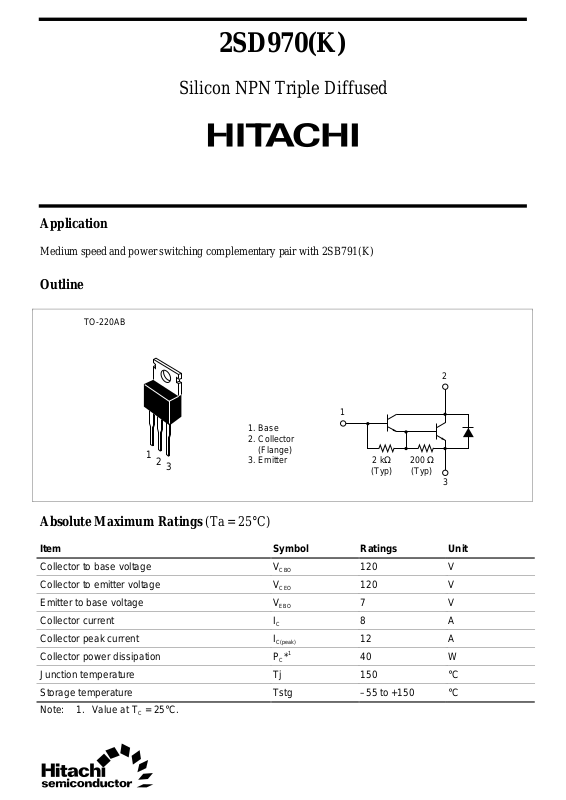

2SD970(K)
Silicon NPN Triple Diffused
Application
Medium speed and power switching complementary pair with 2SB791(K)
Outline
TO-220AB
2 k
200
1
2
3
1. Base
2. Collector (Flange)
3. Emitter
1
2
3
Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Ratings Unit
Collector to base voltage V
CBO
120 V
Collector to emitter voltage V
CEO
120 V
Emitter to base voltage V
EBO
7V
Collector current I
C
8A
Collector peak current I
C(peak)
12 A
Collector power dissipation PC*
1
40 W Junction temperature Tj 150 °C Storage temperature Tstg –55 to +150 °C
Note: 1. Value at TC = 25°C.
Page 2
2SD970(K)
2
Electrical Characteristics (Ta = 25°C)
Item Symbol Min Typ Max Unit Test conditions
Collector to emitter breakdown voltage
V
(BR)CEO
120 V IC = 25 mA, RBE =
Emitter to base breakdown voltage
V
(BR)EBO
7——VI
E
= 50 mA, IC = 0
Collector cutoff current I
CBO
100 µAV
CB
= 120 V, IE = 0
I
CEO
——10µAV
CE
= 100 V, RBE =
DC current transfer ratio h
FE
1000 20000 VCE = 3 V, IC = 4 A*
1
Collector to emitter saturation V
CE(sat)1
1.5 V IC = 4 A, IB = 8 mA*
1
voltage V
CE(sat)2
3.0 V IC = 8 A, IB = 80 mA*
1
Base to emitter saturation V
BE(sat)1
2.0 V IC = 4 A, IB = 8 mA*
1
voltage V
BE(sat)2
3.5 V IC = 8 A, IB = 80 mA*
1
Turn on time t
on
0.4 µsI
C
= 4 A, IB1 = –IB2 = 8 mA
Storage time t
stg
5.4 µs
Fall time t
f
1.1 µs
Note: 1. Pulse test.
0 50 100 150
Case temperature T
C
(°C)
Collector power dissipation Pc (W)
Maximum Collector Dissipation Curve
20
40
60
0.03
0.1
0.3
1.0
3
10
30
Collector to emitter voltage V
CE
(V)
Collector current I
C
(A)
1 3 10 30 100 300 1,000
Area of Safe Operation
1 µs
100 µs
1 ms
PW = 10 ms
DC Operation (T
C
= 25°C)
iC
(peak)
IC
max
(Continuous)
Ta = 25°C 1 shot pulse
Page 3
2SD970(K)
3
Collector to emitter voltage VCE (V)
Collector current I
C
(A)
0
Typical Output Characteristics
12345
2
4
6
8
10
TC = 25
°C
IB = 0
0.6 mA
2.0
P
C
= 25 W
1.8
1.6
1.4
1.2
1.0
0.8
100
300
1,000
3,000
10,000
Collector current I
C
(A)
DC current transfer ratio h
FE
0.1 0.3 1.0 3 10
DC Current Transfer Ratio
vs. Collector Current
T
C
= 75°C
25°C
–25°C
VCE = 3 V
0.1
0.2
0.5
1.0
2
5
10
Collector current I
C
(A)
0.1 0.2 0.5 1.0 2 5 10
Collector to emitter saturation voltage V
CE
(sat)
(V)
Base to emitter saturation voltage V
BE
(sat)
(V)
Saturation Voltage vs. Collector Current
VBE
(sat)
VCE
(sat)
lC/lB = 200
lC/lB = 500
500
200
TC = 25°C
0.01
0.03
0.1
0.3
1.0
3
10
Collector current I
C
(A)
Switching time t (µs)
0.1 0.3 1.0 3 10
Switching Time vs. Collector Current
Ta = 25°C V
CC
= 30 V
I
C
= 500 IB1 = –500 I
B2
t
f
t
on
t
stg
Page 4
2SD970(K)
4
0.01
0.03
0.1
0.3
1.0
3
10
Thermal resistance θ
j-c
(°C/W)
1 10 100 1,000 (s) 1 10 100 1,000 (ms)
Time t
Transient Thermal Resistance
1 to 1,000 ms
1 to 1,000 s
TC = 25°C
Page 5
0.5 ± 0.1
2.54 ± 0.5
0.76 ± 0.1
14.0 ± 0.5 15.0 ± 0.3
2.79 ± 0.218.5 ± 0.57.8 ± 0.5
10.16 ± 0.2
2.54 ± 0.5
1.26 ± 0.15
4.44 ± 0.2
2.7 MAX
1.5 MAX
11.5 MAX
9.5
8.0
1.27
6.4
+0.2
–0.1
φ 3.6
+0.1
-0.08
Hitachi Code JEDEC EIAJ Weight
(reference value)
TO-220AB Conforms Conforms
1.8 g
Unit: mm
Page 6
