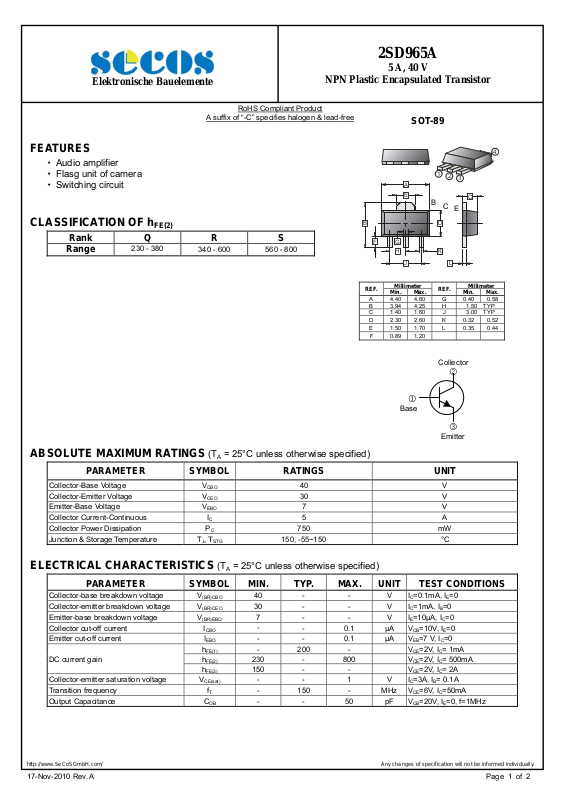

2SD965A
Elektronische Bauelemente
NPN Plastic Encapsulated Transistor
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
5 A, 40 V
SOT-89
FEATURES
Audio amplifier
Flasg unit of camera
Switching circuit
CLASSIFICATION OF h
Rank Q R S
Range
FE(2)
230 - 380
340 - 600 560 - 800
4
1
2
B
C
DB
KH
REF.
Collector
3
C
E
L
Millimete
A
E
F G
J
REF.
Millimeter
Min. Max. Min. Max.
A 4.40 4.60 G 0.40 0.58
B 3.94 4.25 H 1.50 TYP
C 1.40 1.60 J 3.00 TYP
D 2.30 2.60 K 0.32 0.52
E 1.50 1.70 L 0.35 0.44
F 0.89 1.20
Base
Emitter
ABSOLUTE MAXIMUM RATINGS (T
= 25°C unless otherwise specified)
A
PARAMETER SYMBOL RATINGS UNIT
Collector-Base Voltage V
Collector-Emitter Voltage V
Emitter-Base Voltage V
Collector Current-Continuous IC 5 A
Collector Power Dissipation PC 750 mW
Junction & Storage Temperature TJ, T
40 V
CBO
30 V
CEO
7 V
EBO
150, -55~150 °C
STG
ELECTRICAL CHARACTERISTICS
PARAMETER SYMBOL MIN. TYP. MAX. UNIT TEST CONDITIONS
Collector-base breakdown voltage V
Collector-emitter breakdown voltage V
Emitter-base breakdown voltage V
Collector cut-off current I
Emitter cut-off current I
DC current gain
Collector-emitter saturation voltage V
Transition frequency fT - 150 - MHz VCE=6V, IC=50mA
Output Capacitance COB - - 50 pF VCB=20V, IE=0, f=1MHz
(T
= 25°C unless otherwise specified)
A
40 - - V IC=0.1mA, IE=0
(BR)CBO
30 - - V IC=1mA, IB=0
(BR)CEO
7 - - V IE=10μA, IC=0
(BR)EBO
CBO
- - 0.1 μA VEB=7 V, IC=0
EBO
h
- 200 - VCE=2V, IC= 1mA
FE(1
h
230 - 800 VCE=2V, IC= 500mA
FE(2
h
150 - - VCE=2V, IC= 2A
FE(3
- - 1 V IC=3A, IB= 0.1A
CE(sat)
-
- 0.1 μA VCB=10V, IE=0
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
17-Nov-2010 Rev. A Page 1 of 2
Page 2
Elektronische Bauelemente
CHARACTERISTIC CURVES
2SD965A
NPN Plastic Encapsulated Transistor
5 A, 40 V
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
17-Nov-2010 Rev. A Page 2 of 2
