固电半导体
INCHANGE SEMICONDUTOR

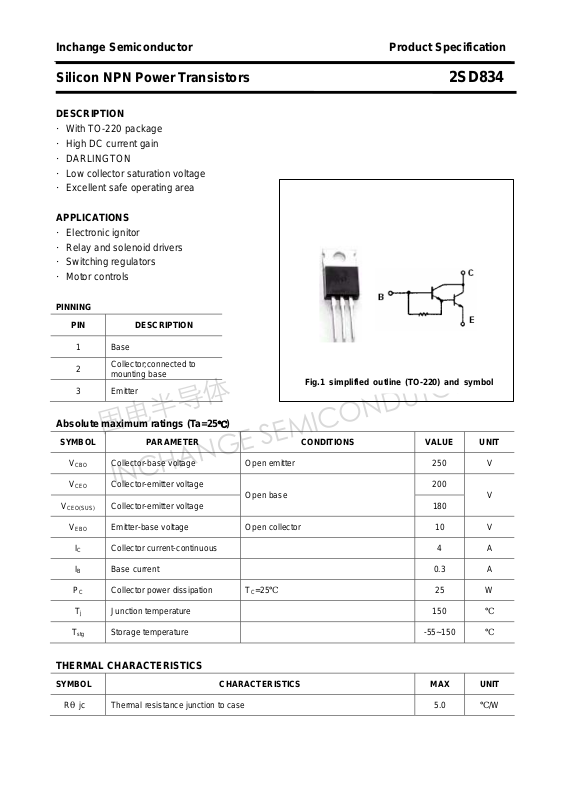

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD834
DESCRIPTION
·With TO-220 package
·High DC current gain
·DARLINGTON
·Low collector saturation voltage
·Excellent safe operating area
APPLICATIONS
·Electronic ignitor
·Relay and solenoid drivers
·Switching regulators
·Motor controls
PINNING
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base
Fig.1 simplified outline (TO-220) and symbol
Absolute maximum ratings (Ta=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
CEO(SUS)
V
EBO
IC Collector current-continuous 4 A
IB Base current 0.3 A
PC Collector power dissipation TC=25℃ 25 W
Collector-base voltage Open emitter 250 V
Collector-emitter voltage 200
Open base
Collector-emitter voltage
Emitter-base voltage Open collector 10 V
180
V
Tj Junction temperature 150 ℃
T
Storage temperature -55~150 ℃
stg
THERMAL CHARACTERISTICS
SYMBOL CHARACTERISTICS MAX UNIT
Rθjc Thermal resistance junction to case 5.0 ℃/W
Page 2
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD834
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
CEO(SUS)
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
Switching times
ton Turn-on time 1.7
Collector-emitter sustaining voltage IC=1A ; IB=0 180 V
Collector-emitter breakdown voltage IC=10mA ; IB=0 200 V
Collector-base breakdown voltage IC=0.1mA ; IE=0 250 V
Emitter-base breakdown voltage IE=10mA ; IC=0 10 V
Collector-emitter saturation voltage IC=2A;IB=2mA 1.5 V
Base-emitter saturation voltage IC=2A;IB=2mA 2.0 V
Collector cut-off current VCB=250V; IE=0 0.1 mA
Emitter cut-off current VEB=10V; IC=0 10 mA
DC current gain IC=2A ; VCE=2V 1500
μs
=2A;IB1=-IB2=5mA; RL=10Ω
I
ts Storage time 15.0
tf Fall time
C
PW=20μs;Duty≤2%
18.0
μs
μs
2
Page 3
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD834
PACKAGE OUTLINE
Fig.2 Outline dimensions (unindicated tolerance:±0.10 mm)
3
