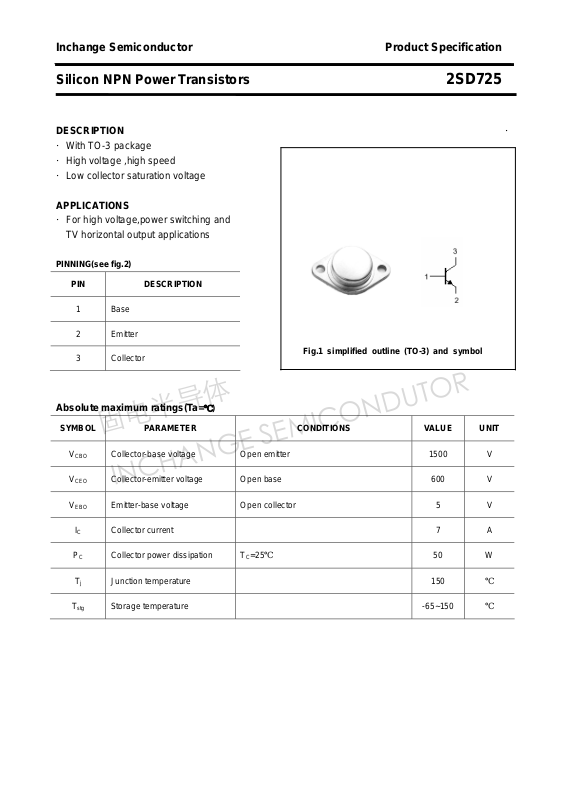

Page 1
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD725
DESCRIPTION ·
·With TO-3 package
·High voltage ,high speed
·Low collector saturation voltage
APPLICATIONS
·For high voltage,power switching and
TV horizontal output applications
PINNING(see fig.2)
PIN DESCRIPTION
1
2 Emitter
3 Collector
Base
Fig.1 simplified outline (TO-3) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 7 A
PC Collector power dissipation
Tj Junction temperature 150
Collector-base voltage Open emitter 1500 V
Collector-emitter voltage Open base 600 V
Emitter-base voltage Open collector 5 V
T
=25℃
C
50 W
℃
T
Storage temperature -65~150
stg
℃
Page 2
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD725
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
CEO(SUS)
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE-1
h
FE-2
Collector-emitter sustaining voltage IC=0.1A; IB=0 600 V
Emitter-base breakdown voltage IE=1mA; IC=0 5 V
Collector-emitter saturation voltage IC=5 A;IB=1 A 5.0 V
Base-emitter saturation voltage IC=5 A;IB=1 A 1.5 V
Collector cut-off current VCB=800V;IE=0 10
Emitter cut-off current VEB=5V; IC=0 0.1 mA
DC current gain IC=1A ; VCE=5V 8 36
DC current gain IC=5A ; VCE=5V 5
μA
2
Page 3
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD725
PACKAGE OUTLINE

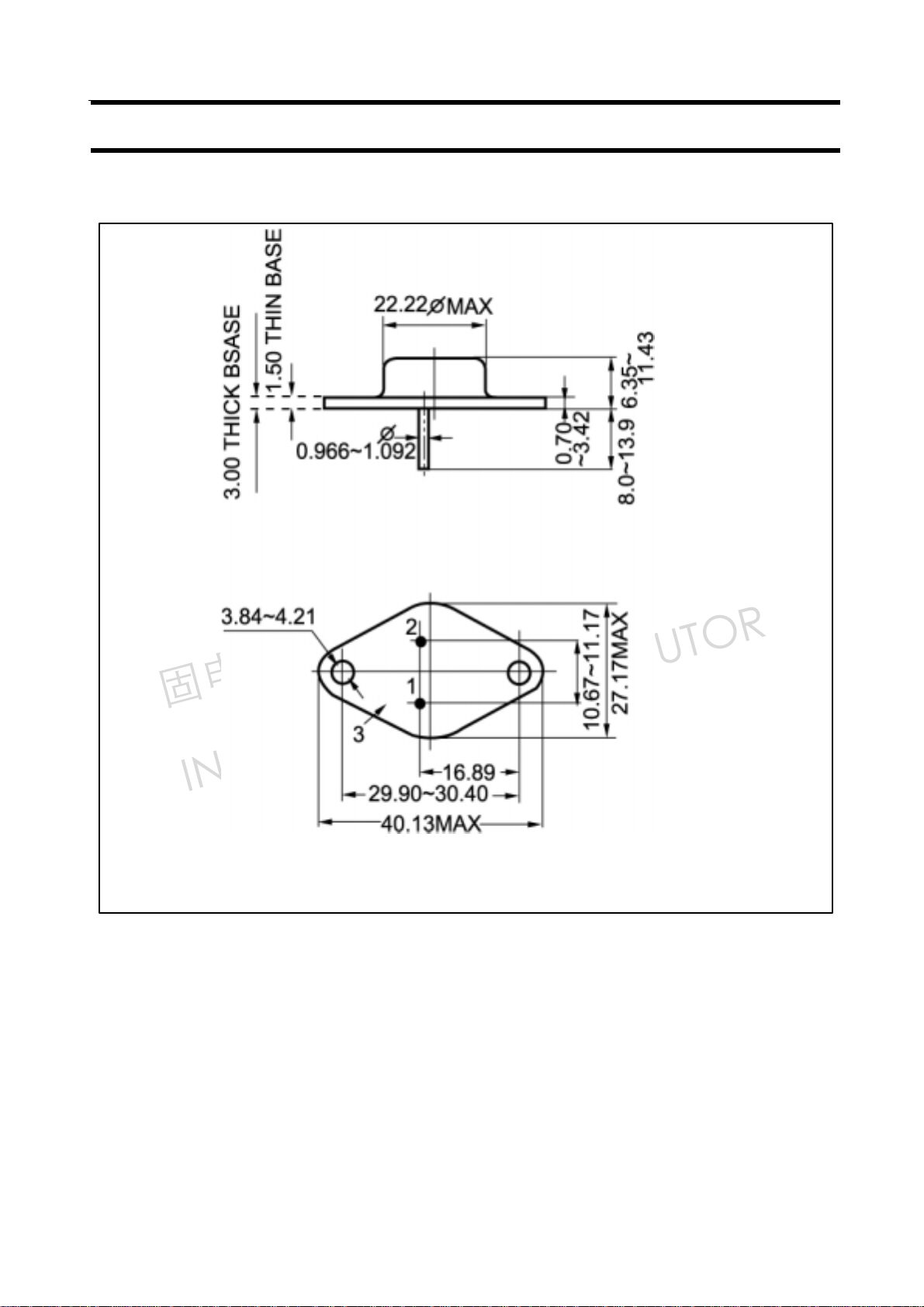

Fig.2 Outline dimensions
3
