固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD669 2SD669A
DESCRIPTION ·
·With TO-126 package
·Complement to type 2SB649/649A
·High breakdown voltage V
·High current 1.5A
·Low saturation voltage,excellent h
APPLICATIONS
·For low-frequency power
amplifier applications
PINNING
PIN DESCRIPTION
120/160V
CEO:
linearity
FE
1
2
3 Base
Emitter
Collector;connected to
mounting base
Absolute maximum ratings(Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current (DC) 1.5 A
ICM Collector current-peak 3 A
PD Total power dissipation
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage Open collector 5 V
℃)
2SD669 180
Open emitter
2SD669A
2SD669 120
Open base
2SD669A
Ta=25℃
TC=25℃
180
160
1
20
V
V
W
Tj Junction temperature 150
T
Storage temperature -55~150
stg
℃
℃
Page 2
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD669 2SD669A
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
VBE Base-emitter on voltage IC=150mA ; VCE=5V 1.5 V
I
CBO
h
FE-1
h
FE-2
fT Transition frequency IC=150mA ; VCE=5V 140 MHz
Collector-emitter
breakdown voltage
Collector-base
breakdown voltage
Emitter-base breakdown voltage IE=1mA ;IC=0 5 V
Collector-emitter saturation voltage IC=0.5A ;IB=50mA 1.0 V
Collector cut-off current VCB=160V; IE=0 10
DC current gain
DC current gain IC=0.5A ; VCE=5V 30
2SD669 120
I
=10mA; RBE=∞
C
2SD669A
2SD669 180
IC=1m A ;IE=0
2SD669A
2SD669 60 320
IC=150mA ; VCE=5V
2SD669A
160
180
60
V
V
μA
200
COB Collector output capacitance f=1MHz ; VCB=10V 14 pF
h
Classifications
FE
B C D
h
FE-1
2SB649 60-120 100-200 160-320
2SB649A 60-120 100-200
2
Page 3
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD669 2SD669A

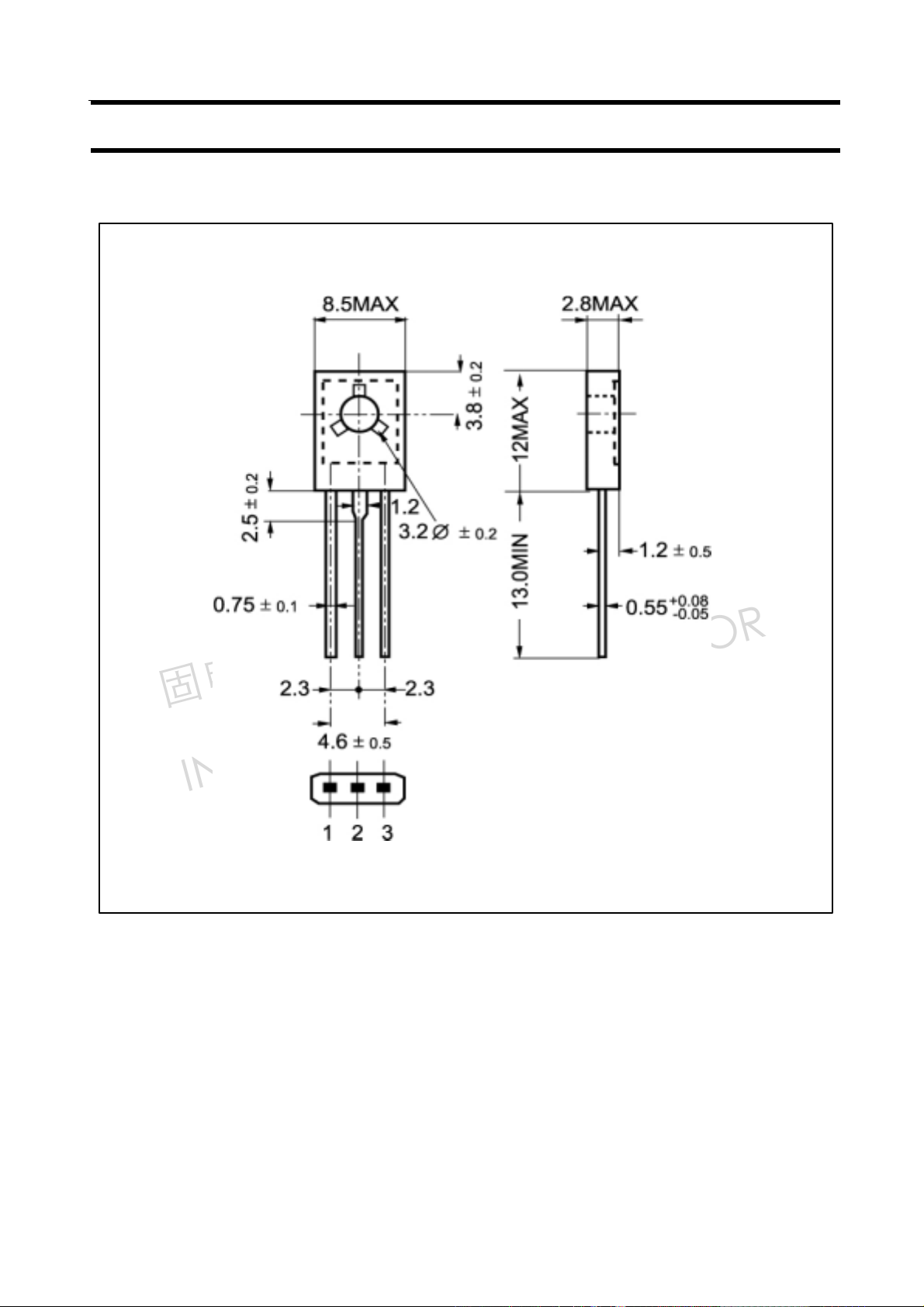

PACKAGE OUTLINE
Fig.2 Outline dimensions
3
Page 4
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD669 2SD669A
4
Page 5
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD669 2SD669A
5
